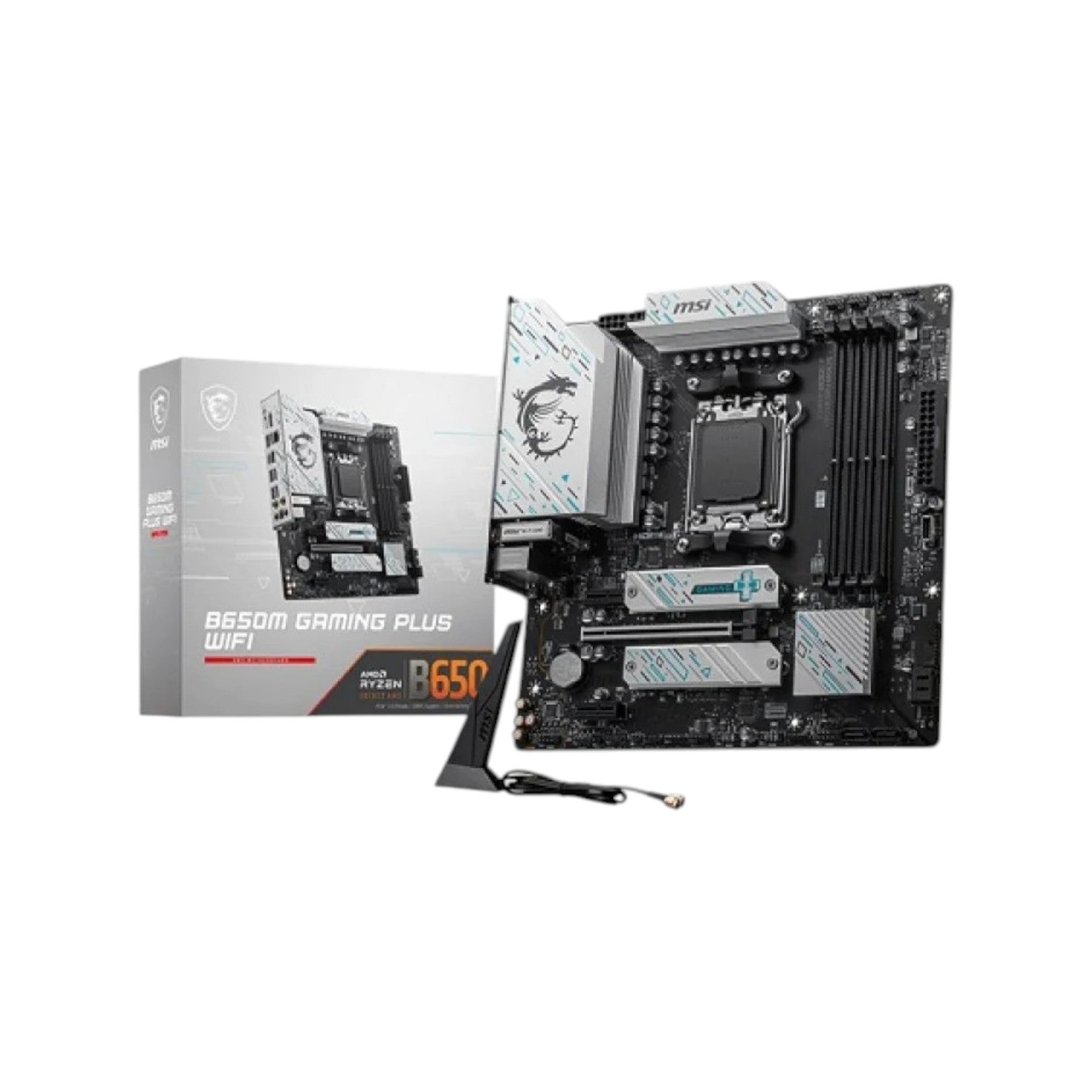

MSI B650M GAMING PLUS WIFI AM5 Motherboard

Brand: MSI (AMD)
SKU: B650M GAMING PLUS WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4

Tk 20,999
Tk 22,500
Tk 20,999
Subtotal: Tk 20,999

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory 256GB



Graphics

Graphics Support HDMI 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices

Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years Warranty

Description

MSI B650M GAMING PLUS WIFI AM5 Motherboard

The MSI B650M GAMING PLUS WIFI AM5 motherboard is a powerful and high-performance platform designed for gamers and desktop users who demand speed, stability, and efficiency. It supports AMD Ryzen 8000 and 7000 Series Desktop Processors and DDR5 memory, achieving speeds up to 7200+(OC) MHz for exceptional performance in gaming and multitasking. The motherboard features a 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies to ensure consistent power delivery and enhanced stability during heavy workloads.

Engineered for seamless gaming, it includes PCIe 4.0 slots, Lightning Gen4 M.2, and USB 3.2 Gen 2 connectivity, offering lightning-fast data transfer speeds and smooth gameplay experiences. The premium thermal solution features an extended heatsink design and M.2 Shield Frozr, maintaining optimal temperatures even under demanding conditions. With AUDIO BOOST technology, the motherboard delivers studio-grade sound quality for a truly immersive gaming experience. Built with a 6-layer PCB made from 2oz thickened copper, the MSI B650M GAMING PLUS WIFI ensures excellent durability and long-term reliability.

Buy MSI B650M GAMING PLUS WIFI AM5 Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B650M GAMING PLUS WIFI AM5 Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI B650M GAMING PLUS WIFI Motherboard comes with 3 years warranty.
