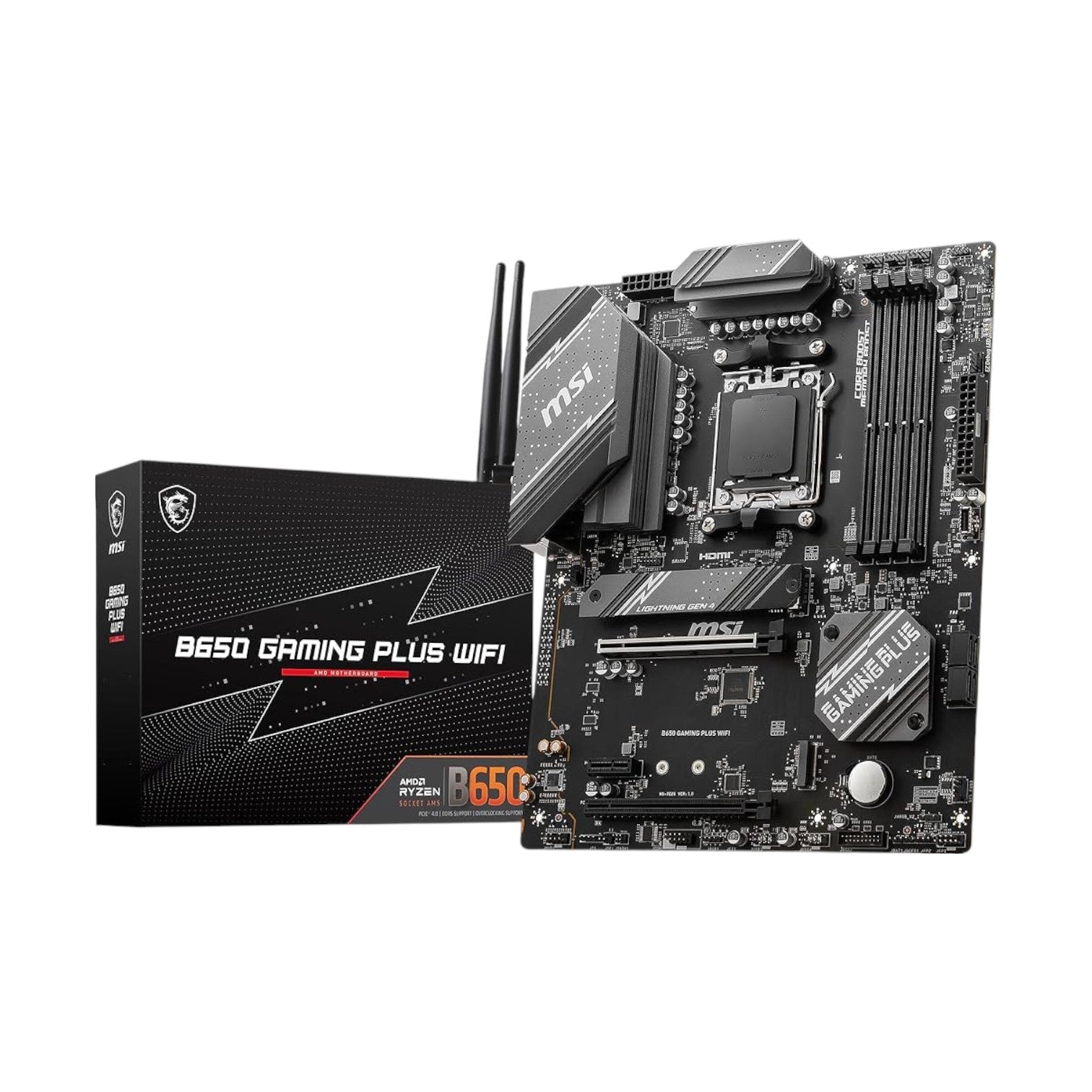

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard

Brand: MSI (AMD)
SKU: B650 GAMING PLUS WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5 6000+(OC) MHz
Features: 2.5G LAN with Wi-Fi 6E Solution
Graphics Output: 1x HDMI, 1x Display Port
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Tk 22,500
Tk 22,900
Tk 22,500
Subtotal: Tk 22,500

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory 192GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz
AMD MULTI-GPU Support



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 8125BG 2.5G LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard

The MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard supports AMD Ryzen 8000 and 7000 Series Desktop Processors. It supports DDR5 memory, allowing for dual-channel DDR5 operation at speeds of 6000+MHz (OC). The motherboard features an enhanced power design with a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for stable and efficient performance. It also incorporates a premium thermal solution with an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, ensuring optimal cooling for high-performance systems. The MSI B650 GAMING PLUS WIFI Motherboard provides lightning-fast gaming experiences with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G connectivity. It also includes a 2.5G LAN with Wi-Fi 6E Solution for upgraded network capabilities, delivering a secure, stable, and fast network connection. The MSI B650 GAMING PLUS WIFI motherboard is built with a high-quality PCB, featuring a 6-layer design made with 2oz thickened copper for durability and reliability. It supports Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience.

Buy MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards to purchase for your Desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI B650 GAMING PLUS WIFI Motherboard comes with 3 years warranty.
