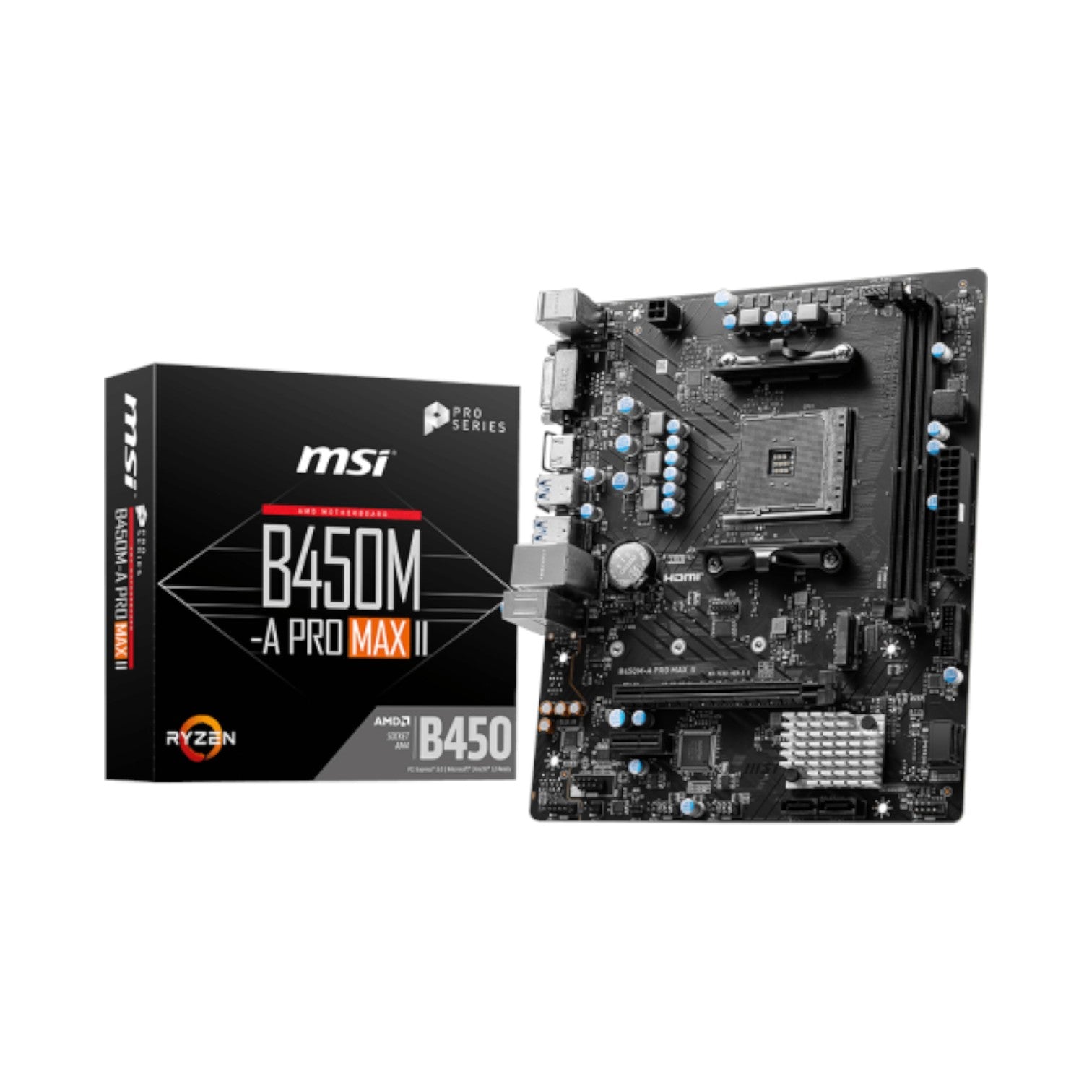

MSI B450M-A PRO MAX II AMD AM4 Motherboard

Brand: MSI (AMD)
SKU: B450M-A PRO MAX II
Availability: In stock

Key Features

Graphics Output: 1 x HDMI, 1x DVI
Features: 1 x M.2 Slot, Realtek 8125 2.5Gbps LAN
Supported RAM: 2x DDR4, up to 4133 (OC) MHz
Supported CPU: Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G-Series Processors

Tk 8,500
Tk 8,700
Tk 8,500
Subtotal: Tk 8,500

Specification

Basic Information

Supported CPU Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors
Socket AM4
Chipset AMD B450
Form Factor mATX
200mmx236mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio



Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)



Memory

Type DDR4
Slots 2
Supported Memory Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
Supports Dual-Channel mode
Supports non-ECC, UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory 64GB



Graphics

Graphics 1x HDMI
Support HDMITM 1.4, maximum resolution of 4K 24Hz
1x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz



Connector & Ports

HDMI 1x HDMI
DVI-D (s) 1x DVI
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) Realtek 8125 2.5Gbps LAN controller
Supported Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Warranty

Manufacturing Warranty 03 Years Warranty

Description

MSI B450M-A PRO MAX II AMD AM4 Motherboard

The MSI B450M-A PRO MAX II AMD AM4 Motherboard is designed to support a wide range of processors, from AMD Ryzen 5000 Series to Athlon with Radeon Vega Graphics desktop processors, providing excellent versatility. With support for DDR4 memory up to 4133 (OC) MHz, it delivers fast and efficient performance for both work and gaming. The Turbo M.2 feature, running at PCIe Gen3 x4, maximizes the performance of NVMe-based SSDs for rapid storage access. Enjoy studio-grade sound quality with Audio Boost, while the 2.5G LAN ensures an upgraded network experience for professional and multimedia use.

X-Boost software detects and enhances the performance of storage and USB devices, adding convenience and efficiency to your system. With Core Boost, the motherboard combines a premium layout with a fully digital power design, providing strong support for multi-core processors and improved overall performance. The MSI B450M-A PRO MAX II AMD AM4 Motherboard offers the perfect combination of aesthetics, power, and functionality for a dynamic computing experience.

Buy MSI B450M-A PRO MAX II AMD AM4 Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI B450M-A PRO MAX II AMD AM4 Motherboard from Tech Buy BD. We offer a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI B450M-A PRO MAX II AMD AM4 Motherboard comes with a 3-year warranty.
