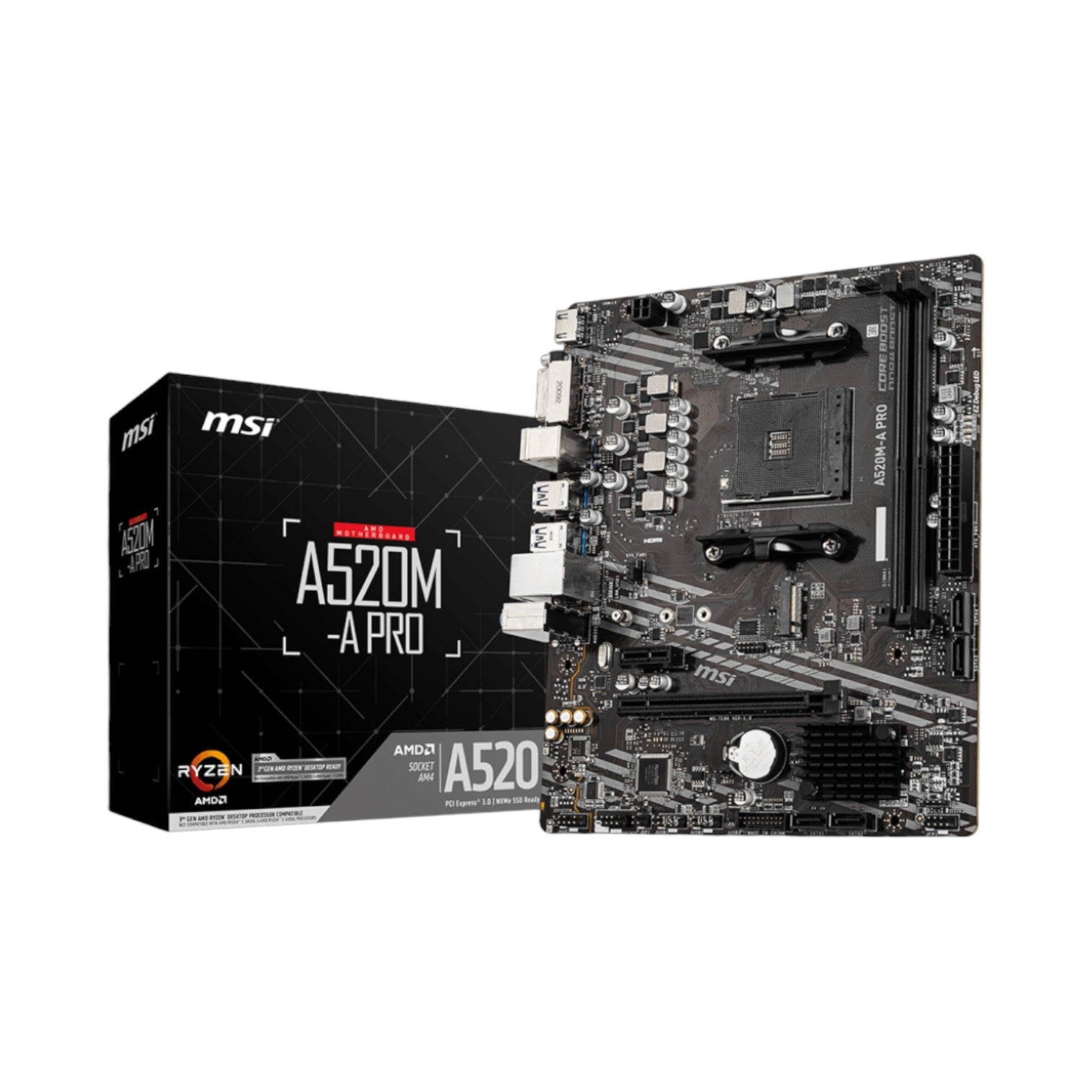

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

Brand: MSI (AMD)
Availability: In stock

Key Features

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Supports up to 4600(OC) MHz RAM
PCB with 2OZ Thickened Copper
Core Boost, Turbo M.2 & Audio Boost

Tk 8,100
Tk 8,550
Tk 8,100
Subtotal: Tk 8,100

Specification

Basic Information

Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B520
Form Factor Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)



Expansion Slots

PCI 1x PCIe 3.0 x1 slot
1x PCIe x16 slot
M.2 Socket 1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices



Memory

Type Dual-channel memory architecture
Slots 2x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory 64GB



Graphics

Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Max Shared Memory 16GB



Connector & Ports

HDMI 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
DVI-D (s) 1x DVI-D port, maximum resolution of 1920x1200@60Hz
USB (s) AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8111H Gigabit LAN controller
Supported Storage AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
TPM (Trusted Platform Module ) 1xTPM module connector



Others

Special Features RAID:
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices



Warranty

Warranty 03 Years Warranty

Description

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

The MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard from the PRO series is designed to help users work smarter by delivering an efficient and productive computing experience. Built with stable functionality and high-quality assembly, PRO series motherboards provide optimized workflows, reduced troubleshooting, and long-lasting durability. This motherboard allows you to manage speeds and temperatures for all your system and CPU fans with Total Fan Control, which provides a simplified graphical interface to monitor your system. You can also set up to four temperature targets for the CPU and motherboard, automatically adjusting fan speeds for optimal cooling.

MSI PRO Series motherboards support the latest storage standards, enabling connection to any ultra-fast storage device. An enhanced PCB design with 2oz thickened copper increases conductivity, improves heat dissipation, and ensures reliable performance, especially during overclocking. MSI OC LAB enhances extreme overclocking capabilities, and compared to the A320 motherboard memory A-XMP profile, the A520 motherboard delivers significant improvements in memory performance and efficiency. Enabling the A-XMP profile with automatic power settings allows you to achieve the best memory speed and stability.

Core Boost technology combines MSI's premium layout with an optimized power design, delivering precise and stable current to the CPU. This ensures strong support for multi-core processors and creates ideal conditions for CPU overclocking, allowing your system to reach its full performance potential.

Buy MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard from Tech Buy BD. We have a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI A520M-A Pro Motherboard comes with a 3-year warranty.
