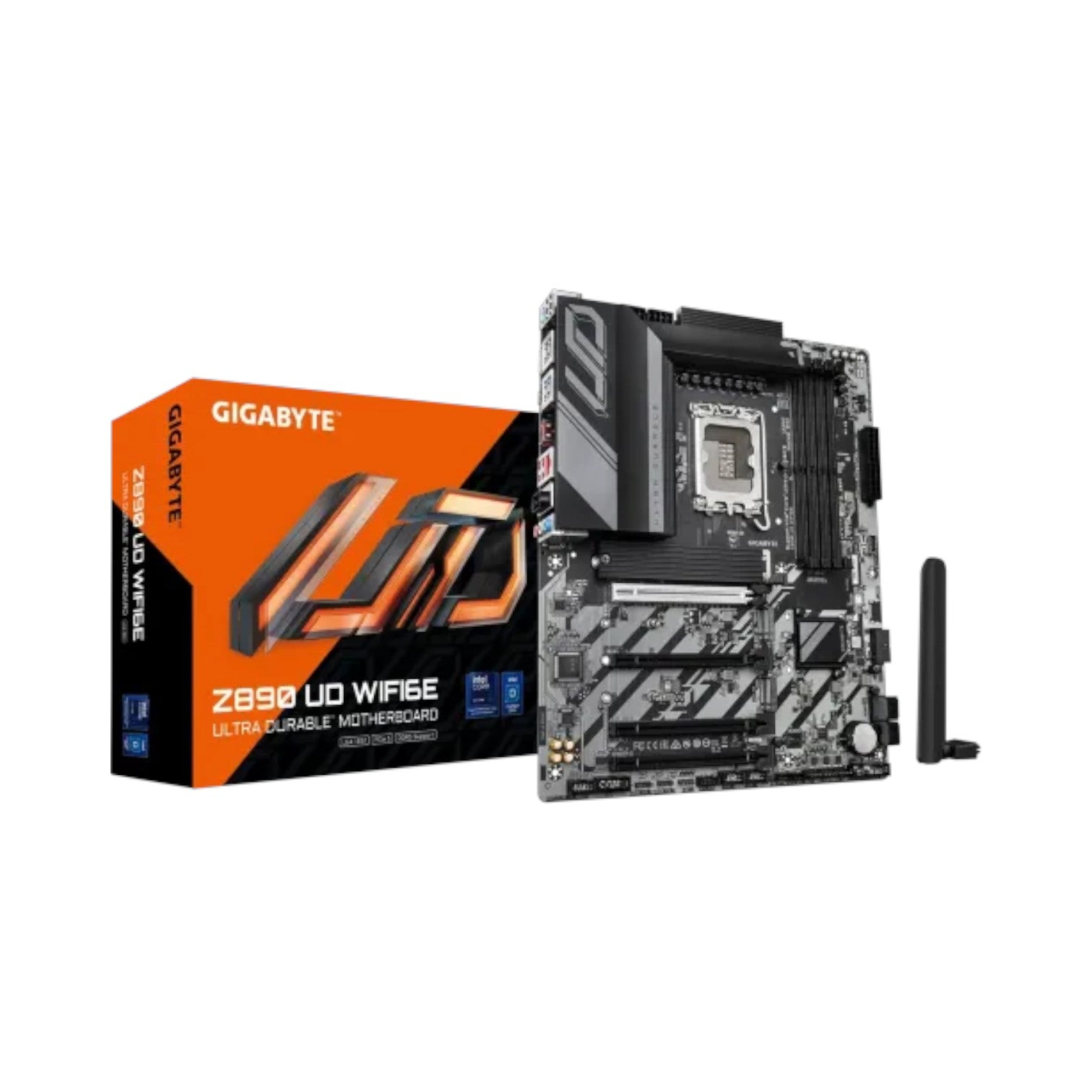

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890 UD WIFI6E
Availability: In stock

Key Features

Features: 3x M.2 slots, Wi-Fi 6E, Bluetooth 5.3
Graphics Output: 1x USB4 USB Type-C, 1x DisplayPort
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket

Ask an expert
Tk 34,000
Tk 34,500
Tk 34,000
Subtotal: Tk 34,000
Description

Specification

Basic Information

Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU
Chipset Intel Z890 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version



Connector & Ports

Display Port (s) 1 x DisplayPort
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x USB4® USB Type-C® port (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years warranty

Description

Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard

The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard is a high-performance platform engineered to deliver outstanding speed, reliability, and versatility for gamers, creators, and professionals. Designed to support the latest Intel Core Ultra (Series 2) processors with the LGA1851 socket, it combines next-generation performance with superior efficiency and cutting-edge features. Its advanced digital twin 12+1+2 phase VRM architecture ensures stable power delivery, while D5 Bionic Corsa technology enhances DDR5 memory performance for ultra-fast data handling and smooth multitasking.

Supporting up to 256GB of DDR5 memory across four DIMM slots with XMP profile compatibility, this motherboard allows users to achieve optimized speeds and overclocking potential. The Gigabyte Z890 UD WIFI6E also features AI Perfdrive for intelligent BIOS preset optimization, delivering a balance of performance and energy efficiency. Its user-friendly BIOS includes multi-theme support, AIO fan control, and Q-Flash Auto Scan for effortless updates and customization.

For storage, the motherboard offers three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 x4 slots, providing blazing-fast NVMe SSD performance. Expansion is equally flexible, featuring multiple PCIe slots for GPU and peripheral installations, including an EZ-Latch PCIe x16 slot that enables quick, tool-free graphics card installation.

Connectivity is a major strength of the Z890 UD WIFI6E. It comes equipped with Wi-Fi 6E (802.11ax) and 2.5GbE LAN for ultra-fast, low-latency networking, making it ideal for gaming, streaming, and content creation. USB4 Type-C and DisplayPort interfaces enable high-speed data transfer and multi-display support, while Intel HD Graphics compatibility allows for crystal-clear visuals at up to 4K resolutions.

Thermal management is top-tier with VRM Thermal Armor Advanced and M.2 Thermal Guard, maintaining cool and stable operation during heavy workloads. The board also includes RGB headers, multiple fan and pump connectors, and customizable lighting options to match any build aesthetic. Audio is powered by a Realtek High Definition Audio CODEC, delivering immersive multi-channel sound for gaming and media.

Additional standout features include real-time CPU power phase monitoring via HWinfo’s new power monitor, Thunderbolt add-in card support, and Norton Internet Security pre-installed for added protection. Fully compatible with Windows 11 64-bit, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard offers a solid, future-proof foundation for building a high-performance PC that excels in gaming, content creation, and professional workloads.

Buy the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
