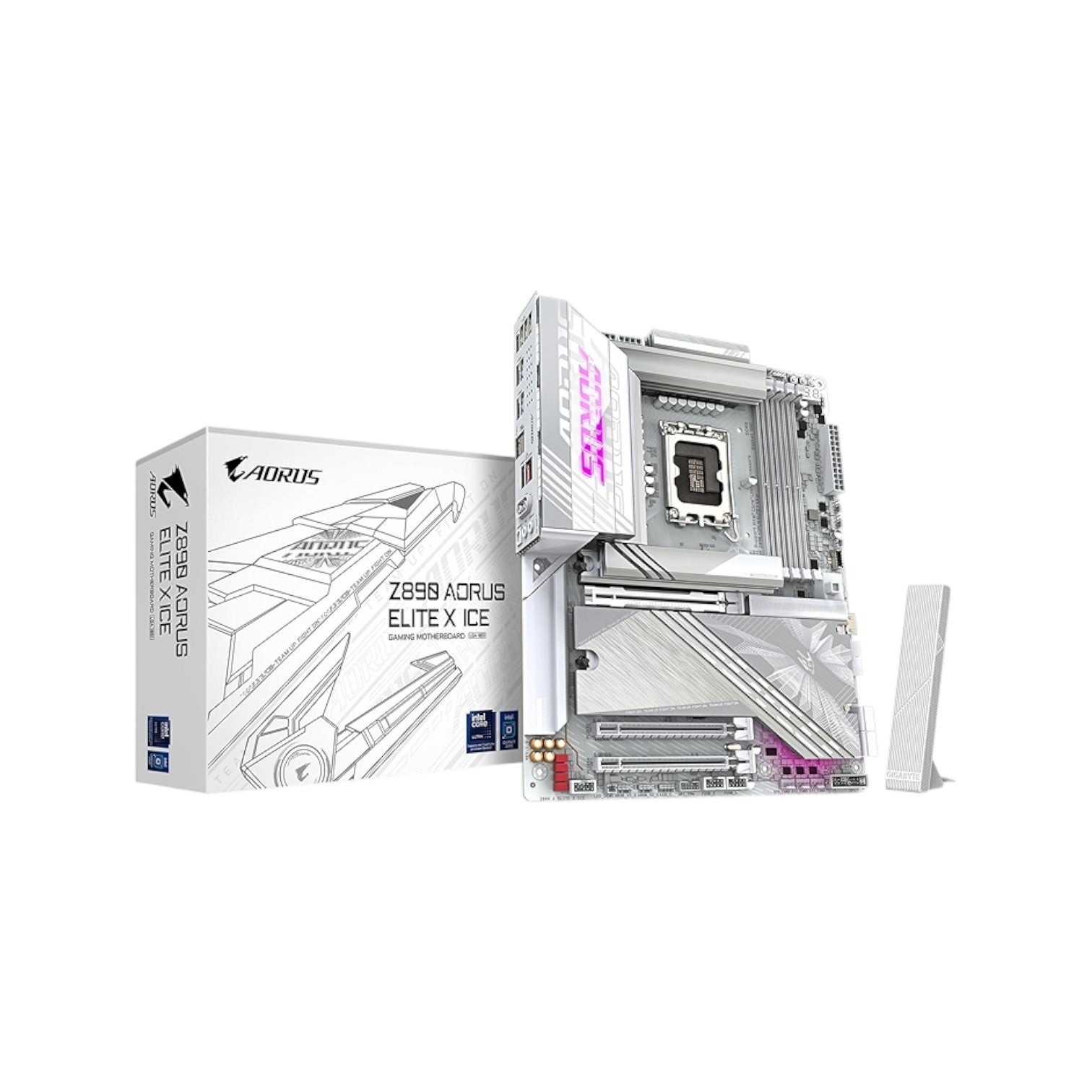

Gigabyte Z890 AORUS ELITE X ICE WIFI7 LGA 1851 ATX Motherboard

Gigabyte Z890 AORUS ELITE X ICE WIFI7 LGA 1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890 AORUS ELITE X ICE
Availability: In stock

Key Features

Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9500(O.C)
Graphics Output: 1x HDMI, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),

Ask an expert
Tk 47,200
Tk 48,000
Tk 47,200
Subtotal: Tk 47,200
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Maximum Memory 256GB



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs
(Please use a processor with integrated graphics support to ensure full Thunderbolt™ functionality.)

When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz



Connector & Ports

HDMI 1 x HDMI
USB (s) CPU:
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+3 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Supported Storage - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x HDMI port (Note)
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x noise detection header
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

Back Panel Connectors
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x Intel® Thunderbolt™ 4 (Note) connectors (USB Type-C® ports)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

Gigabyte Z890 AORUS ELITE X ICE WIFI7 LGA 1851 ATX Motherboard

The Gigabyte Z890 AORUS ELITE X ICE WIFI7 LGA 1851 ATX Motherboard is a next-generation flagship designed for power users, gamers, and professionals who demand top-tier performance and cutting-edge technology. Built around the Intel Z890 chipset and the latest LGA1851 socket, it fully supports Intel Core Ultra (Series 2) processors, delivering superior speed, stability, and scalability for high-performance computing.

This Gigabyte motherboard supports DDR5 memory with overclocking speeds of up to 9200 MT/s, ensuring lightning-fast data transfer and smooth multitasking for intensive workloads such as gaming, rendering, and content creation. With five M.2 slots, including one PCIe 5.0 x4 slot, it provides ample storage expansion and ultra-fast NVMe SSD performance. These next-gen storage options significantly reduce load times and enhance productivity for demanding users.

For connectivity, the Gigabyte Z890 AORUS ELITE X ICE WIFI7 offers both Wi-Fi 7 with a directional ultra-high gain antenna and 2.5GbE LAN, ensuring seamless, high-speed networking with ultra-low latency. It also includes Thunderbolt 4 Type-C, HDMI, and DisplayPort interfaces, delivering flexible display and communication options for multiple monitor setups and high-bandwidth peripherals.

Equipped with innovative AI-powered technologies, this motherboard takes performance optimization to the next level. AORUS AI SNATCH provides intelligent automatic overclocking, while AI Perfdrive offers smart BIOS profiles to balance performance, power efficiency, and stability effortlessly. These tools allow users to achieve maximum system potential with minimal manual tuning.

Cooling and durability are at the core of its design, featuring VRM Thermal Armor and M.2 Thermal Guard L for advanced heat dissipation. These cooling solutions ensure reliable performance even under the most demanding conditions, maintaining stable temperatures and prolonging component lifespan. Additionally, Smart Fan 6 technology allows precise thermal management through multiple sensors and customizable fan control profiles.

DIY enthusiasts will appreciate Gigabyte’s EZ-Latch Plus and EZ-Latch Click systems, enabling quick, tool-free installation of PCIe cards and M.2 drives. The board also includes customizable RGB lighting support, allowing users to personalize their setup with vibrant illumination effects through RGB Fusion.

Combining cutting-edge innovation, premium build quality, and AI-driven optimization, the Gigabyte Z890 AORUS ELITE X ICE WIFI7 LGA 1851 ATX Motherboard stands as a benchmark for next-generation computing. Whether you’re building a high-end gaming rig or a professional workstation, it provides the perfect foundation for unmatched performance and reliability.

Buy the Gigabyte Z890 AORUS ELITE X ICE WIFI7 LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
