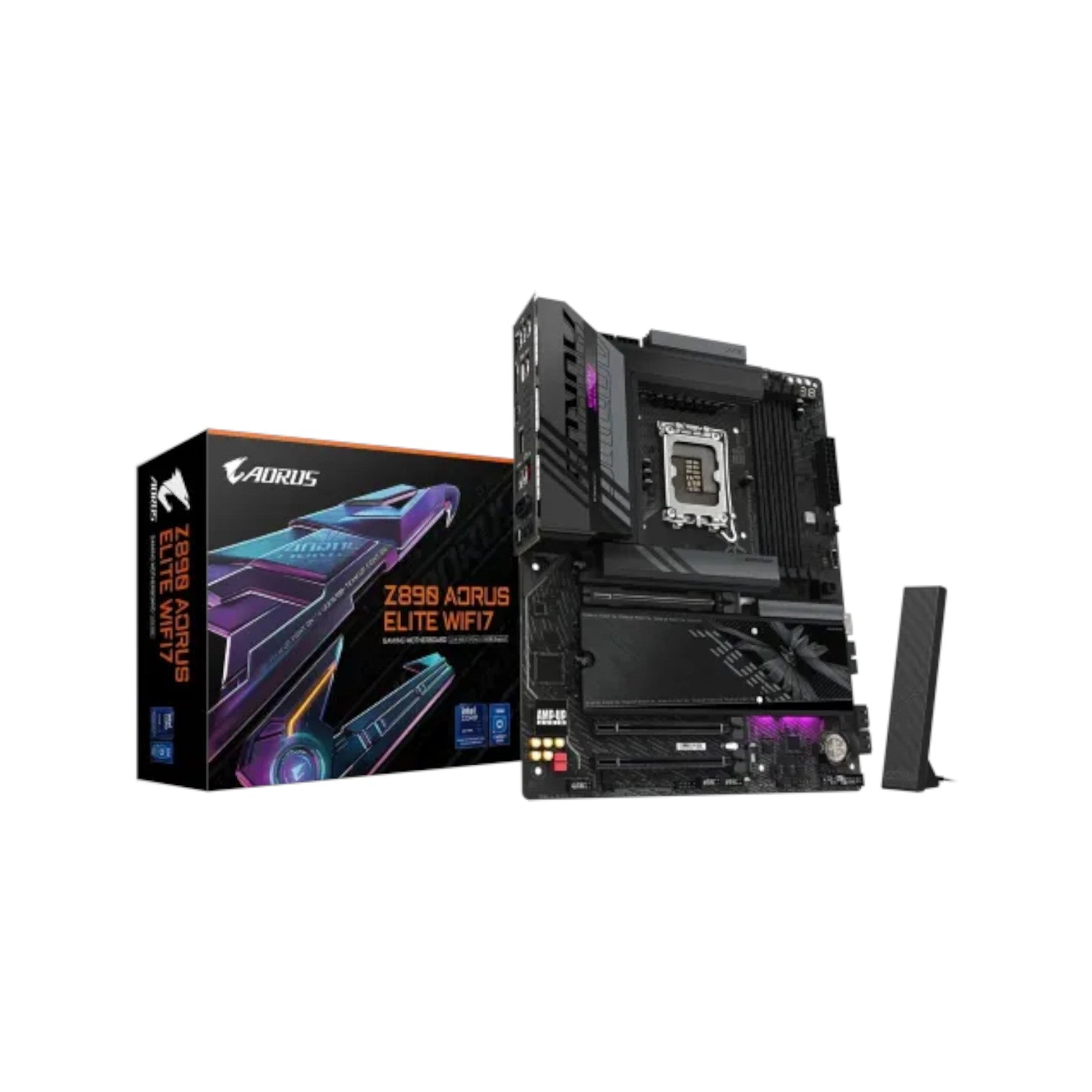

Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard

SKU: Z890 AORUS ELITE WIFI7
Availability: Out Of Stock

Key Features

Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),

Tk 42,500
Tk 43,200
Tk 42,500
Subtotal: Tk 42,500

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory 256GB



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version


- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Supported Storage - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard

The Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard is a next-generation performance platform built to unleash the full potential of Intel’s latest Arrow Lake-S processors. Featuring the advanced LGA1851 socket and Intel Z890 chipset, it combines cutting-edge technologies, ultra-fast connectivity, and superior build quality, making it ideal for gamers, creators, and performance enthusiasts.

Supporting DDR5 memory, this motherboard ensures exceptional data transfer speeds, enhanced bandwidth, and superior multitasking efficiency. It accommodates up to 256GB of DDR5 RAM across four DIMM slots, ensuring smooth performance in even the most demanding applications. For storage, the Gigabyte Z890 AORUS ELITE WIFI7 includes four M.2 slots, one of which supports PCIe 5.0 x4 for ultra-fast NVMe SSDs, providing blazing load times and maximum responsiveness for modern workflows and gaming setups.

Networking capabilities are future-ready with integrated Wi-Fi 7 featuring a directional ultra-high gain antenna and Realtek 2.5GbE LAN, offering lightning-fast connectivity and low-latency performance for online gaming, streaming, and large file transfers. The motherboard also features Thunderbolt 4 Type-C with DisplayPort Alt Mode and DisplayPort outputs, ensuring versatile high-speed connectivity for external devices, displays, and peripherals.

The Z890 AORUS ELITE WIFI7 is designed with superior thermal efficiency in mind, equipped with VRM Thermal Armor and M.2 Thermal Guard technologies to maintain optimal temperatures even under heavy workloads. These advanced cooling solutions ensure stable and consistent performance during extended gaming or rendering sessions.

Audio performance is equally premium, with high-resolution sound powered by the ALC1220 audio codec and WIMA audiophile-grade capacitors, providing crisp, immersive audio for an enhanced entertainment and gaming experience.

For user convenience, Gigabyte’s EZ-Latch Plus and EZ-Latch Click systems enable quick, tool-less installation and removal of PCIe cards and M.2 drives, simplifying the building and upgrading process. Additionally, customizable RGB lighting headers allow for personal aesthetic customization, perfectly complementing high-end gaming setups.

Combining cutting-edge performance, superior connectivity, and user-friendly design, the Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard stands as a true powerhouse for next-generation PC builds. Whether for gaming, creative production, or heavy multitasking, it provides the stability, speed, and innovation required to deliver an exceptional computing experience.

Buy the Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
