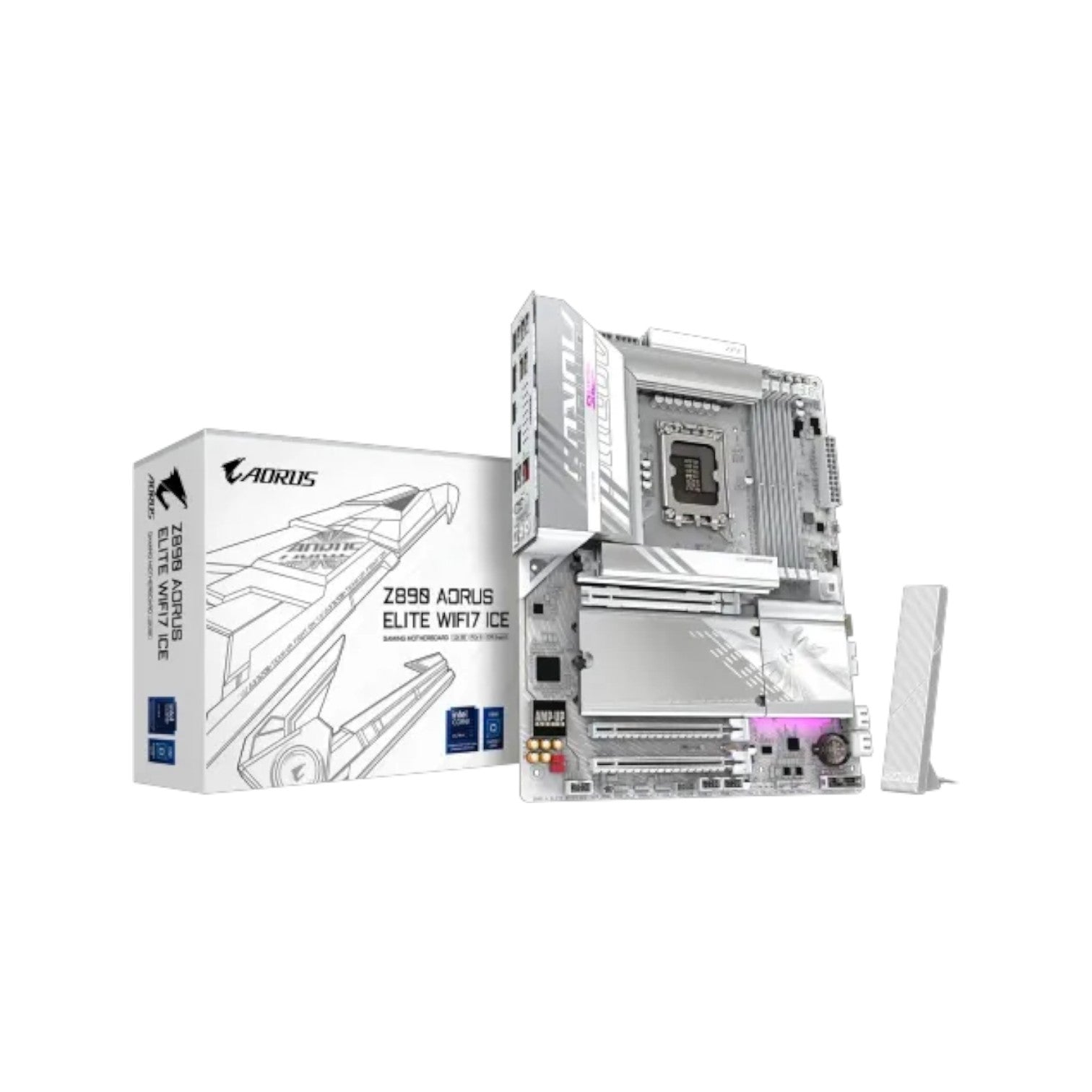

Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard

Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890 AORUS ELITE WIFI7 ICE
Availability: In stock

Key Features

Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output: 1x HDMI, 1x DisplayPort, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),

Ask an expert
Tk 44,200
Tk 44,800
Tk 44,200
Subtotal: Tk 44,200
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory 256GB



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version


- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Supported Storage - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard

The Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard is a next-generation powerhouse built to deliver cutting-edge performance for Intel’s Arrow Lake-S processors. Equipped with the new LGA1851 socket and Intel Z890 chipset, it combines innovation, power efficiency, and high-speed connectivity to meet the demands of gamers, creators, and professionals who seek ultimate performance and reliability.

This motherboard supports the latest DDR5 memory technology, offering exceptional speeds and stability for next-level multitasking and performance. With four DIMM slots supporting up to 256GB of DDR5 RAM, it provides blazing-fast data transfer rates and smoother system responsiveness for demanding workloads such as gaming, video editing, and 3D rendering. Storage capabilities are equally impressive, with four M.2 slots including one PCIe 5.0 x4 slot, ensuring ultra-fast access times and top-tier NVMe SSD performance for enhanced productivity and shorter load times.

Connectivity is future-ready with Wi-Fi 7 featuring a directional ultra-high gain antenna and 2.5GbE LAN, ensuring ultra-fast and reliable internet speeds for online gaming, streaming, and content sharing. The inclusion of Thunderbolt™ 4 Type-C with DisplayPort Alt Mode, along with DisplayPort outputs, provides extensive options for high-speed data transfer and multi-display configurations.

The Gigabyte Z890 AORUS ELITE WIFI7 ICE is engineered with advanced thermal technology, including VRM Thermal Armor and M.2 Thermal Guard, keeping temperatures in check during heavy workloads. These cooling solutions guarantee sustained peak performance and system stability, even during overclocking. The premium ALC1220 audio codec paired with WIMA audiophile-grade capacitors ensures immersive, high-fidelity sound for music, movies, and gaming.

Designed with builders in mind, this motherboard features Gigabyte’s EZ-Latch Plus and EZ-Latch Click systems for quick, tool-free installation of PCIe and M.2 components, simplifying upgrades and maintenance. It also supports customizable RGB lighting and Smart Fan 6 technology for complete control over aesthetics and cooling performance.

With exceptional performance, robust connectivity, and a sleek ICE design, the Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard is the perfect choice for anyone building a powerful, future-proof PC. It blends aesthetics and performance seamlessly, making it ideal for high-end gaming rigs and professional workstations alike.

Buy the Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
