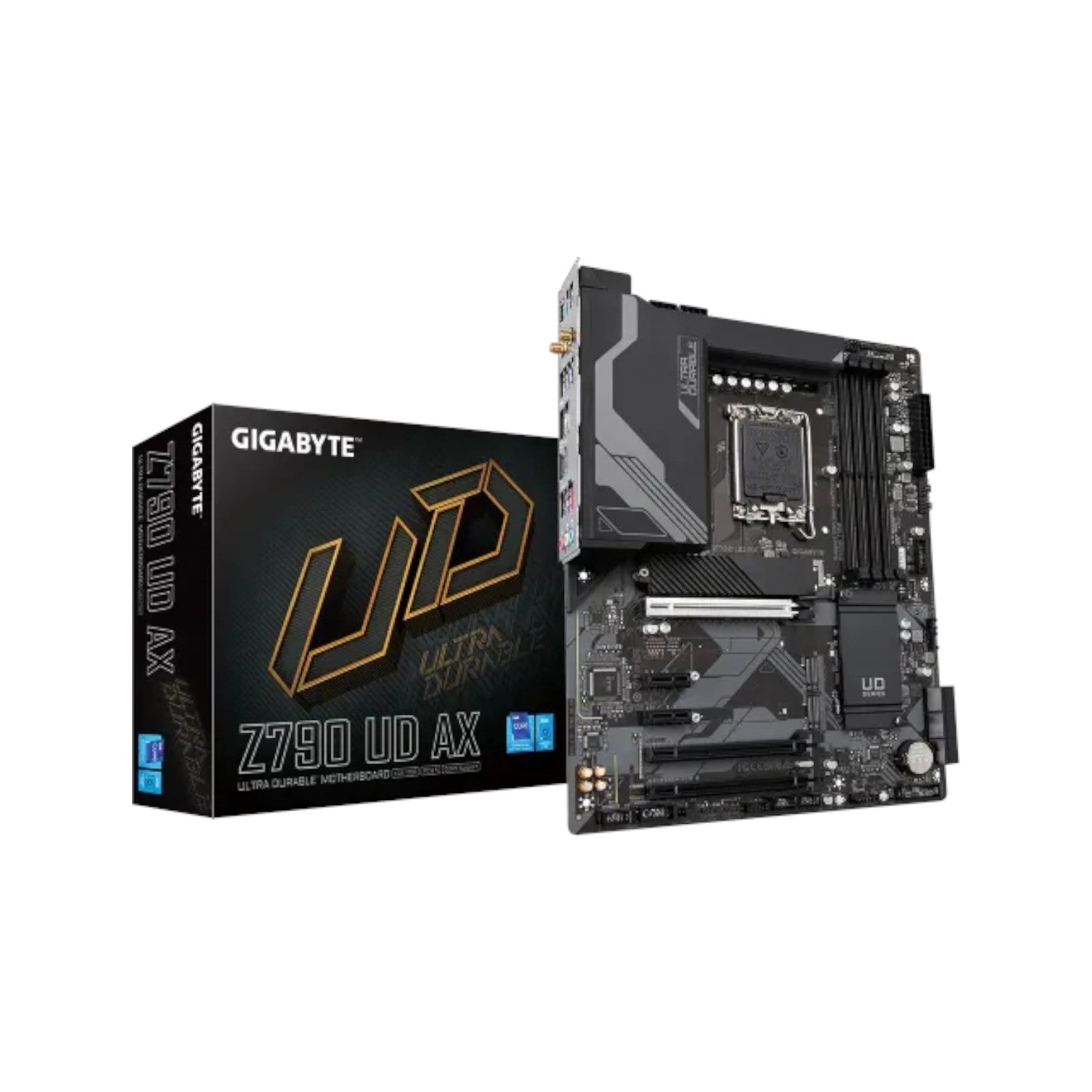

GIGABYTE Z790 UD AX ATX Motherboard

GIGABYTE Z790 UD AX ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z790 UD AX
Availability: In stock

Key Features

Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Graphics Output: 1 x HDMI, 1 x DisplayPort
Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)

Ask an expert
Tk 31,000
Tk 31,600
Tk 31,000
Subtotal: Tk 31,000
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)



Memory

Type DDR5
Slots 4 x DIMM sockets
Supported Memory 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB (32 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE Z790 UD AX ATX Motherboard

The GIGABYTE Z790 UD AX ATX Motherboard is built for high-performance computing, offering exceptional power, speed, and connectivity for gamers, creators, and professionals. Designed with the Intel LGA1700 socket, it supports 14th, 13th, and 12th Generation Intel Core processors, ensuring compatibility with the latest CPU technologies. Featuring a robust Twin 16+1+1 Phases Digital VRM Solution, this motherboard delivers efficient and stable power delivery, maintaining peak performance even during demanding workloads and overclocking.

Equipped with four SMD DIMM slots, the GIGABYTE Z790 UD AX supports up to 128GB of DDR5 dual-channel memory with XMP 3.0 support for effortless overclocking and optimized speed. Storage flexibility is unmatched, with three PCIe 4.0 x4 M.2 connectors and an additional PCIe 5.0-ready M.2 slot (up to type 25110), enabling ultra-fast NVMe SSD performance for next-generation storage solutions. It also features a PCIe 5.0 x16 slot with a quick-release, screwless design for hassle-free GPU installation and upgrades.

Networking performance is a major highlight, featuring both 2.5GbE LAN and Wi-Fi 6E (802.11ax). The 2.5GbE LAN offers up to twice the speed of standard Gigabit connections, while Wi-Fi 6E introduces a dedicated 6GHz band for faster, more stable, and lower-latency wireless performance. With Bluetooth 5.0, users enjoy greater range and faster device pairing for enhanced wireless connectivity.

The GIGABYTE Z790 UD AX also features an advanced cooling system with well-designed heatsinks and optimized airflow to keep your system running cool and stable under heavy use. Its aesthetic design complements high-end builds, ensuring both style and function.

Combining next-generation connectivity, durable engineering, and ultra-fast networking, the GIGABYTE Z790 UD AX ATX Motherboard is an outstanding foundation for any high-performance desktop build. It delivers the reliability, expandability, and efficiency required for gaming, creative projects, and professional workloads.

Buy the GIGABYTE Z790 UD AX ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
