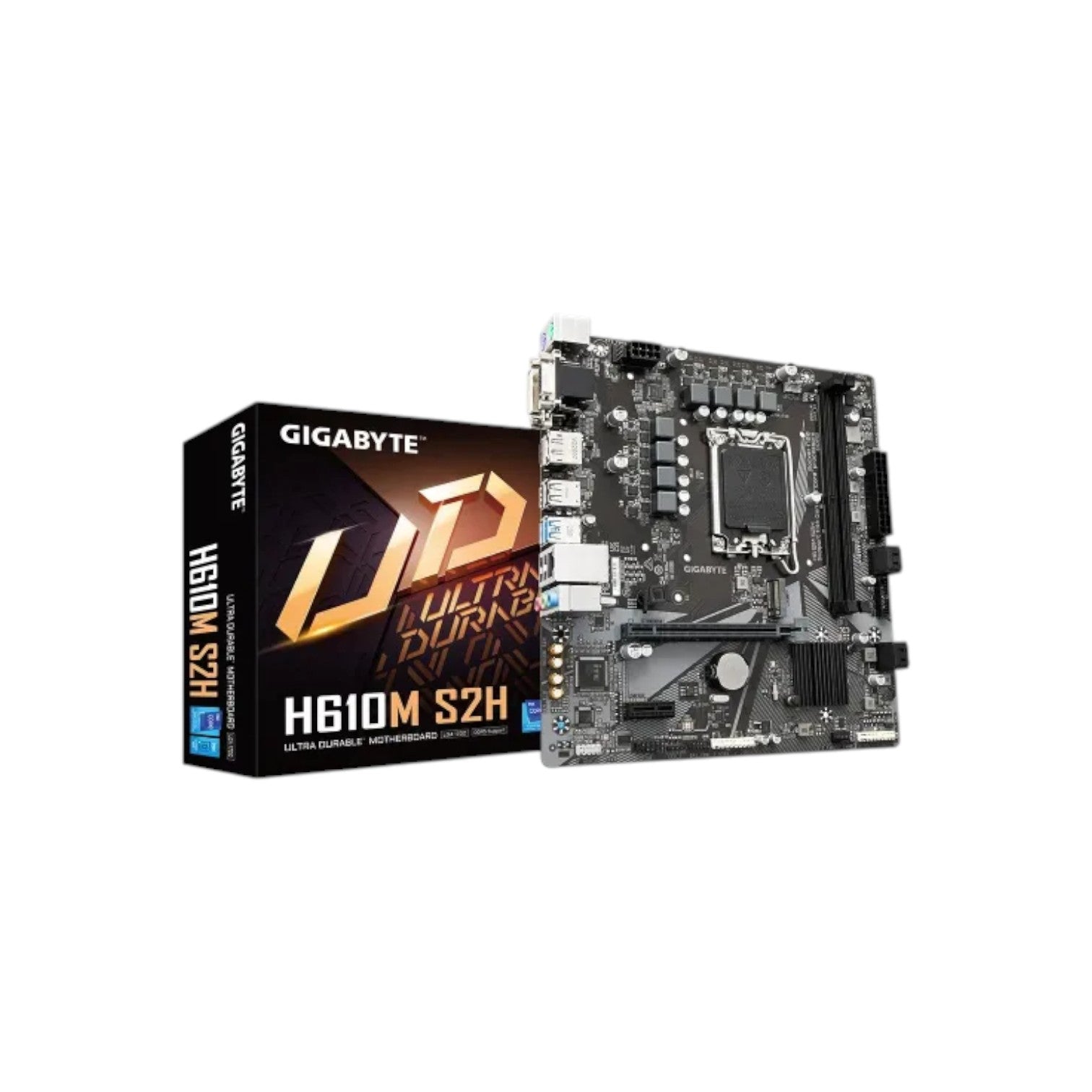

GIGABYTE H610M S2H DDR5 mATX Motherboard

GIGABYTE H610M S2H DDR5 mATX Motherboard

Brand: Gigabyte (Intel)
SKU: H610M S2H DDR5
Availability: In stock

Key Features

Features: Realtek GbE LAN Chip
Supported RAM: 2x DDR5, Max 64GB 5600
Graphics Output: 2x HDMI, 1x DisplayPort
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 11,300
Tk 12,500
Tk 11,300
Subtotal: Tk 11,300
Description

Specification

Basic Information

Supported CPU Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR5
Slots 2 x DDR DIMM sockets
Supported Memory 13th Generation Intel Core i9/i7 processors:
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
Support for DDR5 4800/4400 MT/s memory modules
2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64 GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3



Connector & Ports

HDMI 1 x HDMI port
D-Sub (s) 1 x D-Sub port
DVI-D (s) 1 x DVI-D port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
cFosSpeed

Warranty

Warranty 3 years

Description

GIGABYTE H610M S2H DDR5 mATX Motherboard

The GIGABYTE H610M S2H DDR5 mATX Motherboard is a powerful, stable, and feature-rich solution designed to support 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors. Equipped with the LGA1700 socket, it delivers strong performance for modern computing needs, from productivity to gaming. Its 6+1+1 Hybrid Digital VRM design ensures consistent and efficient power delivery, maintaining system stability even under heavy workloads.

This motherboard supports dual-channel non-ECC unbuffered DDR5 memory with two DIMM slots, allowing up to 64GB capacity for smooth multitasking and enhanced system responsiveness. It features PCIe 4.0 architecture for faster data transfer and a Gen3 x4 M.2 slot for NVMe SSDs, providing ultra-fast storage performance. With multiple display output options, including DisplayPort, HDMI, DVI-D, and D-Sub, the GIGABYTE H610M S2H DDR5 supports multi-monitor setups for versatile multimedia and workstation configurations.

The Realtek GbE LAN with bandwidth management ensures stable and efficient network connectivity, while premium audio capacitors and Audio Noise Guard technology deliver clean, high-quality sound for a more immersive experience. Smart Fan 6 technology integrates multiple temperature sensors and hybrid fan headers with a fan stop function, ensuring optimal cooling performance while minimizing noise and improving energy efficiency.

Built for long-term reliability, the motherboard includes Anti-Sulfur resistor technology that protects components from environmental damage, ensuring durability and steady operation over time. With the GIGABYTE APP Center, users can easily adjust and optimize system settings through a convenient interface, personalizing performance and control.

Combining speed, reliability, and intelligent design, the GIGABYTE H610M S2H DDR5 mATX Motherboard is an excellent choice for users seeking modern performance, efficiency, and durability in one compact board.

Buy the GIGABYTE H610M S2H DDR5 mATX Motherboard from Tech Buy BD for genuine products and the best prices in Bangladesh.
