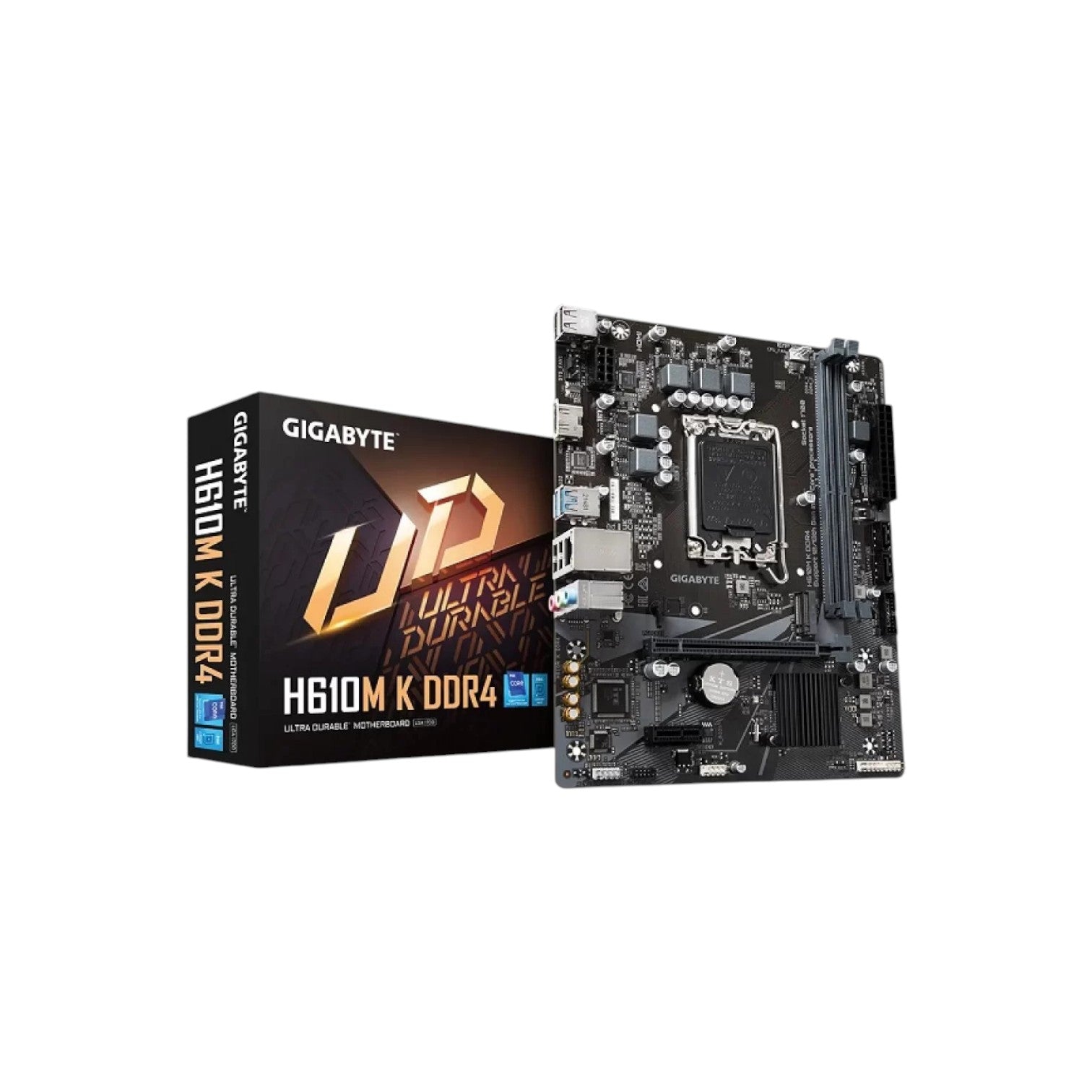

GIGABYTE H610M K DDR4 Micro ATX Motherboard

SKU: H610M K DDR4
Availability: In stock

Key Features

Graphics Output: 1x HDMI 2.1
Supported RAM: 2x DDR4, Max 64GB 3200
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Tk 10,500
Tk 11,000
Tk 10,500
Subtotal: Tk 10,500

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel H610 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type DDR4
Slots 2 x DIMM sockets
Supported Memory Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory supporting up to 64 GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1 x HDMI port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features iTE I/O Controller Chip
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE H610M K DDR4 Micro ATX Motherboard

The GIGABYTE H610M K DDR4 Micro ATX Motherboard is a dependable and efficient choice for users seeking a compact yet powerful platform for everyday computing and productivity. Designed to support 14th, 13th, and 12th Generation Intel Core, Pentium, and Celeron processors via the LGA1700 socket, it provides excellent performance and compatibility for modern builds. Equipped with two DDR4 DIMM slots, it supports up to 64GB of dual-channel memory with speeds reaching 3200 MHz, ensuring smooth multitasking and stable operation across demanding applications.

This motherboard features an HDMI 2.1 port capable of delivering crisp, high-definition video output up to 4K resolution, making it ideal for multimedia use, workstations, or entertainment setups. The Realtek GbE LAN ensures fast and reliable internet speeds up to 1 Gbps, supporting seamless connectivity for online gaming, streaming, and office tasks.

Built with durability and efficiency in mind, the GIGABYTE H610M K DDR4 includes premium components and solid PCB construction for long-lasting stability. Its Micro ATX form factor makes it an excellent fit for smaller PC cases without compromising performance or expandability. Combining reliability, speed, and value, this motherboard offers a perfect balance for modern desktop users who prioritize both performance and affordability.

Buy the GIGABYTE H610M K DDR4 Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest GIGABYTE motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The GIGABYTE H610M K DDR4 Micro ATX Motherboard comes with a 3-year warranty.
