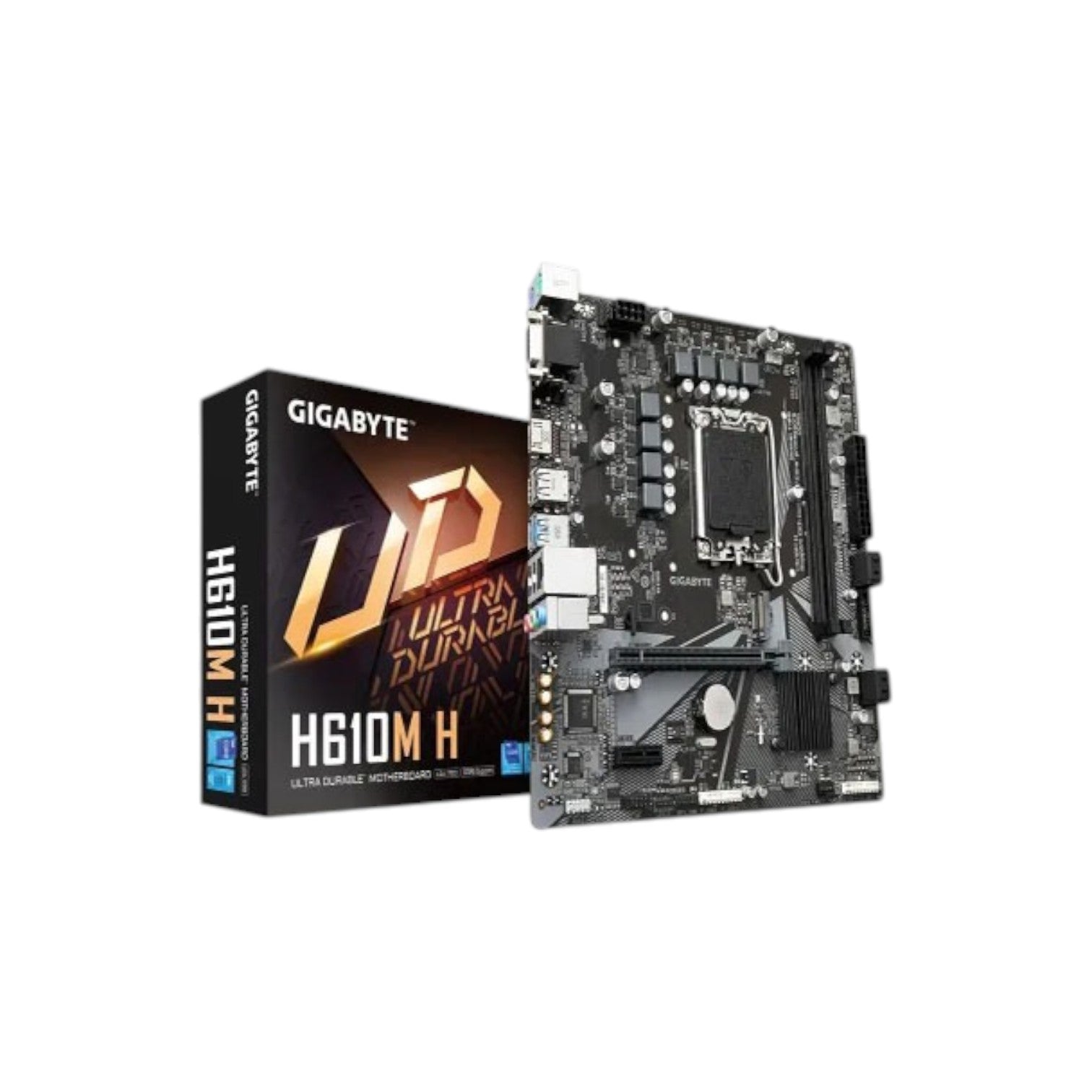

GIGABYTE H610M S2H DDR5 mATX Motherboard

GIGABYTE H610M S2H DDR5 mATX Motherboard

Brand: Gigabyte (Intel)
SKU: H610M H
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x D-Sub port
Supported RAM: 2x DDR5, Max 64GB 4800(OC)
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 11,300
Tk 11,500
Tk 11,300
Subtotal: Tk 11,300
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Physical Specification

Dimension Radiator Dimensions-282×120×27 mm(L×W×H)
Pump Dimensions-85×73×55 mm(L×W×H)
Fan Dimensions-120×120×25 mm(L×W×H)
Weight 1.346Kg

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR5
Slots 2
Supported Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64 GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1x HDMI
D-Sub (s) 1x D-Sub port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for APP Center
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE H610M H DDR5 mATX Motherboard

The GIGABYTE H610M H DDR5 mATX Motherboard is designed to deliver high-speed performance, exceptional stability, and advanced connectivity for modern Intel-based systems. Built with the LGA1700 socket, it supports 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron processors, ensuring a powerful and responsive computing experience. With dual-channel non-ECC unbuffered DDR5 memory support, it accommodates up to 64GB of RAM and can reach speeds of up to 4800MHz, providing blazing-fast data transfer and smooth multitasking.

This motherboard features a 6+1+1 Hybrid Digital VRM design that ensures efficient and reliable power delivery to the CPU, maintaining stability during demanding workloads. It comes equipped with a PCIe 4.0 slot for enhanced data transfer performance and an NVMe PCIe 3.0 x4 M.2 slot for high-speed SSD storage, reducing load times and improving overall responsiveness. The inclusion of HDMI and D-Sub display outputs allows flexible multi-monitor configurations for both productivity and entertainment setups.

For superior connectivity, the GIGABYTE H610M H DDR5 offers GbE LAN with bandwidth management, ensuring stable and optimized network performance. Audio quality is enhanced with premium capacitors and an Audio Noise Guard that provides a clean and immersive listening experience. Smart Fan 6 technology incorporates multiple temperature sensors and hybrid fan headers with a fan stop function for intelligent cooling and quiet operation.

The motherboard’s durability is reinforced with Anti-Sulfur resistors that protect against environmental damage and extend component lifespan. Through the GIGABYTE APP Center, users can easily manage system settings and performance adjustments via an intuitive interface. Combining power, speed, and reliability, the GIGABYTE H610M H DDR5 mATX Motherboard is an excellent choice for gamers, creators, and professionals seeking a future-ready and efficient PC foundation.

Buy the GIGABYTE H610M H DDR5 mATX Motherboard from Tech Buy BD for authentic quality and the best deals in Bangladesh.
