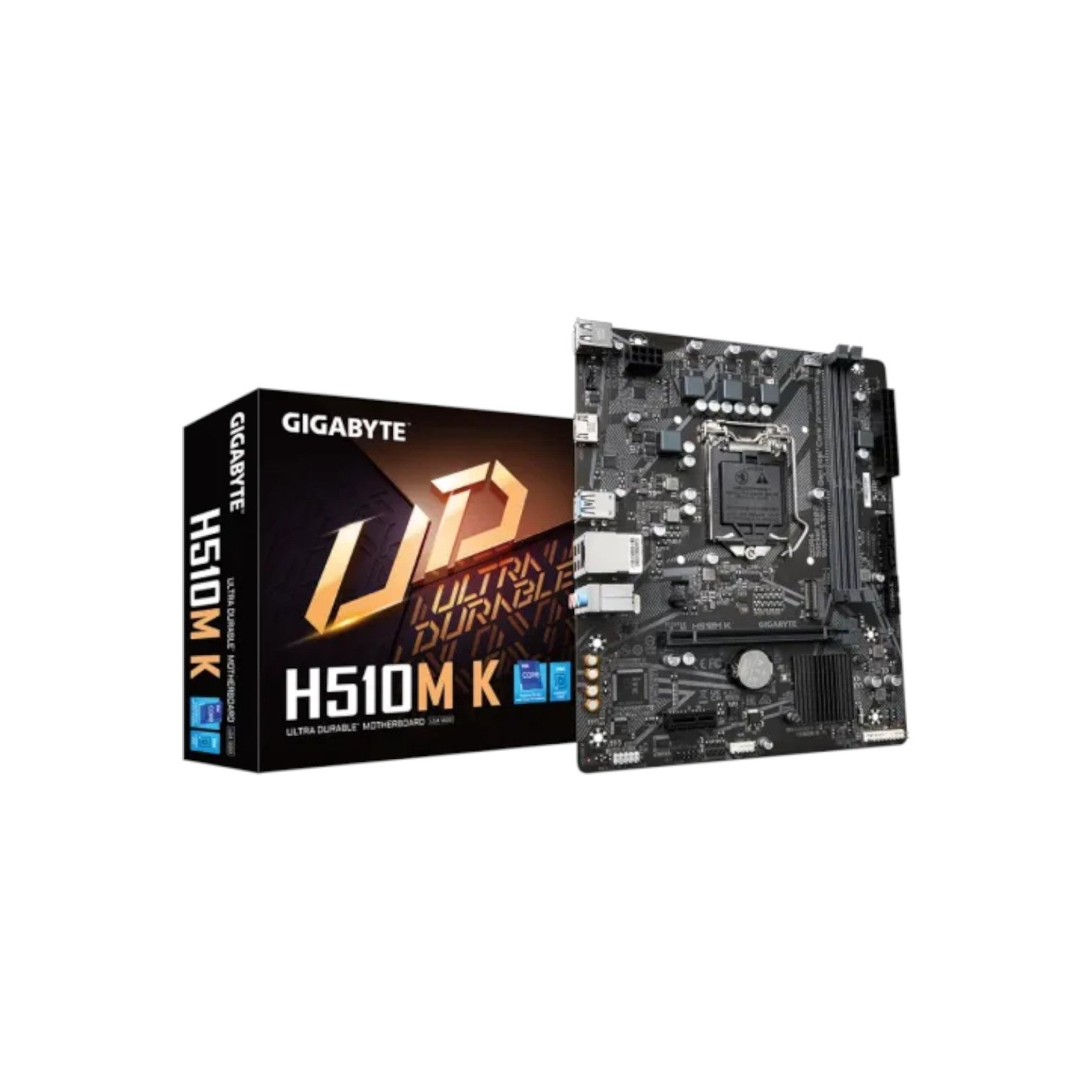

GIGABYTE H510M K Intel Micro ATX Motherboard

SKU: H510M K
Availability: In stock

Key Features

Graphics Output: 1 x HDMI
Supported RAM: DDR4, 2 DIMMs, up to 64 GB
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported CPU: 11th Gen Intel Core Processors (LGA1200)

Tk 9,900
Tk 10,300
Tk 9,900
Subtotal: Tk 9,900

Specification

Basic Information

Supported CPU 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
L3 cache varies with CPU
Chipset Intel B560 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot:
Supporting PCIe 4.0 and running at x16
(PCIe 4.0 is only supported by 11th-generation processors.)

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type DDR4
Slots 2 x DIMM
Supported Memory 1th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i5/i3/Pentium®/Celeron processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB (32 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3..



Connector & Ports

HDMI 1 x HDMI port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector:
Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Others

Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE H510M K Intel Micro ATX Motherboard

The GIGABYTE H510M K Intel Micro ATX Motherboard is a dependable and efficient option for users looking to build a compact yet powerful desktop PC. Designed to support both 11th and 10th Generation Intel Core processors with the LGA1200 socket, it ensures wide compatibility and stable performance for gaming, productivity, and home computing. Supporting DDR4 memory through two DIMM slots with a maximum capacity of 64GB, this motherboard provides smooth multitasking and efficient memory performance.

For visuals, the H510M K includes an HDMI port, delivering crisp and clear display output for modern monitors and entertainment setups. Networking is handled by the integrated Realtek GbE LAN chip, offering speeds up to 1 Gbps for fast, reliable, and stable online connectivity. The motherboard also provides 8-channel HD Audio with high-quality capacitors, delivering an immersive and detailed audio experience ideal for gaming, streaming, and multimedia.

The inclusion of an NVMe PCIe Gen3 x4 2280 M.2 slot allows for ultra-fast storage options, significantly improving system responsiveness and data transfer speeds. To maintain optimal temperatures, the Smart Fan 5 technology features multiple temperature sensors and hybrid fan headers with a FAN STOP function, ensuring effective cooling and quiet operation. Additionally, the Anti-Sulfur resistor design enhances durability and protects against sulfur corrosion, extending the motherboard’s lifespan.

The GIGABYTE APP Center offers an intuitive platform for managing drivers, system utilities, and updates, providing users with an easy and streamlined setup experience. Compact, efficient, and feature-rich, the GIGABYTE H510M K motherboard is an excellent foundation for any modern desktop PC build.

Buy the GIGABYTE H510M K Intel Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest GIGABYTE motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The GIGABYTE H510M K Intel Micro ATX Motherboard comes with a 3-year warranty.
