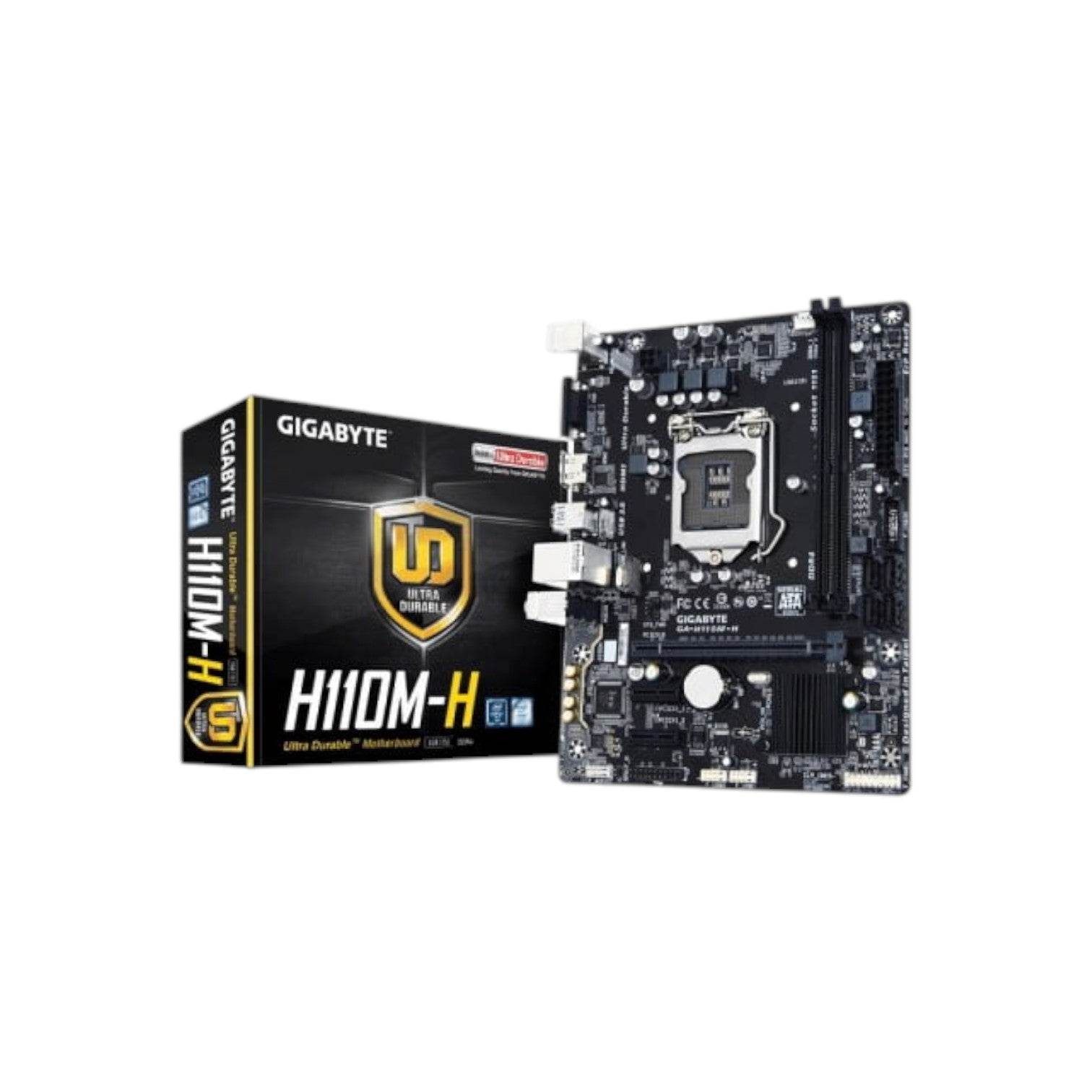

Gigabyte GA-H110M-H Micro ATX Motherboard

Gigabyte GA-H110M-H Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: GA-H110M-H
Availability: In stock

Key Features

2 x DDR4 DIMM
3 x PCI Express slot
Chipset: Intel H110 Express
CPU: 7th/ 6th Generation Intel Processors

Ask an expert
Tk 9,300
Tk 9,800
Tk 9,300
Subtotal: Tk 9,300
Description

Specification

Basic Information

Supported CPU Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
L3 cache varies with CPU
Chipset Intel® H110 Express Chipset
BIOS 1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Memory

Type Dual channel DDR4 memory architecture
Slots 2 x DIMM
Supported Memory Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory 32 GB



Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Max Shared Memory 1024 MB



Connector & Ports

HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
4 x SATA 6Gb/s connectors
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header

Warranty

Warranty 3 years

Description

Gigabyte GA-H110M-H Micro ATX Motherboard

The Gigabyte GA-H110M-H Micro ATX Motherboard is a reliable and durable solution built to deliver stable performance for 6th and 7th Generation Intel Core i3, i5, and i7 processors. It supports dual-channel DDR4 memory up to 32GB, ensuring smooth multitasking and efficient data processing for everyday computing tasks. Featuring an Ultra-Fast SATA interface, it provides faster data transfer rates for improved system responsiveness and performance.

This motherboard comes with integrated Intel HD Graphics, offering resolutions up to 1920x1200@60Hz via D-Sub and 4096x2160@24Hz via HDMI, ensuring sharp and clear visuals for both work and entertainment. The Gigabyte GA-H110M-H also includes Audio Noise Guard technology with high-quality audio capacitors, delivering clear, distortion-free sound for an enhanced multimedia experience. Its Realtek GbE LAN with cFosSpeed Internet Accelerator Software ensures optimized network performance, minimizing lag for smooth online activity.

Built with Gigabyte’s Ultra Durable design, this motherboard ensures long-term reliability, protection against humidity, power surges, and electrostatic discharge. It also features the user-friendly GIGABYTE APP Center, which provides easy access to a range of utilities for system customization, updates, and tuning.

Buy the Gigabyte GA-H110M-H Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest Gigabyte motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The Gigabyte GA-H110M-H Micro ATX Motherboard comes with a 3-year warranty.
