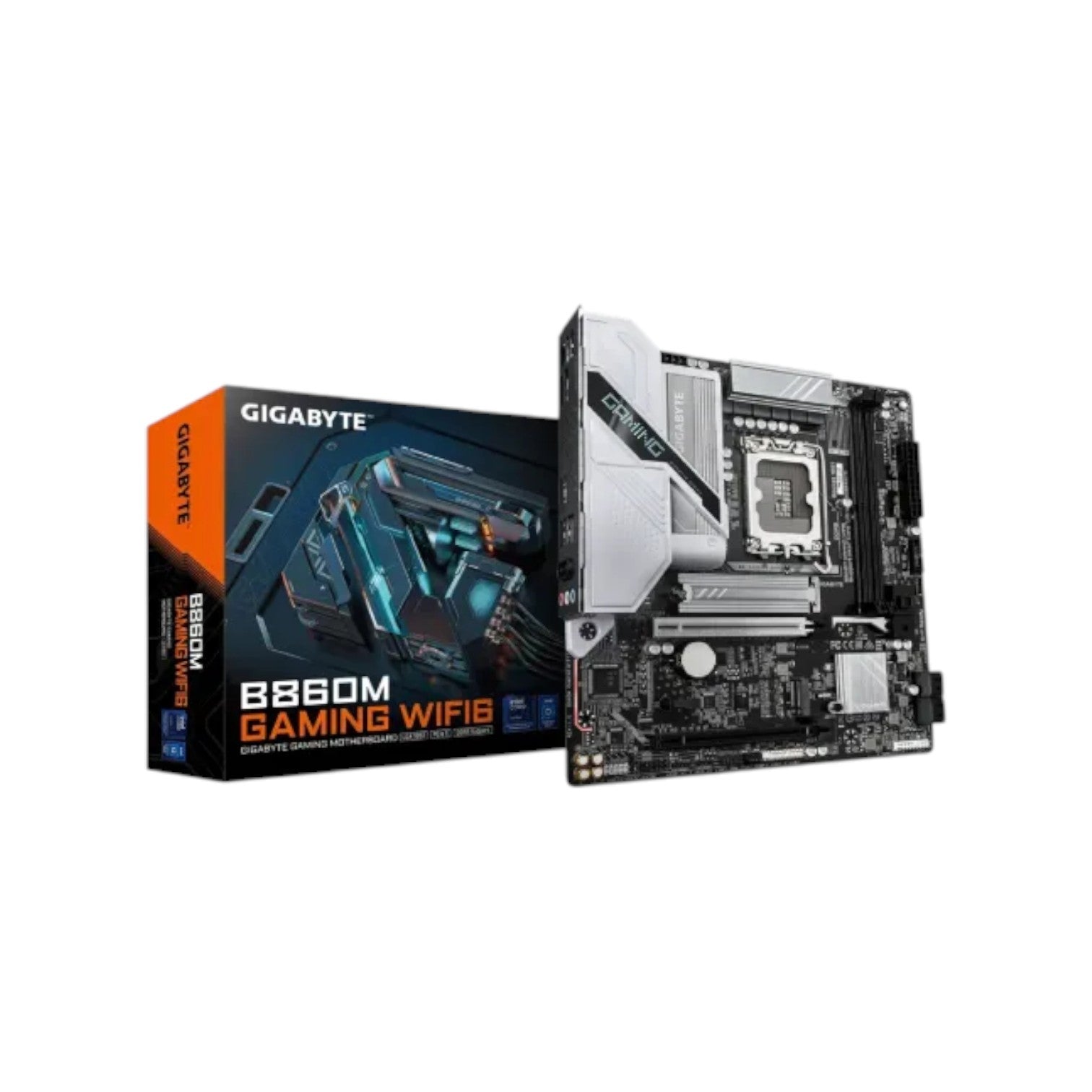

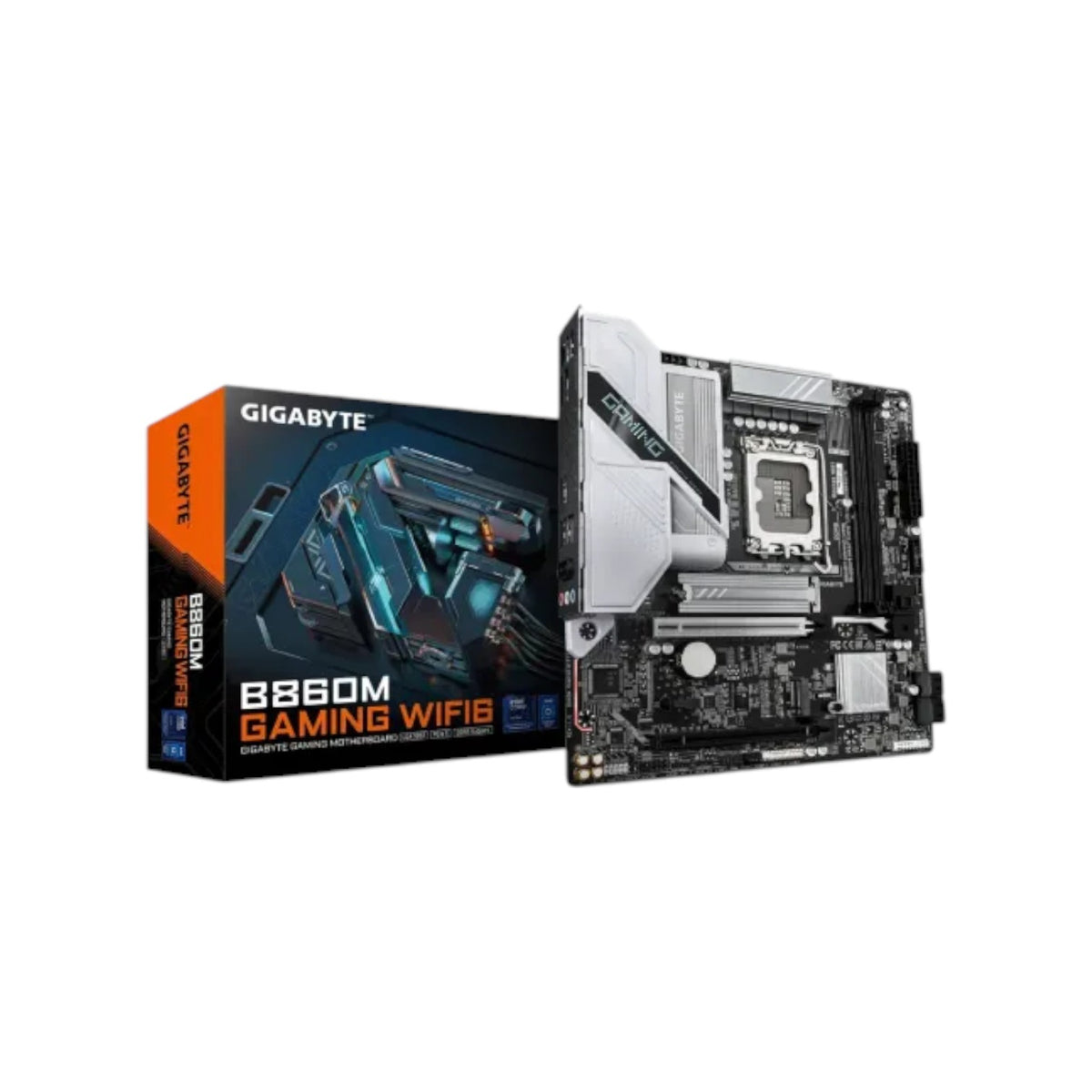

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard (MGBI5419)

Tk 25,500; ~~Tk 26,000~~; Tk 25,500
Unit price: per

Brand: Gigabyte (Intel)

SKU: B860M GAMING WIFI6

Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2x M.2, Intel Wi-Fi6 , Bluetooth 5.3
Supported RAM: 2x DDR5, Max 128GB,Supports Up to 9066(O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Ask an expert

Subtotal: Tk 25,500

Quantity:

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard (MGBI5419)

~~Tk 26,000~~ Tk 25,500

Quantity:

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard (MGBI5419)

~~Tk 26,000~~ Tk 25,500

Description

Description

Specification

Basic Information

Supported CPU	Intel Core Ultra Processors(Series 2)
Chipset	Intel B860 Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.

(Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software

Warranty

3 years

Description

Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard

The Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard is engineered for gamers, creators, and performance-driven users seeking power, speed, and stability. Built on the Intel B860 Express chipset, it supports Intel Core Ultra processors through the LGA1851 socket, ensuring next-generation compatibility and exceptional computing efficiency. With support for DDR5 memory up to 128GB and speeds of up to 9066MT/s (OC), this motherboard delivers lightning-fast data throughput and smooth multitasking for gaming, streaming, and content creation.

Designed for high-speed storage and superior expandability, the Gigabyte B860M GAMING WIFI6 features dual M.2 slots—one supporting PCIe 5.0 x4 for cutting-edge NVMe SSDs and the other offering PCIe 4.0 support for additional storage flexibility. The PCIe 5.0 x16 slot ensures top-tier graphics performance for gamers and professionals who demand maximum GPU power.

Connectivity is a standout feature, with both Wi-Fi 6 and 2.5GbE LAN providing fast, reliable, and low-latency networking for competitive gaming and data-intensive workflows. Display output options include HDMI 2.1 and DisplayPort 2.1, supporting high-resolution visuals and multi-monitor setups for immersive viewing experiences.

The Gigabyte B860M GAMING WIFI6 is built to stay cool under pressure, featuring VRM Thermal Armor and M.2 Thermal Guard to maintain power stability and prevent overheating during heavy workloads. User-friendly innovations like PCIe EZ-Latch Plus simplify GPU installation, while AI Perfdrive technology automatically optimizes BIOS settings for balanced performance and efficiency.

Compact yet powerful, this Micro ATX motherboard combines premium build quality with modern features, making it ideal for building a high-performance gaming or productivity PC. With its future-ready architecture and superior thermal design, it ensures long-lasting performance and reliability.

Buy the Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
