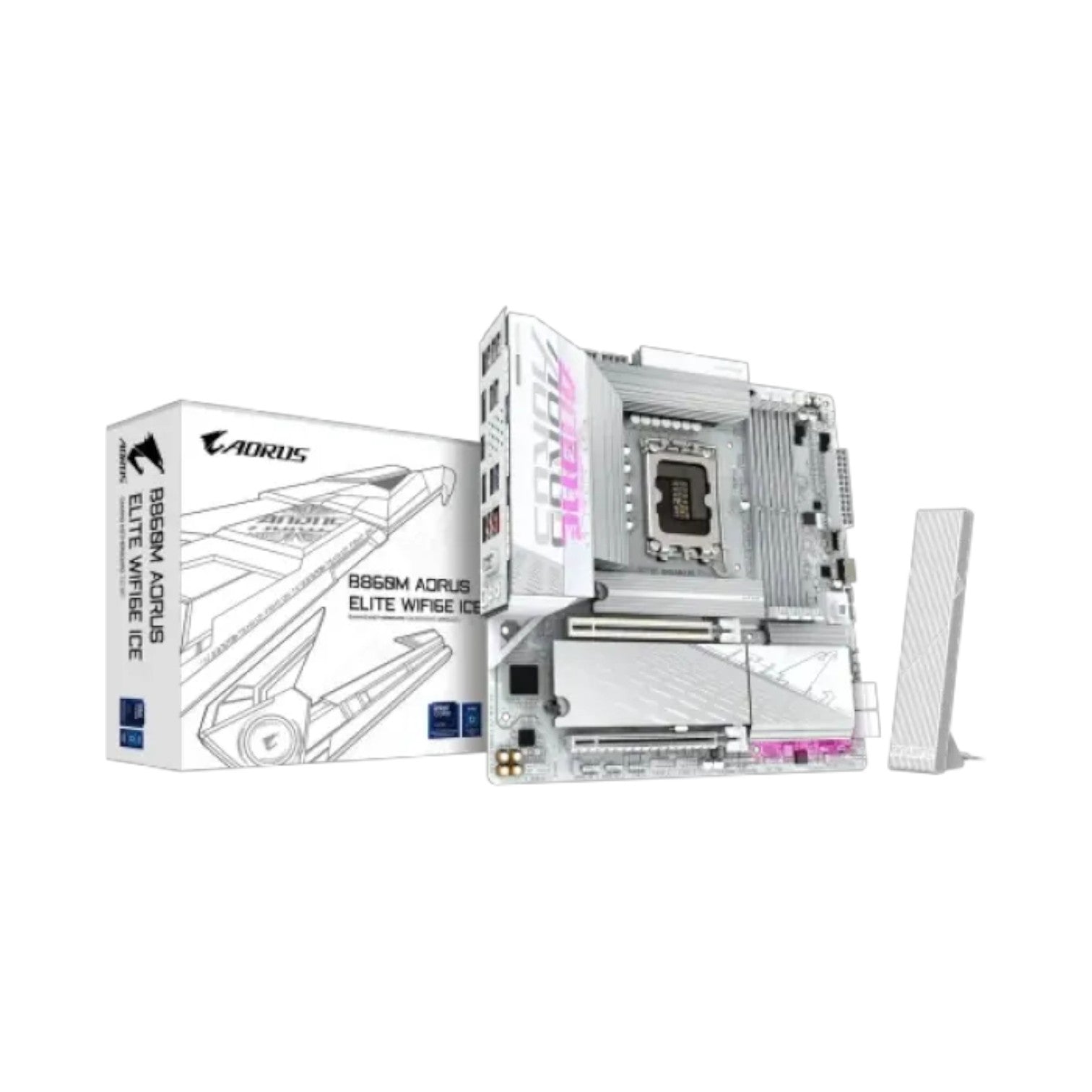

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: B860M AORUS ELITE WIFI6E ICE
Availability: In stock

Key Features

Features: 3x M.2, Wi-Fi 6E, Bluetooth 5.3
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output: 2x HDMI, 1x DisplayPort, 1 x USB4 USB Type-C por
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Socket

Ask an expert
Tk 34,500
Tk 35,000
Tk 34,500
Subtotal: Tk 34,500
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors
L3 cache
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.


- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.


- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)


Support for up to quad-display at the same time



Connector & Ports

HDMI 2 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
- 1 x USB4 USB Type-C port on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors:
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

The GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard is a compact yet powerful platform designed for Intel Core Ultra processors, offering exceptional speed, reliability, and aesthetics. Built on the Intel B860 Express Chipset with the latest LGA1851 socket, this motherboard delivers top-tier performance for gamers, content creators, and professionals who demand efficiency and style in a smaller form factor.

Supporting up to 256GB of DDR5 memory across four DIMM slots, it achieves ultra-fast speeds of up to 9200MT/s (OC) with dual-channel architecture and XMP profile support for easy overclocking and enhanced performance. The GIGABYTE B860M AORUS ELITE WIFI6E ICE ensures stunning visual performance through multiple display outputs including USB4 Type-C, DisplayPort 2.1, and HDMI 2.1, supporting up to quad-display 4K configurations for immersive gaming and productivity.

Networking capabilities are outstanding, featuring Intel Wi-Fi 6E for seamless wireless connectivity, Realtek 2.5GbE LAN for ultra-fast wired networking, and Bluetooth 5.3 for quick pairing with peripherals. Expansion flexibility is ensured with a PCIe 5.0 x16 slot for high-end graphics cards or NVMe SSDs, complemented by two PCIe 4.0 slots for additional devices.

For storage, this motherboard includes three M.2 connectors supporting PCIe 5.0 and PCIe 4.0 NVMe SSDs, alongside four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support, allowing users to balance performance, capacity, and redundancy. The board also features robust USB connectivity with USB4, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports for ultra-fast data transfer and peripheral support.

Audio is powered by Realtek 7.1-channel High Definition Audio with S/PDIF Out, delivering a rich and immersive sound experience for gaming and entertainment. The motherboard also includes customizable RGB lighting headers for dynamic personalization, advanced cooling options with multiple fan and pump headers, and Q-Flash Plus for effortless BIOS updates without requiring a CPU or memory installation.

With its elegant design and sleek ICE-themed finish, the GIGABYTE B860M AORUS ELITE WIFI6E ICE combines superior performance with premium aesthetics. Measuring 24.4 cm x 24.4 cm, its Micro ATX form factor makes it perfect for compact, high-performance builds without compromise.

Powerful, feature-packed, and future-ready, the GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard is the ideal choice for gamers and creators who value cutting-edge technology and elegant design.

Buy the GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
