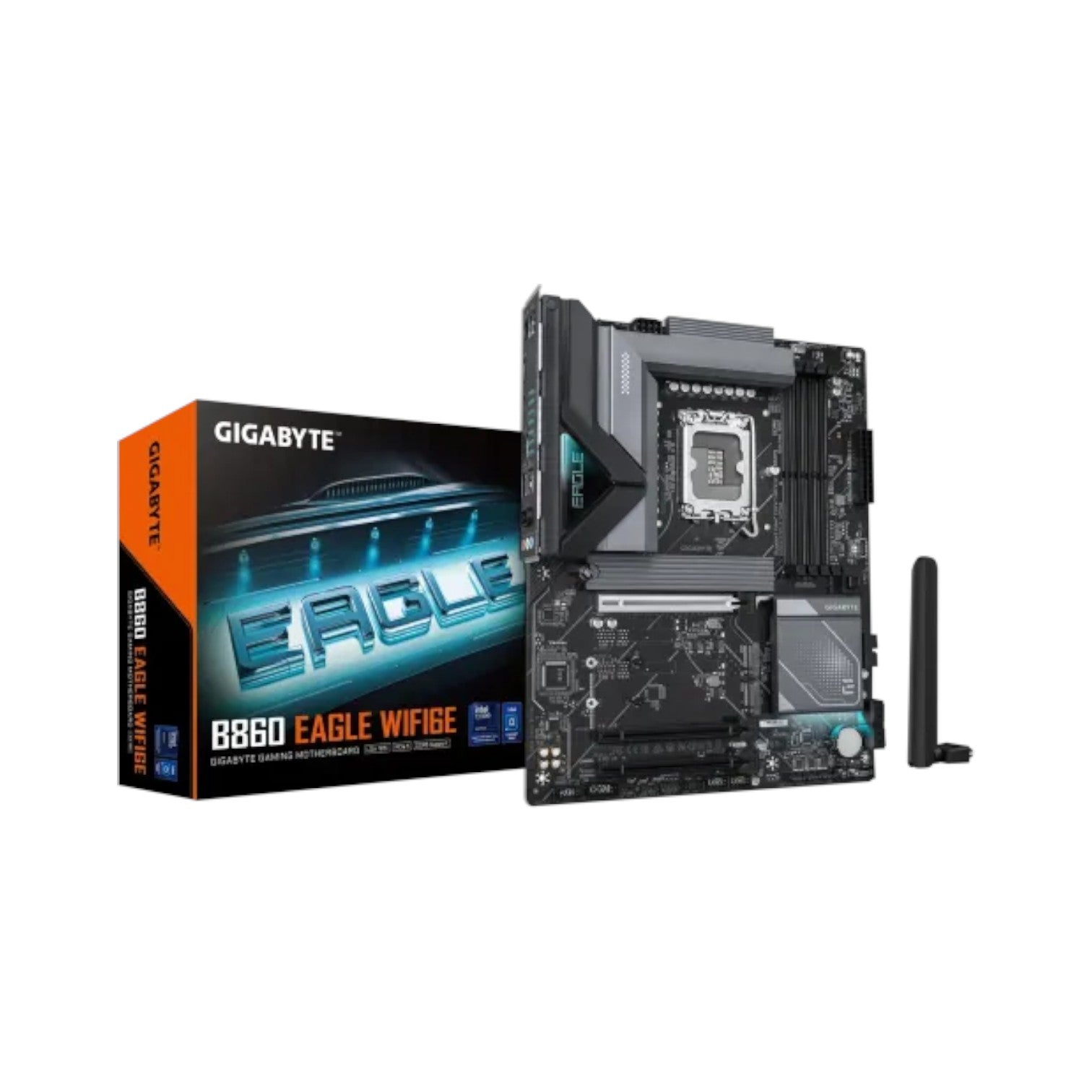

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard (MGBI5409)

Tk 33,500; ~~Tk 34,500~~; Tk 33,500
Unit price: per

Brand: Gigabyte (Intel)

SKU: B860 EAGLE WIFI6E

Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Features: 3x M.2, Intel Wi-Fi 6E, Bluetooth 5.3
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9066(O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Socket

Ask an expert

Subtotal: Tk 33,500

Quantity:

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard (MGBI5409)

~~Tk 34,500~~ Tk 33,500

Quantity:

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard (MGBI5409)

~~Tk 34,500~~ Tk 33,500

Description

Description

Specification

Basic Information

Supported CPU	Intel Core Ultra Processors L3 cache
Chipset	Intel B860 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.

Connector & Ports

HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB headers - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty

3 years

Description

GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard

The GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard is a premium, high-performance solution engineered for gamers, creators, and professionals seeking exceptional speed, connectivity, and stability. Built on the Intel B860 Express chipset, it supports the latest Intel Core Ultra processors through the advanced LGA1851 socket, delivering top-tier efficiency and future-ready performance for demanding workloads and gaming setups.

Designed to maximize memory performance, the GIGABYTE B860 EAGLE WIFI6E supports up to 256GB of DDR5 RAM across four DIMM slots, with overclocked speeds reaching up to 9066MT/s. The dual-channel memory architecture, along with XMP profile compatibility, ensures superior bandwidth and system responsiveness, perfect for multitasking, gaming, and high-end content creation.

For graphics, this motherboard supports Intel HD Graphics with HDMI 2.1 and DisplayPort 2.1 outputs, offering ultra-clear visuals at up to 4096x2160@60Hz and 3840x2160@144Hz respectively. It also features a PCIe 5.0 x16 slot for next-generation GPUs, delivering cutting-edge graphics performance, alongside two PCIe 4.0 x1 slots for additional expansion cards.

Storage capabilities are equally impressive, with three M.2 connectors—one PCIe 5.0 and two PCIe 4.0 slots—providing ultra-fast NVMe SSD support. Additionally, four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 compatibility allow for flexible storage configurations combining speed and redundancy.

The GIGABYTE B860 EAGLE WIFI6E offers immersive audio powered by Realtek High Definition Audio, supporting 7.1-channel surround sound and S/PDIF Out for precise, high-fidelity sound reproduction. For networking, it includes Realtek 2.5GbE LAN for ultra-fast wired connections and Intel Wi-Fi 6E with Bluetooth 5.3 for seamless wireless connectivity, ensuring low latency and fast transfer speeds for online gaming and streaming.

On the connectivity front, the rear I/O panel is equipped with a USB 3.2 Gen 2x2 Type-C port, a USB 3.2 Gen 2 Type-A port, and multiple USB 2.0 ports for comprehensive peripheral support. It also includes customizable RGB lighting through Gen2 addressable LED headers and advanced cooling options with multiple fan and water pump headers, ensuring stable performance even under heavy loads.

Additional features such as Q-Flash Plus enable BIOS updates without installing a CPU, memory, or GPU, while Smart Backup provides data protection and recovery capabilities. Built for durability and ease of use, the GIGABYTE B860 EAGLE WIFI6E combines powerful hardware support, premium connectivity, and stylish design for a superior computing experience.

Buy the GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
