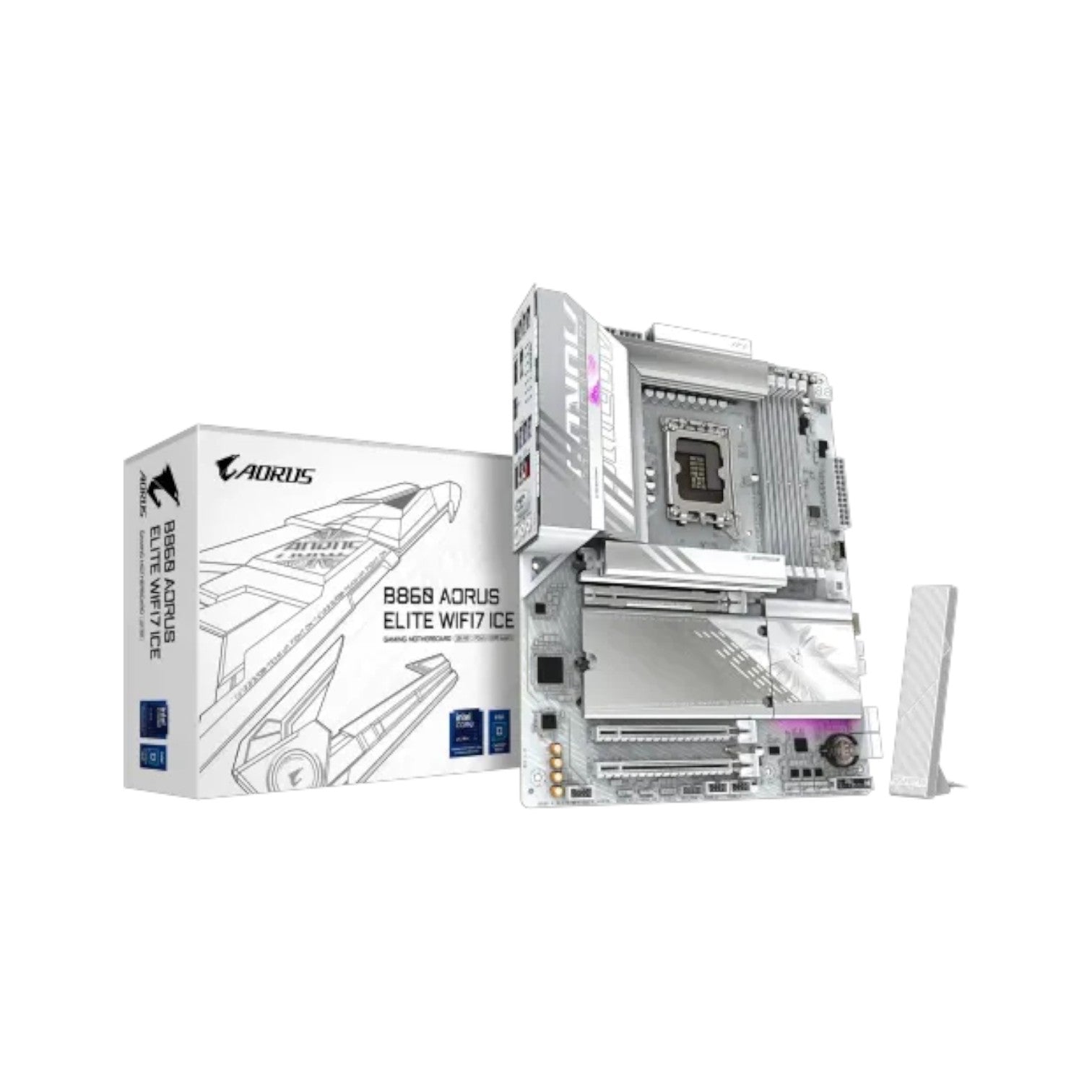

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: B860 AORUS ELITE WIFI7 ICE
Availability: In stock

Key Features

Features: 3x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported CPU: Intel Core Ultra Processors, LGA 1851 Socket
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output: 2x HDMI, 1x DisplayPort, 1 x Intel Thunderbolt 4 connector (USB4 Type-C port),

Ask an expert
Tk 36,500
Tk 37,100
Tk 36,500
Subtotal: Tk 36,500
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors
L3 cache
Chipset Intel B860 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support)
Support for up to quad-display at the same time



Connector & Ports

HDMI 2 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors:
1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard

The Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard is an advanced, high-performance solution engineered to unleash the full potential of Intel’s latest Core Ultra processors. Built on the Intel B860 Express chipset, it combines cutting-edge technology, robust design, and elegant aesthetics to deliver outstanding speed, connectivity, and durability for gamers, creators, and professionals.

This motherboard supports up to 256GB of DDR5 memory across four DIMM slots, achieving speeds of up to 9200MT/s (OC). Its dual-channel architecture and XMP profile support ensure superior memory bandwidth and easy overclocking for enhanced performance in gaming, multitasking, and content creation. The Gigabyte B860 AORUS ELITE WIFI7 ICE provides stunning visual performance through Intel HD Graphics with quad-display support via USB4, DisplayPort 2.1, and HDMI 2.1, enabling crisp, ultra-clear resolutions up to 4096x2160@60Hz for immersive visual experiences.

Connectivity is one of its key strengths, featuring Realtek 2.5GbE LAN for ultra-fast wired networking and next-generation Wi-Fi 7 for lightning-speed wireless performance, ensuring minimal latency and maximum stability. Bluetooth 5.4 further enhances wireless connectivity, providing seamless pairing with modern peripherals and accessories.

Expansion flexibility is unmatched with a PCIe 5.0 x16 slot for high-end graphics cards or NVMe SSDs and two PCIe 4.0 x1 slots for additional devices. For storage, the motherboard offers three M.2 connectors (one PCIe 5.0 x4 and two PCIe 4.0 x4) and four SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10, providing a perfect balance between performance, storage capacity, and data redundancy.

The rear I/O panel includes a USB4 Type-C port, multiple USB 3.2 Gen 2 and Gen 1 ports, and optical S/PDIF Out, along with dual antenna connectors to optimize Wi-Fi reception. Audio is powered by Realtek High Definition Audio, supporting 7.1-channel surround sound for rich, immersive sound quality.

Cooling and aesthetics are well-integrated with comprehensive thermal solutions, including multiple fan and pump headers, along with customizable RGB lighting via Gen2 LED headers. GIGABYTE’s exclusive Q-Flash Plus feature allows for effortless BIOS updates without requiring a CPU, memory, or GPU installation, ensuring easy maintenance and future upgrades.

Combining premium build quality, exceptional performance, and next-generation connectivity, the Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard stands as an ideal choice for high-performance PC builds. It provides the perfect balance between innovation, efficiency, and durability for users who demand excellence in every aspect of their system.

Buy the Gigabyte B860 AORUS ELITE WIFI7 ICE LGA1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
