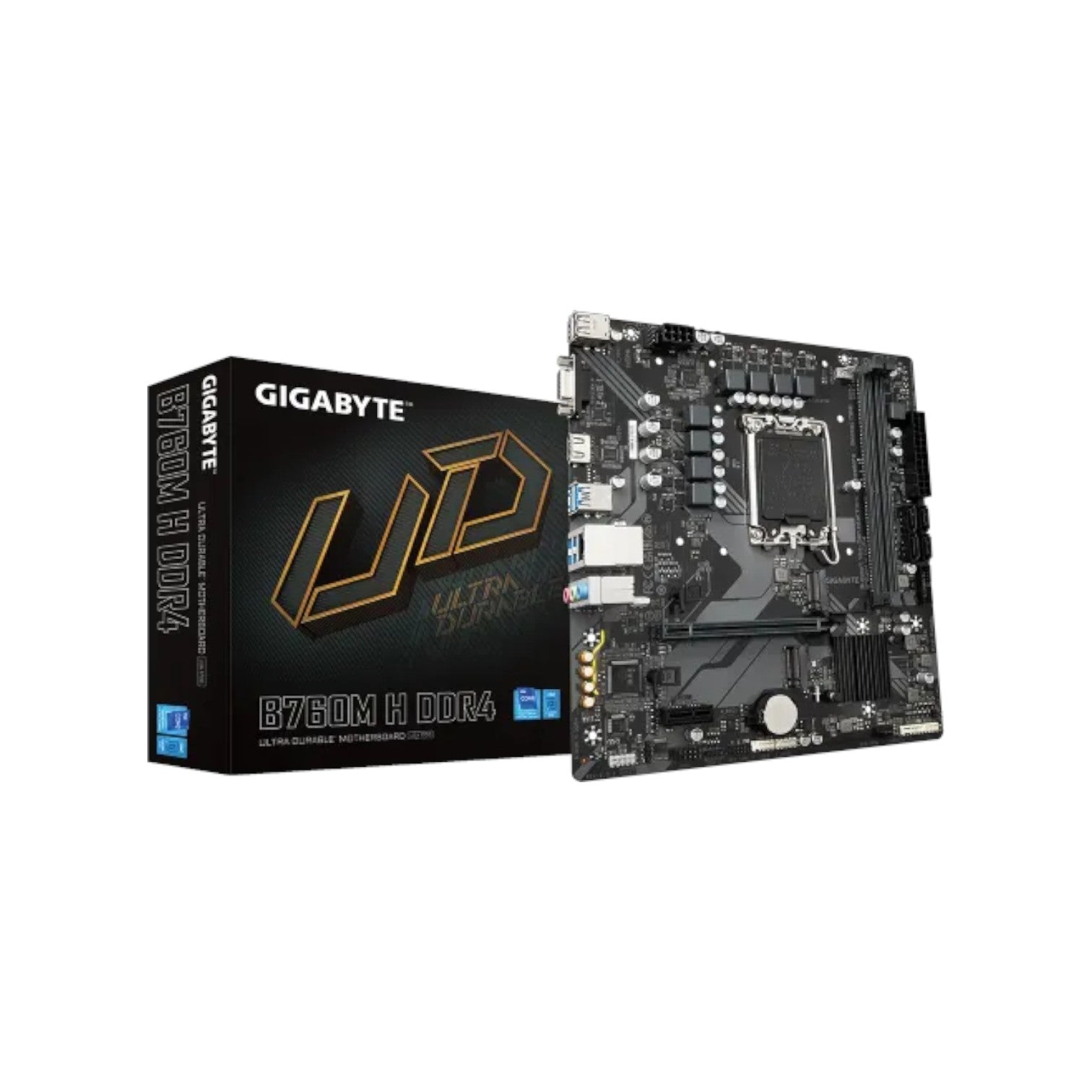

GIGABYTE B760M H DDR4 mATX Motherboard

GIGABYTE B760M H DDR4 mATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M H DDR4
Availability: In stock

Key Features

Features: Realtek GbE LAN chip
Graphics Output: 1x HDMI, 1 x D-Sub
Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)

Ask an expert
Tk 14,200
Tk 14,650
Tk 14,200
Subtotal: Tk 14,200
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR4
Slots 2
Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.



Connector & Ports

HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B760M H DDR4 mATX Motherboard

The GIGABYTE B760M H DDR4 mATX Motherboard is a powerful and reliable platform built for Intel’s 14th, 13th, and 12th Generation processors with the LGA1700 socket. Designed to deliver exceptional performance and stability, it features a Hybrid 6+1+1 Phases Digital VRM Solution that ensures efficient and consistent power delivery, making it ideal for both productivity and gaming systems. Supporting Dual Channel DDR4 memory with two DIMM slots, it allows users to maximize performance and memory capacity while also supporting XMP profiles for easy overclocking and improved speed.

This motherboard includes two PCIe 4.0 x4 M.2 connectors, providing lightning-fast storage performance and compatibility with the latest NVMe SSDs. It also features an EZ-Latch PCIe 4.0 x16 Slot with a quick-release design, simplifying the process of installing or upgrading graphics cards without the hassle. For smooth and stable networking, the Realtek GbE LAN ensures fast, reliable connections, while HDMI and D-Sub ports offer versatile display output options to accommodate multiple monitor setups.

The Smart Fan 6 technology is designed to keep the system cool and quiet with multiple temperature sensors and hybrid fan headers, along with the FAN STOP feature for efficient and silent cooling when not needed. Built with high-quality materials and engineered for long-term durability, this motherboard provides excellent performance and stability for a wide range of computing tasks.

Combining cutting-edge features with superior design, the GIGABYTE B760M H DDR4 mATX Motherboard delivers everything you need for a fast, efficient, and future-ready PC build.

Buy the GIGABYTE B760M H DDR4 mATX Motherboard from Tech Buy BD for authentic products and the best value in Bangladesh.
