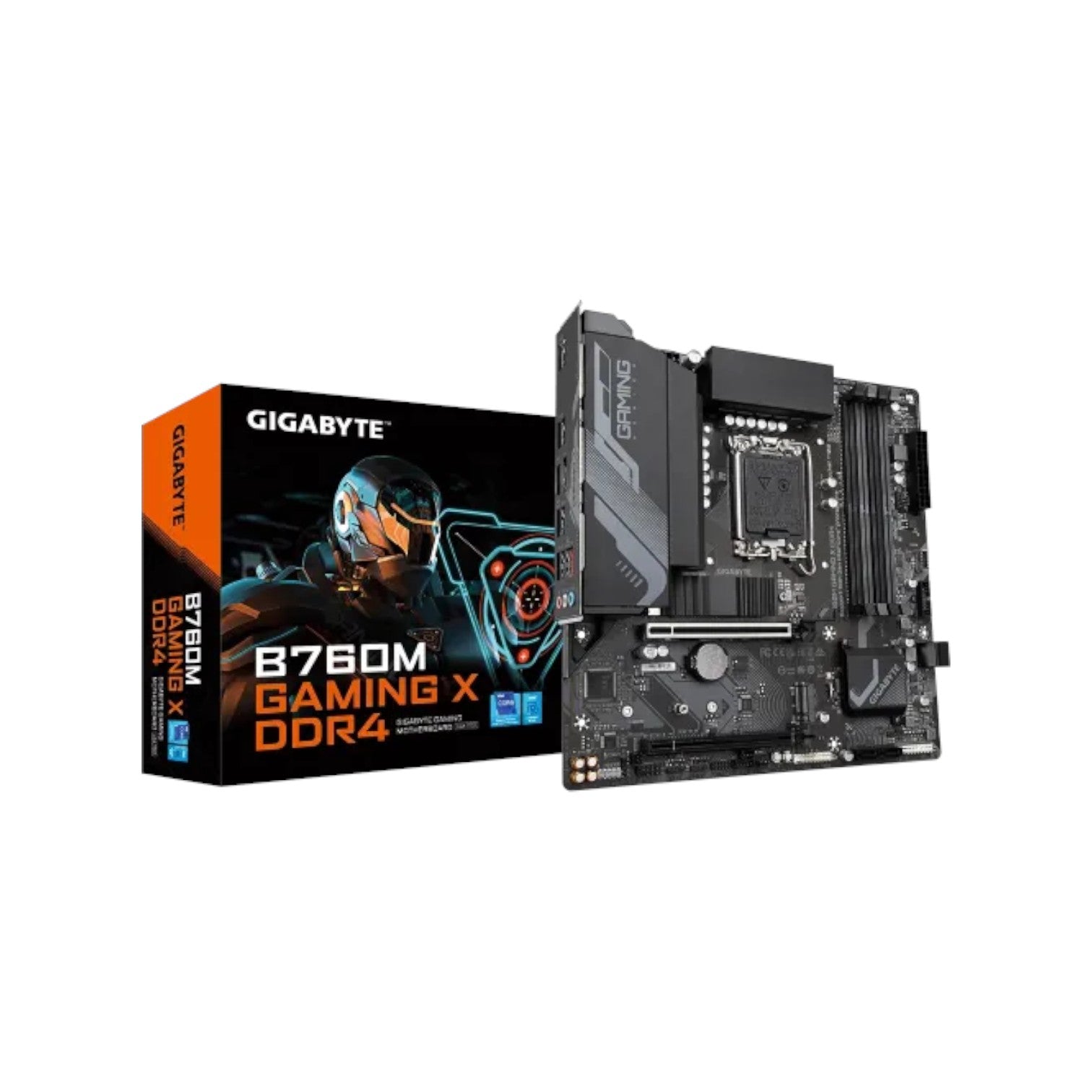

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M GAMING X DDR4
Availability: In stock

Key Features

Features: Realtek 2.5GbE LAN chip
Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 20,500
Tk 21,000
Tk 20,500
Subtotal: Tk 20,500
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors



Memory

Type DDR4
Slots 4
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Warranty

Warranty 3 years

Description

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

The GIGABYTE B760M GAMING X DDR4 mATX Motherboard is built for gamers and power users who demand exceptional performance, efficiency, and durability. Designed to support Intel’s 14th, 13th, and 12th Generation Core processors with the LGA1700 socket, it offers a perfect combination of cutting-edge features and reliable engineering for next-generation gaming and productivity. Its advanced 8+1+1 Phase Hybrid Digital VRM design ensures stable power delivery, maximizing CPU performance even under intense workloads.

This motherboard supports Dual Channel DDR4 memory across four DIMM slots, enabling up to 128GB of high-speed memory for smooth multitasking and optimized performance. It features two PCIe 4.0 x4 M.2 slots for NVMe SSDs, providing ultra-fast storage and quicker data access, while the M.2 Thermal Guard ensures consistent SSD cooling and performance. The EZ-Latch PCIe 4.0 x16 slot allows effortless GPU installation and removal, simplifying hardware upgrades for gamers and professionals.

Connectivity is top-notch with high-speed 2.5GbE LAN for fast and stable networking, along with a front USB-C 10Gb/s port for ultra-fast data transfer. Display connectivity options include HDMI and DisplayPort, supporting high-resolution multi-monitor setups for immersive visual experiences.

Smart Fan 6 technology provides intelligent cooling management, integrating multiple temperature sensors and hybrid fan headers with a fan stop function to ensure quiet and efficient cooling. The Q-Flash Plus feature allows BIOS updates without the need to install the CPU, RAM, or graphics card, making system maintenance and upgrades quick and convenient.

Engineered for performance and durability, the GIGABYTE B760M GAMING X DDR4 mATX Motherboard offers a perfect blend of speed, connectivity, and reliability. It’s an excellent choice for building a high-performance gaming rig or a powerful workstation that’s ready for the future.

Buy the GIGABYTE B760M GAMING X DDR4 mATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
