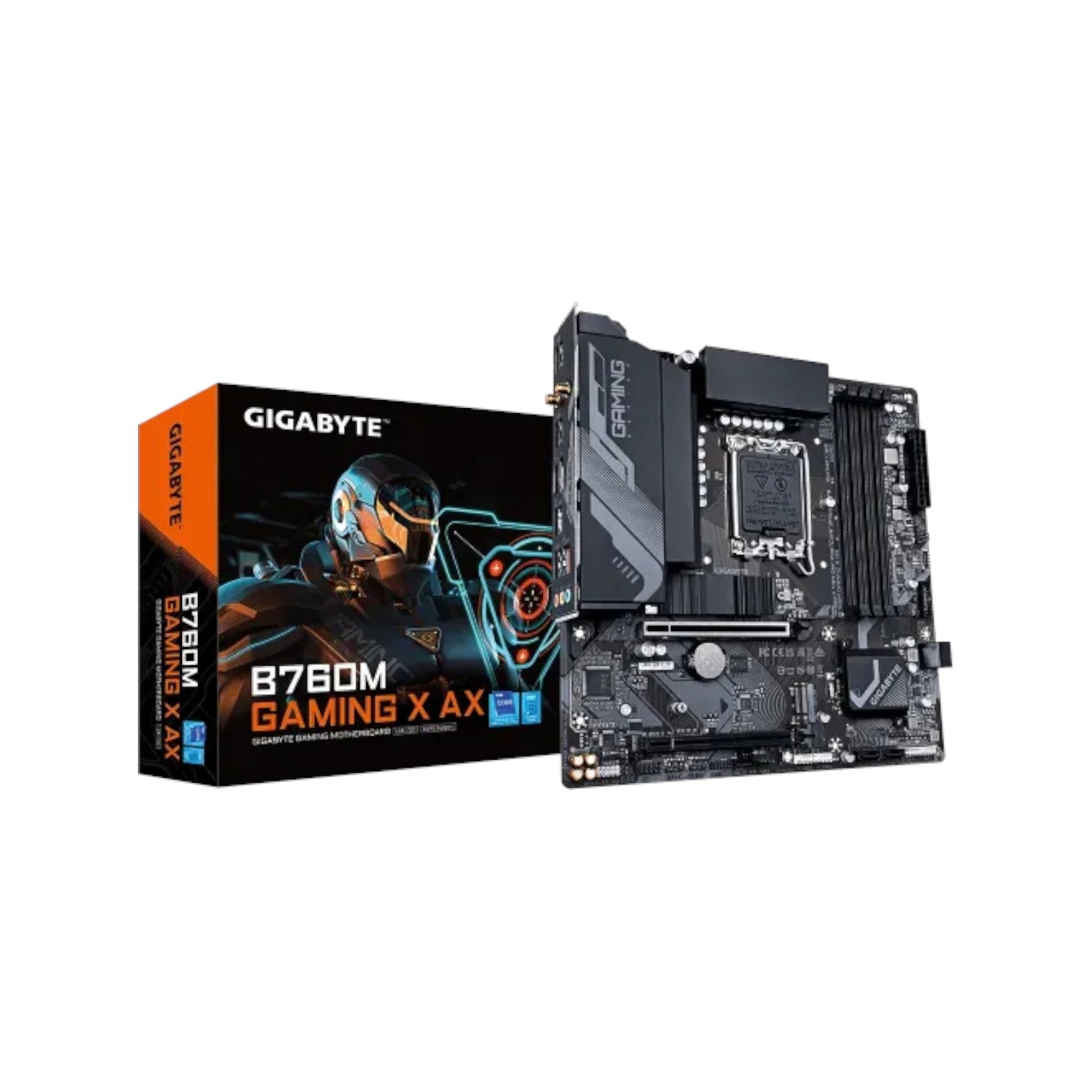

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M GAMING X AX DDR5
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 4x DDR5, Max 192GB 7600(OC)
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 20,500
Tk 21,000
Tk 20,500
Subtotal: Tk 20,500
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)



Memory

Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 192GB



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Wireless Communication module Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

The GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard is engineered for gaming enthusiasts and advanced users who demand superior performance, fast connectivity, and exceptional system stability. Built with the LGA1700 socket, it supports Intel’s 14th, 13th, and 12th Generation Core processors, delivering full compatibility with the latest CPU technologies. Its advanced Hybrid 8+1+1 Phase Digital VRM design ensures efficient and stable power delivery, enabling smooth performance and reliable overclocking under demanding workloads.

This motherboard supports Dual Channel DDR5 memory across four DIMM slots with XMP profile support, offering faster data transfer speeds and improved multitasking capabilities. With support for high-frequency DDR5 modules, users can experience smoother performance in gaming, creative work, and heavy multitasking. For storage, it includes two PCIe 4.0 x4 M.2 connectors that provide lightning-fast NVMe SSD support, while the M.2 Thermal Guard and enhanced thermal design maintain optimal performance and prevent overheating during extended operation.

The EZ-Latch PCIe 4.0 x16 slot simplifies GPU installation and removal, making upgrades effortless. Networking is optimized with 2.5GbE LAN and Wi-Fi 6E (802.11ax) technology, offering ultra-fast and low-latency connections ideal for competitive gaming and high-speed data transfers. For flexible display output, the motherboard includes HDMI and DisplayPort ports, supporting multi-monitor setups for immersive gameplay or productivity.

Connectivity is enhanced with a front USB-C 10Gb/s port for high-speed data transfers and modern peripheral compatibility. The Smart Fan 6 system features multiple temperature sensors and hybrid fan headers with a FAN STOP function, providing intelligent and silent cooling control for stable system performance. Additionally, the Q-Flash Plus feature allows users to update the BIOS easily without installing a CPU, memory, or GPU—making upgrades quick and hassle-free.

Combining advanced technology, premium build quality, and user-friendly features, the GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard offers outstanding performance, durability, and expandability. It’s the perfect choice for gamers, creators, and professionals seeking a high-performance, future-ready platform.

Buy the GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh
