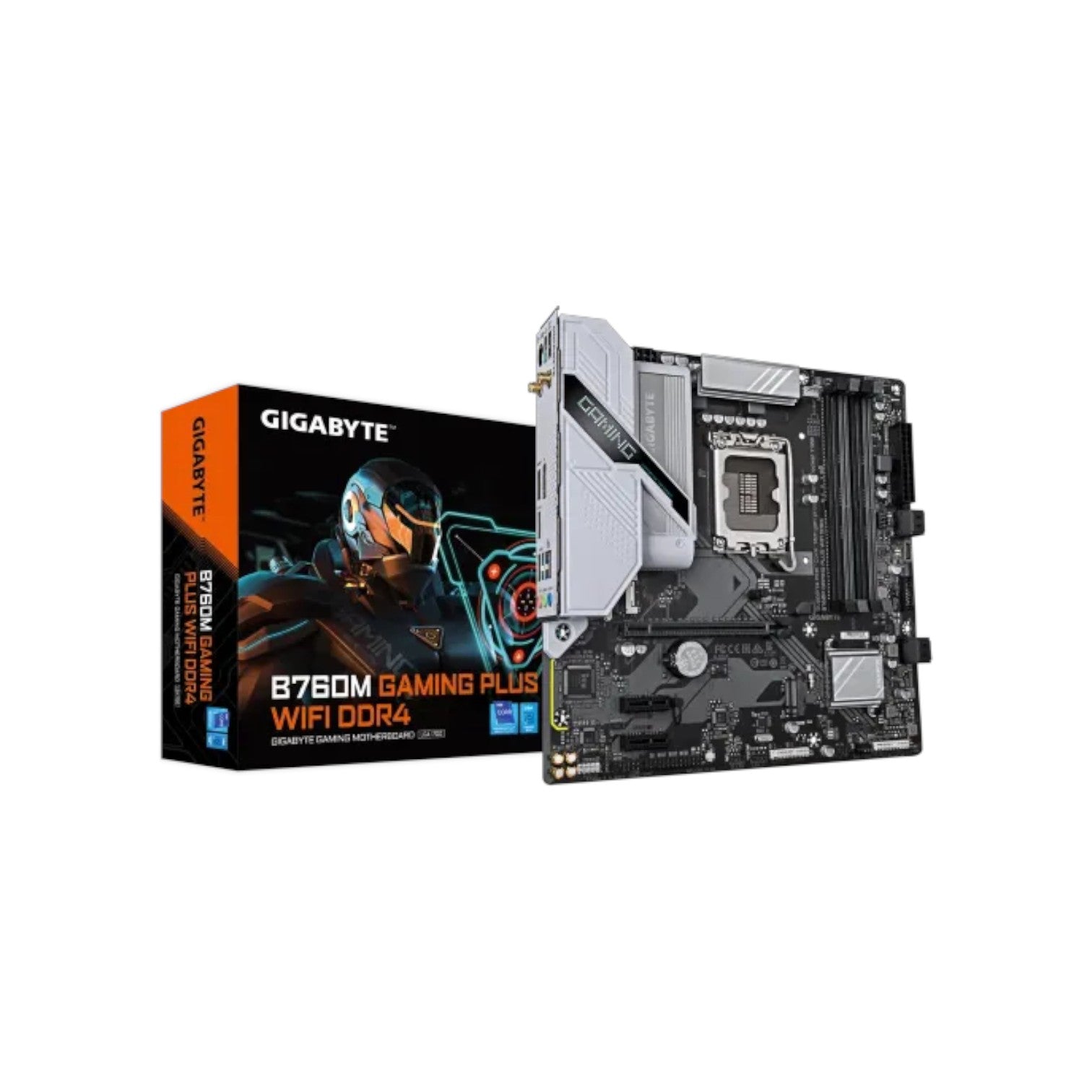

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M GAMING PLUS WIFI DDR4
Availability: In stock

Key Features

Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 20,500
Tk 21,000
Tk 20,500
Subtotal: Tk 20,500
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.


Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1



Memory

Type DDR4
Slots 4
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supporting up to 128 GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3



Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

The GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard is built to deliver exceptional performance, stability, and connectivity for gaming enthusiasts and professionals alike. Supporting Intel’s 14th, 13th, and 12th Generation Core processors with the LGA1700 socket, it combines power efficiency and advanced features to handle both high-performance gaming and heavy multitasking with ease. Its compact micro-ATX design ensures compatibility with a wide range of PC cases while maintaining premium-level performance and expandability.

Powered by a Hybrid 4+1+1 Phase Digital VRM Solution, this motherboard provides stable and reliable power delivery for consistent performance under demanding workloads. It supports Dual Channel DDR4 memory across four DIMM slots with XMP profile compatibility, allowing up to 128GB of high-speed memory for smooth gaming, content creation, and productivity. Storage performance is enhanced by two PCIe 4.0 x4 M.2 connectors, enabling ultra-fast NVMe SSDs that significantly reduce loading times and improve system responsiveness.

Connectivity is one of its key strengths, featuring built-in Wi-Fi 6 (802.11ax) and Gigabit Ethernet LAN for seamless online gaming, streaming, and data transfer. The inclusion of a front USB-C 5Gb/s port ensures fast and convenient data access, while HDMI and DisplayPort outputs allow flexible multi-display setups.

The GIGABYTE B760M GAMING PLUS WIFI DDR4 also features Smart Fan 6 technology, which uses multiple temperature sensors and hybrid fan headers with FAN STOP functionality to deliver efficient cooling and quiet operation. This intelligent system keeps the motherboard running at optimal temperatures, ensuring stability even during extended gaming sessions.

For easy maintenance and upgrades, the Q-Flash Plus feature allows BIOS updates without installing a CPU, memory, or GPU — simplifying the process of keeping your system up to date. Combining high-speed networking, robust power delivery, and superior expandability, this motherboard provides a strong foundation for building a high-performance and future-ready gaming rig or workstation.

Buy the GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
