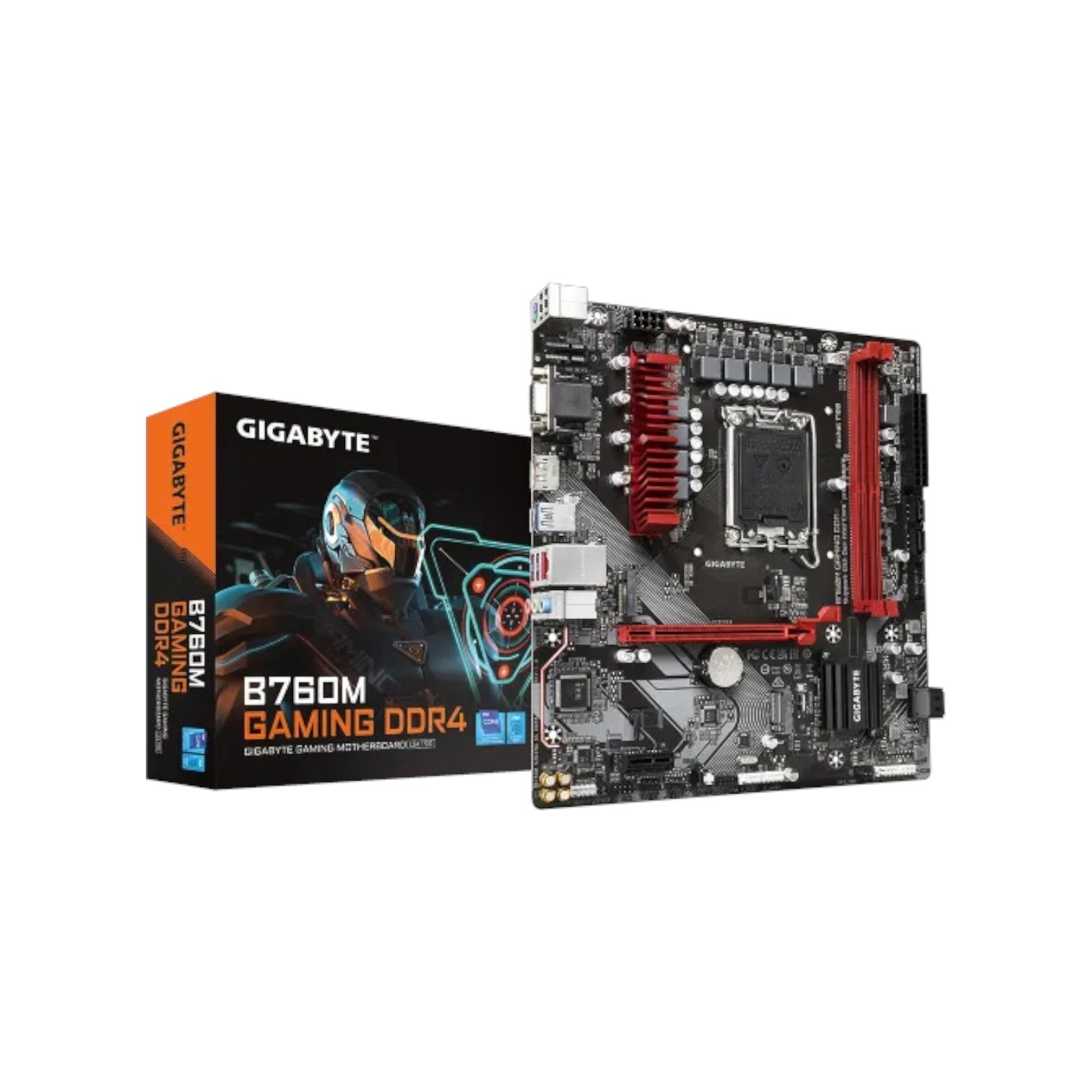

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M GAMING DDR4
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 2x DDR4, Max 64GB 5333(OC)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Features: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Ask an expert
Tk 19,300
Tk 19,800
Tk 19,300
Subtotal: Tk 19,300
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR4
Slots 2
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory supporting up to 64 GB (32 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz



Connector & Ports

HDMI 1x HDMI
VGA (s) 1 x D-Sub port
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip headers
1 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
1 x DisplayPort
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

The GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard is built for gamers and PC enthusiasts who demand performance, stability, and advanced connectivity. Supporting Intel’s 14th, 13th, and 12th Generation Core processors via the LGA1700 socket, it delivers exceptional processing power for modern gaming and productivity needs. Equipped with a Hybrid 6+2+1 Phase Digital VRM solution, it ensures consistent and efficient power delivery to the CPU, maintaining performance under high workloads and intense gaming sessions.

This motherboard supports up to 64GB of Dual Channel DDR4 memory across two DIMM slots, with speeds up to 5333MHz when overclocked, offering smooth multitasking and faster data throughput. For storage, it includes two PCIe 4.0 x4 M.2 connectors for ultra-fast NVMe SSDs, providing lightning-quick load times and data transfers. The PCIe 4.0 x16 slot features an EZ-Latch quick-release design, allowing effortless GPU installation or replacement without tools.

Networking is powered by a Realtek 2.5GbE LAN chip, delivering high-speed and reliable internet connectivity ideal for gaming and streaming. For display output, the motherboard includes HDMI, DisplayPort, and D-Sub options, supporting multi-display setups and crisp, high-resolution visuals. It also offers a rear USB-C 5Gb/s port for high-speed data transfer and compatibility with modern peripherals.

Smart Fan 6 technology ensures efficient cooling through multiple temperature sensors and hybrid fan headers, with a FAN STOP function for silent and energy-efficient operation. Additionally, the Q-Flash Plus feature allows BIOS updates without installing a CPU, memory, or graphics card—making upgrades and maintenance easier than ever.

Compact yet powerful, the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard combines cutting-edge features with durable construction, making it the perfect foundation for high-performance gaming PCs and versatile desktop builds.

Buy the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
