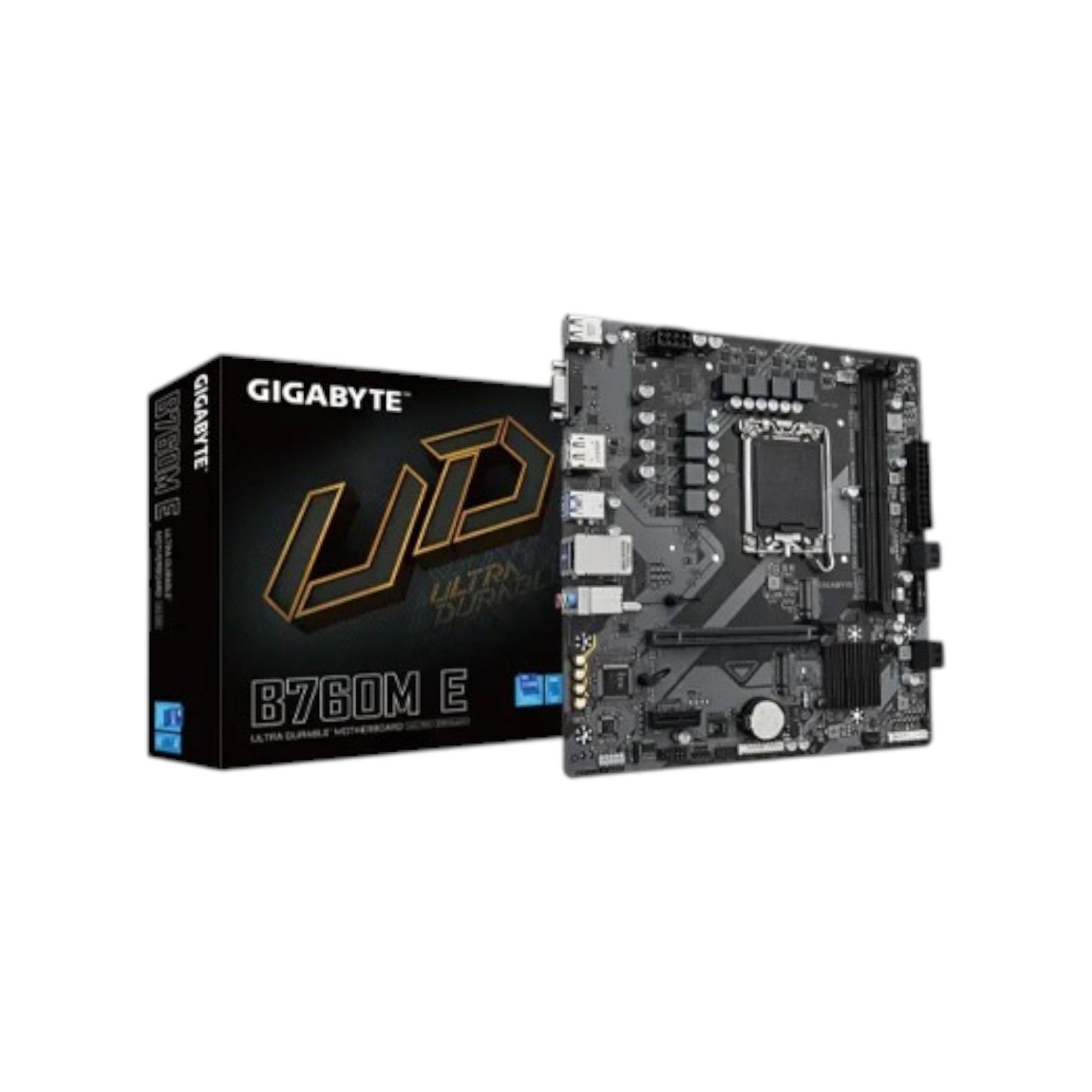

GIGABYTE B760M E DDR5 Micro ATX Motherboard

GIGABYTE B760M E DDR5 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M E
Availability: In stock

Key Features

Supported RAM: 2x DDR5, Max 128GB 7200(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 15,500
Tk 15,600
Tk 15,500
Subtotal: Tk 15,500
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR5
Slots 2
Supported Memory Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory module
Maximum Memory Supporting up to 128 GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.



Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors

2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B760M E DDR5 Micro ATX Motherboard

The GIGABYTE B760M E DDR5 Micro ATX Motherboard is designed to deliver next-level performance, efficiency, and reliability for modern computing needs. Supporting Intel’s 12th, 13th, and latest 14th Generation Core processors with the LGA1700 socket, it provides outstanding compatibility and processing power, making it an ideal choice for gamers, professionals, and content creators. The Hybrid 6+1+1 Phase Digital VRM design ensures stable and efficient power delivery, enhancing CPU performance even under demanding workloads.

Built to leverage the advantages of next-generation memory, this motherboard supports dual-channel DDR5 with two DIMM slots and XMP profile support, enabling faster data speeds, improved responsiveness, and greater multitasking capability. Storage performance is equally impressive with two PCIe 4.0 x4 M.2 slots, allowing users to experience ultra-fast data transfer and reduced loading times for games and applications.

For graphics and connectivity, the GIGABYTE B760M E DDR5 features DisplayPort, HDMI, and D-Sub ports, enabling flexible multi-display setups. The PCIe 4.0 x16 slot includes an EZ-Latch design that simplifies GPU installation with a convenient quick-release mechanism. Networking is handled by a high-speed GbE LAN connection, ensuring stable and lag-free internet access for gaming and streaming.

To maintain optimal performance, Smart Fan 6 technology intelligently manages system cooling with multiple temperature sensors and hybrid fan headers. The fan stop function ensures silent operation during idle or low-load conditions, promoting energy efficiency and extending component life.

Combining cutting-edge features, robust power delivery, and a user-friendly layout, the GIGABYTE B760M E DDR5 Micro ATX Motherboard offers the perfect balance of power, innovation, and value. Whether for gaming, creative work, or everyday computing, it provides a future-ready foundation for your high-performance PC build.

Buy the GIGABYTE B760M E DDR5 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
