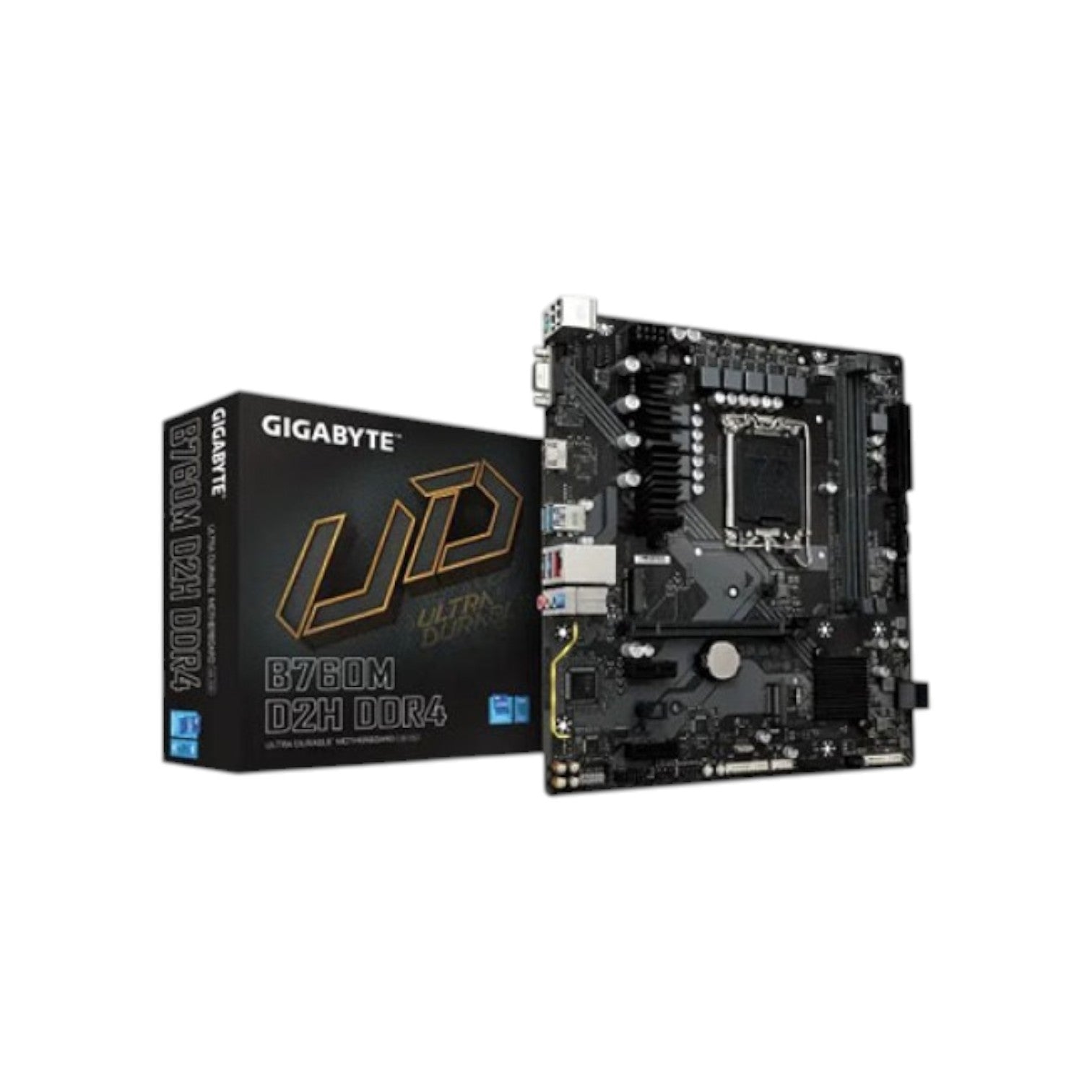

GIGABYTE B760M D2H DDR4 mATX Motherboard

GIGABYTE B760M D2H DDR4 mATX Motherboard

Brand: Gigabyte (Intel)
SKU: B760M D2H DDR4
Availability: In stock

Key Features

Features: Realtek 2.5GbE LAN chip
Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 2x DDR4, Max 128GB 5333(OC)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 14,500
Tk 15,500
Tk 14,500
Subtotal: Tk 14,500
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Expansion Slots

PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors



Memory

Type DDR4
Slots 2
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1x DisplayPort
USB (s) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Warranty

Warranty 3 years

Description

GIGABYTE B760M D2H DDR4 mATX Motherboard

The GIGABYTE B760M D2H DDR4 mATX Motherboard is engineered to deliver powerful, reliable, and efficient performance for modern Intel-based desktop systems. Designed for the LGA1700 socket, it supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, offering excellent compatibility and future-ready performance. Its Hybrid 6+2+1 Phase Digital VRM design ensures stable and efficient power delivery, making it a dependable choice for both gaming and productivity.

Supporting Dual Channel DDR4 memory with two DIMM slots and XMP profile support, it allows for high-speed performance and smooth multitasking. The motherboard also features two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSDs, ensuring rapid boot times and high-speed data access. The PCIe 4.0 x16 slot includes an EZ-Latch quick-release design, simplifying graphics card installation and upgrades without hassle.

With 2.5GbE LAN, users benefit from lightning-fast and stable network connections ideal for gaming, streaming, and data-intensive applications. HDMI and D-Sub display outputs provide flexible multi-display configurations, enhancing both work and entertainment setups. The Smart Fan 6 cooling system incorporates multiple temperature sensors and hybrid fan headers with a fan stop function, ensuring optimal thermal performance and quiet operation.

The GIGABYTE B760M D2H DDR4 also includes the Q-Flash Plus feature, allowing BIOS updates without the need to install a CPU, memory, or graphics card — making system maintenance quick and convenient. Built with durable components and advanced engineering, this motherboard delivers exceptional stability, longevity, and performance for any mid-range to high-end build.

Buy the GIGABYTE B760M D2H DDR4 mATX Motherboard from Tech Buy BD for genuine products and the best deals in Bangladesh.
