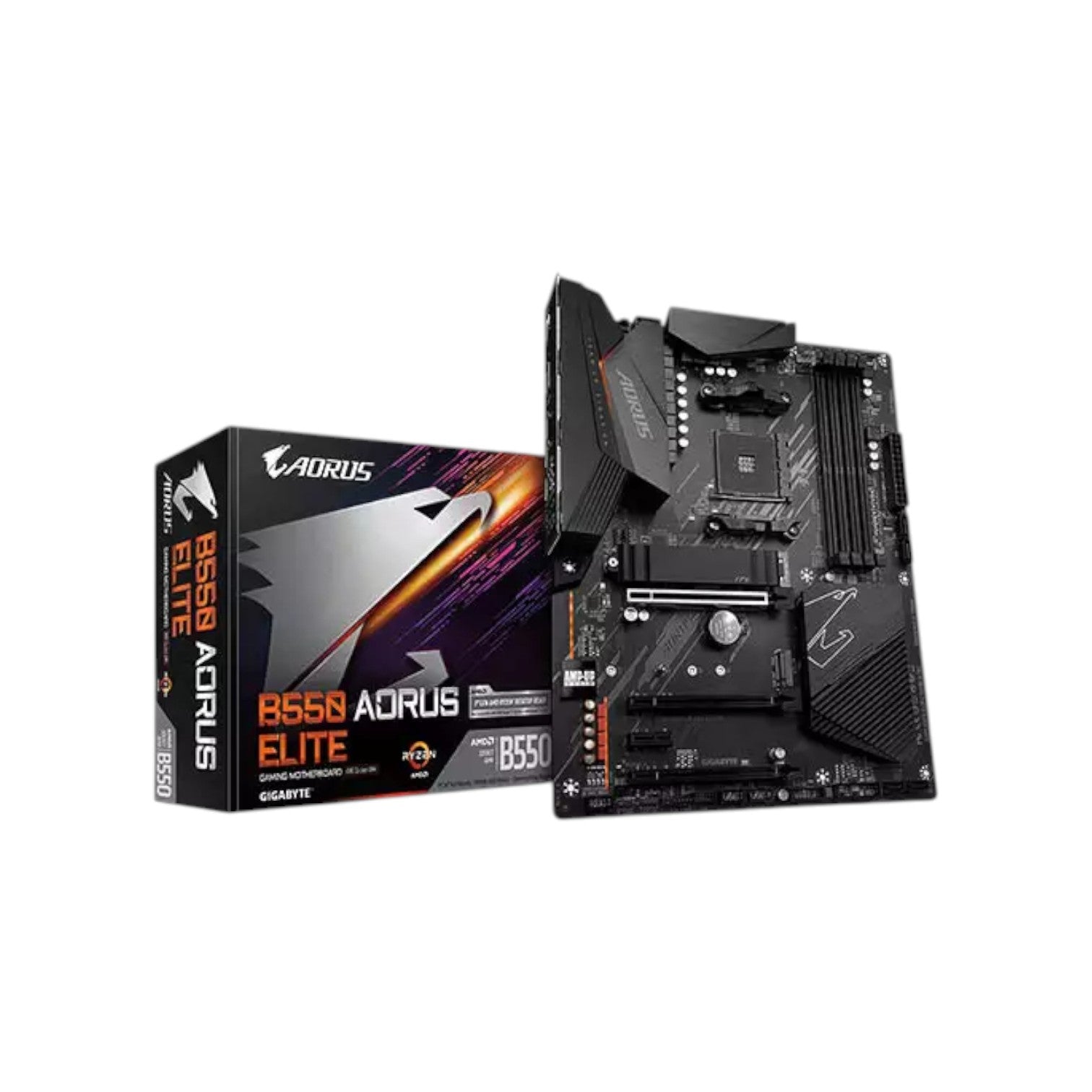

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard (MGBAMD5617)

Tk 22,500; ~~Tk 23,000~~; Tk 22,500
Unit price: per

Brand: Gigabyte (AMD)

SKU: Gigabyte Aorus B550 Elite

Availability: Out Of Stock

Key Features

Blazing Fast 2.5GbE LAN
Q-Flash Plus Update BIOS
Ultra Durable PCIe 4.0 x16 Slot
AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors

Ask an expert

Subtotal: Tk 22,500

Quantity:

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard (MGBAMD5617)

~~Tk 23,000~~ Tk 22,500

Quantity:

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard (MGBAMD5617)

~~Tk 23,000~~ Tk 22,500

Description

Description

Specification

Basic Information

Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
- New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode

M.2 Socket

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs

Memory

Type	Dual-Channel Architecture
Slots	4 x DDR4 memory slots
Supported Memory	3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	support up to 128GB

Graphics

Graphics	1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory	16 GB

Connector & Ports

HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
USB (s)	CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Support for Windows 10 64-bit

Warranty

3 years

Description

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard

The Gigabyte B550 AORUS ELITE Gaming AMD Motherboard is built for gamers, creators, and PC enthusiasts who demand superior power, speed, and reliability. Designed to support the latest 3rd Gen AMD Ryzen processors, this motherboard features a direct digital power phase design that ensures stable power delivery and high performance under demanding workloads. Its PCIe 4.0-ready architecture provides next-generation bandwidth for graphics cards and NVMe SSDs, while dual M.2 slots with thermal guards prevent throttling during high-speed data transfers. With an advanced thermal solution featuring enlarged heatsinks, high-quality thermal pads, and efficient heat dissipation, this board maintains lower temperatures for extended gaming or overclocking sessions. Connectivity and future-readiness are at the heart of the B550 AORUS ELITE, featuring high-speed network, storage, and Wi-Fi capabilities. It combines exceptional durability with GIGABYTE’s Ultra Durable components for long-lasting performance. The motherboard also delivers premium audio through AORUS AMP-UP Audio technology, Hi-Fi grade WIMA FKP2, and Nichicon Fine Gold capacitors—providing crystal-clear sound for immersive gaming and entertainment. An audio noise guard separates sensitive analog audio components from potential interference, ensuring cleaner signal output. For personalization, the RGB FUSION 2.0 system lets you control onboard and external RGB lighting to create your unique gaming setup. Enhanced memory routing improves read and write speeds for better responsiveness, while intuitive GIGABYTE software allows easy system control, performance tuning, and RGB customization. Combining innovative design, durable build quality, and unmatched functionality, the Gigabyte B550 AORUS ELITE Gaming AMD Motherboard stands out as a premium choice for gamers and enthusiasts aiming for a powerful, future-proof PC build.

Buy the Gigabyte B550 AORUS ELITE Gaming AMD Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
