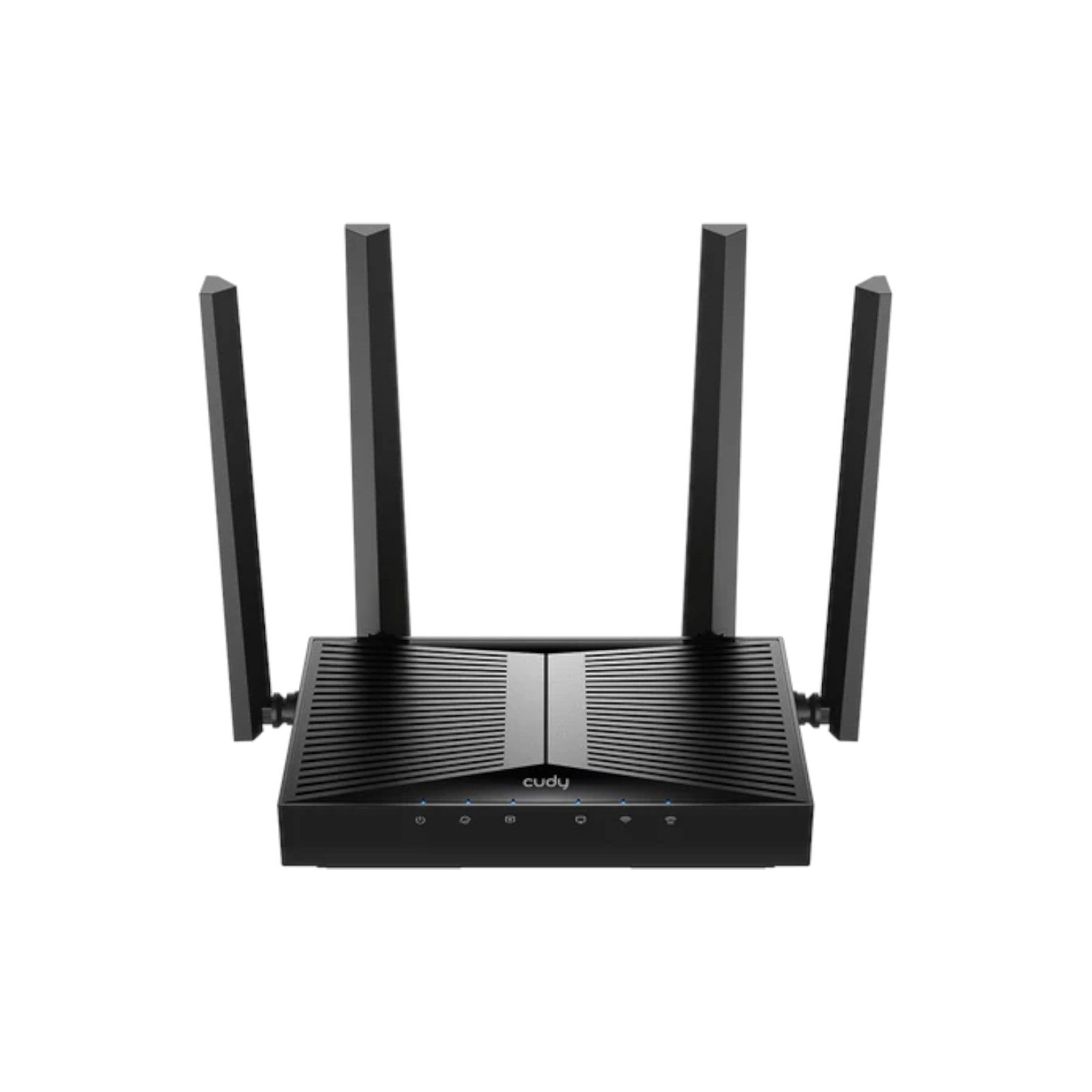

Cudy WR3600 BE3600 Gigabit Wi-Fi 7 Mesh Router

Brand: Cudy
SKU: WR3600
Availability: In stock

Key Features

Frequency: Dual Band 2.4 GHz & 5 GHz
Wi-Fi Speed: 5GHz 2882 Mbps, 2.4GHz 688 Mbps
Ports: 5× Gigabit Ethernet Ports, Cudy Mesh, Wi-Fi 7
Coverage: up to130 m² (1,400 ft²) , Cudy App, Cloud Control

Color: White
Tk 8,000
Tk 8,250
Tk 8,000
Subtotal: Tk 8,000

Specification

Key Features

 Data Rate 5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
Antenna 4 × Fixed Antennas
Button WPS Button, Reset Button
Frequency 5 GHz, 2.4 GHz
Interface 5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
5 GHz Antenna Gain Max: 7.8dBi
2.4 GHz Antenna Gain Max: 5.2dBi

FEM or PA/LNA:
5 GHz: 2× External
2.4 GHz: 2× External

Beamforming: True

Range Performance:
Max: 220 m (722 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.

Wall Performance:
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Network Standard QoS: Per-User Rate Limiting

DHCP:
Address Reservation
DHCP Client List
Server

IP Versions: IPv4/IPv6

IPv6 Protocols:
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite

IPTV/VLAN:
Bridge
Tag VLAN
VoIP VLAN
IPTV VLAN

TTL Customization:
Extend
Spoof
Custom

IGMP:
IGMP Proxy
IGMP Snooping

Forwarding:
Port Forwarding
Port Triggering
UPnP
DMZ

Firewall:
SPI Firewall
DoS Protection
Block PING

Application Layer Gateway:
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough
Others CPU:
Chipset: BCM6764
CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7

Memory/Storage:
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 512 MB (4 Gbit) DDR3L

4-Stream Dual-Band Wi-Fi 7
Max Capacity: 512
200 Connected Devices Recommended
Max Wi-Fi Channel Width: 160 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
Covers 130 m² (1,400 ft²)
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control, VPN Server and Client

Reliability:
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

General:
Operation Modes:
Wi-Fi Router
Access Point
Multi-Band Backhaul: True
WAN Mode:
DHCP
Static IP
PPPOE
PPTP
L2TP

System:
LED Control: Ture
Local Control Method:
Config Web Page
App Control
Remote Control Method:
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR181
Firmware Upgrade:
Local Update
App (Over the Air)
Online Update
Reliability:
Timed Reboot
Backup and Restore
Diagnostic Tools:
Diagnosis
Ping
Traceroute
NSLookup
System Log

Management
All Devices Management:
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management:
Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management:
Domain Filter
IP Filter
Power Mode Power Methods: DC
DC: 12V 1A

Power Adapter:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC

Max Power Consumption (W): 8.5W

Physical Dimension

Dimension 183.3×109×38 mm
7.22×4.29×1.5 inches
Color Black
Weight 333.5 g (11.76 oz.)

Warranty

Warranty 1 year Warranty

Description

Cudy WR3600 BE3600 Gigabit Wi-Fi 7 Mesh Router

The Cudy WR3600 BE3600 Gigabit Wi-Fi 7 Mesh Router delivers next-generation speed, stability, and performance for modern homes and offices. Powered by Wi-Fi 7 technology, it offers blazing dual-band wireless speeds of up to 2882Mbps on the 5GHz band and 688Mbps on the 2.4GHz band, ensuring ultra-fast connectivity for streaming, gaming, and multitasking across multiple devices. With 2×2 MIMO streams and beamforming technology, this router provides wide coverage and strong, reliable signals, making it ideal for large households or environments with high device density.

At its core, the Cudy WR3600 runs on a powerful 2.0GHz Quad-Core ARM Cortex-A7 processor with a Broadcom BCM6764 chipset, ensuring smooth network performance even during peak usage. It features four high-gain fixed antennas and an external FEM amplifier to boost signal strength and maintain stable transmission throughout your space. The router is equipped with five Gigabit Ethernet ports—one WAN and four LAN—delivering fast, wired connectivity for PCs, gaming consoles, or smart TVs.

Designed for flexibility and control, the Cudy WR3600 offers convenient management through the Cudy App and Cloud Control, allowing easy setup and remote access from anywhere. It also includes advanced features such as VPN server and client support for secure remote connections, robust parental controls to manage online content and screen time, and strong network security with QoS per-user rate limiting, SPI firewall, and DoS protection.

Combining cutting-edge Wi-Fi 7 speed, intelligent design, and enterprise-level reliability, the Cudy WR3600 BE3600 Gigabit Wi-Fi 7 Mesh Router ensures uninterrupted, high-performance networking for all your connected devices.

Buy the Cudy WR3600 BE3600 Gigabit Wi-Fi 7 Mesh Router from Tech Buy BD and experience ultra-fast connectivity, enhanced coverage, and next-level security backed by a 1-year warranty.
