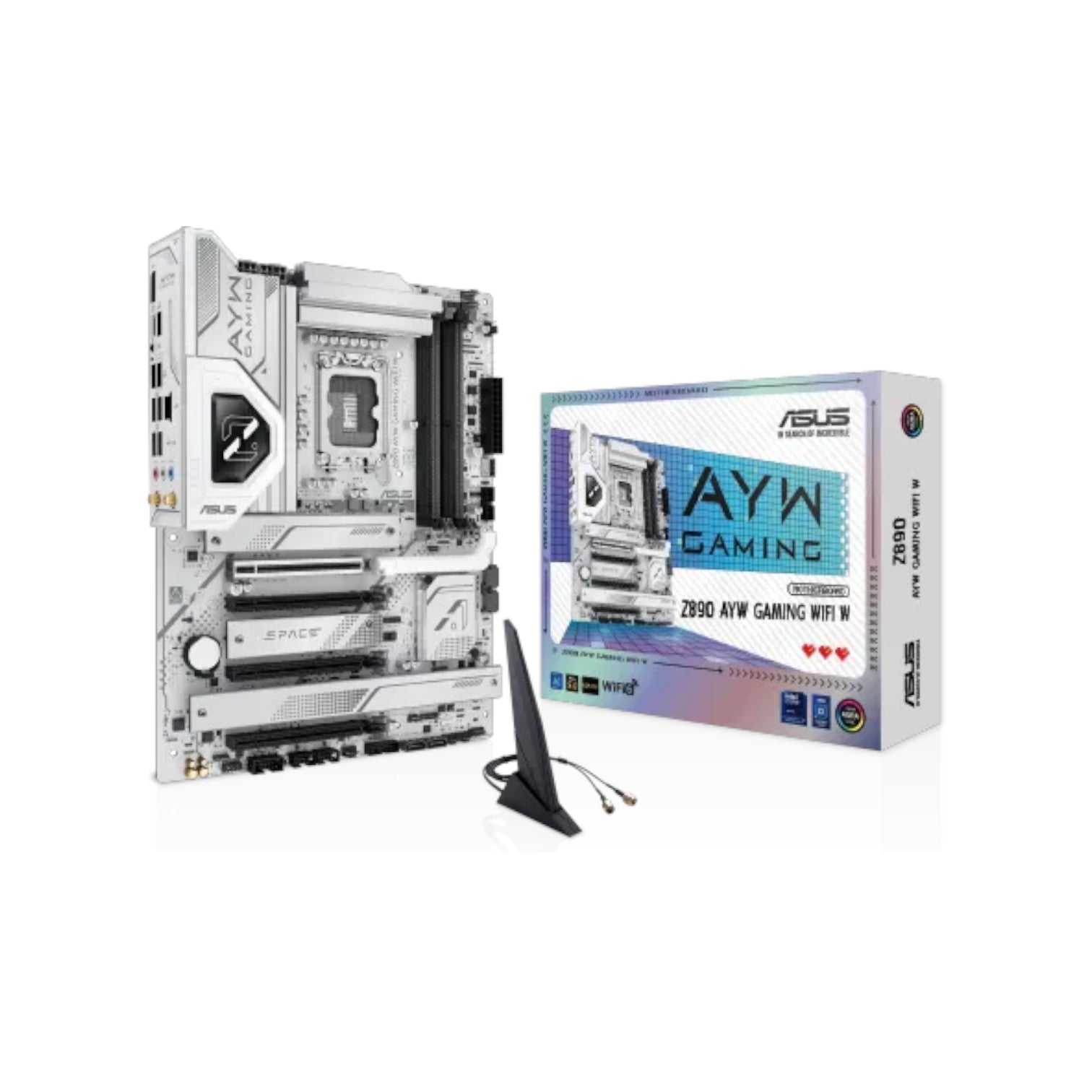

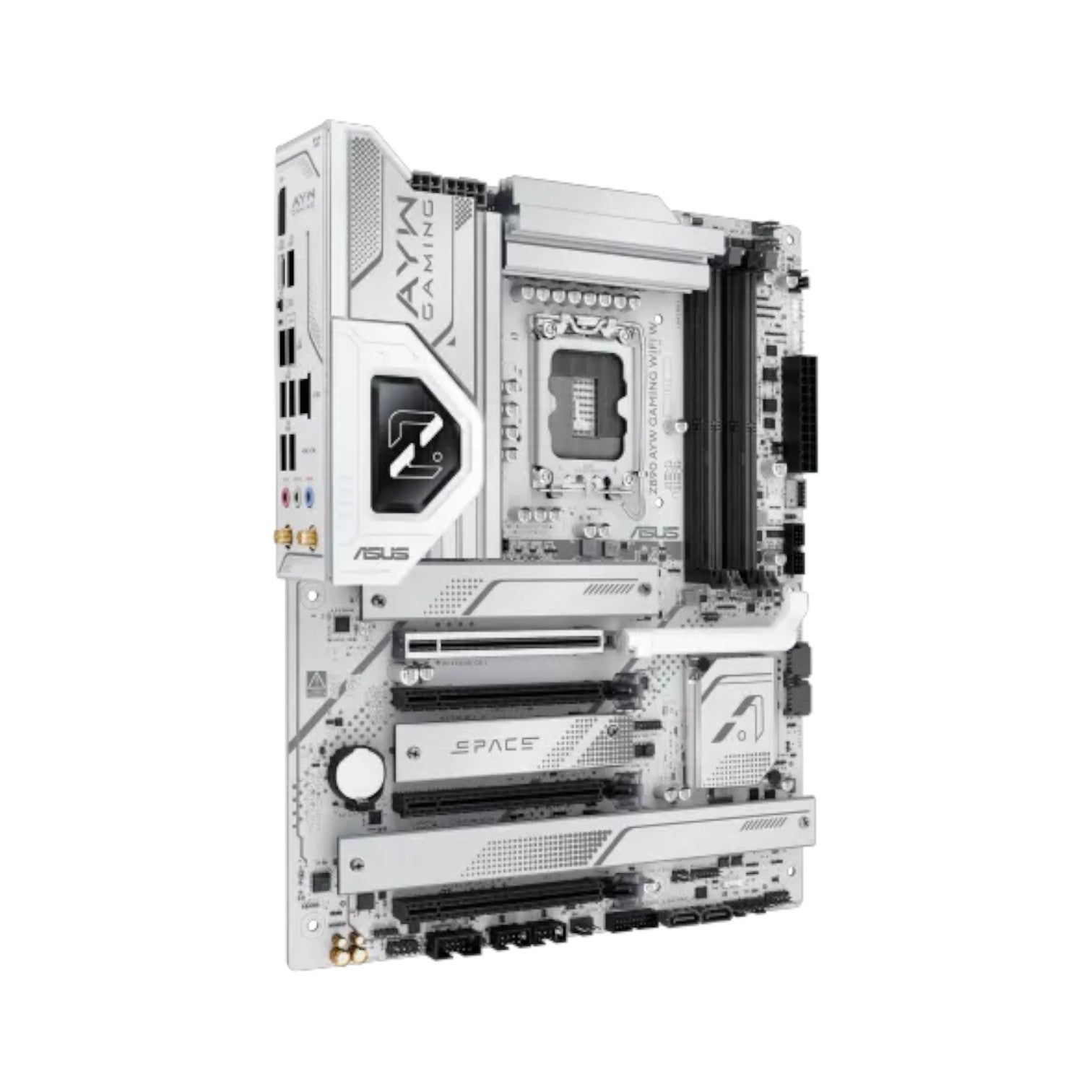

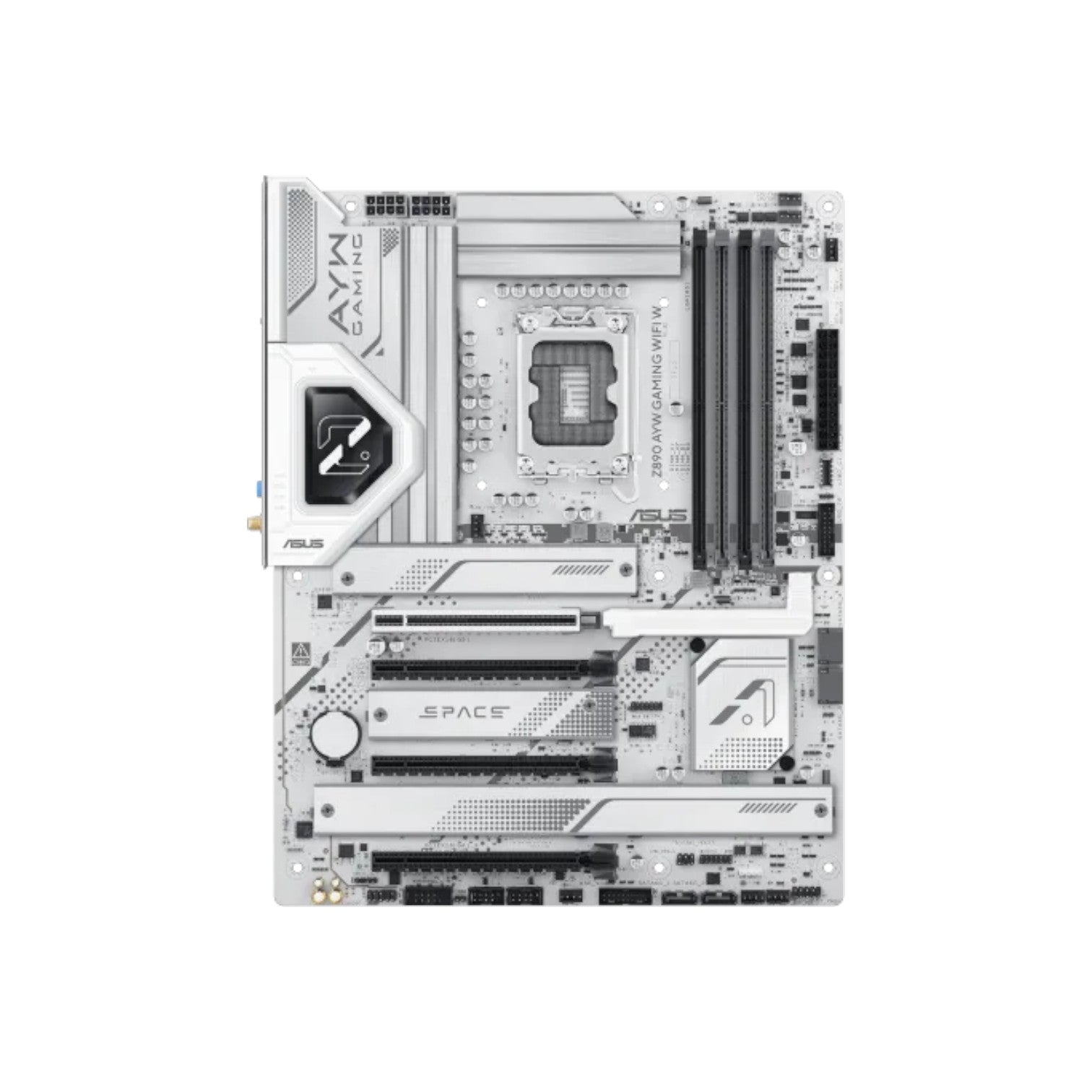

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

Brand: ASUS
SKU: Z890-AYW-GAMING-WIFI-W
Availability: In stock

Key Features

  • Model: Z890 AYW GAMING WIFI W
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 192GB,Supports Up to 9066+MT/s (OC)
  • Graphics Output: 1x DisplayPort, 1xUSB Type-C 20Gbps (DisplayPort)
  • Features: 4x M.2, Intel Wi-Fi 6, Bluetooth 5.3
Ask an expert
Tk 42,400
Tk 46,110
Tk 42,400
Subtotal: Tk 42,400
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports



Memory

Type DDR5
Slots 4 x DIMM slots
Supported Memory Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM
Maximum Memory 192GB



Graphics

Graphics 1 x DisplayPort
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output

* Graphics specifications may vary between CPU types



Connector & Ports

Display Port (s) 1 x DisplayPort
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge )**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3

* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage 4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio 1 x Front Panel Audio header (F_AUDIO)
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsinks design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0 and PPS
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost (Intel K-series Processors only)

Warranty

Warranty 3 years

Description

ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard

The ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard is a flagship gaming and performance platform built for enthusiasts, creators, and professionals who demand uncompromising power, connectivity, and reliability. Based on the Intel® Z890 chipset, it supports the latest Intel® Core™ Ultra Series processors through the LGA1851 socket, offering next-generation performance and efficiency for gaming, overclocking, and intensive workloads.

Equipped with four DDR5 DIMM slots, this motherboard supports up to 192GB of high-speed memory with overclocking potential up to 9066+MT/s, ensuring top-tier responsiveness and performance across all tasks. Its advanced power design delivers exceptional stability and efficiency, even under extreme loads, making it a robust choice for high-performance PC builds.

Expansion and connectivity are exceptional, featuring multiple PCIe 5.0 slots for next-gen graphics cards and ultra-fast data throughput, providing future-ready performance for years to come. The ASUS Z890 AYW GAMING WIFI W also includes a wide range of high-speed USB connections—such as USB 20Gbps Type-C® with DisplayPort Alt Mode and USB PD 3.0 (up to 30W fast charging)—ensuring seamless compatibility with modern peripherals and devices.

Networking and wireless performance are equally impressive, powered by Realtek 2.5Gb Ethernet and integrated WiFi 6 with Bluetooth 5.3 for stable, lag-free connectivity. The motherboard’s AI-enhanced networking optimizes bandwidth automatically through AI Networking II, ensuring smooth online gaming and streaming experiences.

Cooling and durability are at the core of the design. Featuring enlarged VRM heatsinks, multiple fan headers, and dedicated M.2 heatsinks, it maintains stable thermals during high-performance gaming or rendering. AI Cooling II dynamically adjusts fan speeds based on system temperatures to balance noise and cooling efficiency automatically.

The ASUS Z890 AYW also incorporates intelligent AI Overclocking, which profiles CPU and thermal characteristics to achieve the perfect balance of performance and stability automatically. Combined with AI Cooling and AI Networking, it ensures your system always runs at peak potential without manual tuning.

Aesthetically, the motherboard features ASUS Aura Sync RGB lighting for complete customization, allowing users to personalize their builds with synchronized lighting effects across compatible components. User-friendly features like an EZ PC DIY layout, pre-mounted I/O shield, and intuitive BIOS interface make building and upgrading straightforward.

Delivering cutting-edge performance, superior cooling, and intelligent automation, the ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard stands out as a top-tier choice for gamers and professionals building powerful, future-proof systems.

Price in Bangladesh: 42,400৳
Buy the ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
