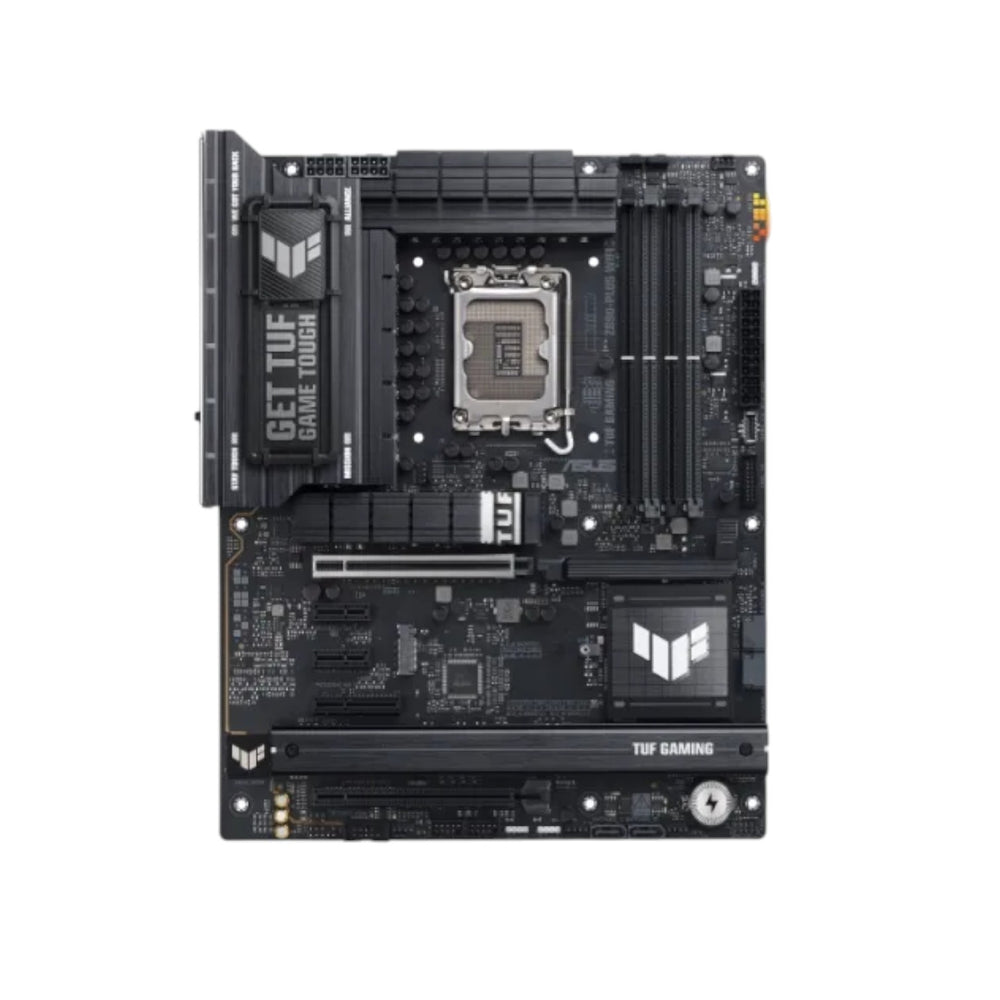

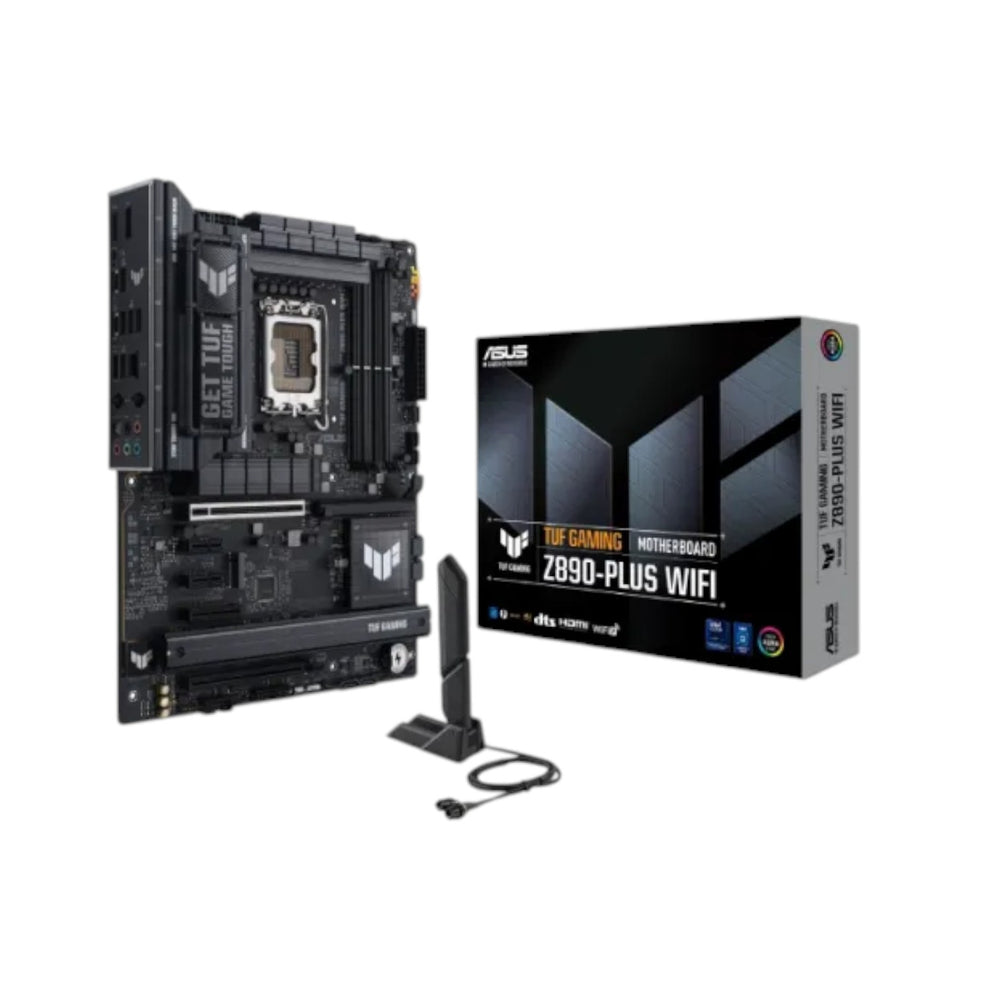

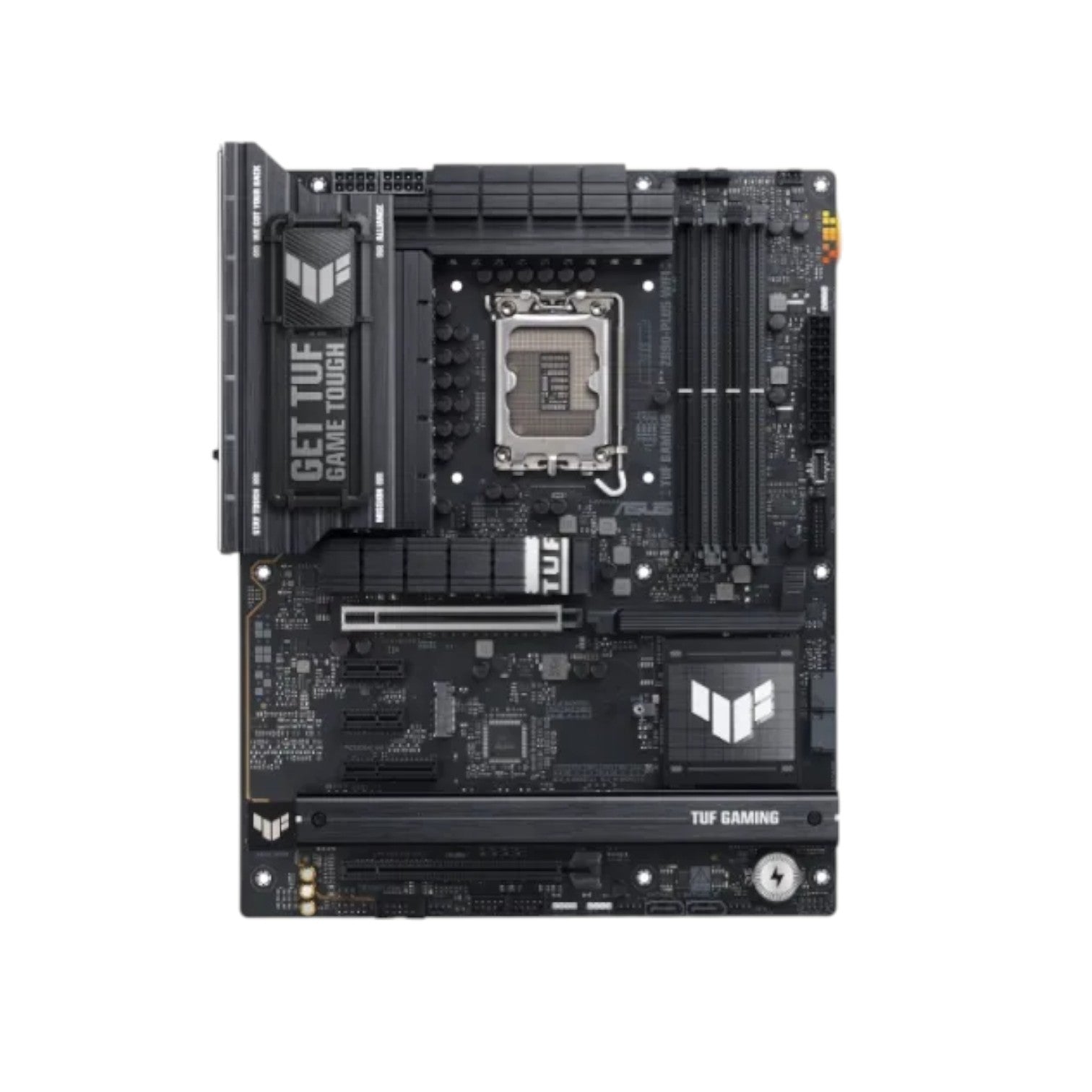

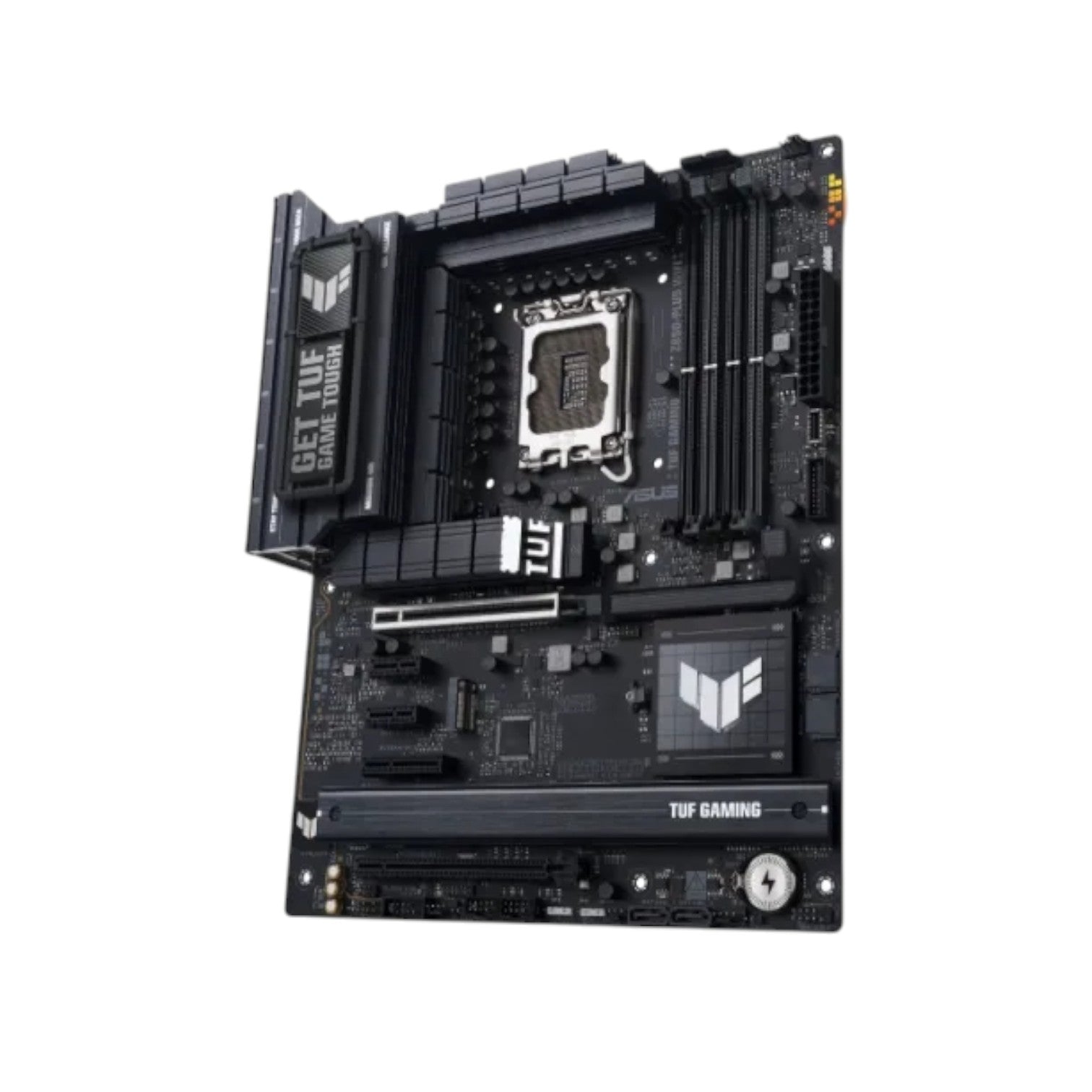

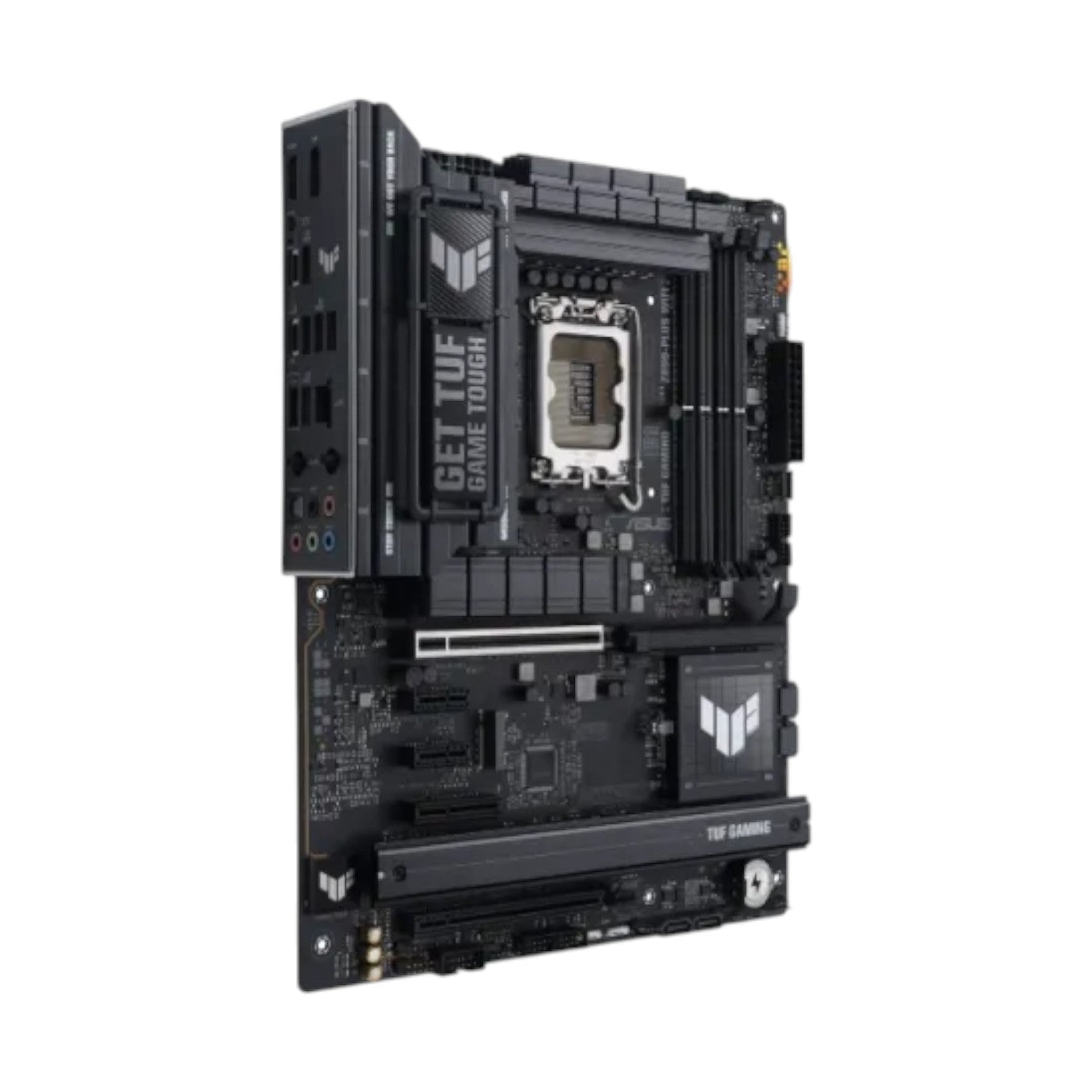

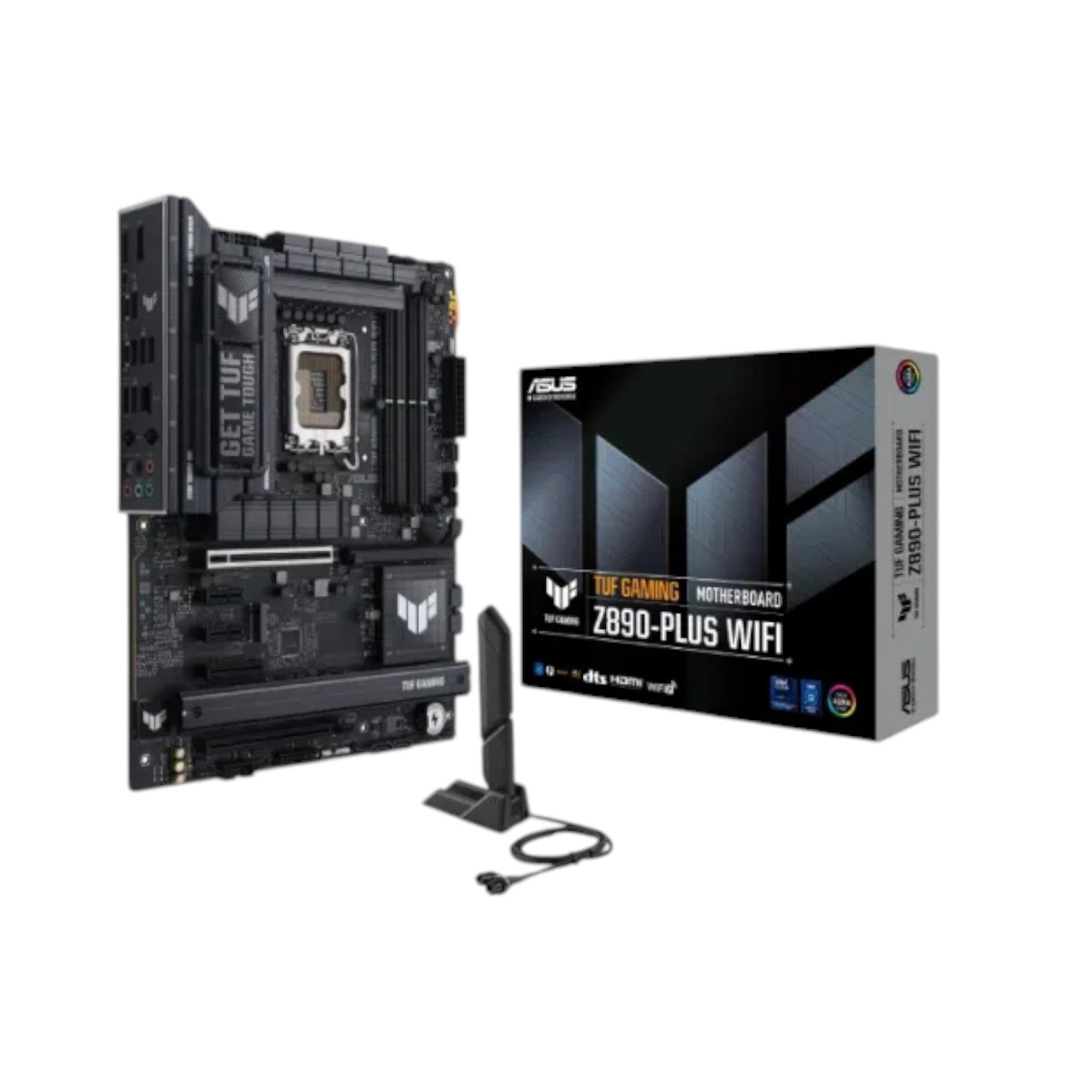

ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard
ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard
ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard
ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard

ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard

Brand: ASUS
SKU: TUF-Z890-PLUS-WIFI
Availability: In stock

Key Features

  • Model: TUF GAMING Z890-PLUS WIFI
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066+MT/s (OC)
  • Graphics Output: 1x DisplayPort, 1 x HDMI, 2 x USB Type-C
  • Features: 4x M.2, 1x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4
Ask an expert
Tk 50,300
Tk 54,580
Tk 50,300
Subtotal: Tk 50,300
Description

Specification

Basic Information

Supported CPU Support Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z890 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Expansion Slots

PCI Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
M.2 Socket Total Supports 4 x M.2 slots
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)



Memory

Type DDR5
Slots 4 x DIMM slots
Supported Memory Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
USB (s) Rear USB (Total 8 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
LAN Port (s) 1 x Intel 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4
Supported Storage Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Internal I/O Ports Back Panel I/O Ports
1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost

Warranty

Warranty 3 years

Description

ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard

The ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard is a high-performance and military-grade engineered motherboard built to meet the demands of gamers, creators, and professionals. Powered by the advanced Intel Z890 chipset, it supports the latest Intel Core Ultra Series (Series 2) processors with the LGA1851 socket, ensuring exceptional performance and efficiency across gaming, content creation, and AI-powered applications.

Equipped with four DDR5 DIMM slots, this motherboard supports up to 256GB of RAM with overclocked speeds surpassing 9066MT/s (OC). Combined with Intel XMP and ASUS Enhanced Memory Profile III (AEMP III), users can achieve optimal memory stability and ultra-fast performance tailored for intense workloads and high-end gaming sessions.

Graphics performance and expansion are future-ready, featuring PCIe 5.0 and PCIe 4.0 slots for the latest GPUs and add-on cards. For storage, it provides four M.2 slots (including PCIe 5.0 support) and four SATA 6Gb/s ports, enabling ultra-fast NVMe SSD performance and flexible RAID configurations for maximum storage efficiency. Display options include HDMI, DisplayPort, and Thunderbolt 4, supporting resolutions up to 8K@60Hz for crystal-clear visuals and immersive experiences.

Networking and connectivity on the ASUS TUF GAMING Z890-PLUS WIFI are cutting-edge, offering Wi-Fi 7 with lightning-fast speeds up to 2.9Gbps, Bluetooth 5.4, and Intel 2.5Gb Ethernet with TUF LANGuard for enhanced reliability and protection. Multiple USB options—including Thunderbolt 4, USB 20Gbps Type-C, and high-speed USB Type-A ports—ensure seamless compatibility with all modern peripherals and accessories.

Audio performance is exceptional, powered by the Realtek ALC1220P 7.1 Surround Sound codec, delivering high-fidelity, studio-grade sound with superior clarity for gaming, streaming, and entertainment.

Built for endurance, the ASUS TUF GAMING Z890-PLUS WIFI features military-grade components, an enhanced power delivery system, and ASUS TUF Protection technologies including ESD Guards, SafeSlot, and overvoltage protection to ensure long-term reliability. Its comprehensive thermal solution—with VRM heatsinks, M.2 heatsinks, AIO pump header, and multiple fan headers—guarantees superior cooling even under extended heavy loads.

Installation and maintenance are simplified with ASUS Q-Design innovations, including M.2 Q-Latch, PCIe Slot Q-Release, and a pre-mounted I/O shield, making DIY PC building effortless.

With its robust build quality, advanced thermal performance, superior connectivity, and next-gen features, the ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard is a perfect choice for users seeking power, reliability, and long-lasting performance.

Price in Bangladesh: 50,300৳
Buy the ASUS TUF GAMING Z890-PLUS WIFI LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product comes with a 3-year warranty.
