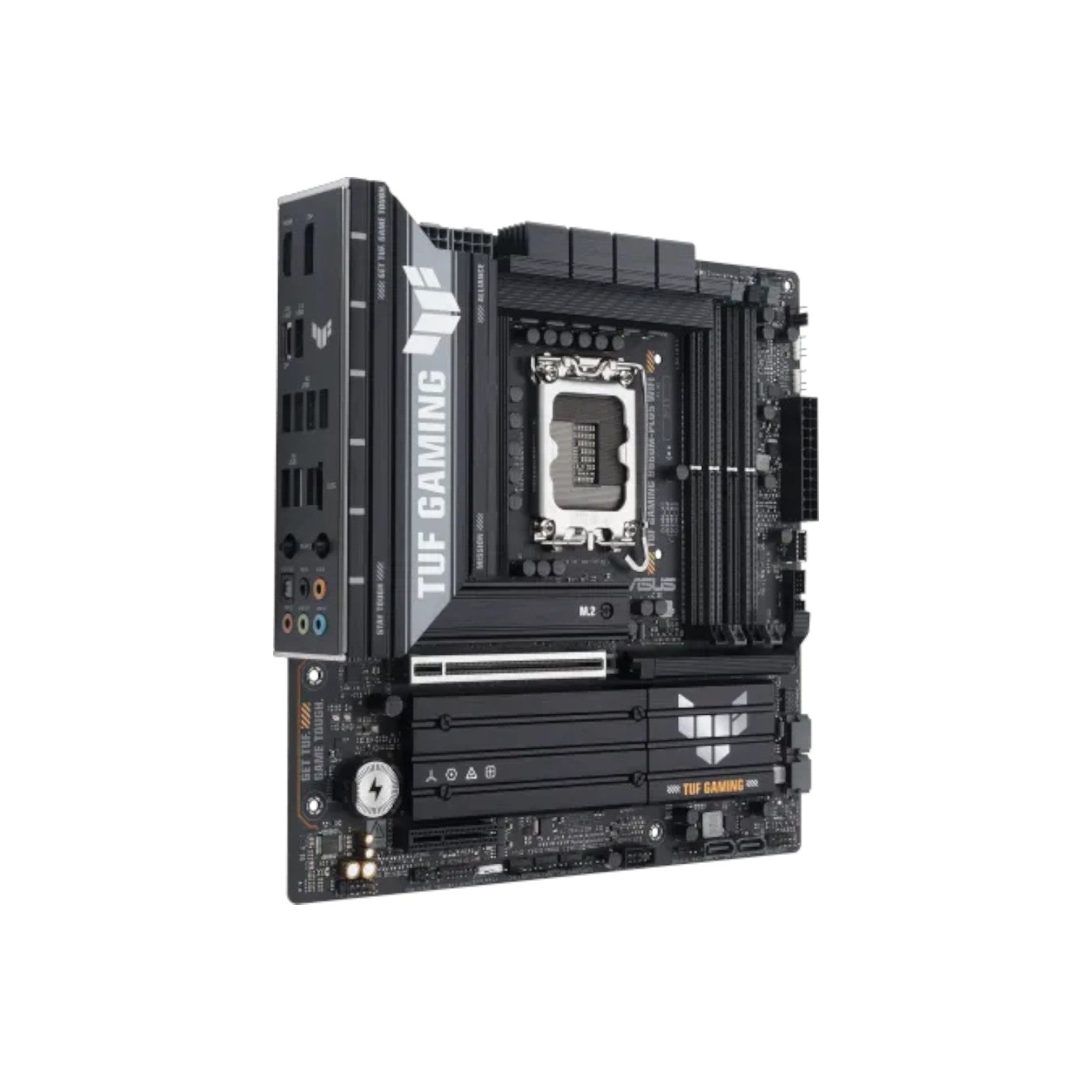

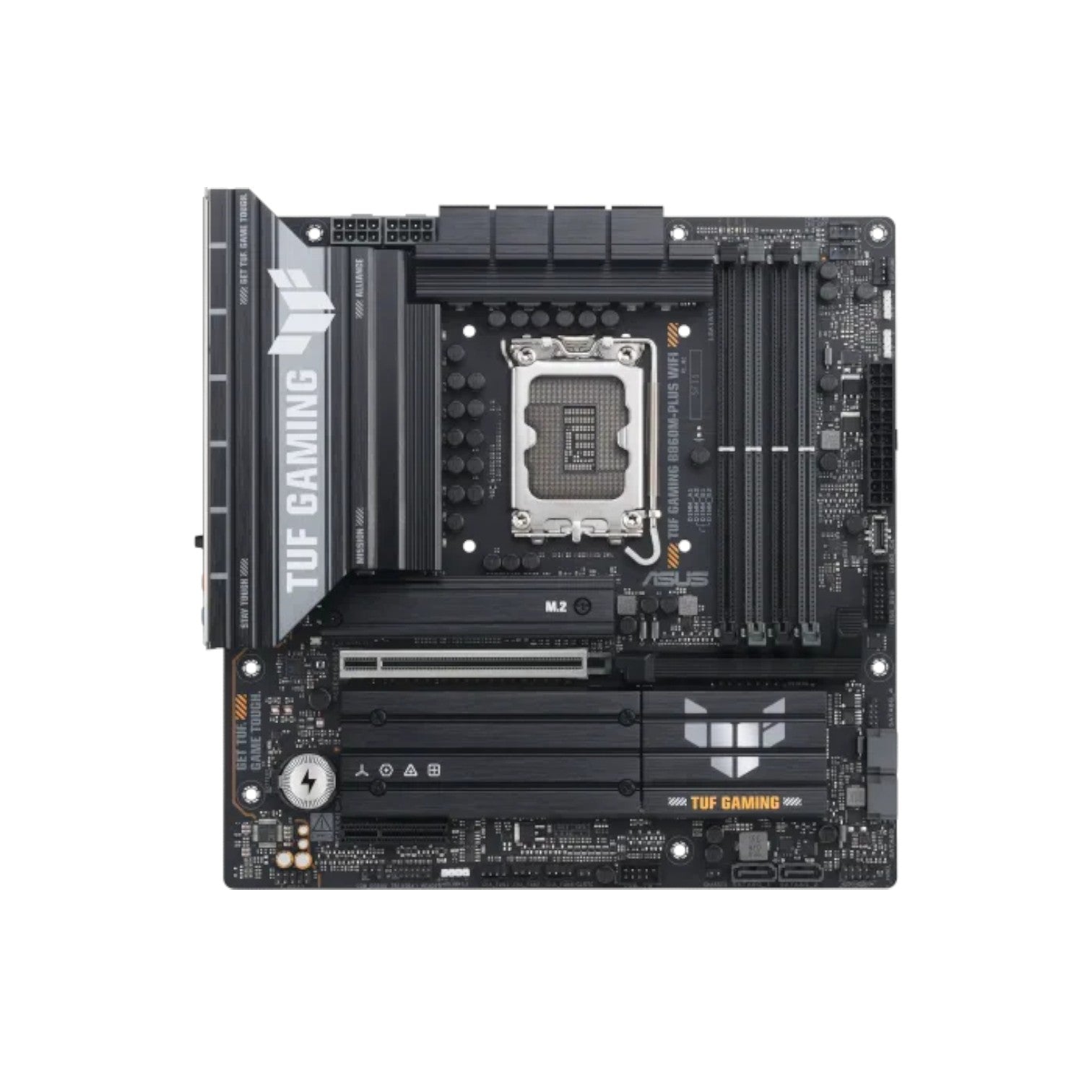

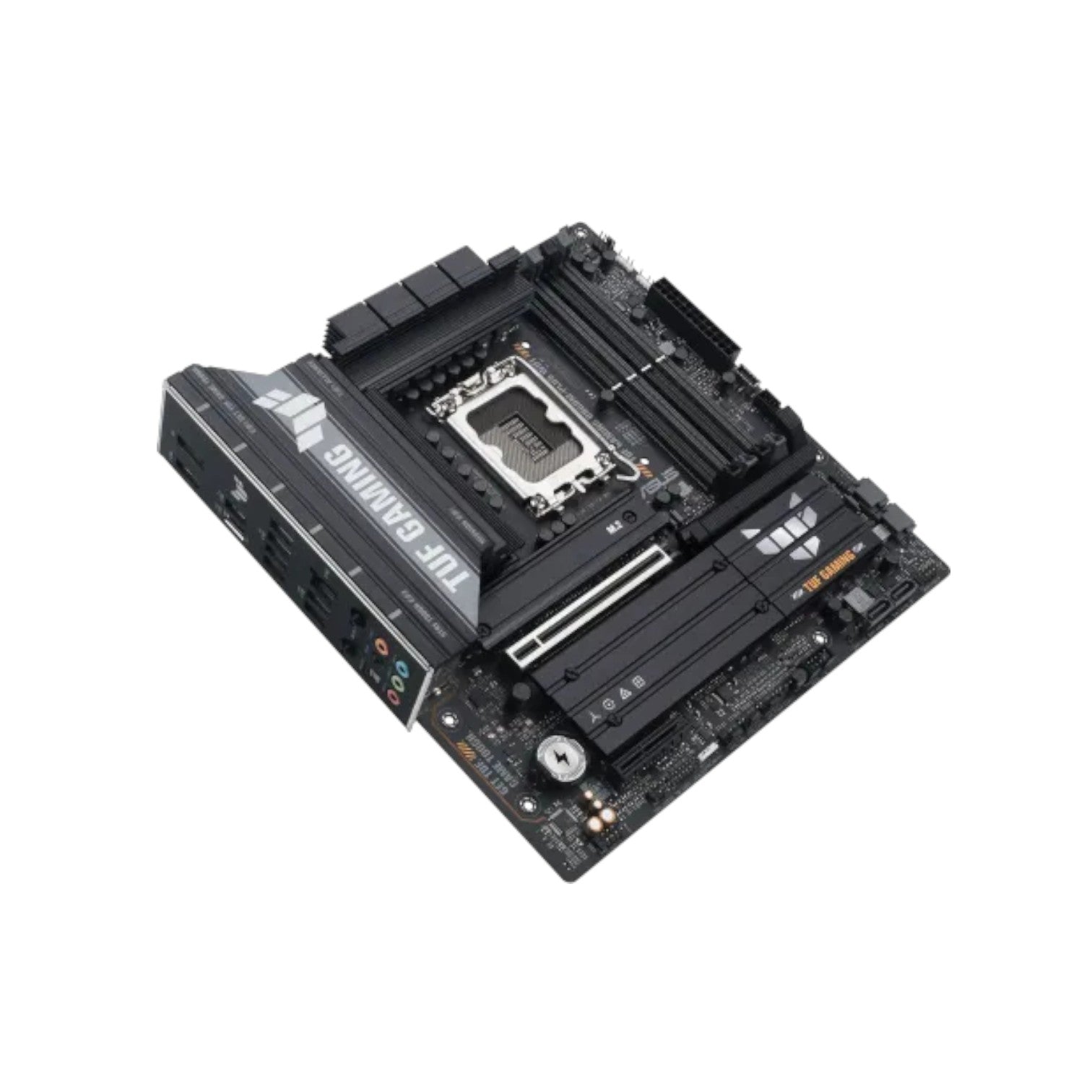

Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard

Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard

Brand: ASUS
SKU: B860M-PLUS-WIFI
Availability: In stock

Key Features

Model: TUF GAMING B860M-PLUS WIFI

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 256GB, 8800+MT/s (OC)

Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)

Features: 3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 33,900
Tk 36,890
Tk 33,900
Subtotal: Tk 33,900
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

Expansion Slots

PCI Intel® CoreTM Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x4 slot
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4a
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID SATA RAID 0/1/5/10
Audio 5 x Audio jacks
Internal I/O Ports I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Back Panel I/O Ports:

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps port (2 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost

Warranty

Warranty 3 years

Description

Asus TUF GAMING B860M-PLUS WIFI LGA1851 Micro-ATX Motherboard

The Asus TUF GAMING B860M-PLUS WIFI LGA1851 Micro-ATX Motherboard is built for gamers, creators, and PC enthusiasts seeking exceptional performance, reliability, and long-term durability. Powered by the Intel B860 chipset and LGA1851 socket, it supports Intel Core Ultra Processors (Series 2), delivering the next level of speed and efficiency for gaming, streaming, and high-performance computing.

Featuring four DDR5 DIMM slots, it supports up to 256GB of memory with speeds reaching 8800MT/s (OC), ensuring smooth multitasking, faster load times, and maximum responsiveness for demanding workloads. Expansion is future-ready with one PCIe 5.0 x16 slot and one PCIe 4.0 x4 slot, providing compatibility with the latest GPUs and high-speed peripherals.

For storage, the motherboard includes three M.2 slots—two supporting PCIe 5.0 x4—and four SATA 6Gb/s ports, offering flexible and ultra-fast storage configurations. Connectivity is cutting-edge, featuring Wi-Fi 7 (2x2) and Bluetooth 5.4 for next-generation wireless performance, along with Realtek 2.5Gb Ethernet with TUF LANGuard protection for stable and secure wired networking.

The rear I/O offers a USB 20Gbps Type-C port for high-speed data transfer and video output, complemented by HDMI and DisplayPort outputs that support up to 4K resolution at 60Hz. Enhanced audio is delivered through Realtek 7.1 Surround Sound with high-quality capacitors, shielding, and crystal-clear 24-bit/192kHz playback for immersive sound experiences.

Durability is the hallmark of the TUF series—featuring military-grade components, ESD Guards, overvoltage protection, and stainless-steel back I/O for superior longevity. Advanced thermal design includes VRM and M.2 heatsinks, ensuring optimal cooling even during intense gaming sessions.

Aesthetically, the motherboard supports Aura Sync RGB lighting, allowing full customization across compatible components for a unified and striking build. User-friendly features like Q-Design, CrashFree BIOS 3, and an intuitive UEFI BIOS make building and system tuning effortless.

Robust, efficient, and built to endure, the Asus TUF GAMING B860M-PLUS WIFI is the ideal foundation for a compact yet powerful gaming PC that delivers exceptional performance, connectivity, and style.

Price in Bangladesh: 33,900৳
Buy the Asus TUF GAMING B860M-PLUS WIFI LGA1851 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
