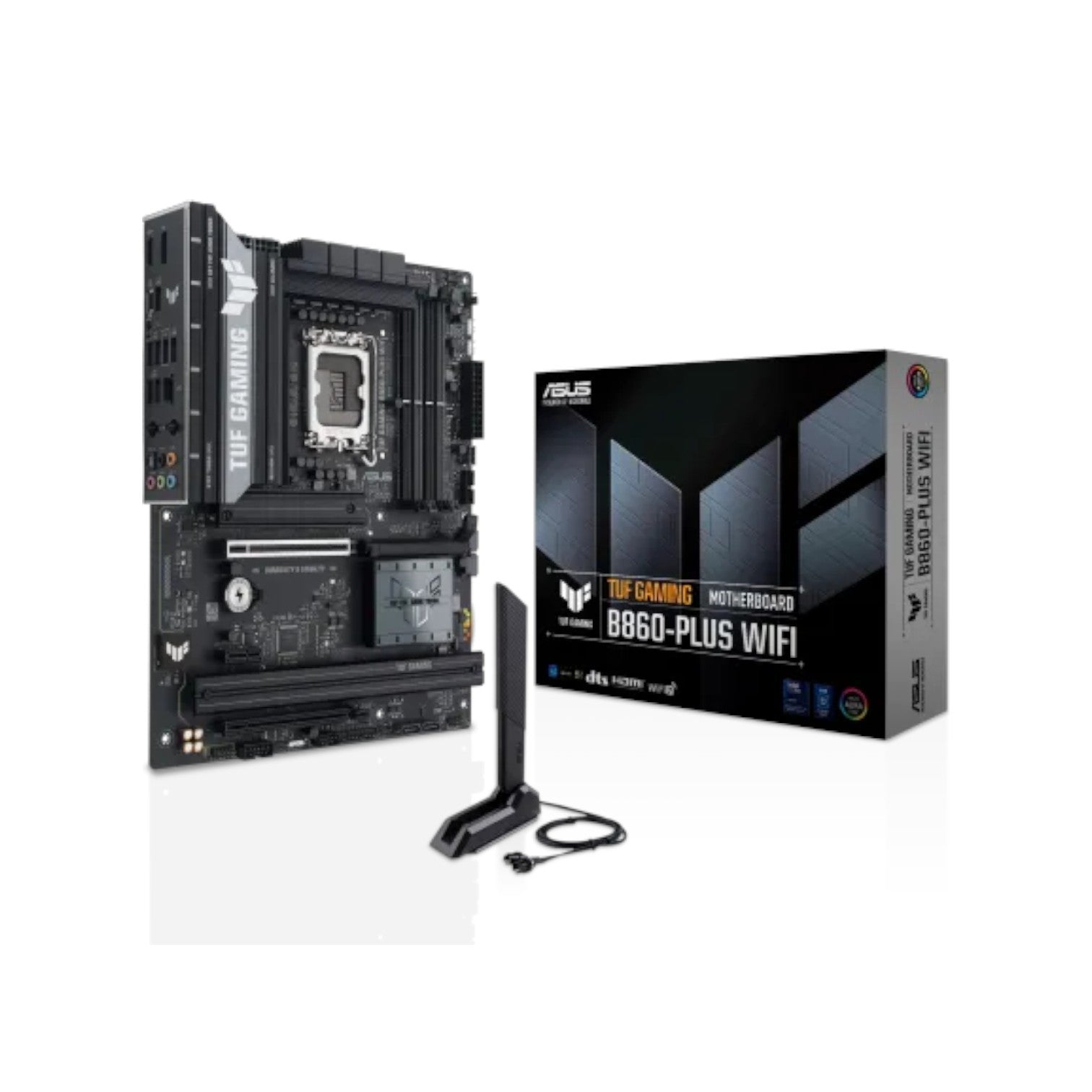

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard

Brand: ASUS
SKU: TUF-B860-PLUS-WIFI
Availability: In stock

Key Features

Model: TUF GAMING B860-PLUS WIFI

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)

Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)

Features: 3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 34,400
Tk 37,430
Tk 34,400
Subtotal: Tk 34,400
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

Expansion Slots

PCI Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*"
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4a
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID SATA RAID 0/1/5/10
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

Back Panel I/O Ports:

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Warranty

Warranty 3 years

Description

Asus TUF GAMING B860-PLUS WIFI LGA1851 ATX Motherboard |

The Asus TUF GAMING B860-PLUS WIFI LGA1851 ATX Motherboard is a premium gaming-grade motherboard built for durability, performance, and next-generation compatibility. Powered by the Intel B860 chipset and LGA1851 socket, it supports Intel Core Ultra Processors (Series 2) and leverages Intel Turbo Boost Technologies 2.0 and 3.0 to deliver exceptional speed and efficiency for gaming, content creation, and professional workloads.

Equipped with four DDR5 DIMM slots, the motherboard supports up to 256GB of memory with speeds up to 8666+MT/s (OC). With Intel XMP and ASUS Enhanced Memory Profile III (AEMP III) support, it allows effortless memory overclocking and fine-tuning for peak system responsiveness.

For graphics and expansion, it includes one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 mode), and one PCIe 4.0 x1 slot—offering flexible compatibility with modern GPUs and expansion cards. The board provides versatile storage with three M.2 slots (PCIe 5.0 x4 and PCIe 4.0 x4 support) and four SATA 6Gb/s ports, ensuring high-speed storage performance and flexible configurations.

Connectivity is cutting-edge with integrated Wi-Fi 7 (2x2, up to 2.9Gbps) for ultra-fast wireless speeds, Bluetooth 5.4 for modern peripherals, and Realtek 2.5Gb Ethernet with ASUS TUF LANGuard for enhanced wired stability and protection. The I/O panel features a USB 20Gbps Type-C port with DisplayPort video output, providing lightning-fast data transfer and display versatility, along with HDMI 2.1 and DisplayPort outputs supporting 4K at 60Hz.

The motherboard ensures superior audio fidelity with a Realtek 7.1 Surround Sound HD Audio CODEC, premium capacitors, and audio shielding for immersive sound. Cooling and thermal performance are optimized through M.2 and VRM heatsink designs, ensuring consistent operation even under heavy loads.

Durability is guaranteed through ASUS TUF Protection, which includes SafeSlot PCIe reinforcement, ESD Guards, overvoltage protection, and military-grade components. Additional features like Q-DIMM, Q-LED, BIOS FlashBack, and Aura Sync RGB with Gen 2 addressable headers enhance user convenience and personalization.

With its robust power design, advanced cooling, and gamer-focused features, the Asus TUF GAMING B860-PLUS WIFI delivers the stability and power required for elite gaming and productivity.

Price in Bangladesh: 34,400৳
Buy the Asus TUF GAMING B860-PLUS WIFI LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
