Brand: ASUS
SKU: TUF-B760M-PLUS-II
Availability: In stock

Key Features

Model: TUF GAMING B760M-PLUS II

Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)

Supported RAM: 4x DDR5, Max 192GB, Support up to 7800+(OC)

Graphics Output: 1 x DisplayPort, 1 x HDMI port

Features: 3x M.2 Slot, 1x Realtek 2.5Gb Ethernet

Ask an expert
Tk 22,200
Tk 23,870
Tk 22,200
Subtotal: Tk 22,200
Description

Specification

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI Intel Core Processors (14th& 13th& 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
M.2 Socket Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 7800+ OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
Maximum Memory 192GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel®Core™Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
Intel®B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.
Audio 5 x Audio jacks

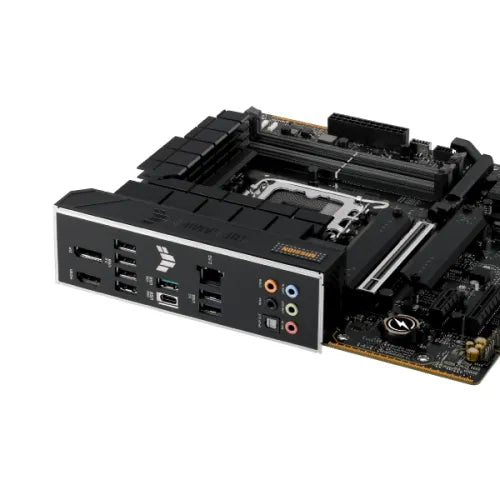

Internal I/O Ports Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F-AUDIO)
1 x20-3 pin System Panel header with chassis intrusion function
1 x Thunderbolt™ (USB4®) header



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC CleanerTUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Warranty

Warranty 3 years

Description

ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard

The ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard is a durable, high-performance board designed for gamers and PC enthusiasts who demand stability, speed, and superior cooling. Powered by the Intel B760 chipset, it supports Intel Core 12th, 13th, and 14th Gen processors, including Pentium Gold and Celeron CPUs, delivering exceptional performance through the LGA1700 socket with support for Intel Turbo Boost Technology 2.0 and 3.0.

This motherboard features four DDR5 DIMM slots supporting up to 192GB of RAM with speeds up to 7800+MT/s (OC), enabling ultra-fast memory performance and responsiveness. With Intel XMP and ASUS Enhanced Memory Profile II (AEMP II) technology, users can fine-tune their memory settings for optimal stability and performance.

For storage and expansion, the ASUS TUF GAMING B760M-PLUS II offers three M.2 slots (PCIe 4.0 x4) and four SATA 6Gb/s ports, supporting Intel Rapid Storage Technology and RAID 0/1/5/10 configurations. Expansion options include one PCIe 5.0 x16 slot for the latest GPUs, one PCIe 4.0 x4 slot, and one PCIe 3.0 x1 slot for additional hardware.

Networking is powered by Realtek 2.5Gb Ethernet with TUF LANGuard for enhanced stability and surge protection. The rear I/O panel includes a USB 20Gbps Type-C port, one USB 10Gbps Type-A, two USB 5Gbps Type-A, and four USB 2.0 ports, while the front I/O supports up to eight USB ports, including USB Type-C and 5Gbps headers. For visuals, DisplayPort 1.4 and HDMI 2.1 deliver 4K resolution at 60Hz for crisp and vibrant display output.

Audio performance is powered by the Realtek 7.1 Surround Sound codec with premium capacitors, S/PDIF out, and 24-bit/192kHz playback, ensuring immersive sound for gaming and entertainment. Cooling and durability are ensured with VRM, M.2, and PCH heatsinks, multiple fan headers, and support for AIO pumps, all managed by ASUS Fan Xpert 2+.

The ASUS TUF GAMING B760M-PLUS II features Q-Design innovations such as M.2 Q-Latch, PCIe Q-Release, Q-DIMM, and Q-LED for easier installation and maintenance. It also includes Aura Sync RGB lighting with Gen 2 RGB headers, SafeSlot Core+ for reinforced GPU stability, ProCool power connectors, and AI Noise Cancellation for clear audio communication.

Built with military-grade components and ASUS’s renowned reliability, this motherboard offers unmatched endurance and long-term stability, making it perfect for gaming, content creation, or high-performance workstations.

Price in Bangladesh: 22,200৳
Buy the ASUS TUF GAMING B760M-PLUS II LGA1700 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
