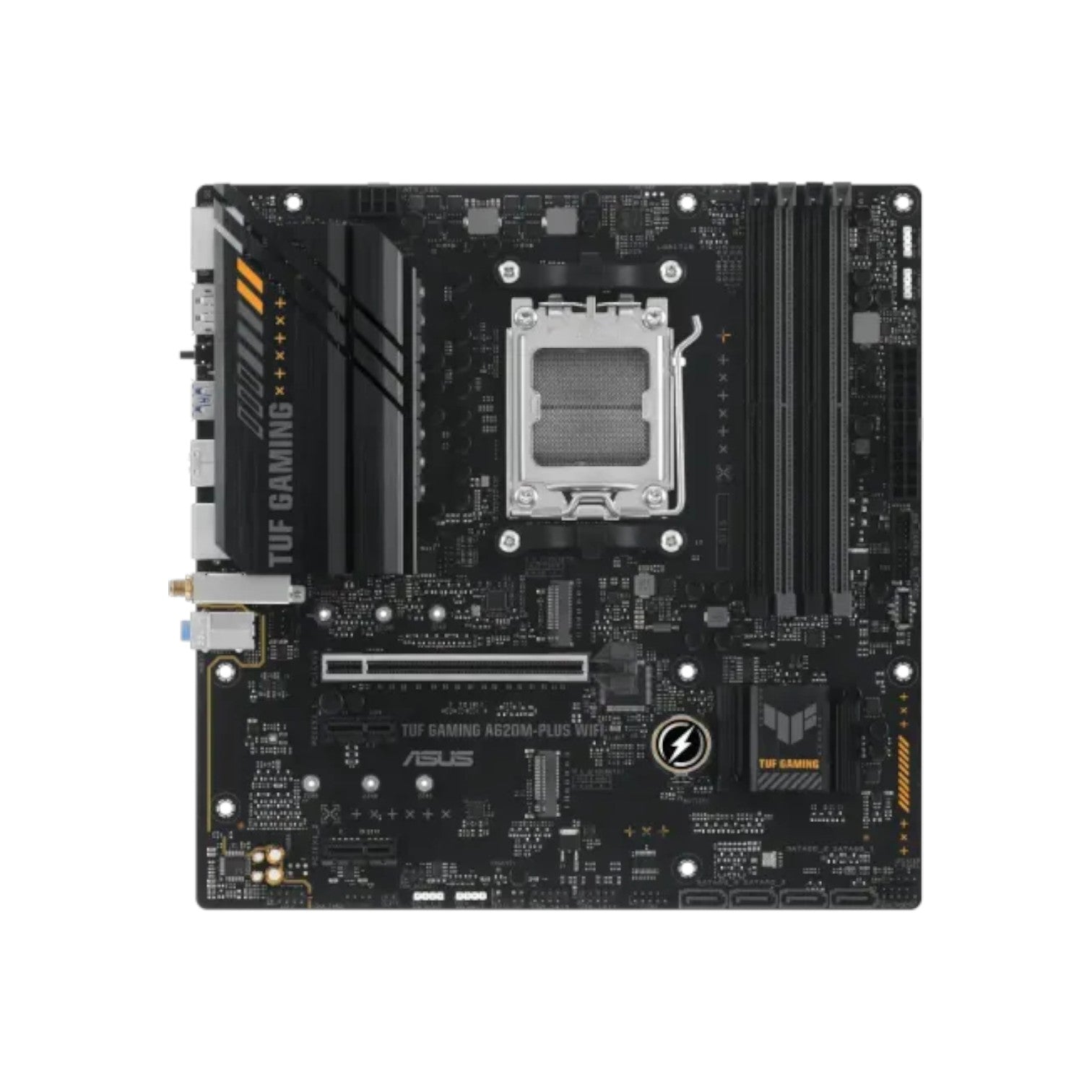

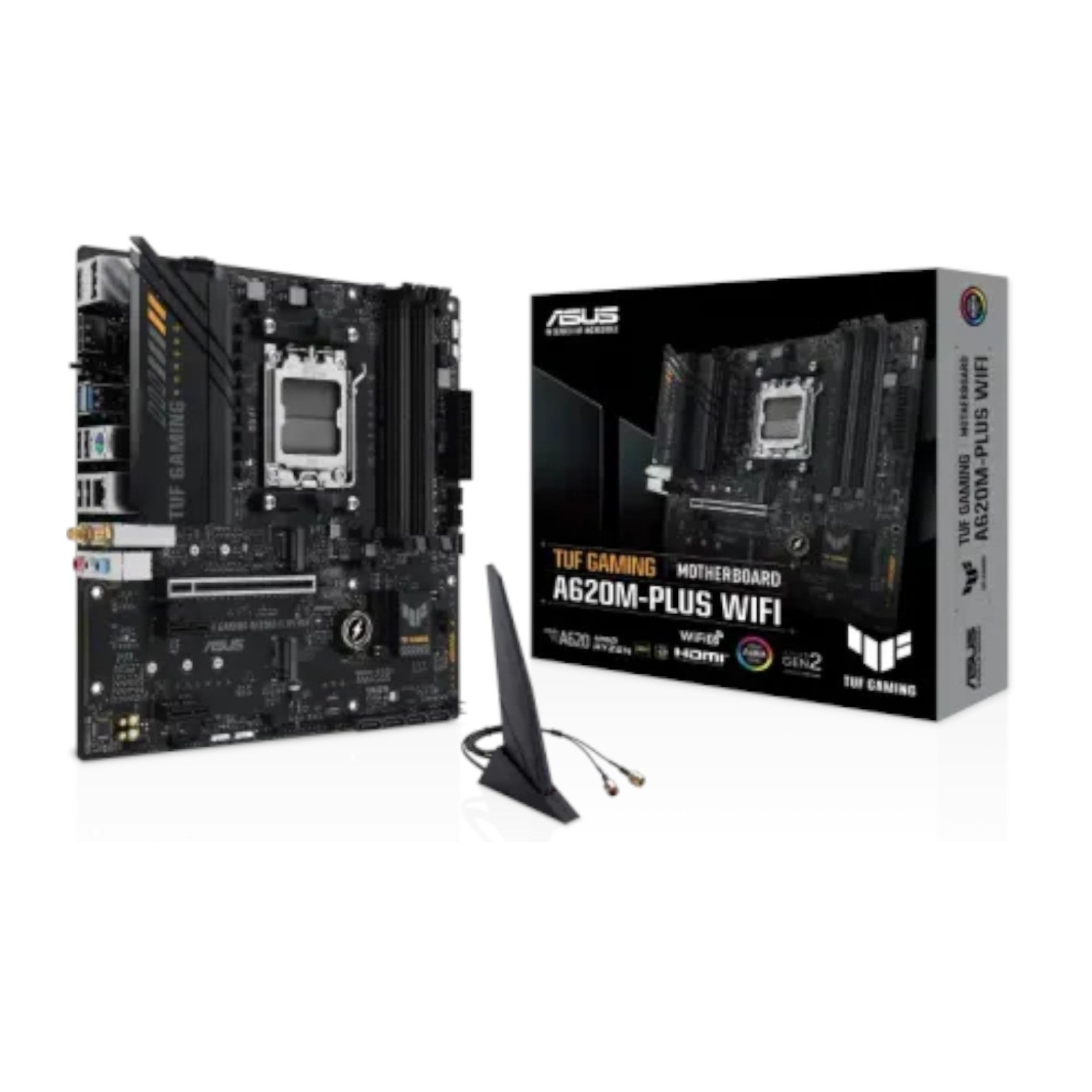

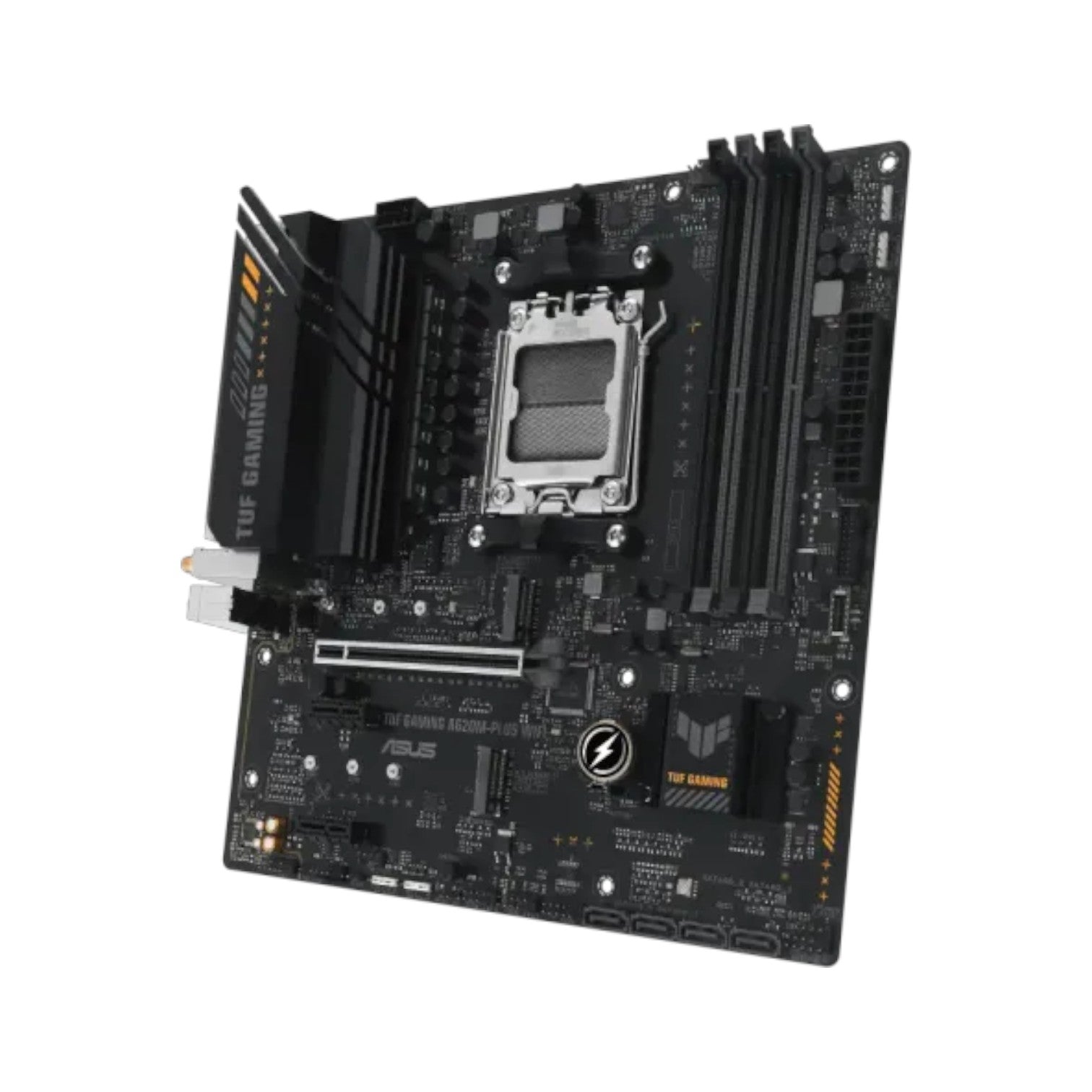

ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard

Brand: ASUS
SKU: TUF-A620M-PLUS-WIFI
Availability: In stock

Key Features

Model: TUF GAMING A620M-PLUS WIFI

Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5

Supported Memory: 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)

Graphics Output: 2 x DisplayPort, 1 x HDMI port

Features: Wi-Fi 6, Bluetooth v5.3, Realtek 2.5Gb Ethernet

Tk 19,300
Tk 20,830
Tk 19,300
Subtotal: Tk 19,300

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 8000/ 7000 Series Desktop Processors
Chipset AMD A620 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor Micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot
AMD A620 Chipset
2 x PCIe 3.0 x1 slots



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 192GB



Graphics

Graphics 2 x DisplayPort**
1 x HDMI port***
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 2 x DisplayPort
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Communication module Wi-Fi 6
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard

The ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard is built for gamers who value performance, durability, and stability. Powered by the AMD A620 chipset, it supports the latest AMD Ryzen™ 8000 and 7000 Series Desktop Processors through the AM5 socket, making it a powerful and future-ready foundation for modern gaming setups. Designed with military-grade components and advanced cooling features, this motherboard ensures consistent performance even during intense gaming or multitasking sessions.

Supporting up to 192GB of DDR5 memory with speeds up to 7600MHz+ (OC), this motherboard delivers exceptional performance for gaming, content creation, and productivity. It features dual-channel architecture and AMD EXPO (Extended Profiles for Overclocking), allowing users to easily fine-tune their memory performance for maximum efficiency. For graphics, the ASUS TUF GAMING A620M-PLUS WIFI includes two DisplayPort outputs and one HDMI port, supporting ultra-high resolutions up to 8K@60Hz and 4K@60Hz, ideal for immersive gaming visuals and content streaming.

When it comes to expansion, the motherboard offers 1 x PCIe 4.0 x16 slot for GPUs and 2 x PCIe 3.0 x1 slots for additional add-on cards. Storage options are versatile, with 2 x M.2 PCIe 4.0 x4 slots for NVMe SSDs and 4 x SATA 6Gb/s ports for traditional drives, ensuring a perfect balance between speed and capacity.

For connectivity, it features Realtek 2.5Gb Ethernet and built-in Wi-Fi 6 for fast, reliable, and low-latency networking, perfect for online gaming and streaming. Additionally, multiple USB 3.2 Gen 1 and USB 2.0 ports ensure flexible connectivity for a wide range of devices. The Realtek 7.1 Surround Sound Audio CODEC enhances the gaming experience with clear, high-fidelity audio output.

Durability is a cornerstone of the TUF Gaming series, with TUF Protection, SafeSlot, ESD Guards, and premium components providing long-term reliability. The ASUS Q-Design simplifies installation with features like M.2 Q-Latch and Q-DIMM, making PC assembly effortless. Advanced cooling is handled by the ASUS Thermal Solution, which includes VRM and chipset heatsinks along with hybrid fan headers for stable performance under load.

Customization and control are handled through Armoury Crate and AI Suite 3, offering system monitoring, performance tuning, and Aura Sync lighting control for complete personalization. With its military-grade build, superior performance, and future-proof connectivity, the ASUS TUF GAMING A620M-PLUS WIFI stands out as one of the most dependable AM5 motherboards for serious gamers and PC enthusiasts.

Price in Bangladesh: 19,300৳
Buy the ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
