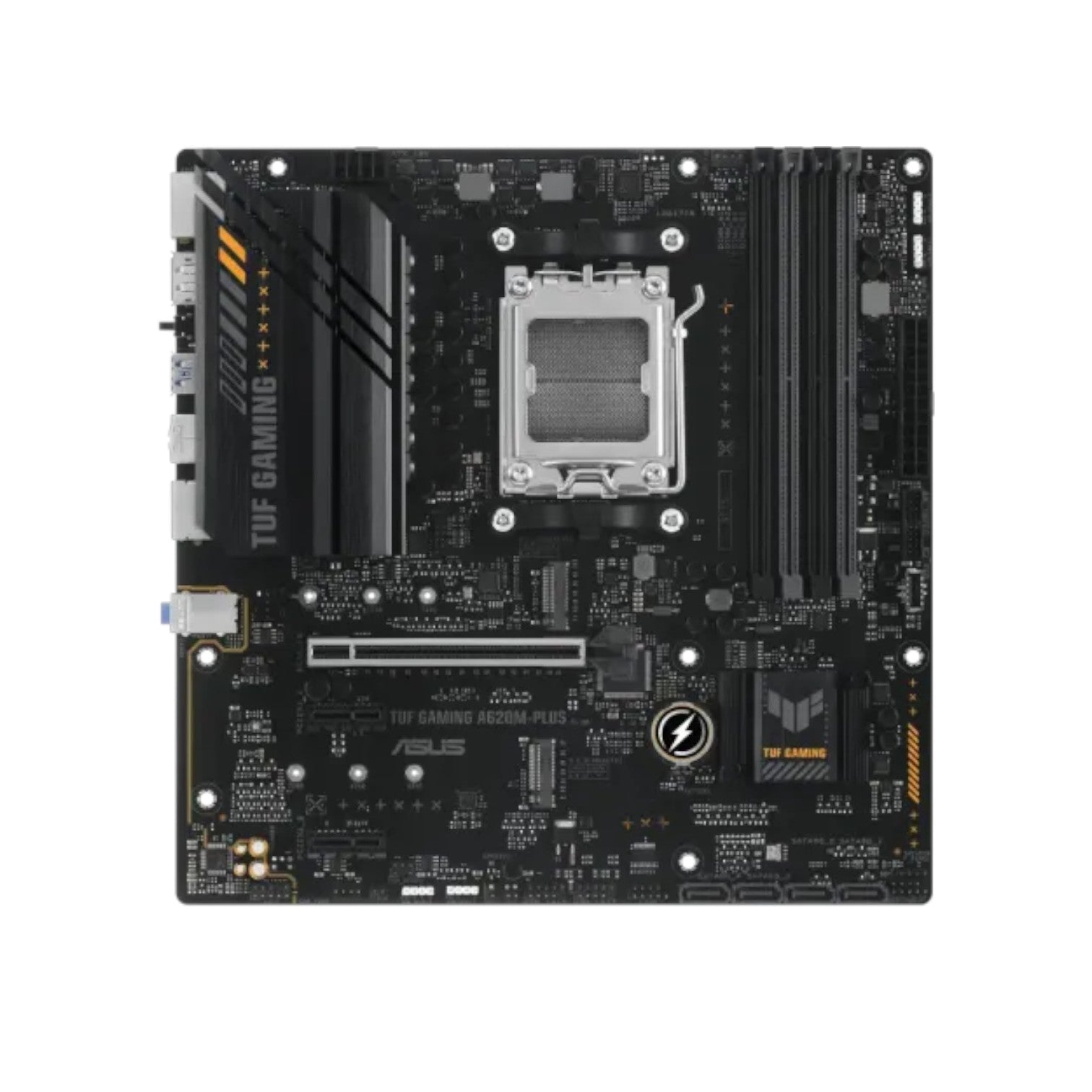

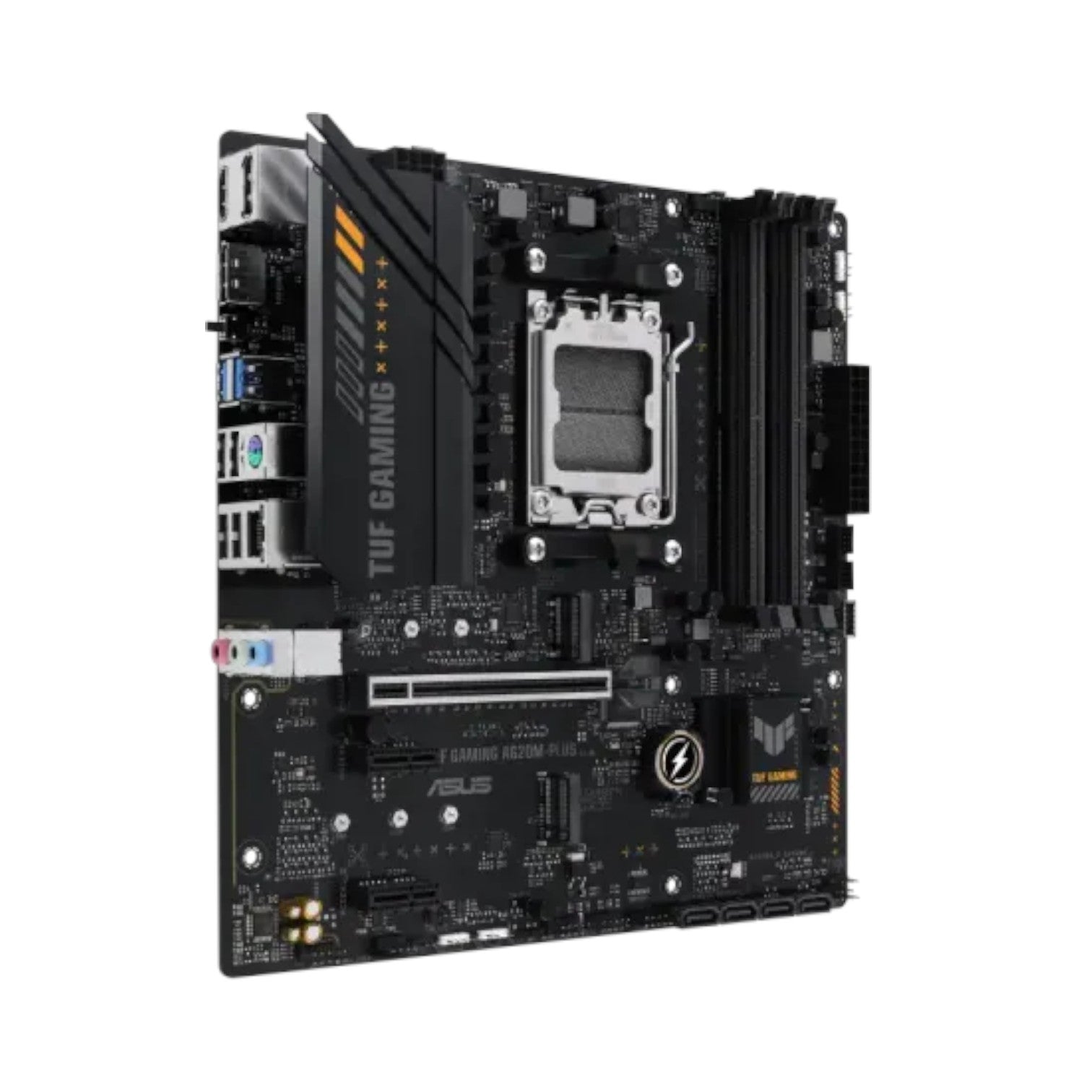

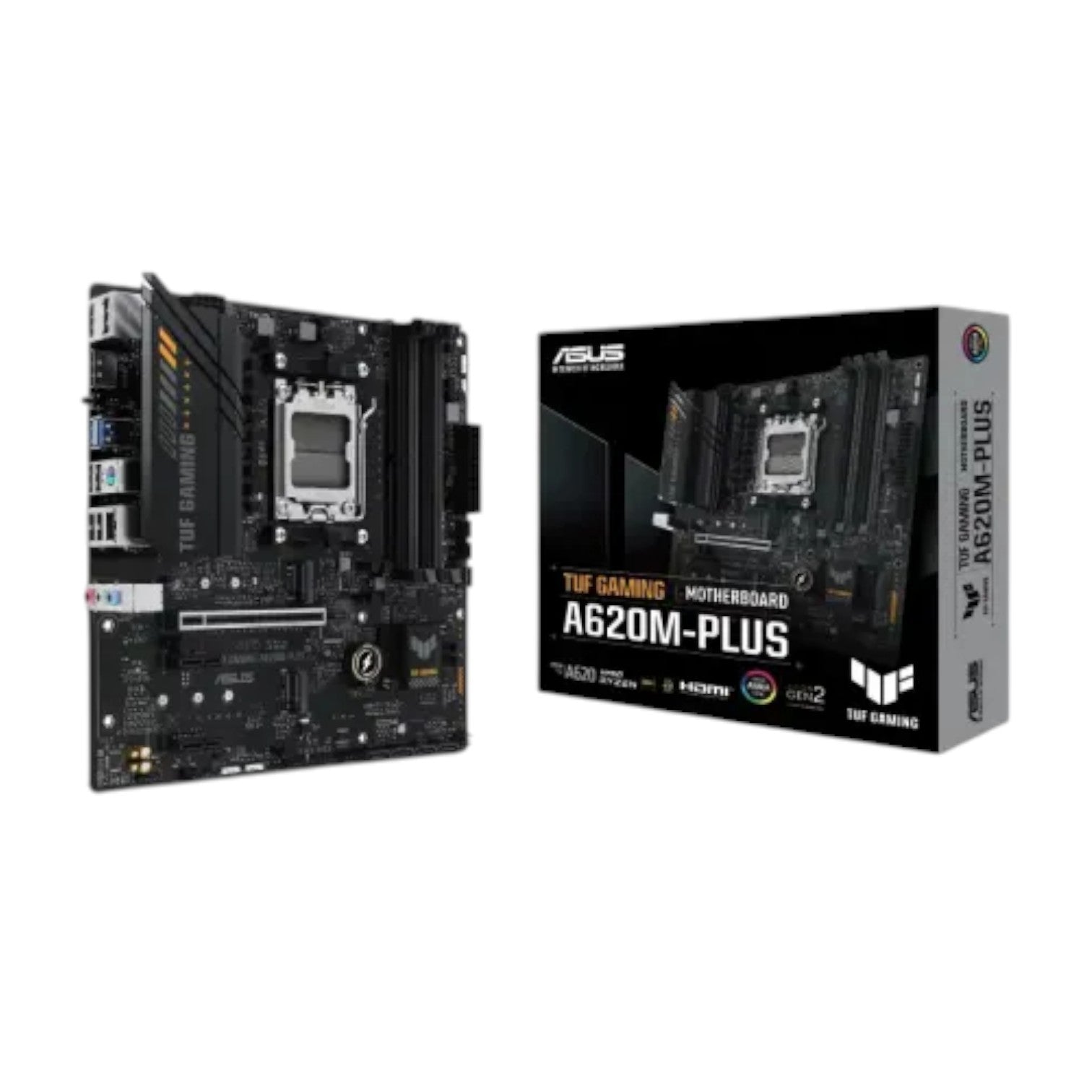

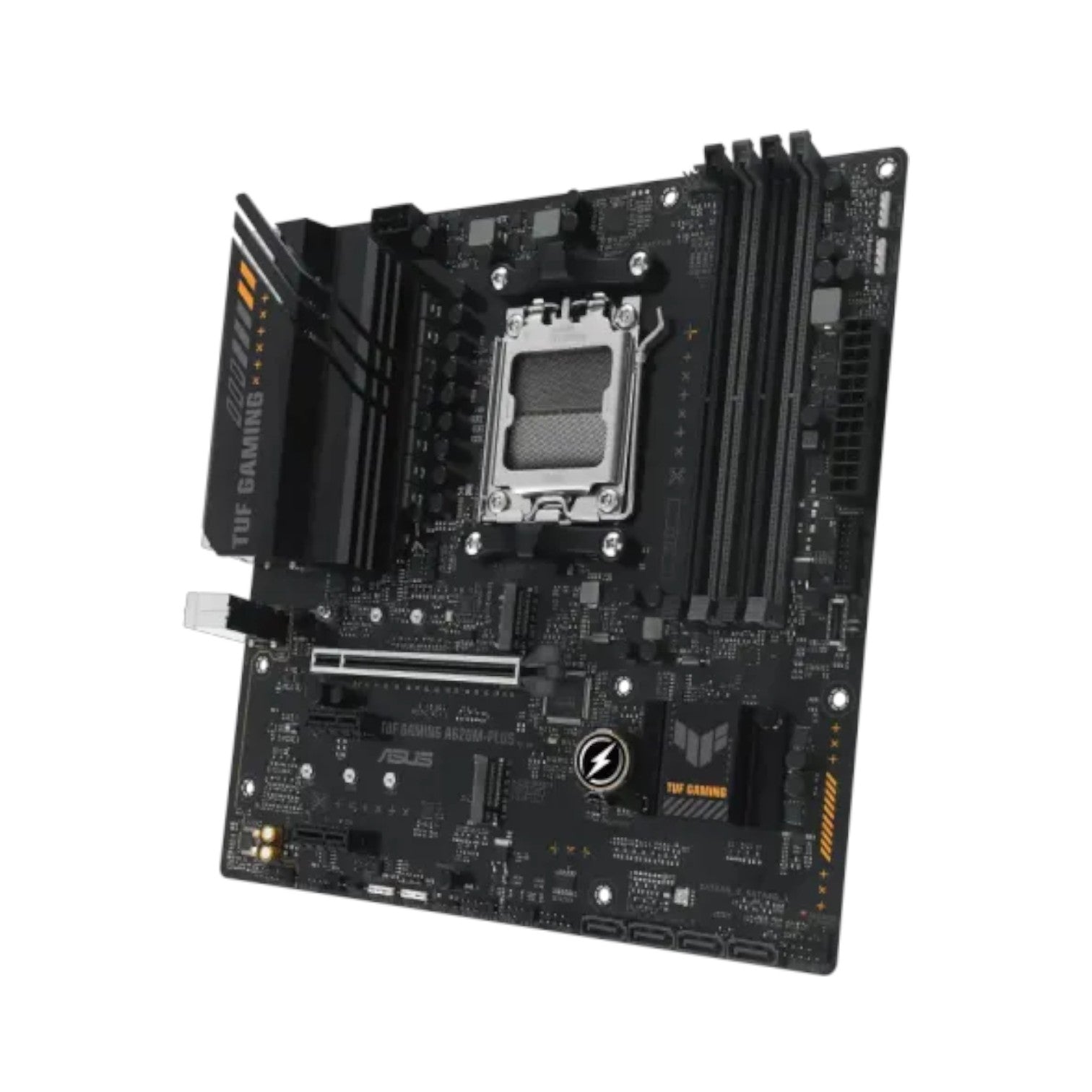

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard

Brand: ASUS
SKU: TUF-A620M-PLUS
Availability: In stock

Key Features

  • Model: TUF GAMING A620M-PLUS
  • Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)
  • Graphics Output: 2 x DisplayPort, 1 x HDMI porta
  • Features: 1 x Realtek 2.5Gb Ethernet
Tk 19,700
Tk 21,480
Tk 19,700
Subtotal: Tk 19,700

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
Chipset AMD A620 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor Micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot
AMD A620 Chipset
2 x PCIe 3.0 x1 slots



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Maximum Memory 128GB



Graphics

Graphics 2 x DisplayPort**
1 x HDMI port***
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 2 x DisplayPort
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard

The ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard is built for gamers who demand stability, performance, and durability in a compact form factor. Designed on the AMD A620 chipset, it supports the latest AMD Ryzen™ 7000 Series Desktop Processors with the AM5 socket, delivering cutting-edge performance for gaming and multitasking. With military-grade components, optimized power delivery, and advanced cooling, this motherboard ensures long-lasting reliability for intense gaming sessions and high-performance workloads.

The motherboard supports up to 128GB of DDR5 memory across dual channels, with speeds up to 6400MHz (OC) for exceptional responsiveness and faster load times. It also supports AMD Extended Profiles for Overclocking (EXPO), allowing users to fine-tune performance easily. Visual performance is outstanding, with dual DisplayPort and HDMI outputs supporting up to 8K@60Hz and 4K@60Hz resolutions, making it ideal for high-end gaming or content creation setups.

For expansion, the ASUS TUF GAMING A620M-PLUS includes 1 x PCIe 4.0 x16 slot for powerful GPUs and 2 x PCIe 3.0 x1 slots for additional cards. Storage flexibility is ensured with 2 x M.2 PCIe 4.0 x4 slots and 4 x SATA 6Gb/s ports, enabling both ultra-fast NVMe SSDs and high-capacity HDDs.

Networking is handled by Realtek 2.5Gb Ethernet, providing stable and high-speed connectivity for smooth online gaming and streaming. The audio experience is powered by Realtek 7.1 Surround Sound High Definition Audio CODEC, delivering rich, immersive sound for an enhanced gaming experience.

Durability and safety are at the core of the TUF GAMING series, with ASUS TUF Protection features like SafeSlot, ESD Guards, and overvoltage protection, ensuring long-term reliability. The ASUS Q-Design simplifies installation with user-friendly features like M.2 Q-Latch and Q-DIMM, making PC building easier than ever. The motherboard’s comprehensive thermal solution, with multiple fan headers and heatsinks, ensures stable performance even under heavy loads.

For personalization and system control, the ASUS TUF GAMING A620M-PLUS supports Armoury Crate and AI Suite 3, providing intuitive system monitoring, lighting synchronization, and performance tuning options. With its sleek black-and-yellow TUF design and premium build quality, this motherboard offers both performance and style in one durable package.

Price in Bangladesh: 19,700৳
Buy the ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
