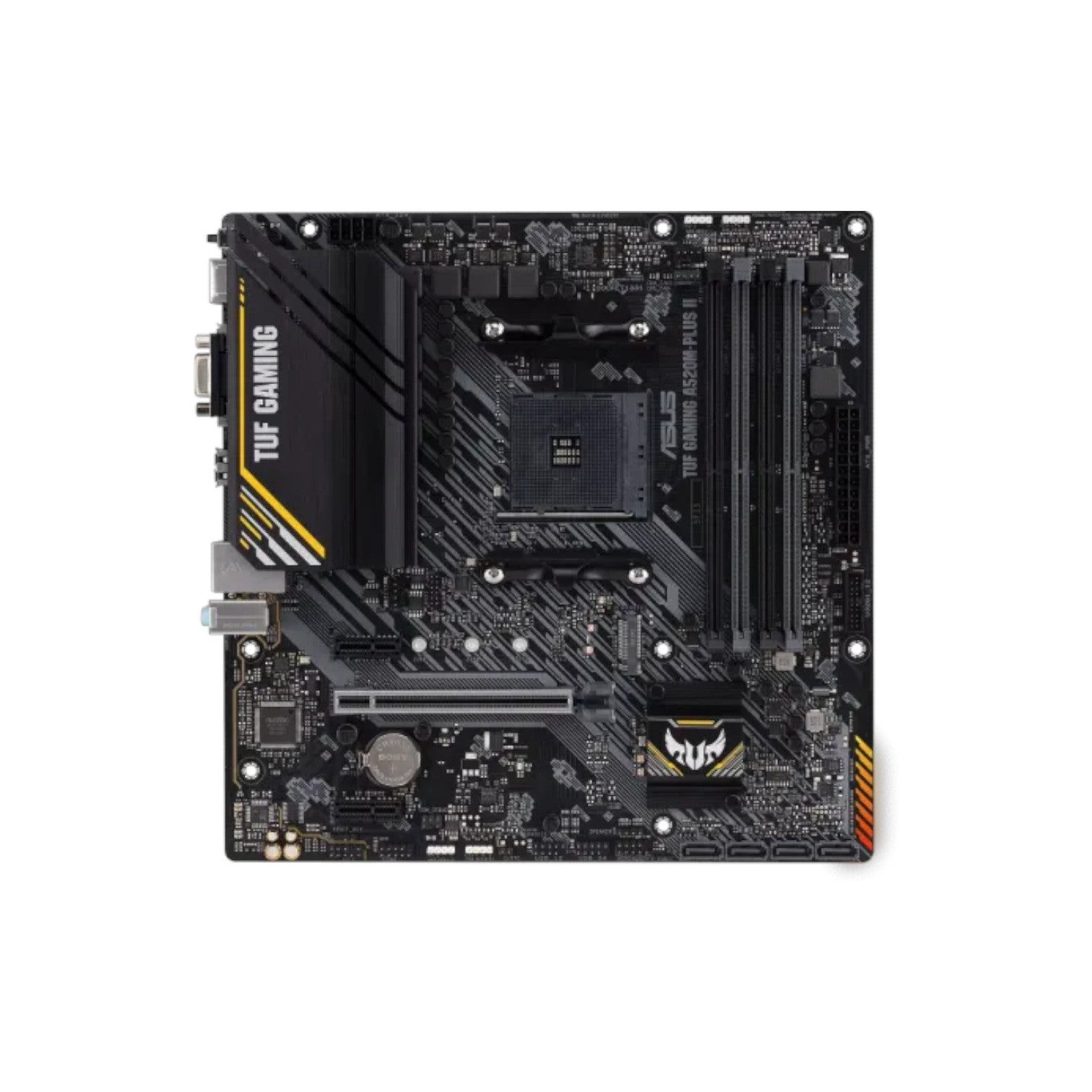

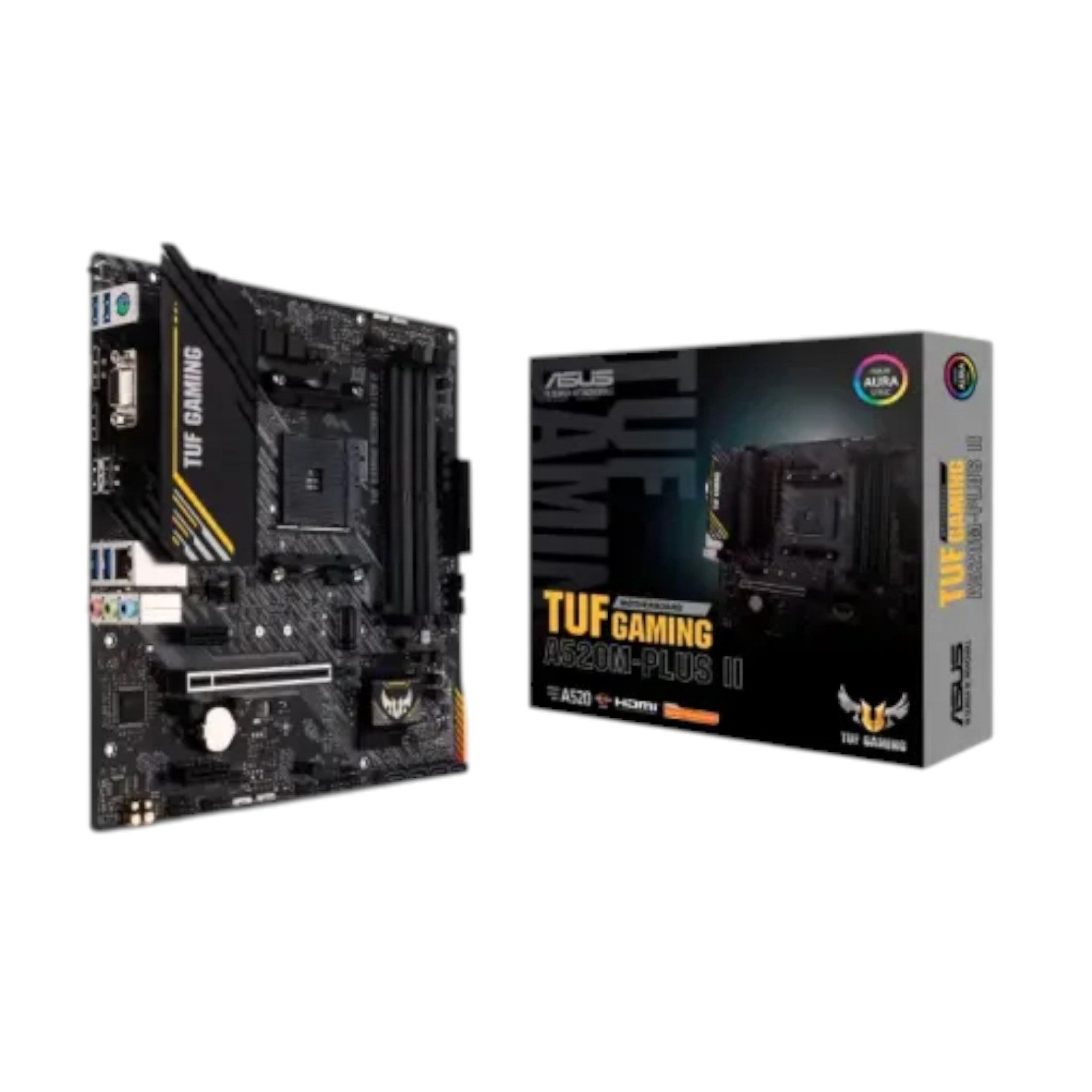

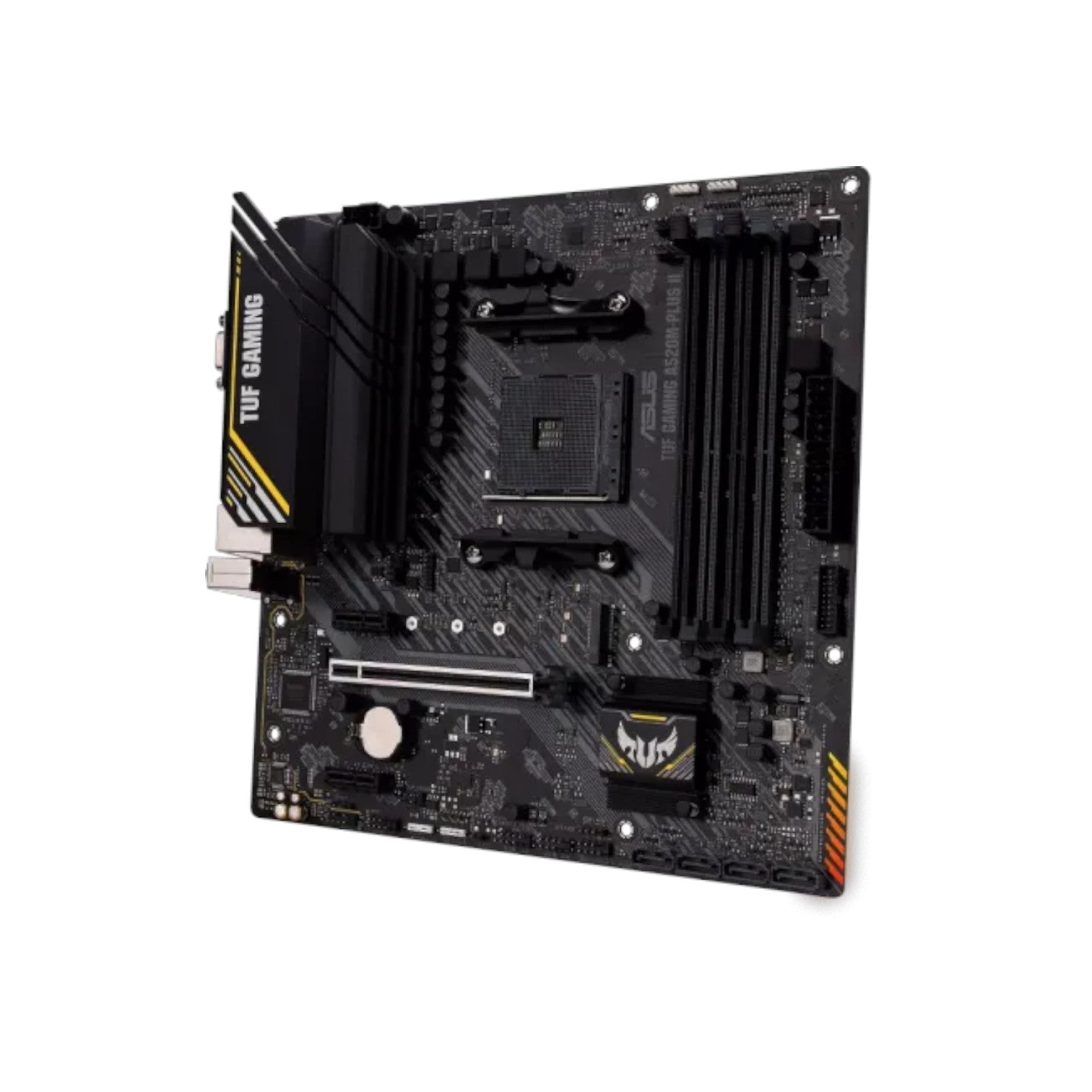

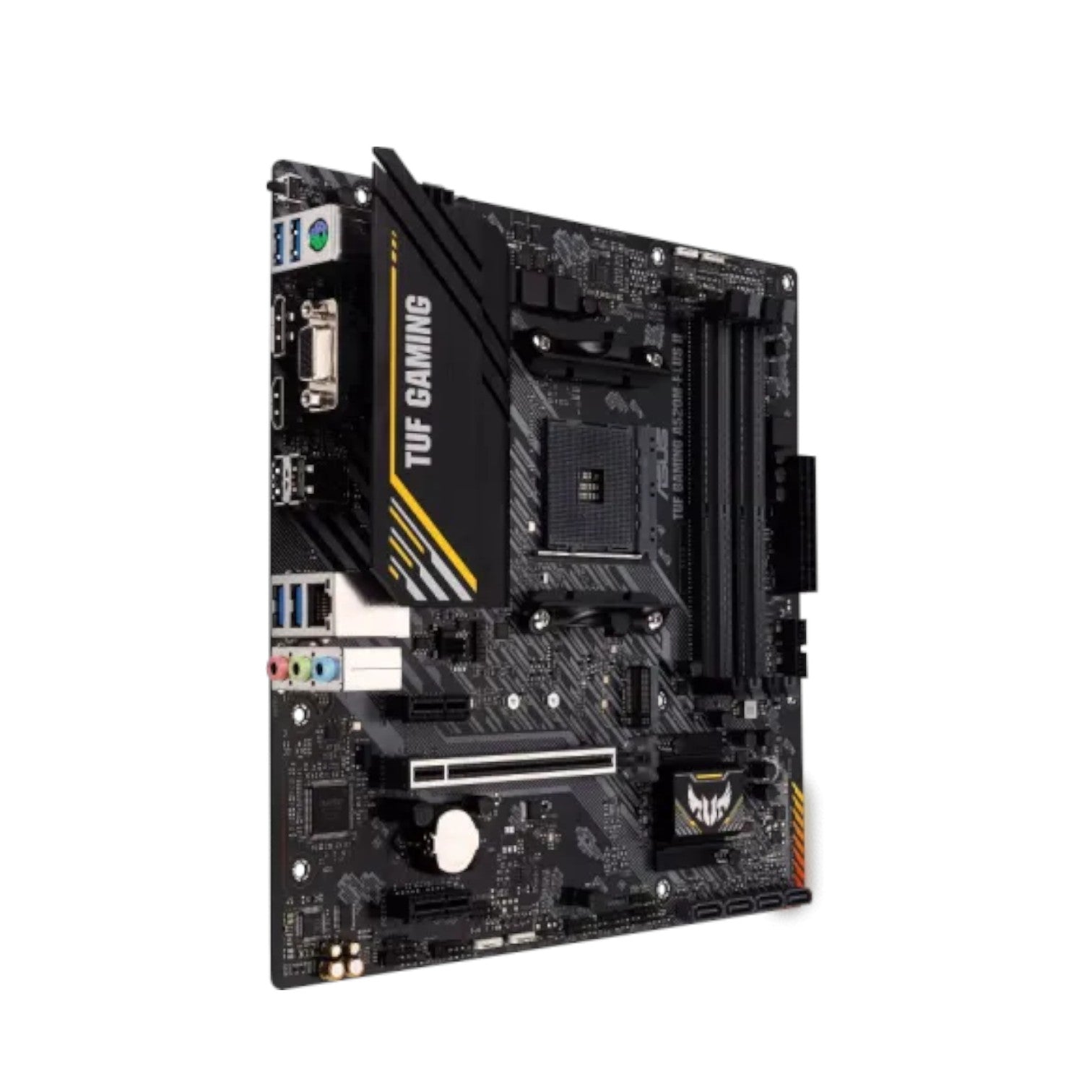

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

Brand: ASUS
SKU: TUF-A520M-PLUS-II
Availability: In stock

Key Features

Model: TUF GAMING A520M-PLUS II

Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series

Supported RAM: 4 x DIMM, Max. 128GB, DDR4

Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub

Features: Onboard RGB headers

Ask an expert
Tk 12,400
Tk 13,640
Tk 12,400
Subtotal: Tk 12,400
Description

Specification

Basic Information

Supported CPU AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset A520
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots



Memory

Type DDR4
Slots 4 x DIMM
Supported Memory 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
Maximum Memory 128GB



Graphics

Graphics 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60Hz)
1 x D-Sub



Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub
USB (s) 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
TUF LANGuard
Supported Storage AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset:
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Audio 3 x Audio jacks
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

Asus TUF GAMING A520M-PLUS II AMD AM4 Micro-ATX Motherboard

The Asus TUF GAMING A520M-PLUS II AMD AM4 Micro-ATX Motherboard combines gaming-grade durability, stable performance, and efficient cooling in a compact design. Built on the AMD A520 chipset, it supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors, providing a strong foundation for gamers and performance users alike.

Engineered with military-grade components and an enhanced power delivery system, the TUF GAMING A520M-PLUS II ensures long-term reliability and stability even under heavy workloads. Its comprehensive cooling system includes multiple fan headers, a large VRM heatsink, and precision control through Fan Xpert software, maintaining optimal thermal performance during extended gaming sessions.

This motherboard supports dual-channel DDR4 memory up to 128GB, with speeds reaching up to 5100MHz (OC), ensuring smooth multitasking and faster data access. Storage options include one M.2 slot (PCIe 3.0 x4 & SATA) and four SATA 6Gb/s ports, giving users flexibility for both high-speed SSDs and large-capacity HDDs.

Connectivity is reliable and fast, with Realtek 1Gb Ethernet providing stable networking for online gaming and streaming. The USB 3.2 Gen 1 Type-A ports ensure fast data transfer, while HDMI and DVI-D outputs offer support for modern display configurations. The motherboard also integrates Turbo LAN software, powered by cFosSpeed traffic-shaping technology, allowing gamers to reduce network lag and prioritize important applications through an intuitive interface.

Aesthetically, the Asus TUF GAMING A520M-PLUS II enhances any build with Aura Sync RGB lighting, which can be synchronized with other Aura-compatible components to create a cohesive and personalized setup.

Part of the TUF Gaming Alliance, this motherboard is designed for easy compatibility with a wide range of components—from power supplies and cases to memory modules—ensuring a streamlined building experience. The Armoury Crate software provides centralized control over system settings, lighting, and device configurations, simplifying tuning and personalization.

Built for gamers who value performance, reliability, and simplicity, the Asus TUF GAMING A520M-PLUS II delivers a solid gaming experience and exceptional value for money.

Price in Bangladesh: 12,400৳
Buy the Asus TUF GAMING A520M-PLUS II AMD AM4 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
