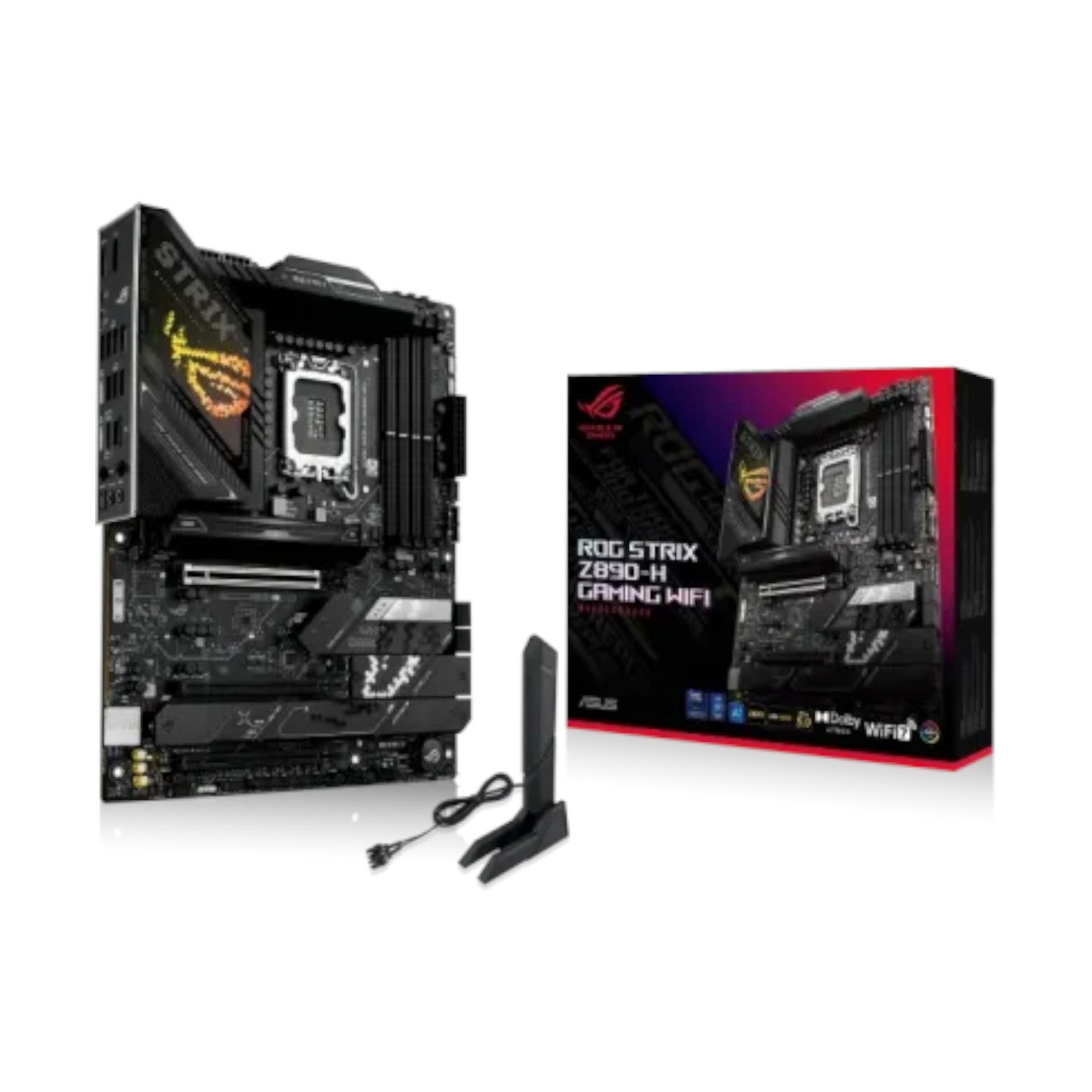

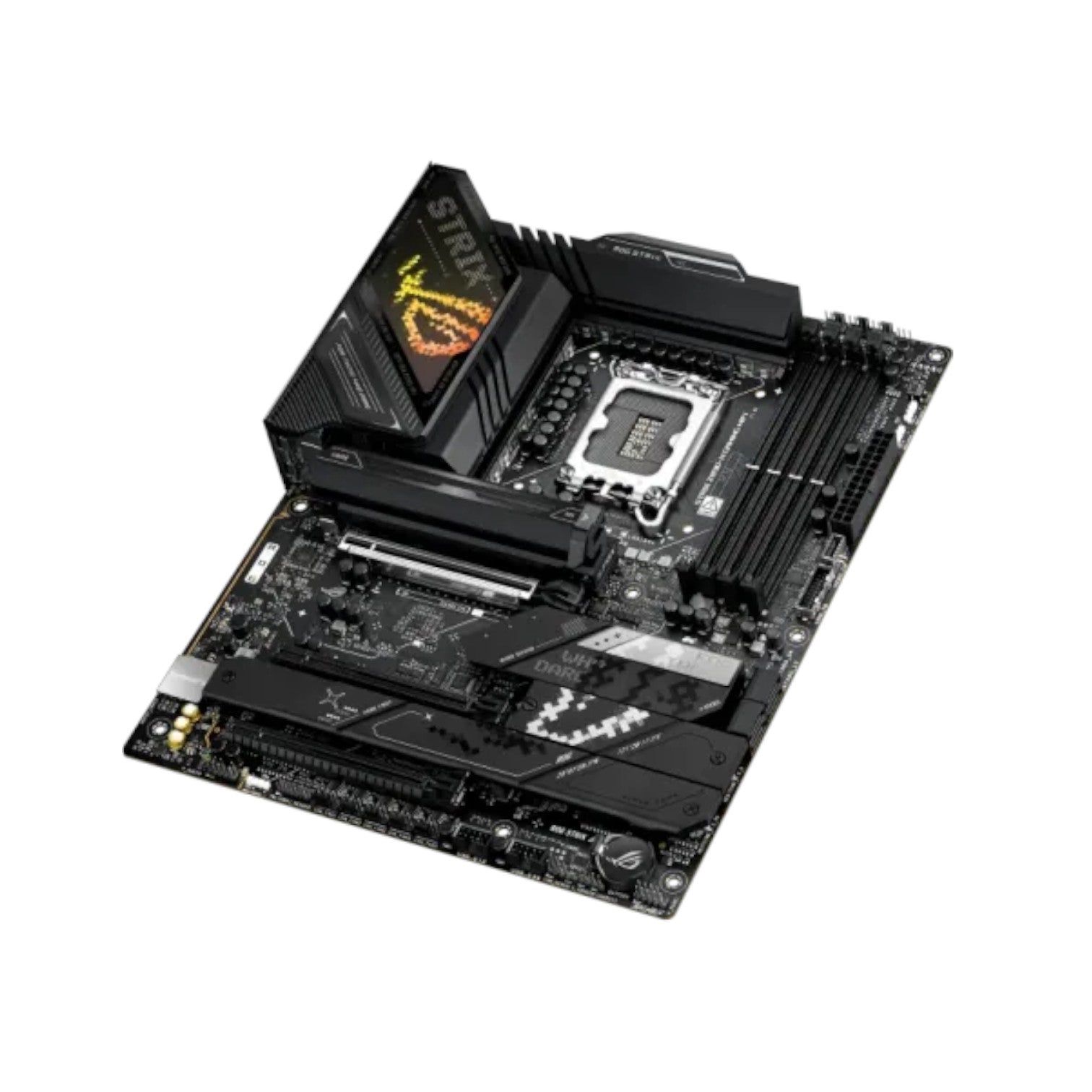

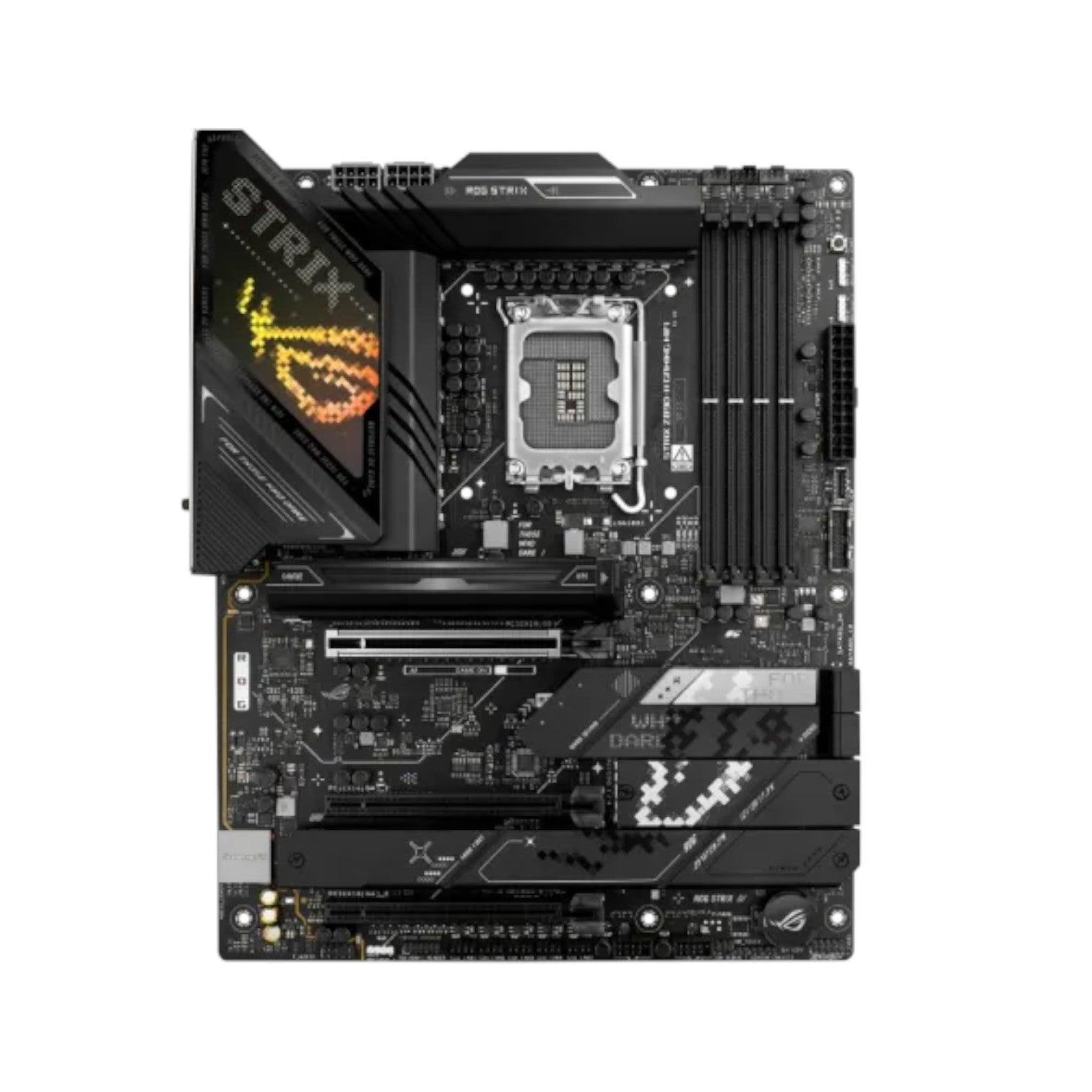

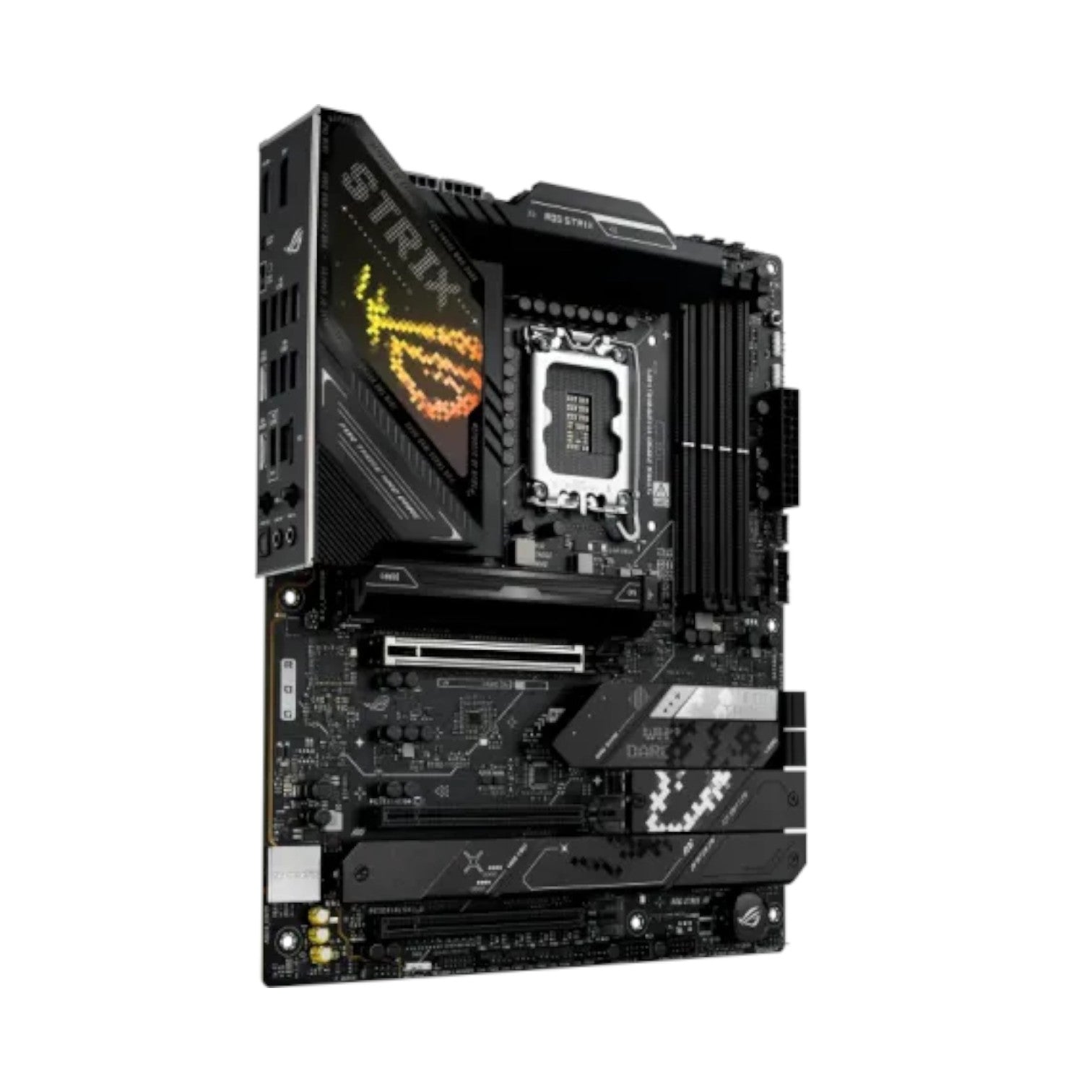

ASUS ROG STRIX Z890-H GAMING WIFI LGA1851 ATX Motherboard

Brand: ASUS
SKU: ROG-Z890-H-GAMING-WIFI
Availability: In stock

Key Features

Model: ROG STRIX Z890-H GAMING WIFI

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 256GB, Support up to 9066+MT/s (OC)

Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4

Features: 4x M.2 Slot, 1x Realtek 5Gb LAN, Wi-Fi 7, Bluetooth 5.4

Tk 57,000
Tk 62,390
Tk 57,000
Subtotal: Tk 57,000

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z890 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Expansion Slots

PCI Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
M.2 Socket 4 x M.2 slots and 4 x SATA 6Gb/s ports



Memory

Type DDR5
Slots 4x DIMM slots
Supported Memory Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1 x HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4
USB (s) Rear USB (Total 10 ports)
2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge)
4 x USB 10Gbps ports (4 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (1 x USB Type-C)
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s) 1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4

Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio 2 x Gold-plated audio jacks
Internal I/O Ports Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header support 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header



Others

Special Features Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Rear USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- ASUS AI Advisor
- ASUS Driver Hub
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey

Warranty

Warranty 3 years

Description

ASUS ROG STRIX Z890-H GAMING WIFI LGA1851 ATX Motherboard

The ASUS ROG STRIX Z890-H GAMING WIFI LGA1851 ATX Motherboard is a next-generation powerhouse crafted for gamers, creators, and PC enthusiasts who demand cutting-edge performance, superior cooling, and exceptional connectivity. Powered by the advanced Intel Z890 chipset, it supports the latest Intel Core Ultra Series (Series 2) processors through the LGA1851 socket, providing lightning-fast processing power and next-level system responsiveness for gaming and productivity.

Engineered for peak performance, the ASUS ROG STRIX Z890-H supports up to 256GB of DDR5 memory across four DIMM slots, reaching blazing speeds of 9066+ MT/s (OC). It integrates advanced memory technologies such as DIMM Flex, NitroPath DRAM, AEMP III, and Intel XMP, ensuring maximum stability and performance for overclocking enthusiasts.

The motherboard’s storage and expansion capabilities are built for speed and flexibility, featuring four M.2 slots (supporting both PCIe 5.0 and PCIe 4.0/SATA) and four SATA 6Gb/s ports, optimized with Intel Rapid Storage Technology and RAID 0/1/5/10 support. Its PCIe 5.0 x16 slot ensures readiness for next-generation GPUs, while robust power delivery and reinforced slots guarantee long-term reliability under high-performance loads.

Graphics output is future-ready, with HDMI 2.1 and DisplayPort 1.4 supporting up to 8K@60Hz and 4K@60Hz, offering crisp and fluid visuals for gaming or professional content creation. Connectivity is equally impressive — Realtek 5Gb Ethernet, Wi-Fi 7 (802.11be) delivering up to 5.8Gbps, and Bluetooth 5.4 ensure ultra-fast, stable, and flexible networking for both wired and wireless setups.

Audio excellence is delivered through the ROG SupremeFX ALC1220P 7.1 Surround Sound Audio CODEC, Savitech SV3H712 AMP, and gold-plated audio jacks, providing crystal-clear, immersive, and studio-grade sound quality.

The rear I/O panel features 10 USB ports, including dual USB Type-C 20Gbps ports with 30W PD fast charging, while the front panel offers seven additional USB headers, ensuring compatibility with all modern devices.

The ASUS ROG STRIX Z890-H is also designed for durability and user convenience. Built with 5K black metallic capacitors, ProCool II power connectors, and reinforced components, it ensures long-lasting stability. Q-Design features like Q-Latch, Q-Release, and Q-Antenna simplify DIY building and upgrades.

For thermal management, the board includes enlarged VRM and M.2 heatsinks, multiple fan headers, thermal sensors, and AI Cooling II technology powered by Fan Xpert 4, which automatically adjusts cooling profiles for quiet and efficient performance.

Bundled software such as Armoury Crate, ROG CPU-Z, Aura Sync, Dolby Atmos, and AIDA64 Extreme (trial) offer advanced customization and system monitoring. The integrated Aura Sync RGB allows for full lighting control across all compatible components, creating a personalized visual experience.

The ASUS ROG STRIX Z890-H GAMING WIFI is an elite choice for anyone seeking premium build quality, extreme performance, and future-proof features in their next high-end gaming or creative PC build.

Price in Bangladesh: 57,000৳
Buy the ASUS ROG STRIX Z890-H GAMING WIFI LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product comes with a 3-year warranty.
