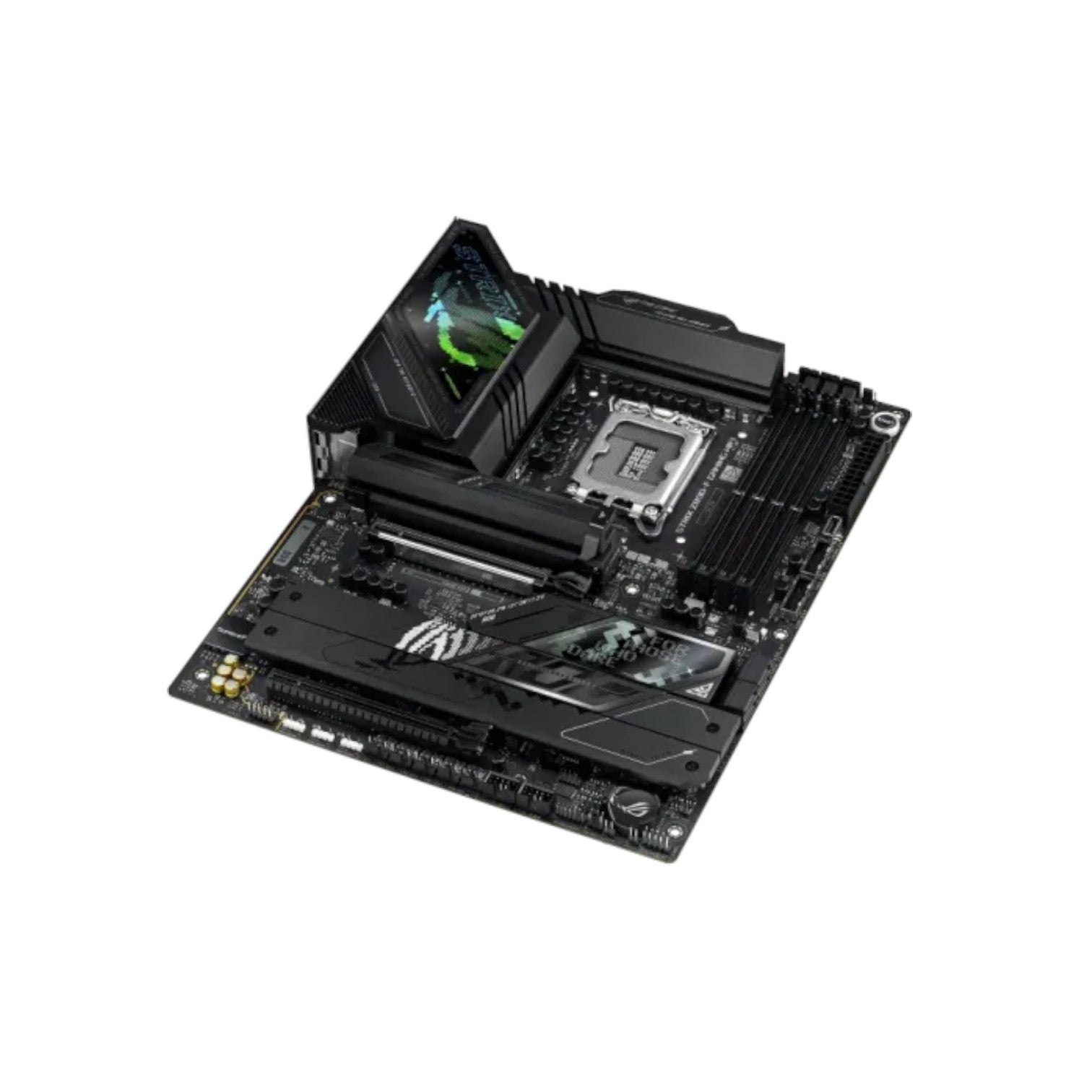

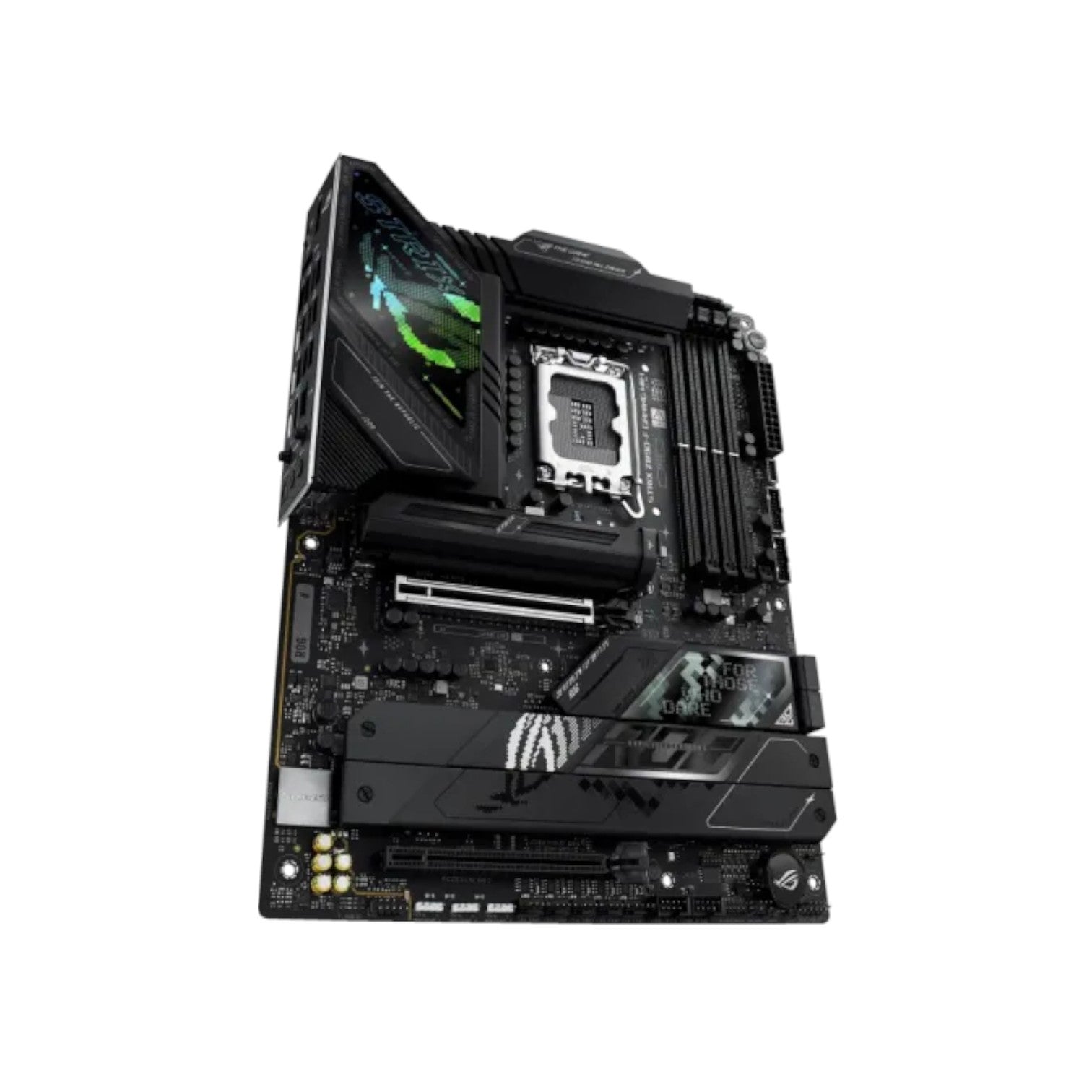

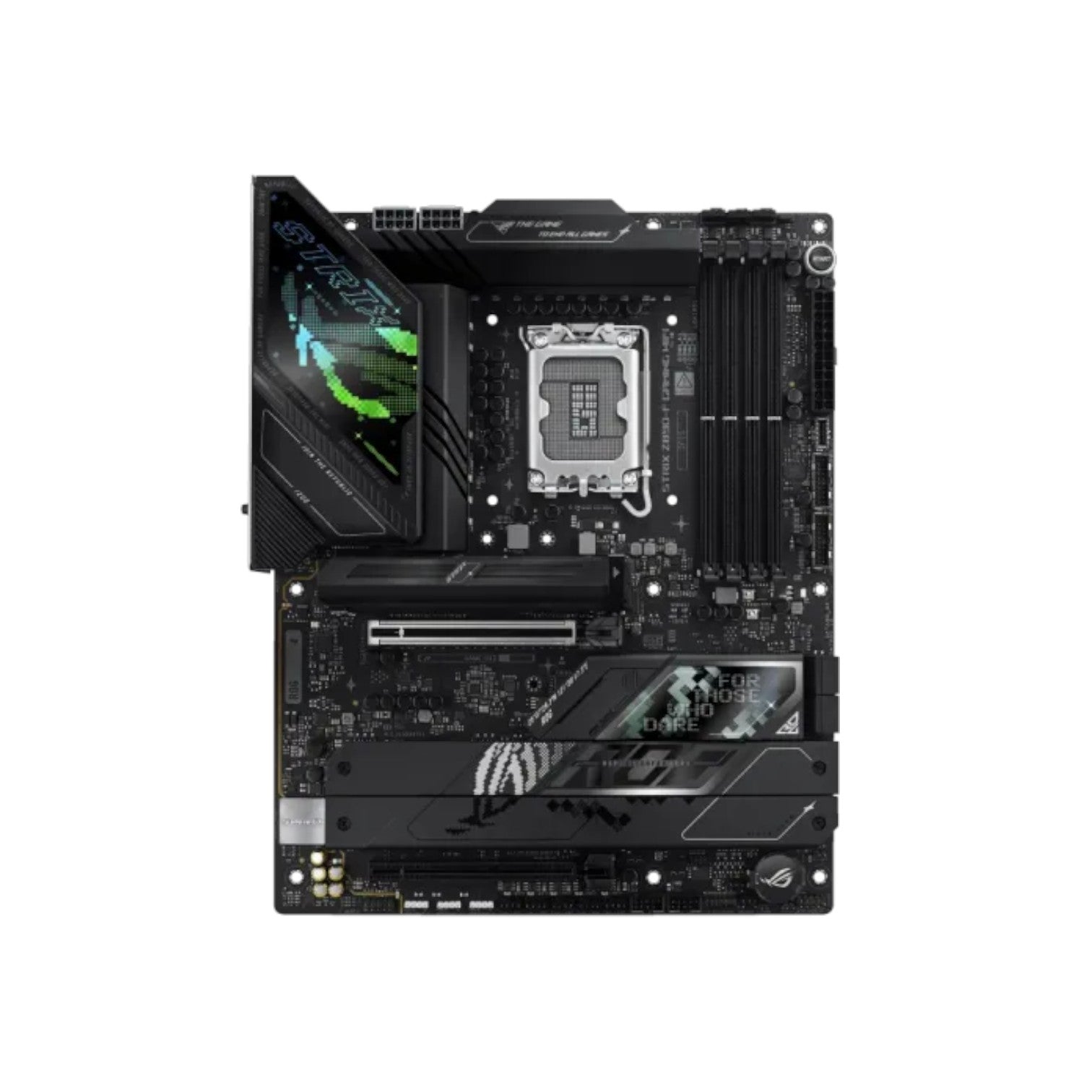

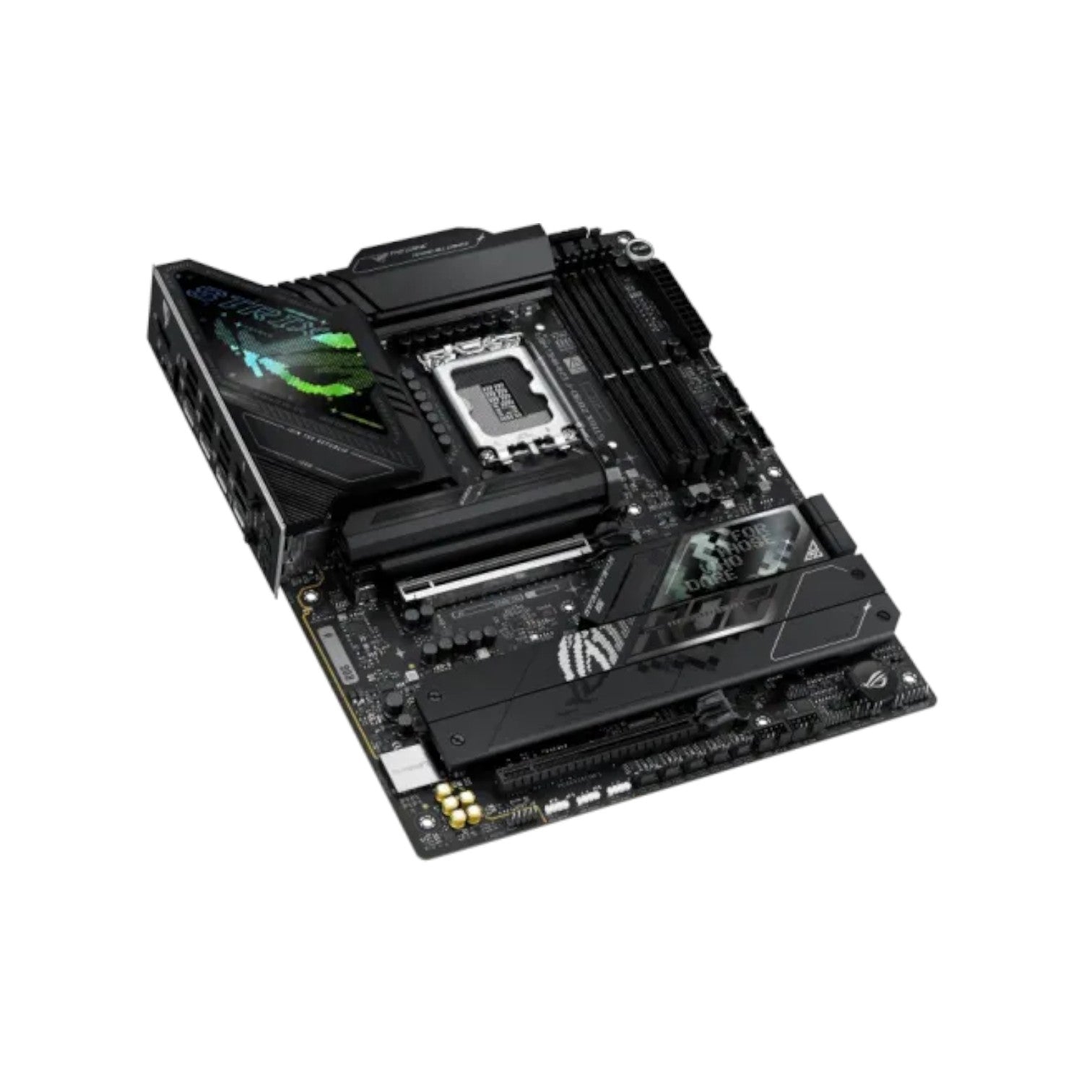

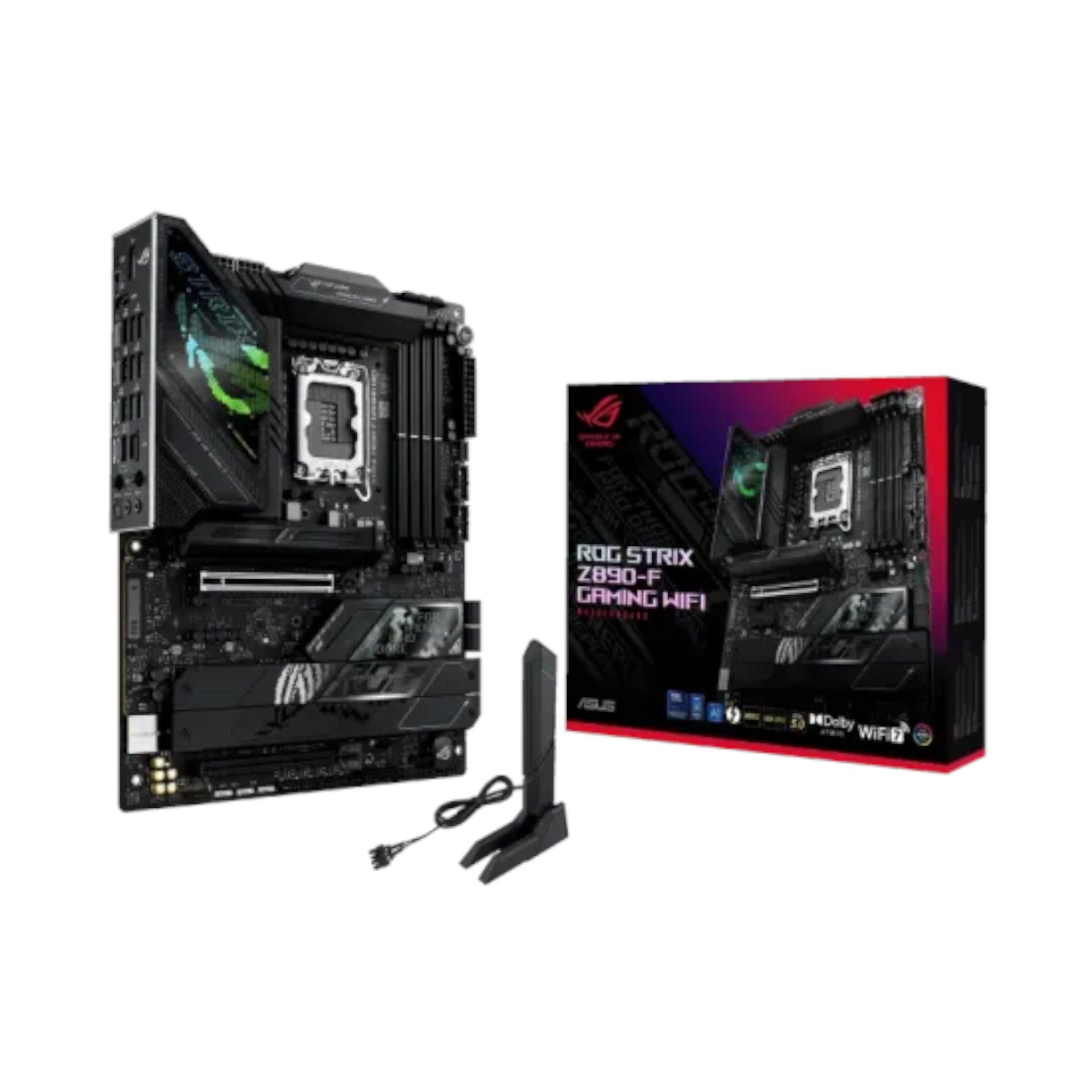

ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard
ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard

ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard

Brand: ASUS
SKU: ROG-Z890-F-GAMING-WIFI
Availability: In stock

Key Features

Model: ROG STRIX Z890-F GAMING WIFI

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 192GB,Supports Up to 8600+MT/s (OC),

Graphics Output: 1x HDMI,, 1x DisplayPort, 2x Intel Thunderbolt 4

Features: 5x M.2, Intel Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 66,700
Tk 72,480
Tk 66,700
Subtotal: Tk 66,700
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF outport
- Premium audio capacitors
- Audio cover

Expansion Slots

PCI Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site
M.2 Socket Supports 5 x M.2
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)



Memory

Type DDR5
Slots 4 x DIMM slots
Supported Memory Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
Maximum Memory 192GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
2 x Intel Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
USB (s) Rear USB (Total 14 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports
Front USB (Total 9 ports)
1 x USB 20Gbps connector (1 x USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4
Supported Storage 5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Audio 2 x Gold-plated audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button



Others

Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
FlexKey

Warranty

Warranty 3 years

Description

ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX Motherboard

The ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX Motherboard is an elite gaming motherboard built for enthusiasts, creators, and power users who demand peak performance and innovation. Featuring the Intel Z890 chipset and LGA1851 socket, it supports the latest Intel Core Ultra Series (Series 2) processors, unlocking exceptional processing power and next-gen efficiency for gaming, content creation, and AI-driven workloads.

Equipped with four DDR5 DIMM slots supporting up to 192GB of RAM at overclocked speeds of 8600+ MT/s (OC), the ROG STRIX Z890-F delivers unmatched memory performance. With DIMM Flex and ASUS Enhanced Memory Profile III (AEMP III), users benefit from increased stability and optimized memory tuning, perfect for overclockers and performance enthusiasts.

This motherboard’s expansion and storage capabilities are second to none, featuring five M.2 slots, including one PCIe 5.0 NVMe slot with M.2 Q-Release for fast SSD installation, plus four additional M.2 and SATA 6Gb/s ports for flexible storage configurations. The PCIe 5.0 x16 SafeSlot with Q-Release Slim design supports next-generation GPUs, ensuring durability and effortless upgrades.

Connectivity is at the forefront with WiFi 7 and the ASUS WiFi Q-Antenna, delivering ultra-fast, stable wireless speeds ideal for competitive gaming and seamless streaming. Dual Thunderbolt 4 ports offer blazing-fast data transfer, video output, and daisy-chaining capabilities, while a USB 10Gbps Type-C rear I/O port with 30W Power Delivery ensures rapid device charging.

The ROG STRIX Z890-F boasts a robust 16+1+2+2 power stage design, ensuring precise and reliable power delivery even under the heaviest workloads. Combined with advanced cooling components — including large VRM heatsinks, M.2 heatsinks, and multiple fan headers — this board ensures exceptional thermal performance. The AI Cooling II feature dynamically adjusts fan speeds based on system temperature for optimal cooling with minimal noise.

For audio, it integrates ROG SupremeFX 7.1 Surround Sound with ALC4080 codec and premium-grade capacitors, delivering crisp, immersive sound quality for both gaming and professional audio tasks.

Aesthetically, the ASUS ROG STRIX Z890-F GAMING WIFI exudes sophistication with its Polymo Lighting design — customizable through Aura Sync RGB, allowing you to personalize your build with vibrant lighting effects that sync across compatible components.

ROG-exclusive features such as AI Overclocking, AI Networking II, Extreme Engine Digi+, and ASUS Q-Design (Q-Latch, Q-Release, Pre-mounted I/O Shield) make building and tuning seamless, ensuring users can push performance boundaries effortlessly.

With its exceptional power delivery, futuristic connectivity, intelligent AI optimization, and stunning aesthetics, the ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX Motherboard is the ultimate foundation for any premium gaming or professional build.

Price in Bangladesh: 66,700৳
Buy the ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
