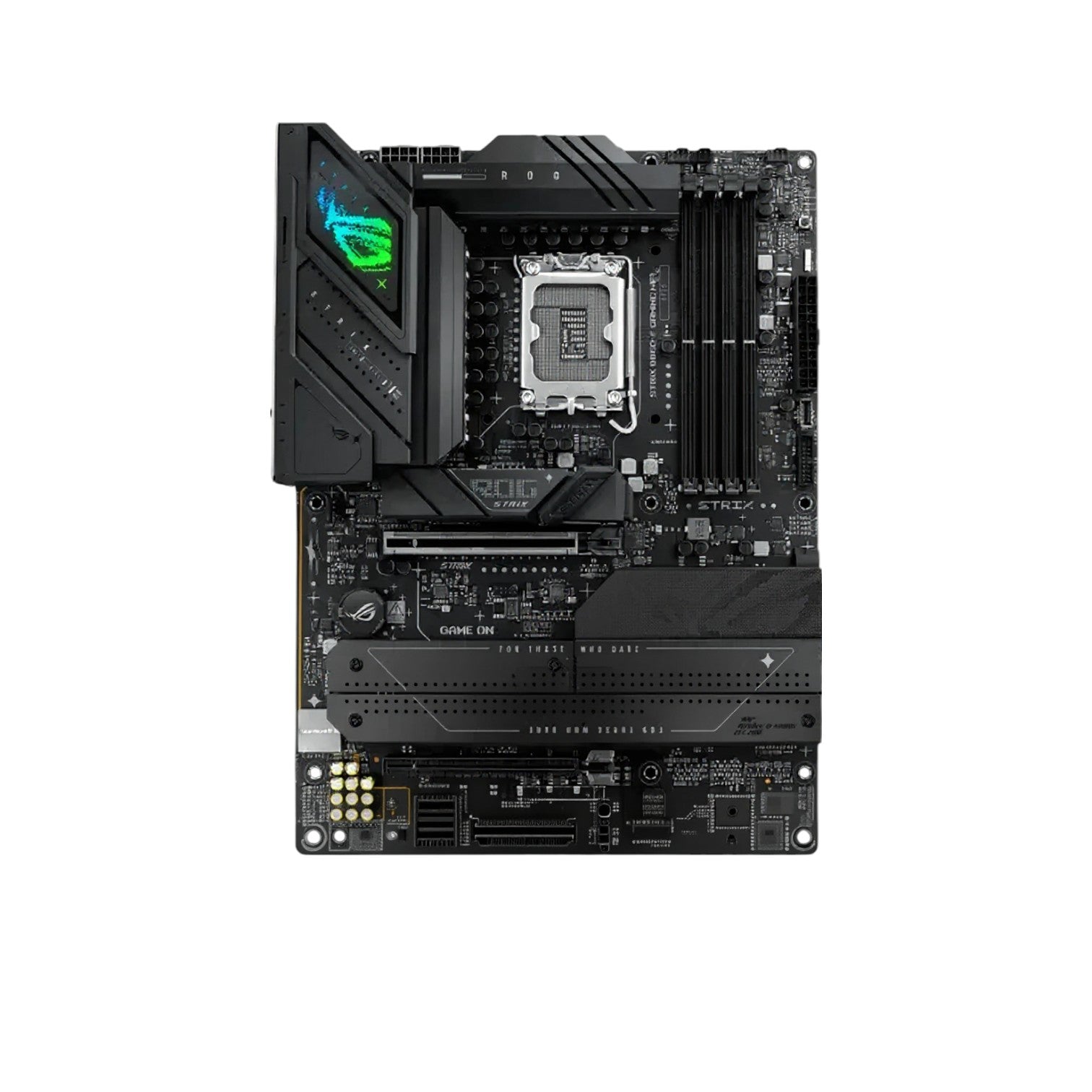

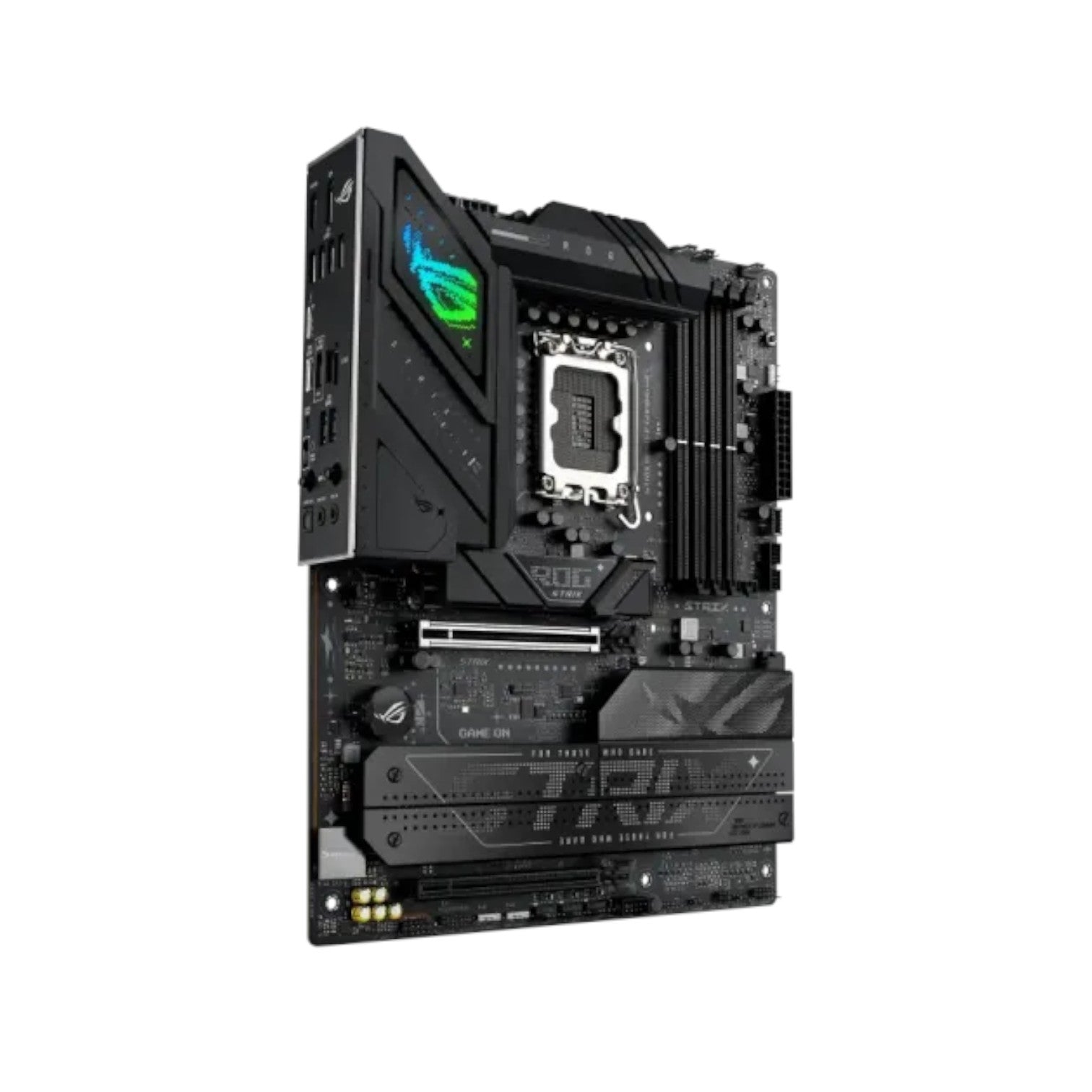

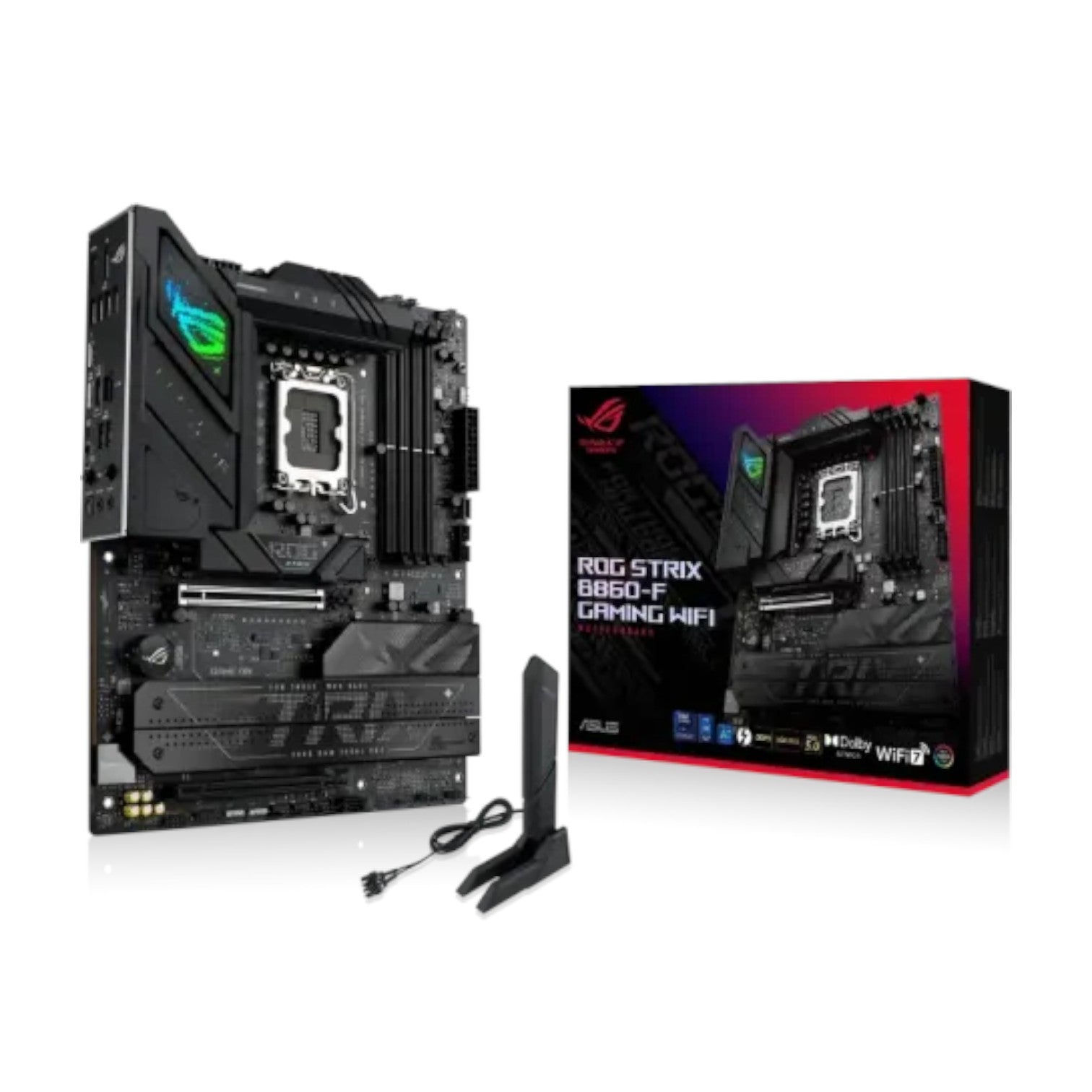

Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard
Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard
Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard

Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard

Brand: ASUS
SKU: ROG-B860-F-GAMING-WIFI
Availability: In stock

Key Features

Model: ROG STRIX B860-F GAMING WIFI

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 256GB, 9066MT/s (OC)

Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB Type-C (Thunderbolt)

Features: 4x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4

Ask an expert
Tk 43,400
Tk 47,200
Tk 43,400
Subtotal: Tk 43,400
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound
High Definition Audio CODEC ALC4080
Supports up to 32-bit/384 kHz playback

Expansion Slots

PCI Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket 4 x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1 x DisplayPort
1 x HDMI port
1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.
Supports 8K@60Hz with DSC as specified in HDMI 2.1.
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
VGA resolution support depends on the processors' or graphic cards' resolution.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4a
USB (s) Rear USB (Total 9 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps (1 x USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Supported Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled.
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID SATA RAID 0/1/5/10
Audio 2 x Audio jacks
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Back Panel I/O Ports:
1 x Thunderbolt™ 4 (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button



Others

Special Features Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
ASUS Driver Hub
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Warranty

Warranty 3 years

Description

Asus ROG STRIX B860-F GAMING WIFI LGA1851 ATX Motherboard

The Asus ROG STRIX B860-F GAMING WIFI LGA1851 ATX Motherboard is a next-generation gaming powerhouse built to deliver elite performance, stunning visuals, and rock-solid stability for gamers and creators alike. Powered by the Intel B860 chipset, it supports the latest Intel Core Ultra Series processors through the LGA1851 socket, offering blazing-fast performance with Intel Turbo Boost Technology 2.0 and 3.0 for seamless multitasking and smooth gameplay.

Designed for high-speed computing, the motherboard features four DDR5 DIMM slots supporting up to 256GB of RAM with speeds reaching an incredible 9066MT/s (OC). With ASUS Enhanced Memory Profile III (AEMP III), memory tuning is optimized for maximum compatibility and stability, making it ideal for both gaming and heavy workloads.

For expansion, the Asus ROG STRIX B860-F offers a PCIe 5.0 x16 slot to fully unleash next-generation GPUs, alongside three PCIe 4.0 M.2 slots for ultra-fast NVMe storage. Four SATA 6Gb/s ports provide additional flexibility for SSDs and HDDs, ensuring ample storage for your games, applications, and media. The board’s graphics outputs include HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 8K@60Hz, while a Thunderbolt 4 port enables lightning-fast data transfers and multi-display support.

Connectivity on this ROG STRIX motherboard is top-of-the-line, featuring Wi-Fi 7, Bluetooth 5.4, and 2.5Gb Ethernet for ultra-reliable and low-latency networking. The rear I/O offers nine USB ports, including USB 20Gbps Type-C and Thunderbolt 4, ensuring maximum compatibility for high-speed devices and peripherals.

Audio quality reaches studio-grade levels with the ROG SupremeFX ALC4080 codec, enhanced by Savitech SV3H712 AMP and premium-grade capacitors, delivering crystal-clear, immersive sound for both gaming and entertainment.

The Asus ROG STRIX B860-F GAMING WIFI is engineered for DIY enthusiasts, featuring Q-Design innovations like M.2 Q-Latch, PCIe Slot Q-Release, and a pre-mounted I/O shield for effortless installation. Its advanced cooling system includes VRM heatsinks, hybrid fan headers, and multiple temperature sensors managed by Fan Xpert 2+, ensuring optimal thermal efficiency even under demanding workloads.

Visually, the board features bold ROG aesthetics with Aura Sync RGB lighting, offering full customization across your build. Integrated software like Armoury Crate gives you centralized control over lighting, cooling, and performance tuning.

With its robust power delivery, cutting-edge connectivity, and premium build quality, the Asus ROG STRIX B860-F GAMING WIFI LGA1851 ATX Motherboard stands out as the perfect foundation for an advanced gaming setup or high-end productivity system.

Price in Bangladesh: 43,400৳
Buy the Asus ROG STRIX B860-F GAMING WIFI LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
