Brand: ASUS
SKU: ROG-B860-A-GAMING-WIFI
Availability: In stock

Key Features

  • Model: ROG STRIX B860-A GAMING WIFI
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 256GB, 8600+ MT/s (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB 4 (20Gbps)
  • Features: 4x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Ask an expert
Tk 39,800
Tk 43,400
Tk 39,800
Subtotal: Tk 39,800
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC
Supports up to 32-Bit/192 kHz

Expansion Slots

PCI Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
* M.2_4 slot shares bandwidth with
PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
M.2 Socket 4 x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1 x DisplayPort**
1 x HDMI™ port***
1 x USB4® (20Gbps) ports support USB
Type-C® display outputs****
* Graphics specifications may vary between
CPU types



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4a
USB (s) Rear USB (Total 10 ports)
1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB
Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports
* USB Type-C power delivery output: max.
5V/3A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
Supported Storage Total supports 4 x M.2 slots and 4 x SATA
6Gb/s ports*

Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)

Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110
(supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports
SATA RAID 0/1/5/10.
** M.2_4 slot shares bandwidth with
PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
RAID SATA RAID 0/1/5/10
Audio 2 x Audio jacks
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector

Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

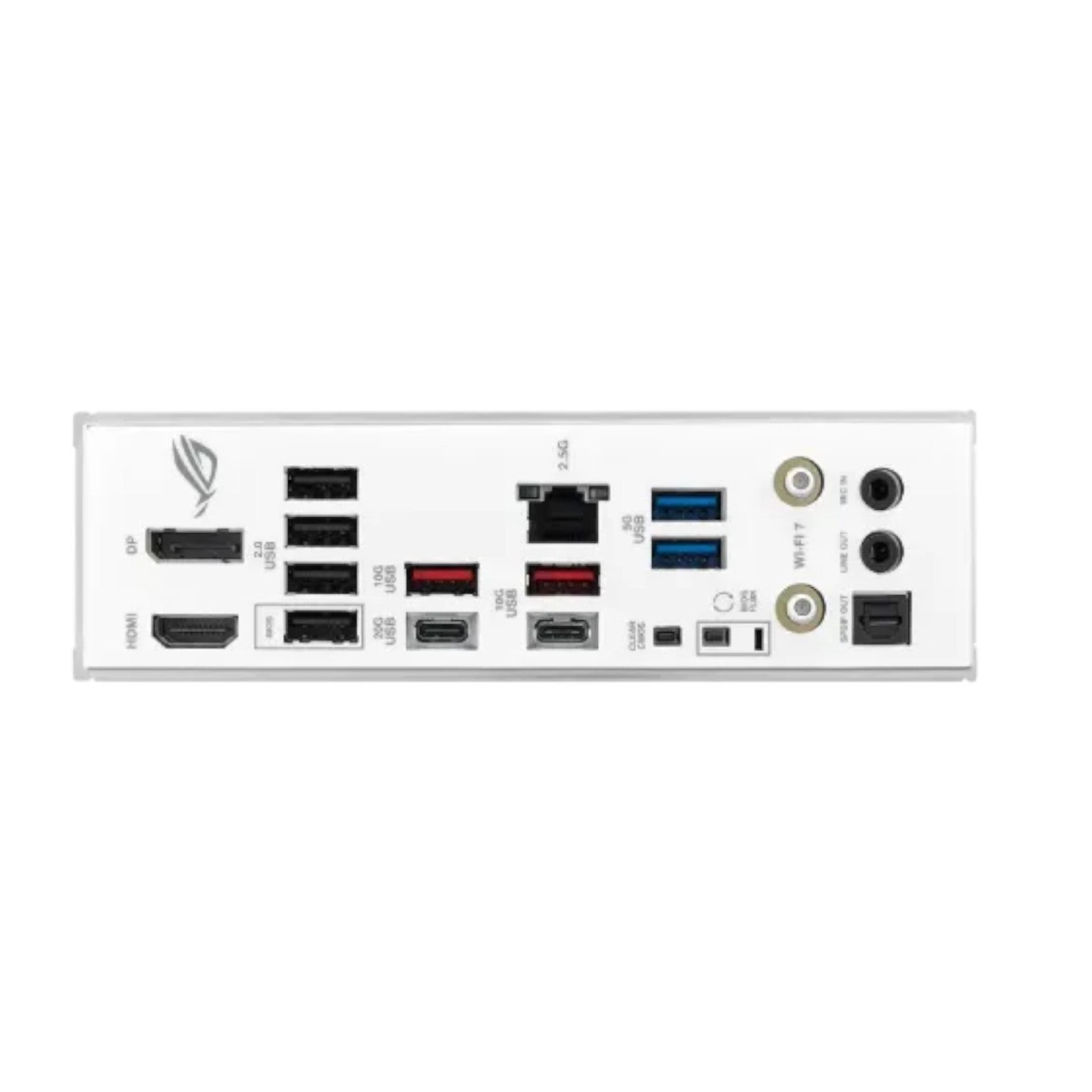

Back Panel I/O Ports:
1 x USB4 (20Gbps) port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button



Others

Special Features Extreme Engine Digi+
- 5K Black metallic capacitors

ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Addressable Gen2 headers
Bundled Software ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud 30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost

Warranty

Warranty 3 years

Description

Asus ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard

The Asus ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard is a premium gaming motherboard built for enthusiasts seeking elite performance, durability, and customization. Powered by the Intel B860 chipset and supporting Intel Core Ultra Processors (Series 2) through the LGA1851 socket, it delivers cutting-edge processing power for gaming, content creation, and professional workloads.

Designed with DDR5 memory support, it accommodates up to 256GB of RAM with speeds reaching 8666+MT/s (OC), ensuring ultra-fast responsiveness and performance for high-demand applications. With Intel XMP and ASUS Enhanced Memory Profile III (AEMP III) support, users can easily fine-tune memory settings for maximum speed and stability.

Expansion options are future-ready, featuring one PCIe 5.0 x16 slot for the latest graphics cards, one PCIe 4.0 x16 slot, and three PCIe 4.0 x1 slots for additional expansion. For storage, the motherboard includes four M.2 slots supporting PCIe 5.0 and 4.0 interfaces, alongside four SATA 6Gb/s ports, providing flexible and high-speed storage configurations ideal for gamers and professionals alike.

Connectivity is top-tier, featuring Realtek 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth 5.3 for ultra-fast, stable network connections. The rear I/O and front headers include multiple USB options such as a USB 20Gbps Type-C port, a USB 10Gbps Type-A port, and additional USB 2.0 ports to support a wide range of peripherals.

Thermal management is optimized through robust VRM and M.2 heatsinks, multiple fan headers, and AI Cooling support, maintaining consistent performance under intense workloads. Built with premium power components, the board ensures efficient power delivery for overclocking and sustained gaming sessions.

Aesthetically, the ROG STRIX B860-A stands out with its sleek white and silver design complemented by ASUS Aura Sync RGB lighting, allowing full customization and synchronization across compatible devices for a personalized build. The EZ DIY design includes Q-Design features like Q-LED indicators, Q-DIMM slots, and pre-mounted I/O shield, simplifying assembly and upgrades.

Engineered for gamers and creators who demand performance and style, the Asus ROG STRIX B860-A GAMING WIFI combines high-speed connectivity, efficient cooling, and superior tuning options for the ultimate PC building experience.

Price in Bangladesh: 39,800৳
Buy the Asus ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
