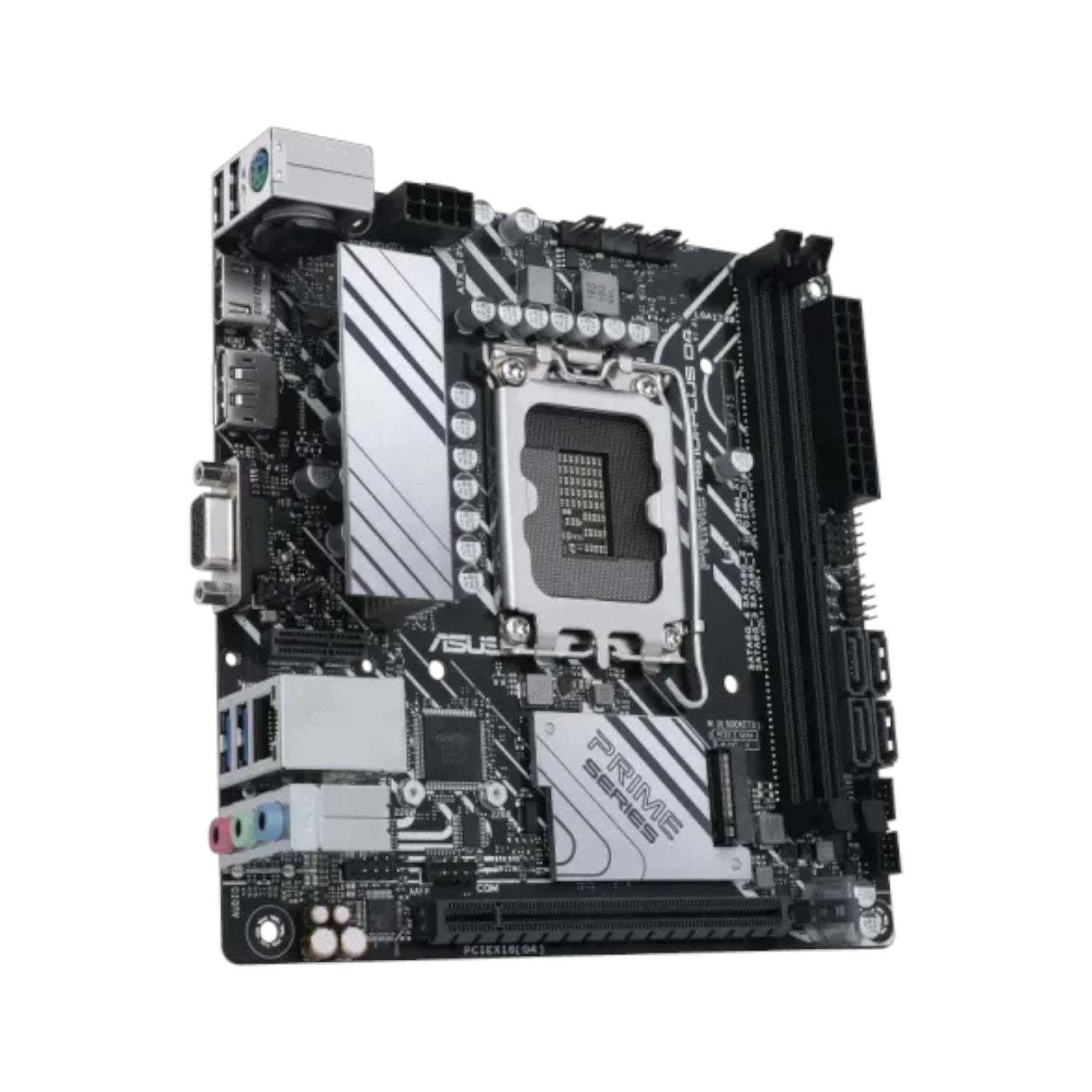

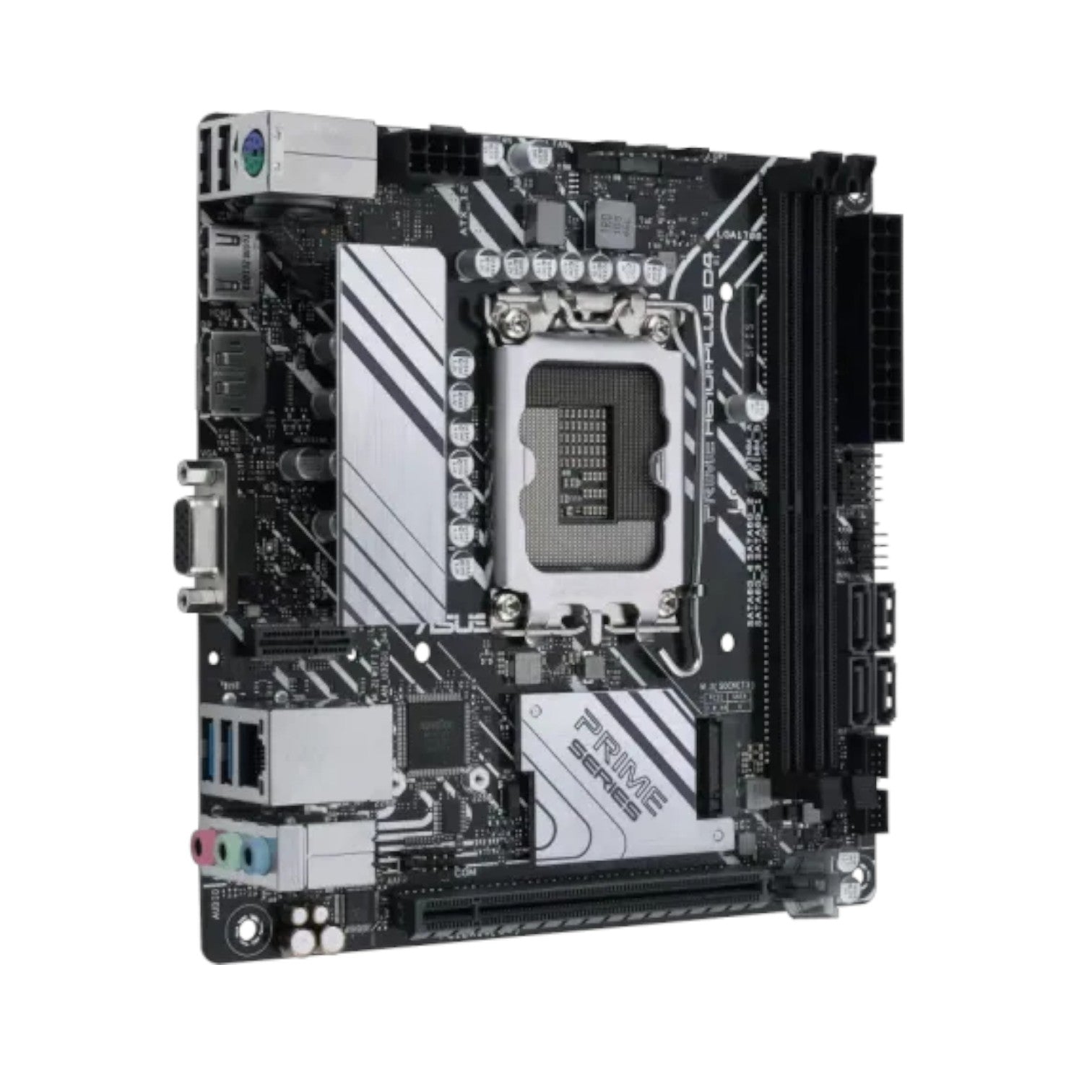

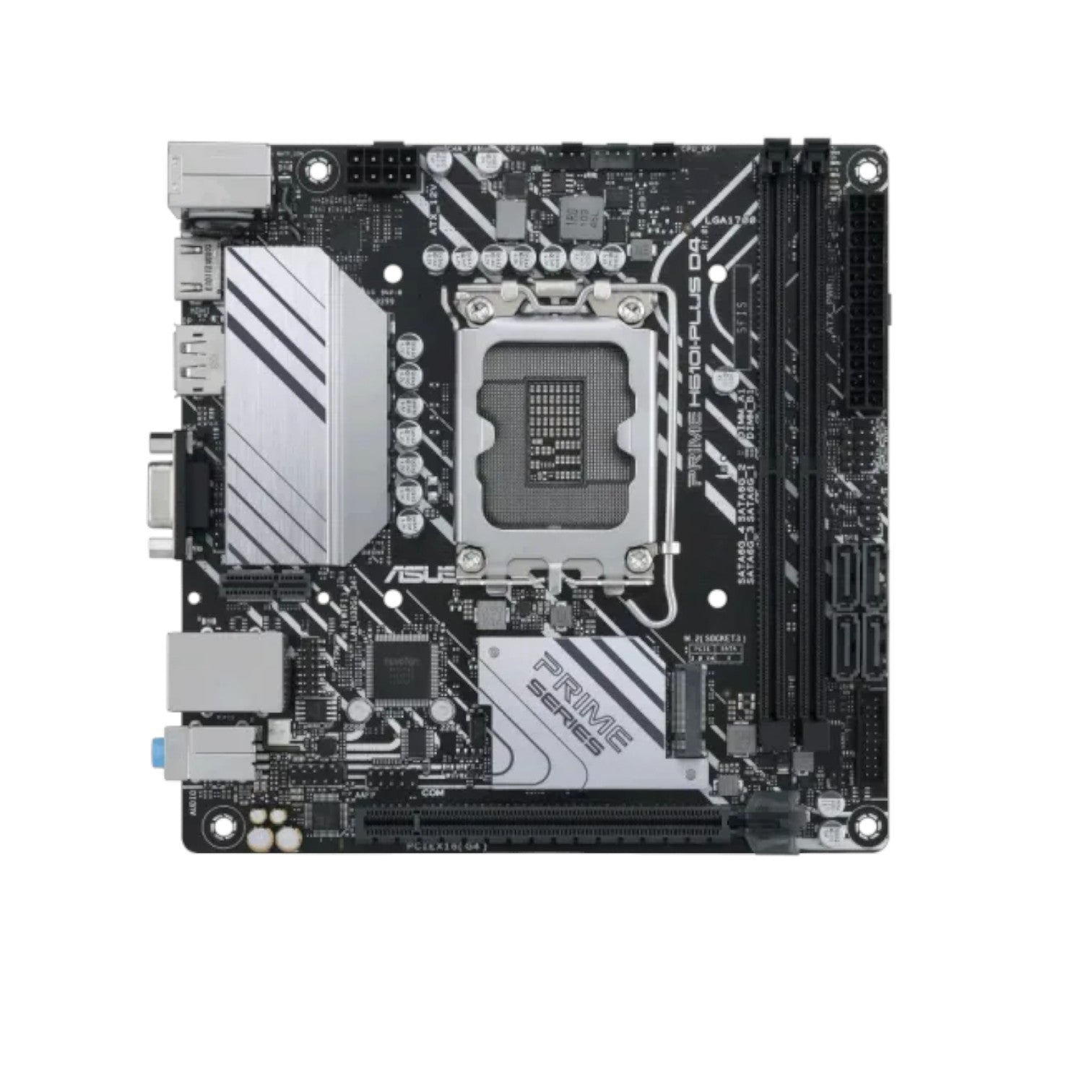

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard
ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard
ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

Brand: ASUS
SKU: H610I-PLUS-DDR5
Availability: In stock

Key Features

Model: PRIME H610I-PLUS

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Supported RAM: 2x DDR4, Max 64GB 3200

Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub

Features: 1 x Realtek 1Gb Ethernet

Ask an expert
Tk 17,500
Tk 18,990
Tk 17,500
Subtotal: Tk 17,500
Description

Specification

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

Expansion Slots

PCI Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
M.2 Socket 1 x M.2 slots



Memory

Type DDR5
Slots 2x DIMM
Supported Memory 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 96GB



Graphics

Graphics Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1



Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s) 1 x Intel 1Gb Ethernet port
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Audio 3x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design

Warranty

Warranty 3 years

Description

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard

The ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard is a compact, high-performance board designed for users who want powerful computing in a small form factor. Powered by the Intel H610 chipset and LGA1700 socket, it supports 12th, 13th, and 14th Gen Intel Core processors, delivering exceptional performance and flexibility for both productivity and entertainment setups.

Supporting the latest DDR5 memory technology, this motherboard features two DIMM slots that support up to 64GB of RAM with speeds up to 5600MHz, ensuring faster load times, improved bandwidth, and efficient multitasking. The 5+1+1 DrMOS power design ensures stable power delivery for the CPU, while integrated VRM and PCH heatsinks, along with ASUS Fan Xpert, provide effective cooling under intensive workloads.

Storage and connectivity are well-balanced, featuring a 32Gbps M.2 slot for NVMe SSDs and SATA 6Gb/s ports for additional storage devices. For reliable networking, it comes equipped with Intel 1Gb Ethernet, and the multiple USB 3.2 Gen 1 ports ensure high-speed data transfer and seamless peripheral integration. Display connectivity includes DisplayPort, HDMI, and D-Sub outputs, supporting diverse monitor configurations for both office and creative applications.

The ASUS PRIME H610I-PLUS DDR5 also integrates 5X Protection III technology, offering safeguards like overvoltage protection, SafeSlot Core reinforcement, and stainless-steel back I/O shielding for long-term durability. Additional features such as a COM header and Mono-out header with Amp IC provide extra flexibility for industrial or specialized builds.

Compact, efficient, and feature-rich, the ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard is the perfect foundation for building a small yet powerful desktop system with next-generation performance and reliability.

Price in Bangladesh: 17,500৳
Buy the ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
