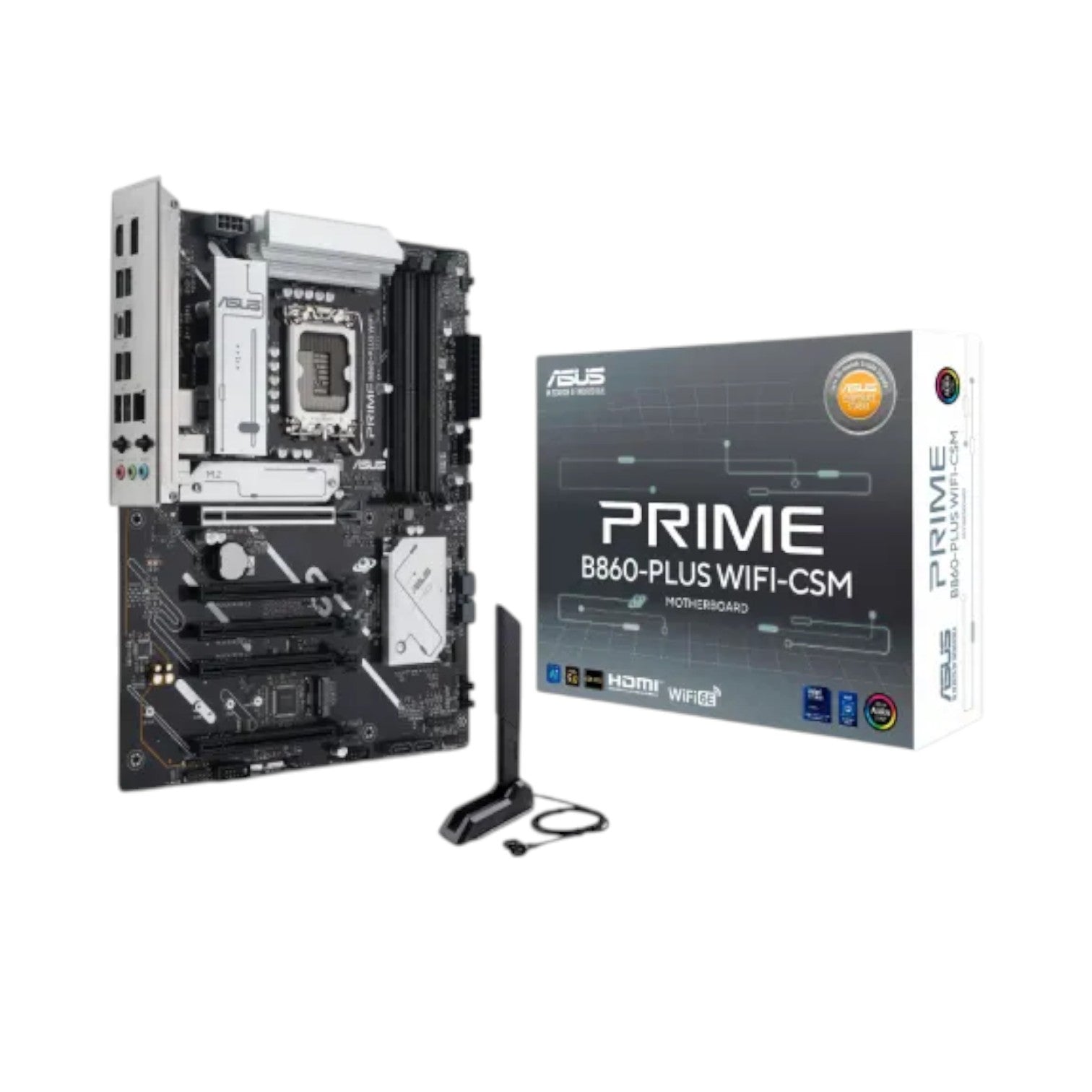

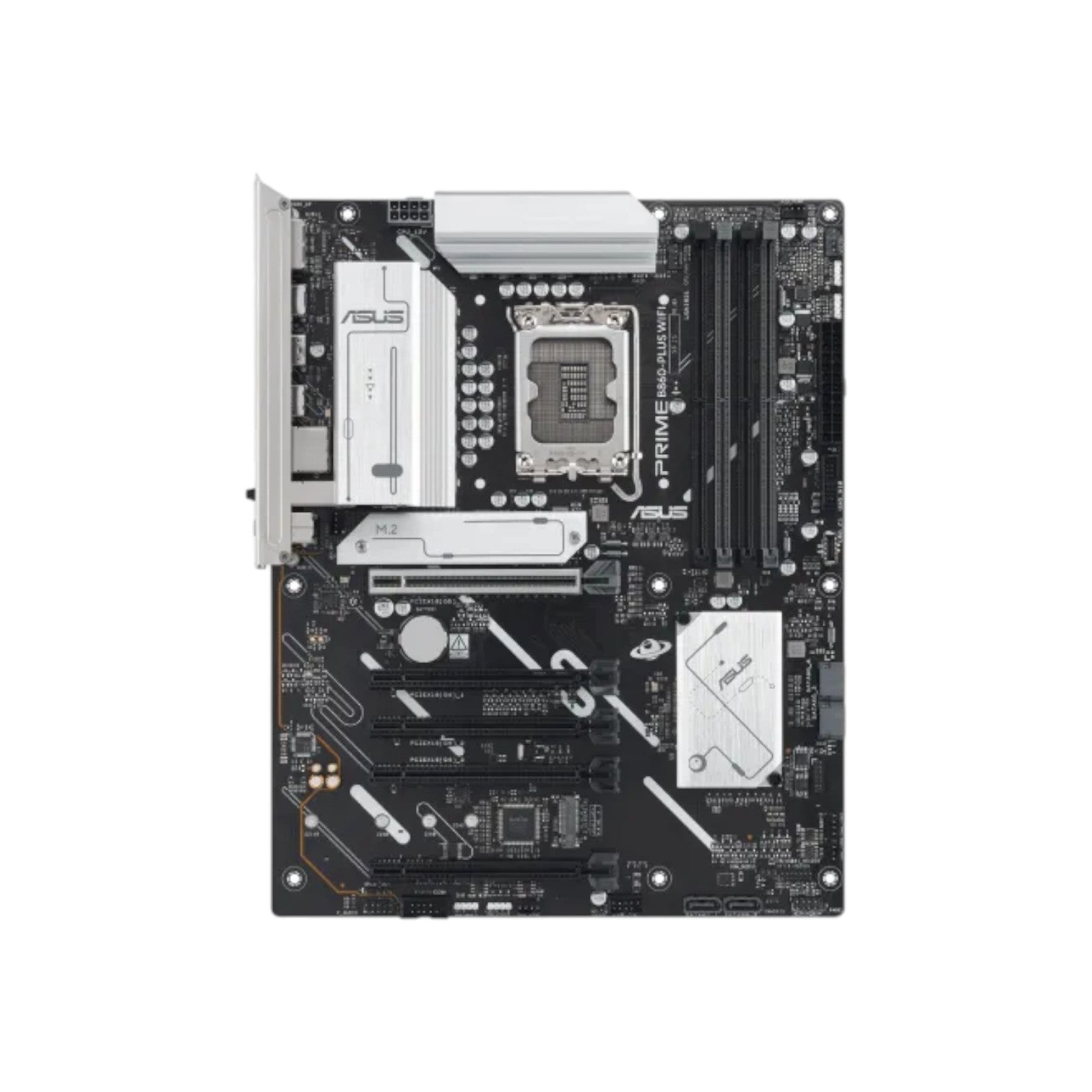

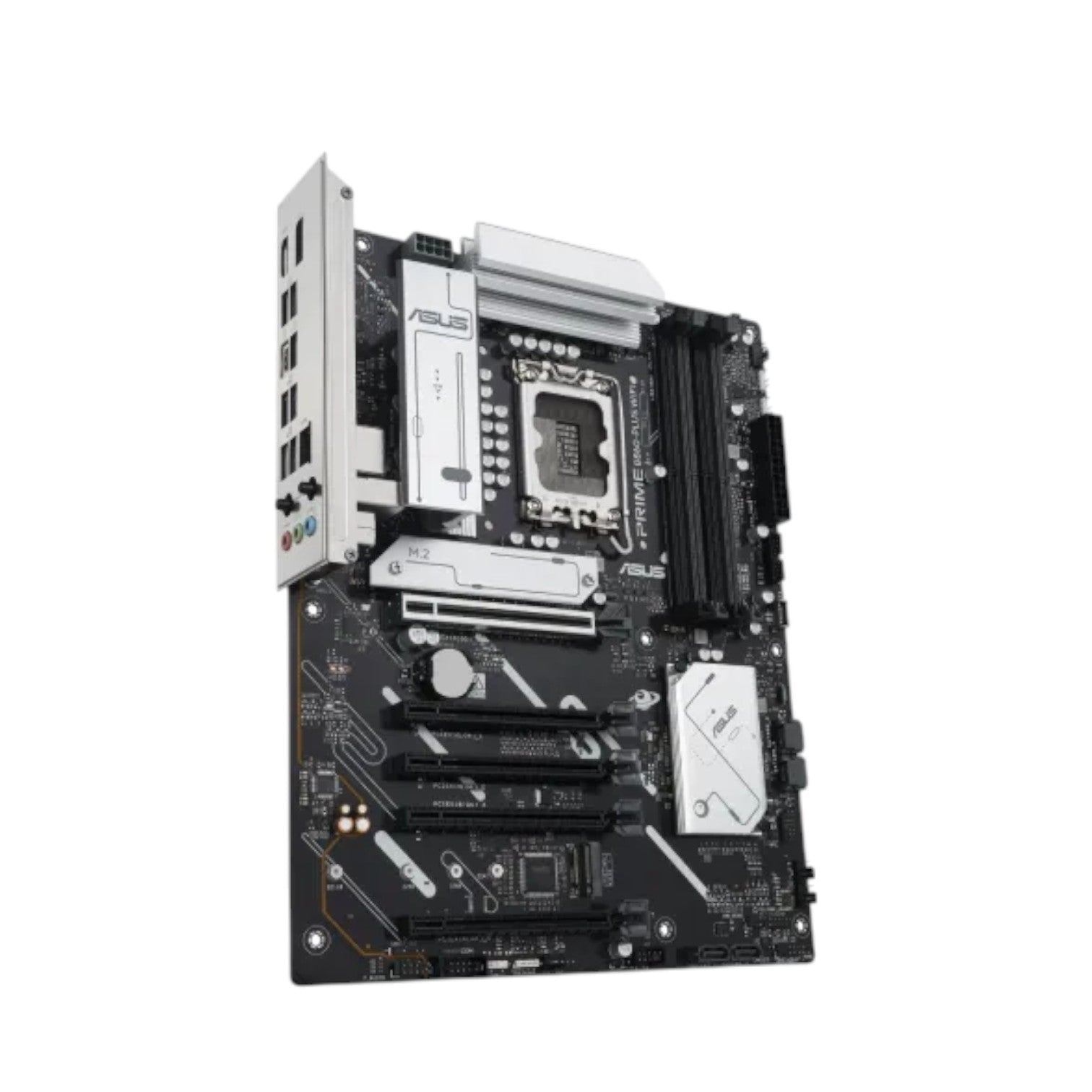

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard

Brand: ASUS
SKU: B860-PLUS-WIFI-CSM
Availability: In stock

Key Features

Model: PRIME B860-PLUS WIFI-CSM

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)

Graphics Output: 1x HDMI, 1x DisplayPort

Features: 2x M.2, Realtek 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3

Tk 28,800
Tk 31,470
Tk 28,800
Subtotal: Tk 28,800

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports up to 24-Bit/192 kHz playback

Expansion Slots

PCI Intel Core Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
M.2 Socket 2 x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps port (1 x USB Type-C)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID SATA RAID 0/1/5/10
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS 5X PROTECTION III
-DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Warranty

Warranty 3 years

Description

Asus PRIME B860-PLUS WIFI-CSM LGA1851 ATX Motherboard

The Asus PRIME B860-PLUS WIFI-CSM LGA1851 ATX Motherboard is a next-generation performance platform designed for PC enthusiasts, gamers, and creators who demand power, connectivity, and stability. Built on the Intel B860 chipset and supporting Intel Core Ultra Processors (Series 2) with the LGA1851 socket, it combines advanced performance features with enterprise-grade reliability under ASUS’s Corporate Stable Model (CSM) program.

Supporting up to 256GB of DDR5 memory at speeds of 8666+MT/s (OC), this motherboard delivers exceptional responsiveness for heavy multitasking, AI workloads, and gaming. With Intel XMP and ASUS Enhanced Memory Profile III (AEMP III) support, users can easily optimize memory performance for speed and stability.

Expansion flexibility is one of its strong suits, featuring one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, and three PCIe 4.0 x1 slots to accommodate modern GPUs and other high-speed peripherals. For storage, the Asus PRIME B860-PLUS WIFI-CSM offers dual M.2 slots—one PCIe 5.0 x4 and one PCIe 4.0 x4—along with four SATA 6Gb/s ports for both SSD and HDD setups, ensuring high-speed and versatile storage solutions.

Connectivity is outstanding, powered by Realtek 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth 5.3 for ultra-fast, reliable networking across wired and wireless devices. The USB layout includes a USB 20Gbps Type-C, a USB 10Gbps Type-A, and multiple USB 2.0 ports, providing seamless compatibility with modern and legacy peripherals.

Thermal efficiency is ensured by VRM and M.2 heatsinks along with multiple fan headers and ASUS Fan Xpert technology for intelligent cooling control. The board also integrates Aura Sync RGB lighting, enabling users to personalize their build aesthetics with synchronized lighting across all compatible components.

As part of ASUS’s CSM series, the motherboard guarantees long-term reliability, IT management support through ASUS Control Center Express, and a stable product lifecycle—making it suitable for both professional and business use. EZ PC DIY features such as Q-Design, pre-mounted I/O shield, and user-friendly BIOS utilities make building and maintenance effortless.

Powerful, efficient, and future-ready, the Asus PRIME B860-PLUS WIFI-CSM LGA1851 ATX Motherboard offers a perfect balance of performance, cooling, and customization for high-end gaming, content creation, or enterprise computing.

Price in Bangladesh: 28,800৳
Buy the Asus PRIME B860-PLUS WIFI-CSM LGA1851 ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
