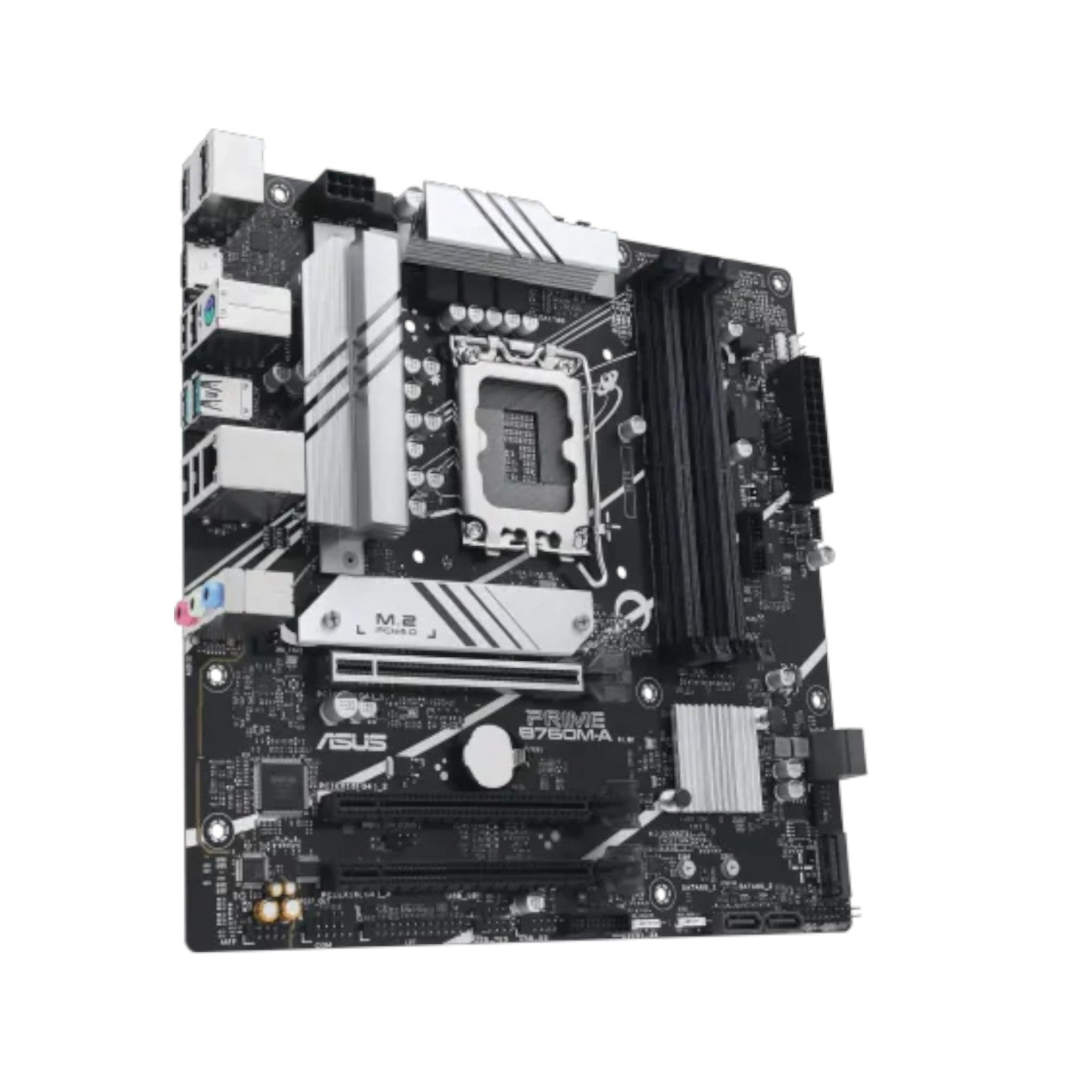

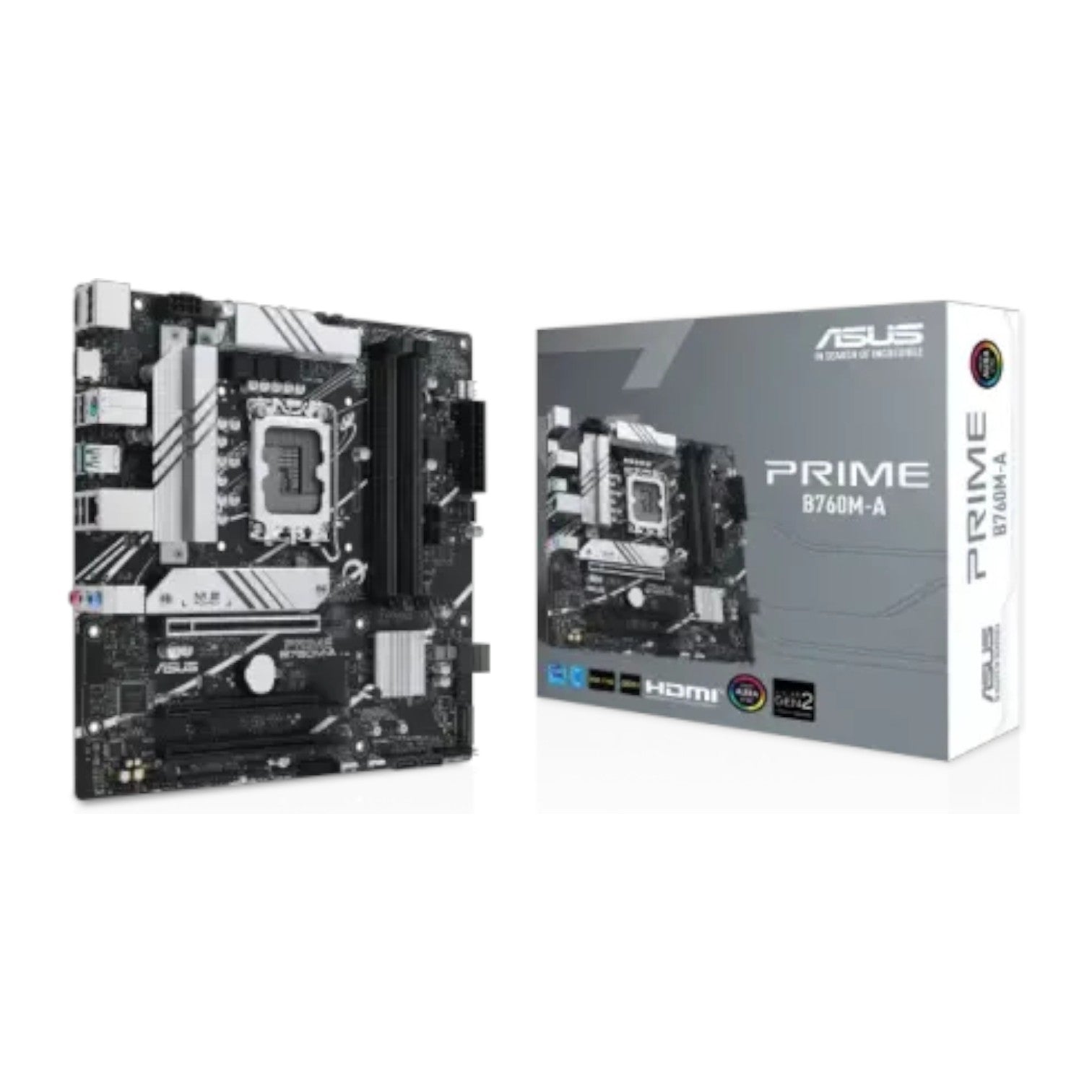

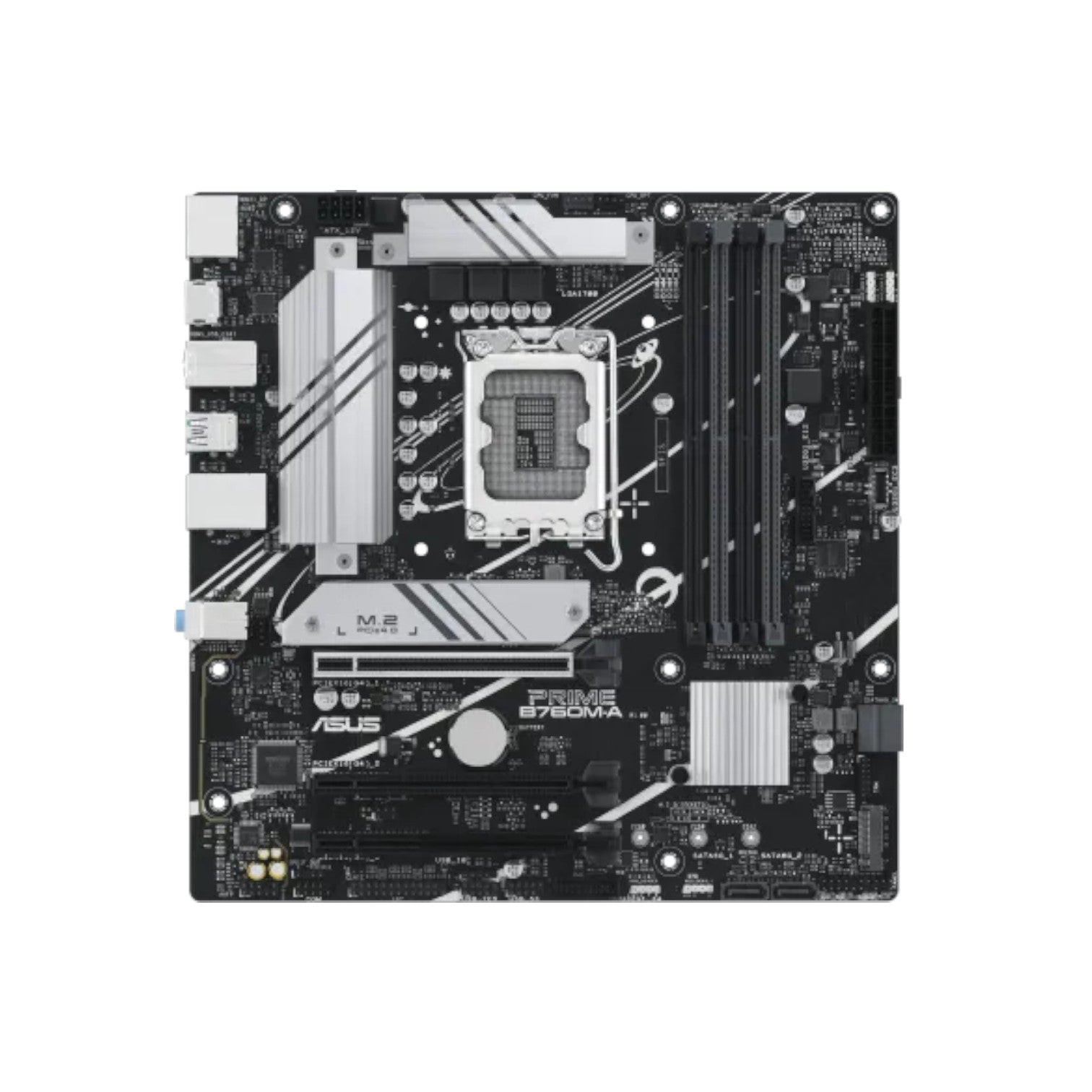

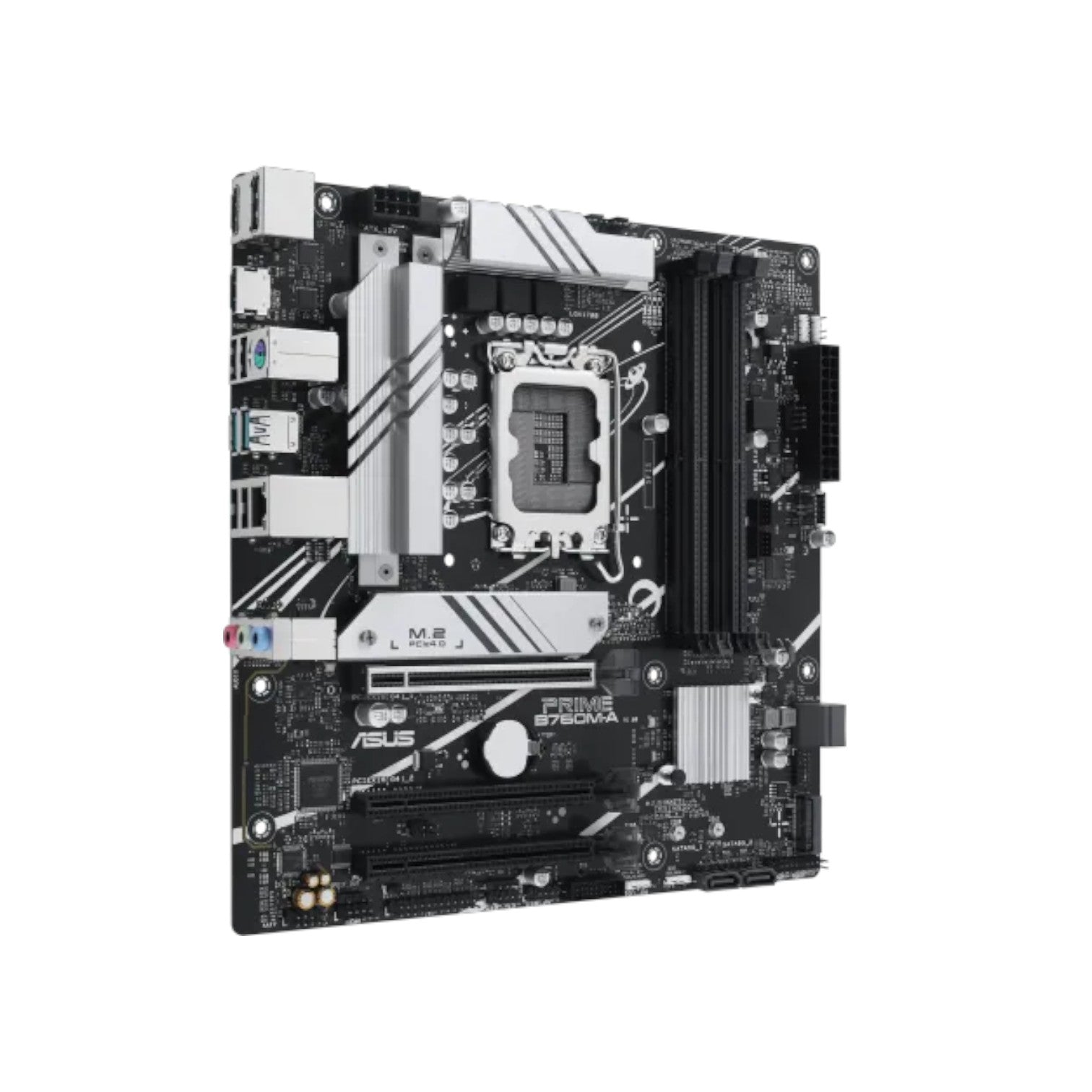

Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard

Asus PRIME B760M-A mATX Motherboard

Brand: ASUS
SKU: B760M-A
Availability: In stock

Key Features

Model: PRIME B760M-A

Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)

Supported Memory: 4 x DIMM, Max. 128GB, DDR5

Graphics Output: 1 x DisplayPort, 2 x HDMI

Features: 1 x Realtek 2.5Gb Ethernet

Ask an expert
Tk 20,500
Tk 22,030
Tk 20,500
Subtotal: Tk 20,500
Description

Specification

Basic Information

Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket Total supports 2 x M.2 slots



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB



Graphics

Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)



Connector & Ports

HDMI 2 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Warranty

Warranty 3 years

Description

Asus PRIME B760M-A mATX Motherboard

The Asus PRIME B760M-A mATX Motherboard is a powerful and versatile platform built to support Intel’s latest 12th, 13th, and 14th Gen processors with the LGA1700 socket. Designed around the Intel B760 chipset, it provides a perfect foundation for gamers, professionals, and PC builders seeking high performance, efficient cooling, and advanced connectivity in a compact micro-ATX form factor.

Featuring PCIe 4.0 support, this motherboard ensures fast data transfer speeds for modern GPUs and NVMe SSDs. It includes dual M.2 slots for high-speed storage, offering ultra-fast performance for boot drives and applications, along with four SATA 6Gb/s ports for additional storage flexibility. Networking is handled by Realtek 2.5Gb Ethernet, ensuring smooth and stable online performance, while multiple USB ports—such as rear USB 3.2 Gen 2 and a front USB 3.2 Gen 1 Type-C connector—provide convenient, high-speed connectivity for peripherals and accessories.

The Asus PRIME B760M-A is engineered for superior cooling performance, featuring VRM, M.2, and PCH heatsinks to maintain optimal temperatures during heavy workloads. Hybrid fan headers and ASUS Fan Xpert 2+ software allow users to customize and precisely control their system cooling for efficiency and quiet operation.

Memory performance is enhanced through ASUS OptiMem II and Enhanced Memory Profile II technologies, which improve stability and allow for better overclocking on DDR5 memory. Aesthetically, the motherboard offers full Aura Sync RGB support, with onboard Addressable Gen 2 headers and an Aura RGB header, enabling synchronized lighting effects across compatible components for a visually cohesive setup.

Built with ASUS 5X Protection III for long-term durability and backed by robust software like AI Suite 3 and Armoury Crate, the Asus PRIME B760M-A mATX Motherboard delivers a complete package of performance, reliability, and customization—ideal for building a stylish, high-performance PC.

Price in Bangladesh: 20,500৳
Buy the Asus PRIME B760M-A mATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
