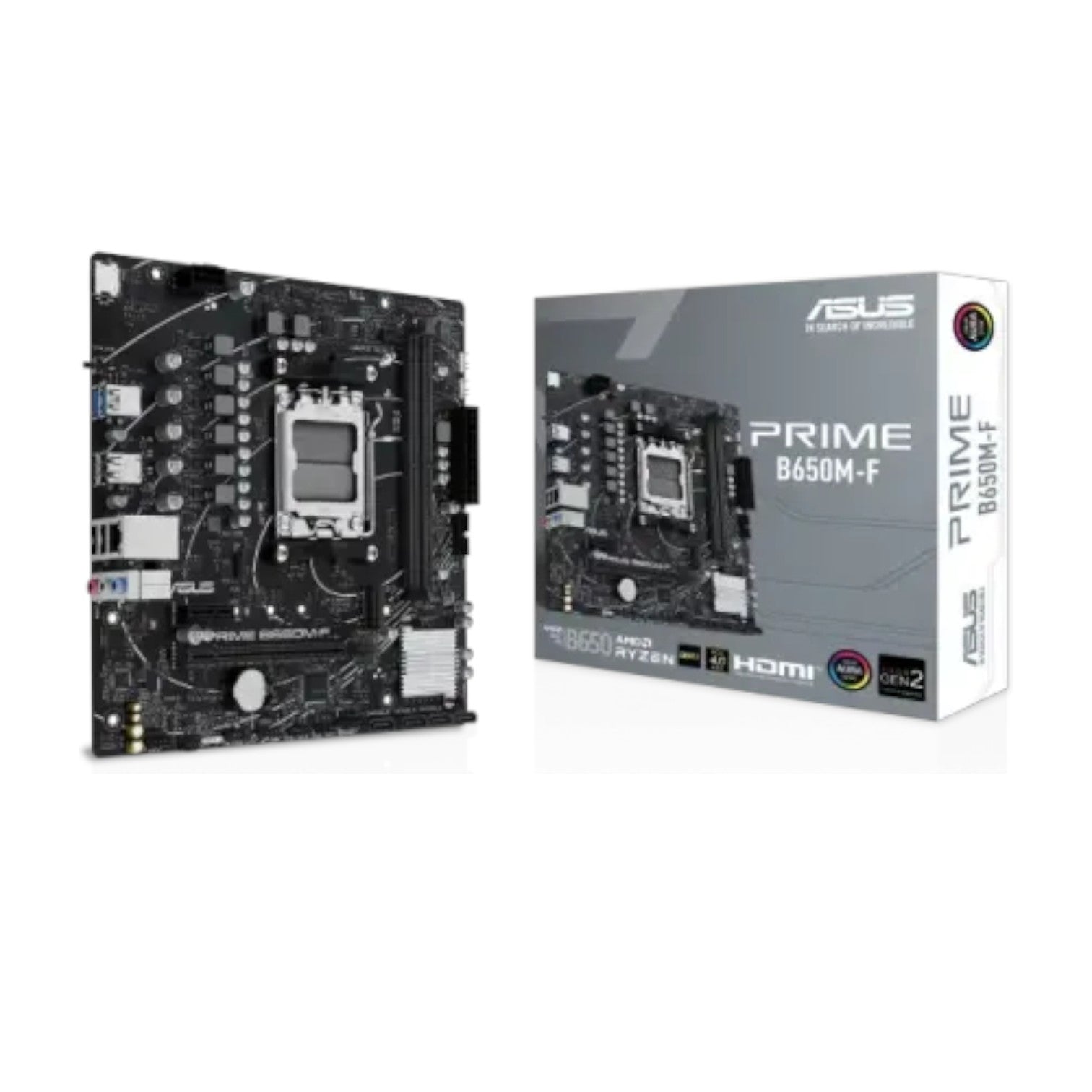

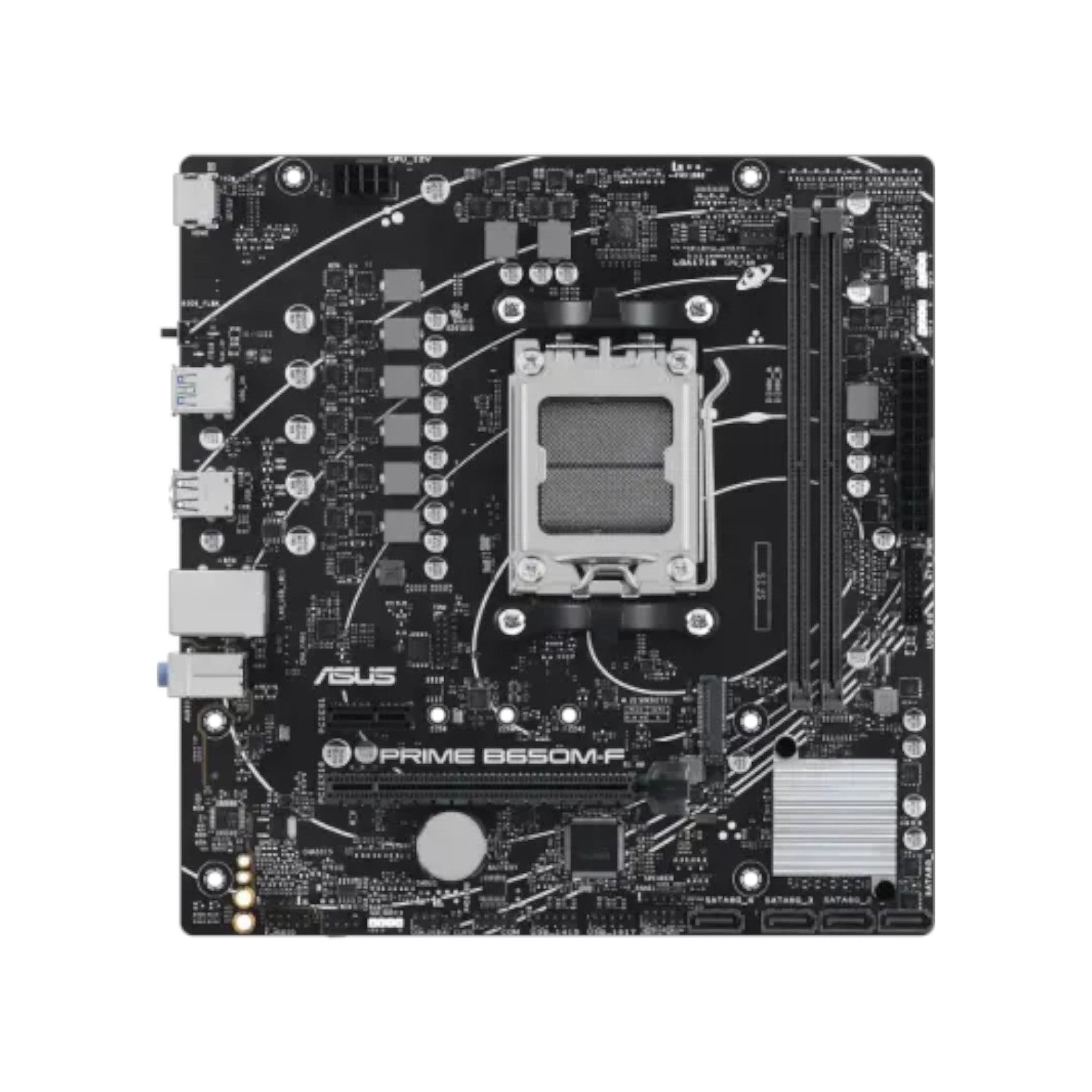

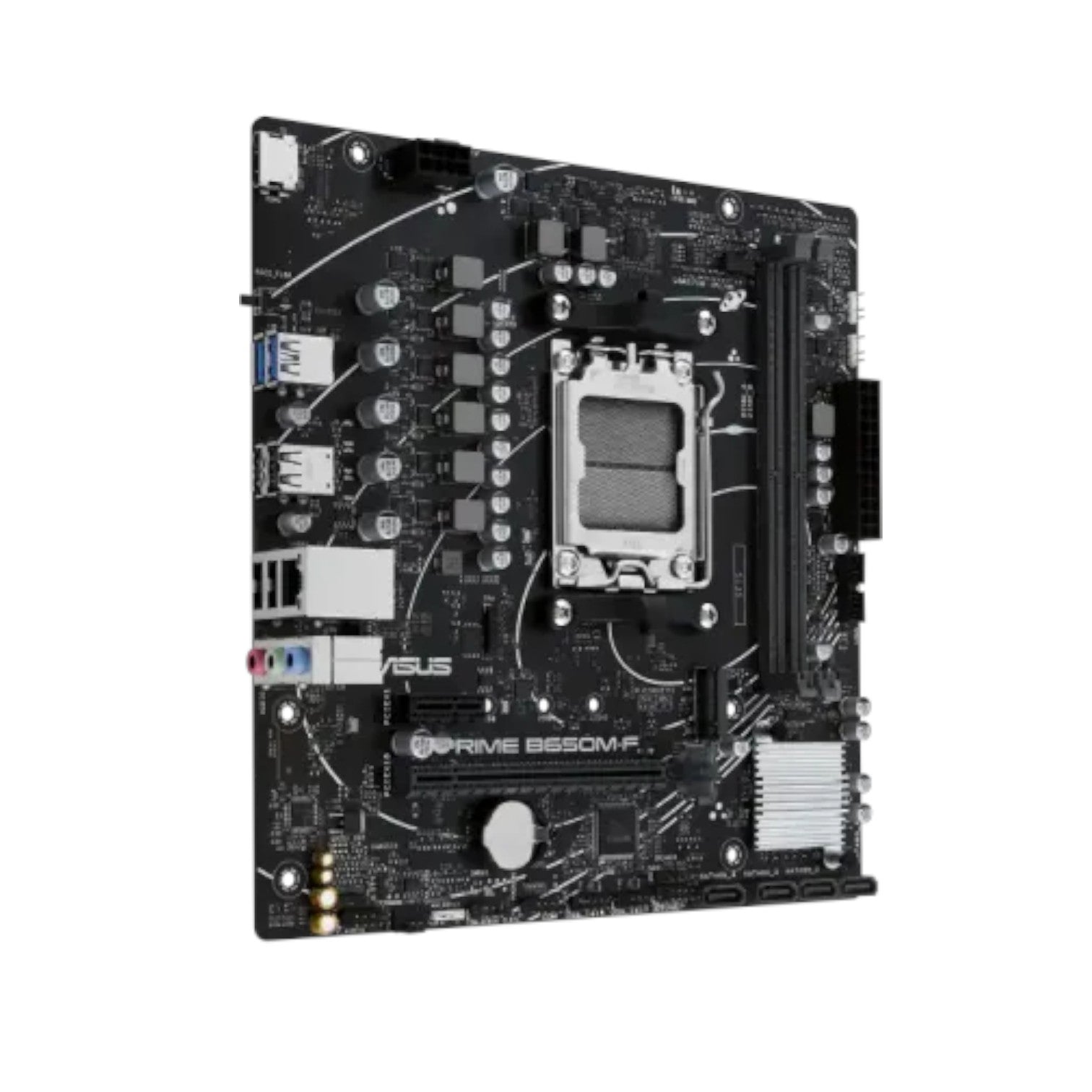

Asus PRIME B650M-F AM5 mATX Motherboard

Brand: ASUS
SKU: PRIME-B650M-F
Availability: In stock

Key Features

  • Model: PRIME B650M-F
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
  • Graphics Output: 1x HDMI
  • Features: 1 x Realtek 1Gb Ethernet
Tk 14,200
Tk 15,130
Tk 14,200
Subtotal: Tk 14,200

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
8.9 inch x 8.6 inch (22.6 cm x 21.8 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x1 slot



Memory

Type DDR5
Slots 2 x DIMM slots
Supported Memory 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Maximum Memory Max. 96GB



Graphics

Graphics Supports 4K@60Hz as specified in HDMI 2.1.



Connector & Ports

HDMI 1x HDMI
USB (s) Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
Supported Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

Asus PRIME B650M-F AM5 mATX Motherboard

The Asus PRIME B650M-F AM5 mATX Motherboard is engineered to deliver cutting-edge performance and long-term stability for gamers, creators, and professionals alike. Built on the AMD B650 chipset, it supports the latest AMD Ryzen™ 7000 and 8000 Series Desktop Processors, offering an exceptional computing foundation for next-generation performance and AI-driven applications.

This motherboard supports DDR5 memory, enabling blazing-fast data throughput and superior multitasking efficiency. The inclusion of PCIe 4.0 ensures high-speed expansion capabilities, while the 64Gbps M.2 slot allows for ultrafast NVMe SSD storage performance. With Realtek 1Gb Ethernet, users can expect reliable and consistent network speeds ideal for both gaming and productivity tasks.

The Asus PRIME B650M-F enhances everyday performance through its USB 5Gbps Type-A ports, offering versatile connectivity for modern peripherals and devices. To maintain thermal stability, it includes comprehensive cooling features such as a PCH heatsink, hybrid fan headers, and Fan Xpert 2+ software, which intelligently manages fan speeds to optimize cooling and noise levels during intense workloads.

For users who value both function and aesthetics, the Aura Sync RGB Lighting system allows full customization and synchronization of RGB components, letting you create a unified lighting theme across all Aura Sync-compatible devices. Additionally, the Two-Way AI Noise Cancelation technology ensures clear and crisp communication by minimizing background noise from both microphone and output audio sources — perfect for gaming, streaming, and conferencing.

The Asus PRIME B650M-F AM5 mATX Motherboard also includes BIOS FlashBack, providing a safe and convenient way to update firmware even without a CPU or memory installed, ensuring long-term stability and compatibility with new hardware.

Combining durability, efficiency, and performance, this motherboard is a perfect choice for builders seeking a modern, high-speed, and future-ready system that balances power and reliability.

Price in Bangladesh: 14,200৳
Buy the Asus PRIME B650M-F AM5 mATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product comes with a 3-year warranty.
