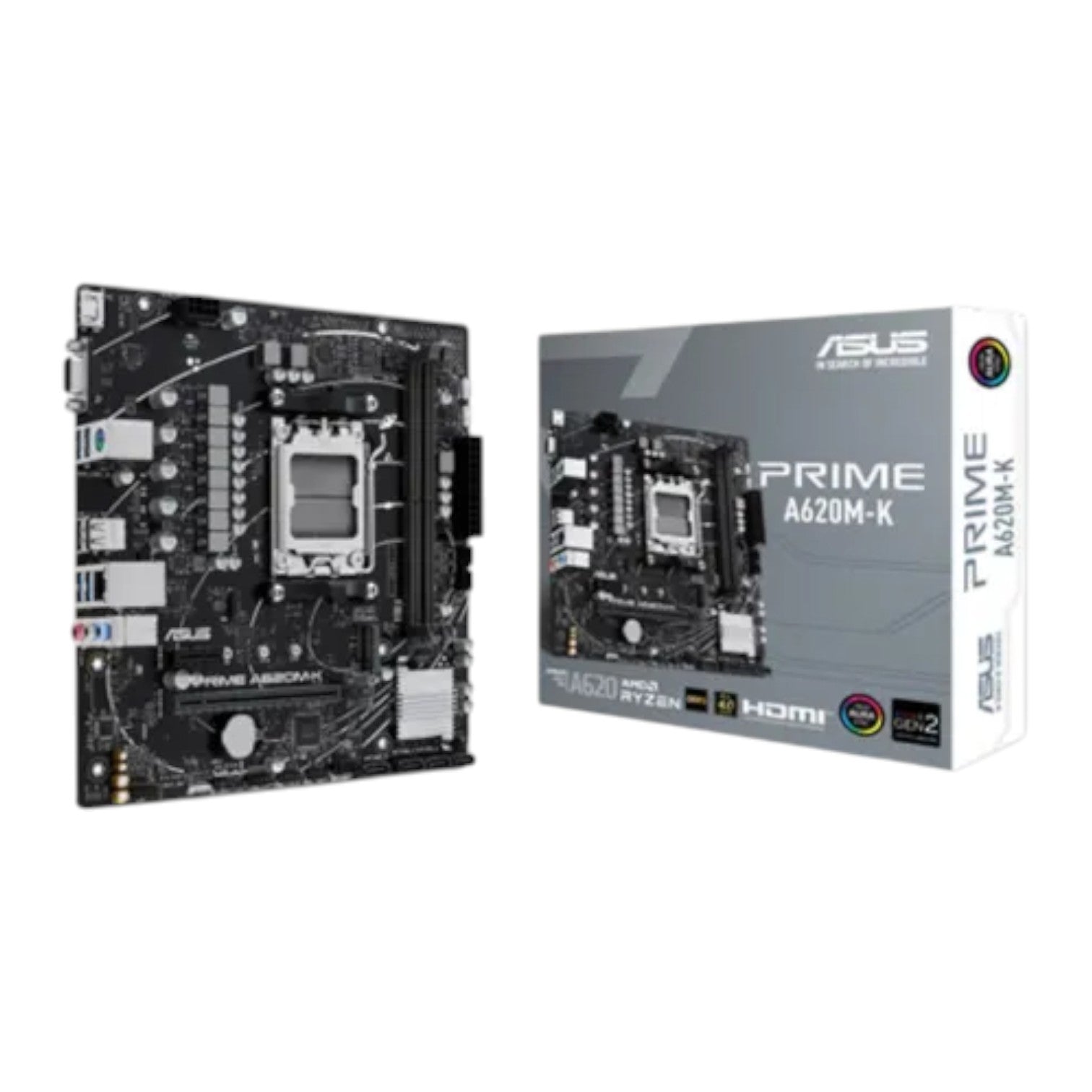

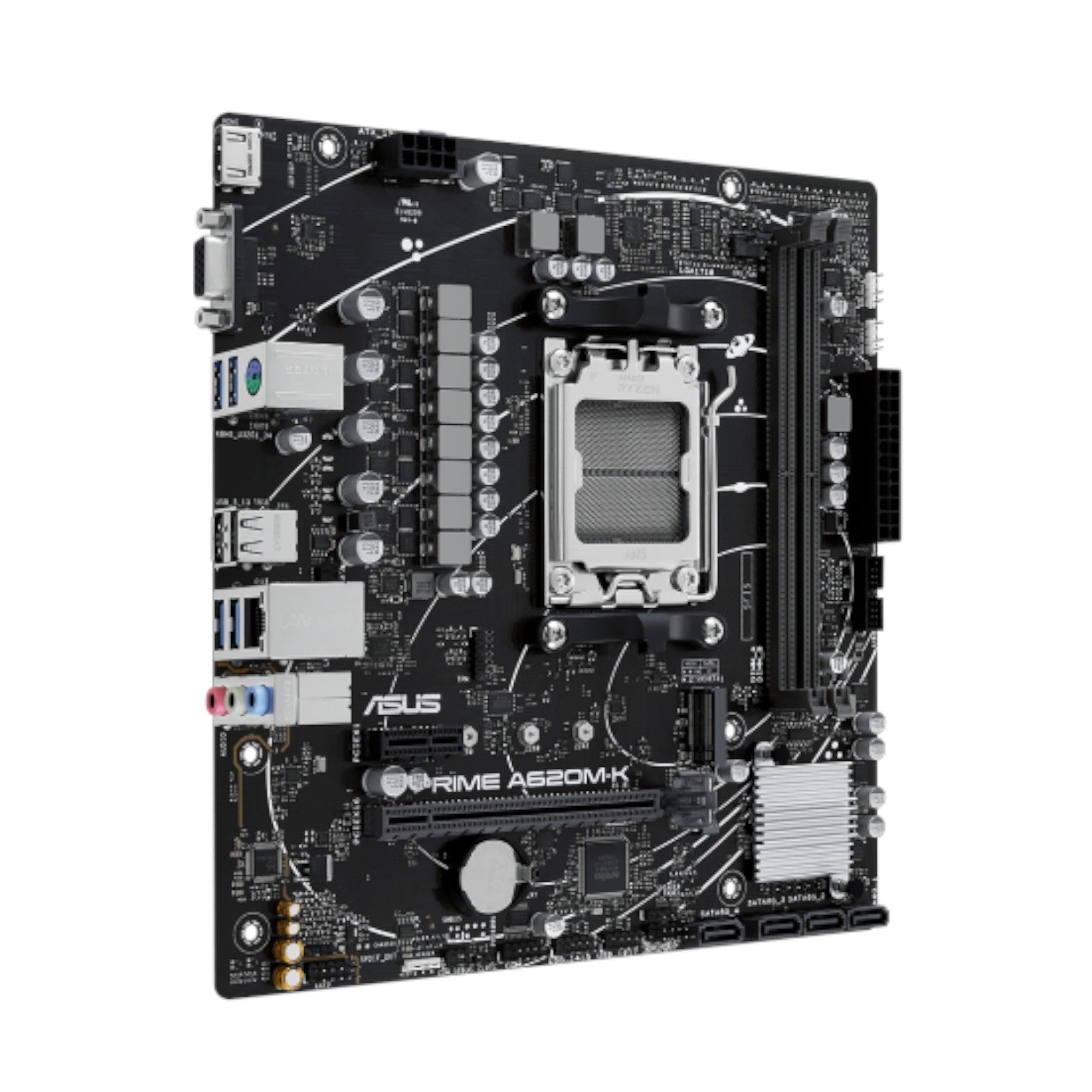

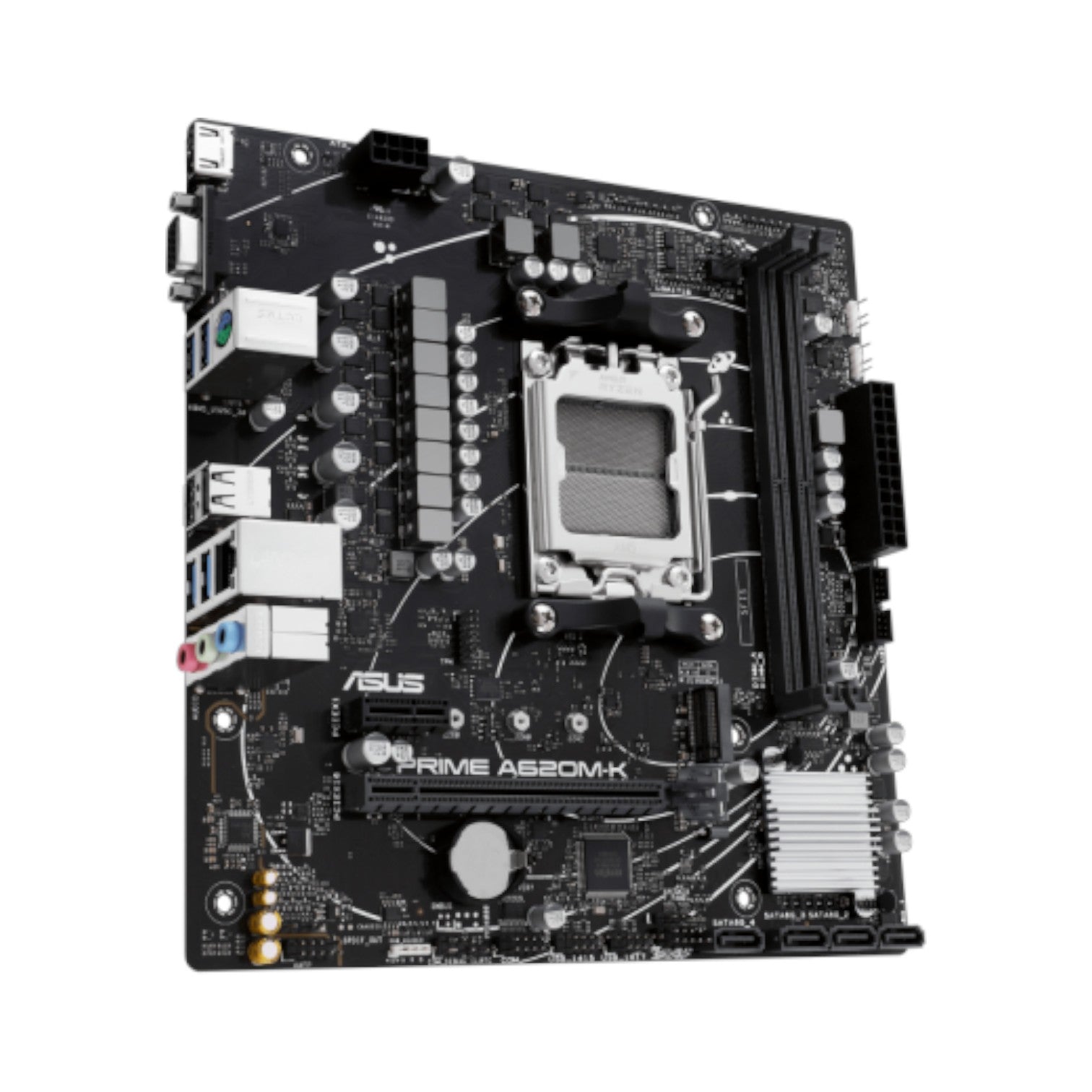

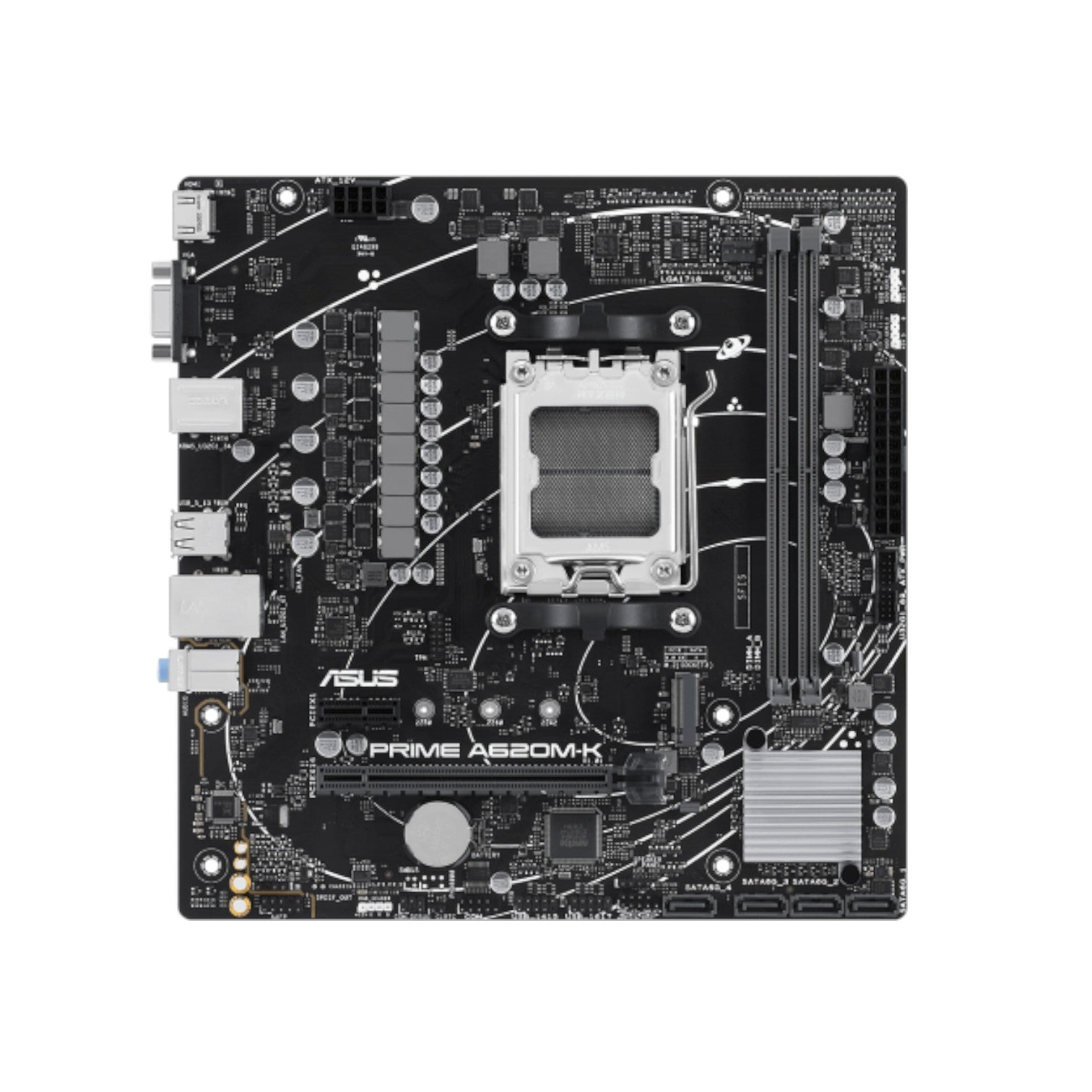

Asus PRIME A620M-K-CSM AM5 mATX Motherboard
Asus PRIME A620M-K-CSM AM5 mATX Motherboard
Asus PRIME A620M-K-CSM AM5 mATX Motherboard
Asus PRIME A620M-K-CSM AM5 mATX Motherboard

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

Brand: ASUS
SKU: PRIME-A620M-K-CSM
Availability: In stock

Key Features

  • Model: PRIME A620M-K-CSM
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
  • Graphics Output: 1x HDMI, 1 x VGA
  • Features: 1 x Realtek 1Gb Ethernet
Ask an expert
Tk 12,900
Tk 13,890
Tk 12,900
Subtotal: Tk 12,900
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD A620 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620 Chipset
1 x PCIe 3.0 x1 slot
M.2 Socket Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.



Memory

Type DDR5
Slots 2 x DIMM slots
Supported Memory DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Maximum Memory Max 96GB



Graphics

Graphics 1 x VGA port
1 x HDMI port
* Graphics specifications may vary between CPU types



Connector & Ports

HDMI 1x HDMI 2.1
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
Supported Storage 1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

The Asus PRIME A620M-K-CSM AM5 mATX Motherboard delivers reliability, performance, and long-term stability in a compact design—perfect for modern workstations and small gaming builds. Powered by the AMD A620 chipset, it supports AMD Ryzen 7000 Series Desktop Processors, ensuring compatibility with the latest AM5 platform for next-generation computing power.

Designed to handle demanding workloads with efficiency, this Asus motherboard supports DDR5 memory for faster data throughput and lower latency, alongside PCIe 4.0 support for both graphics cards and M.2 SSDs. Its 64Gbps M.2 slot provides lightning-fast storage performance, while Realtek 1Gb Ethernet ensures stable and reliable network connectivity for streaming, gaming, or productivity.

The Asus PRIME A620M-K-CSM offers multiple USB 3.2 Gen 1 Type-A ports, providing convenient access to high-speed connections for peripherals and external drives. Its comprehensive cooling system—including a PCH heatsink and Fan Xpert software—keeps the motherboard cool and efficient even during extended sessions.

Durability and reliability are key highlights of this model. It features ASUS 5X PROTECTION III, SafeSlot Core, and a 2-ounce copper PCB design, providing enhanced longevity, voltage protection, and heat dissipation. The Corporate Stable Model (CSM) designation also ensures extended product lifecycle support and IT-grade management tools for business users.

For immersive customization, the Aura Sync RGB lighting system with Addressable Gen 2 headers lets you personalize and synchronize your build’s illumination across compatible components. Meanwhile, Two-Way AI Noise Cancelation ensures crystal-clear communication by filtering background noise from both input and output audio sources—ideal for gaming, streaming, and conferencing.

With Armoury Crate for centralized control, seamless BIOS management, and industry-leading build quality, the Asus PRIME A620M-K-CSM AM5 mATX Motherboard stands out as a dependable and feature-rich solution for home, office, or gaming PCs.

Price in Bangladesh: 12,900৳
Buy the Asus PRIME A620M-K-CSM AM5 mATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product comes with a 3-year warranty.
