Asus EX-B650M-V7 AM5 micro-ATX Motherboard
Asus EX-B650M-V7 AM5 micro-ATX Motherboard
Asus EX-B650M-V7 AM5 micro-ATX Motherboard
Asus EX-B650M-V7 AM5 micro-ATX Motherboard

Asus EX-B650M-V7 AM5 micro-ATX Motherboard

Brand: ASUS
SKU: EX-B650M-V7
Availability: In stock

Key Features

Model: EX-B650M-V7

Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5

Supported RAM: 2x DDR5, up to 192GB, 7600+(OC)

Graphics Output: 1x HDMI

Features: Realtek 2.5Gb Ethernet

Ask an expert
Tk 16,000
Tk 17,360
Tk 16,000
Subtotal: Tk 16,000
Description

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slot



Memory

Type DDR5
Slots 2 x DIMM slots
Supported Memory 8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 96GB



Graphics

Graphics 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)



Connector & Ports

HDMI 1x HDMI
USB (s) Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio 3 x Audio jacks
Internal I/O Ports Back Panel I/O Ports
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
Non-stop Action
- Lightning Boot
Non-stop Challenger
- ASUS iCafe labs certified
Non-stop Durability
- Luminous anti-moisture coating
- USBGuard



Warranty

Warranty 3 years

Description

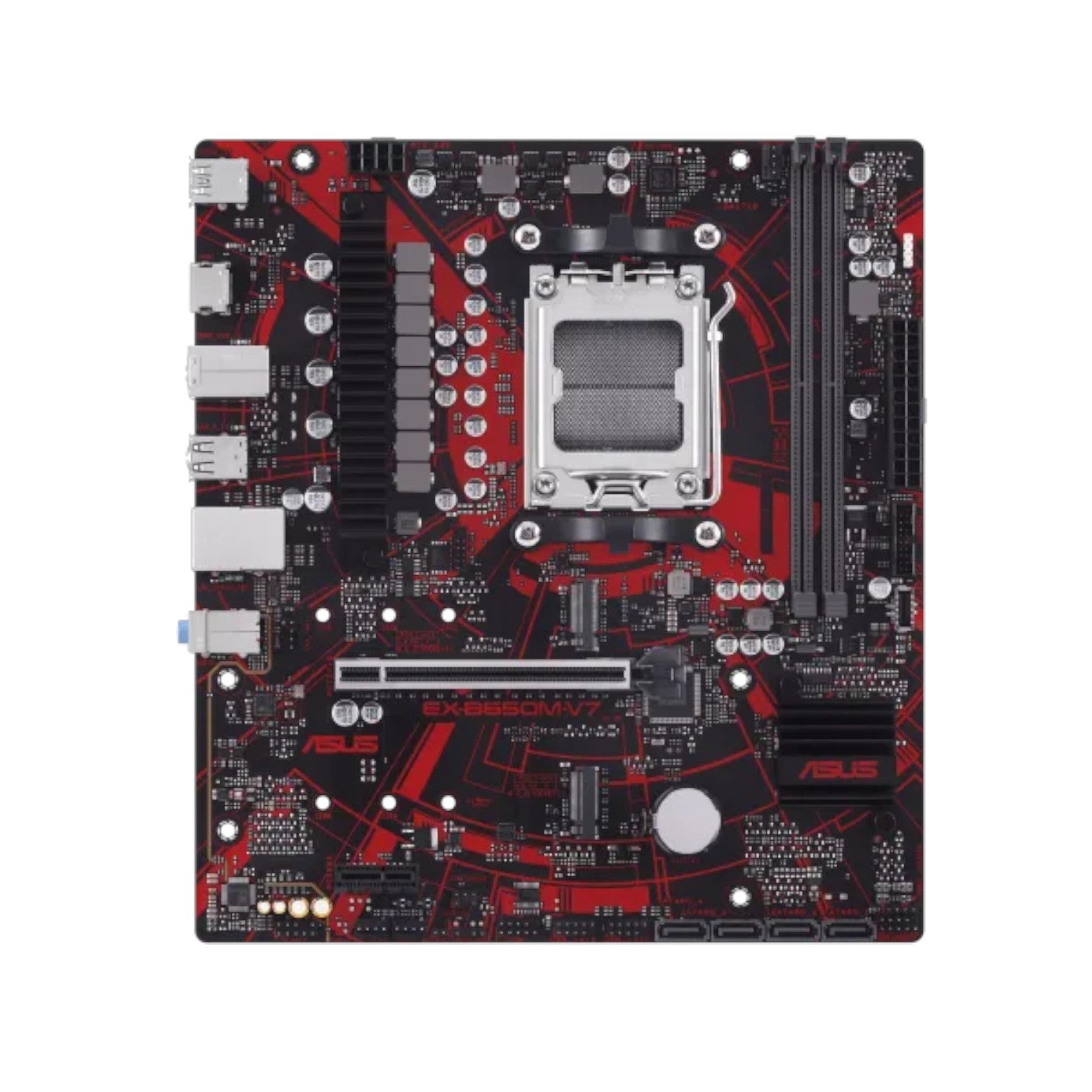

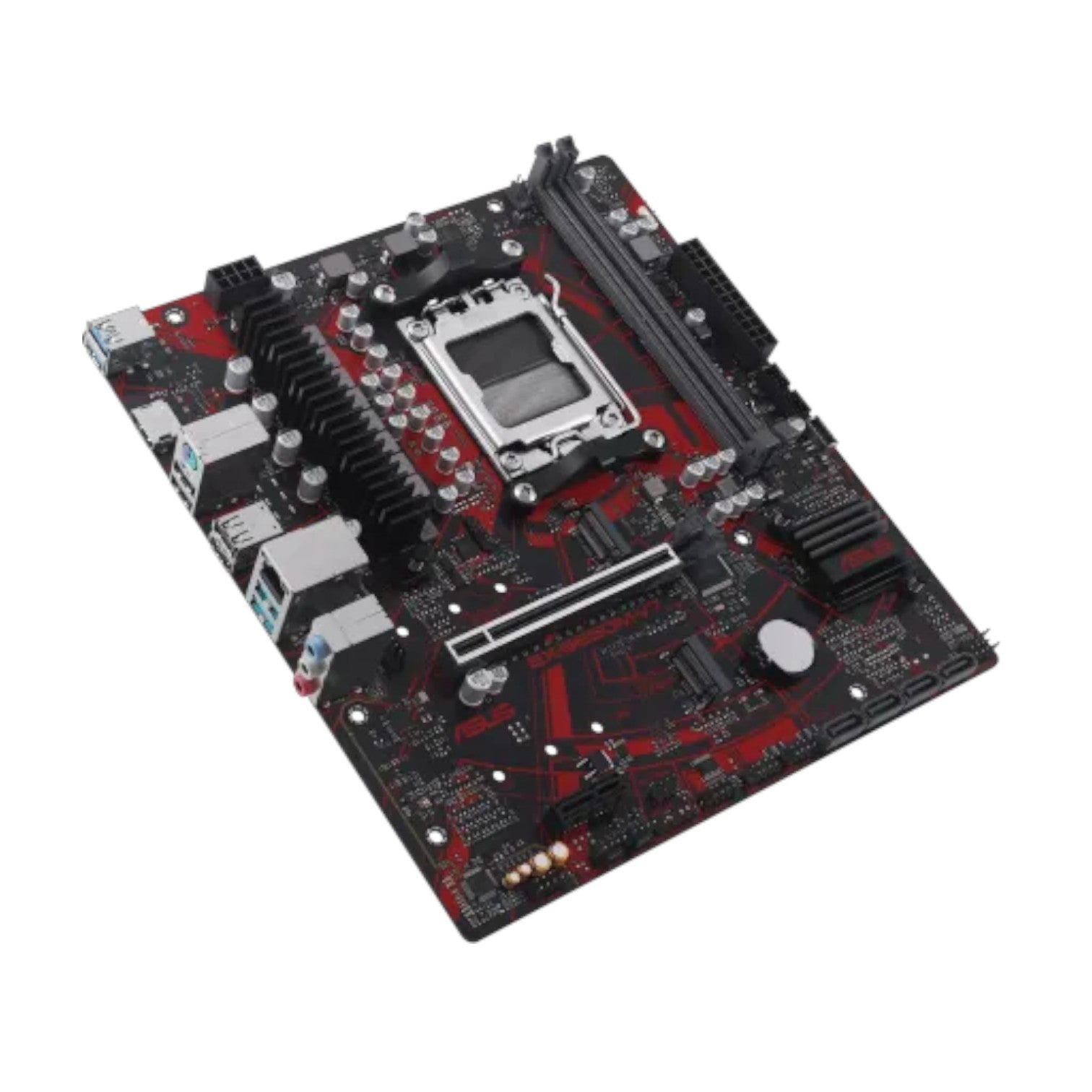

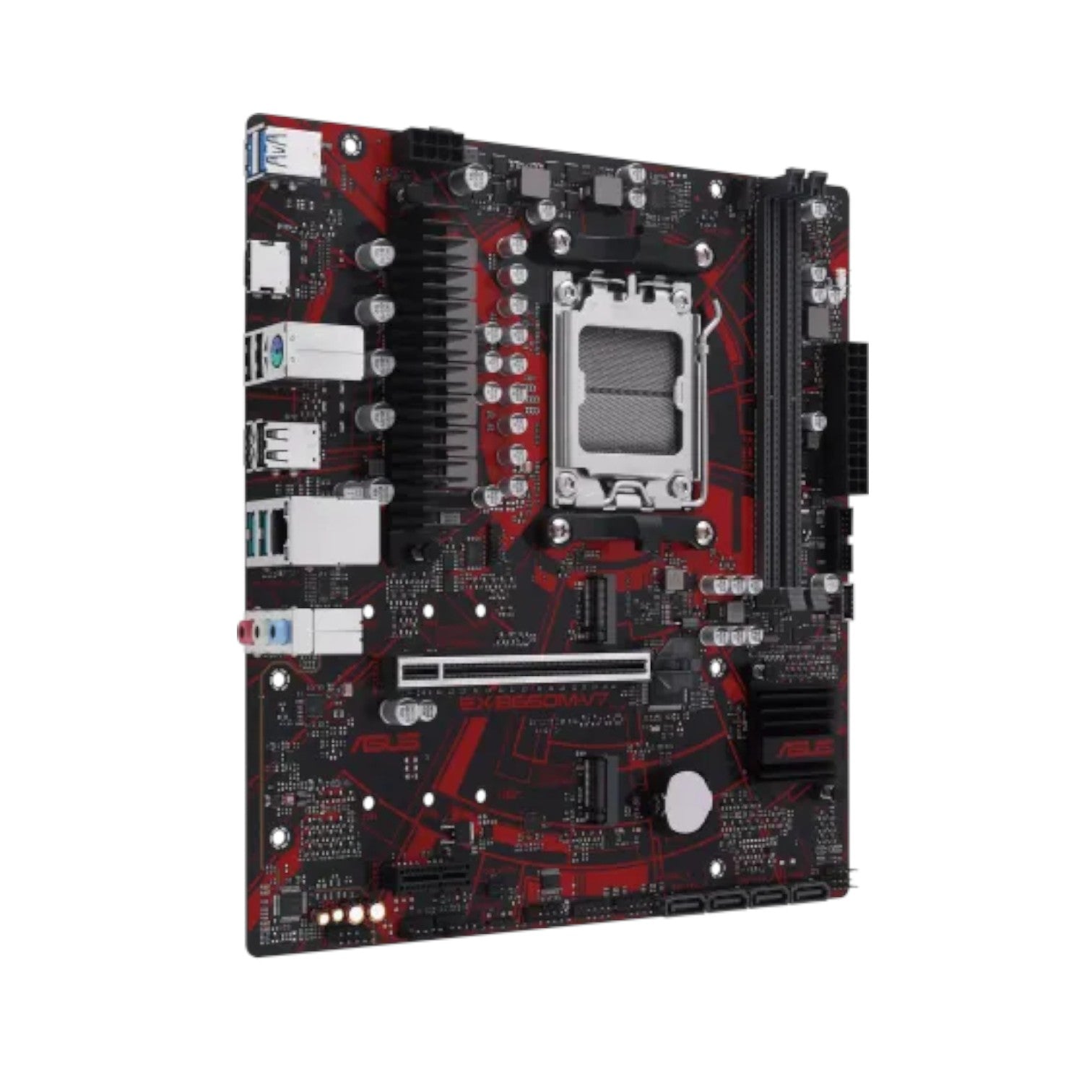

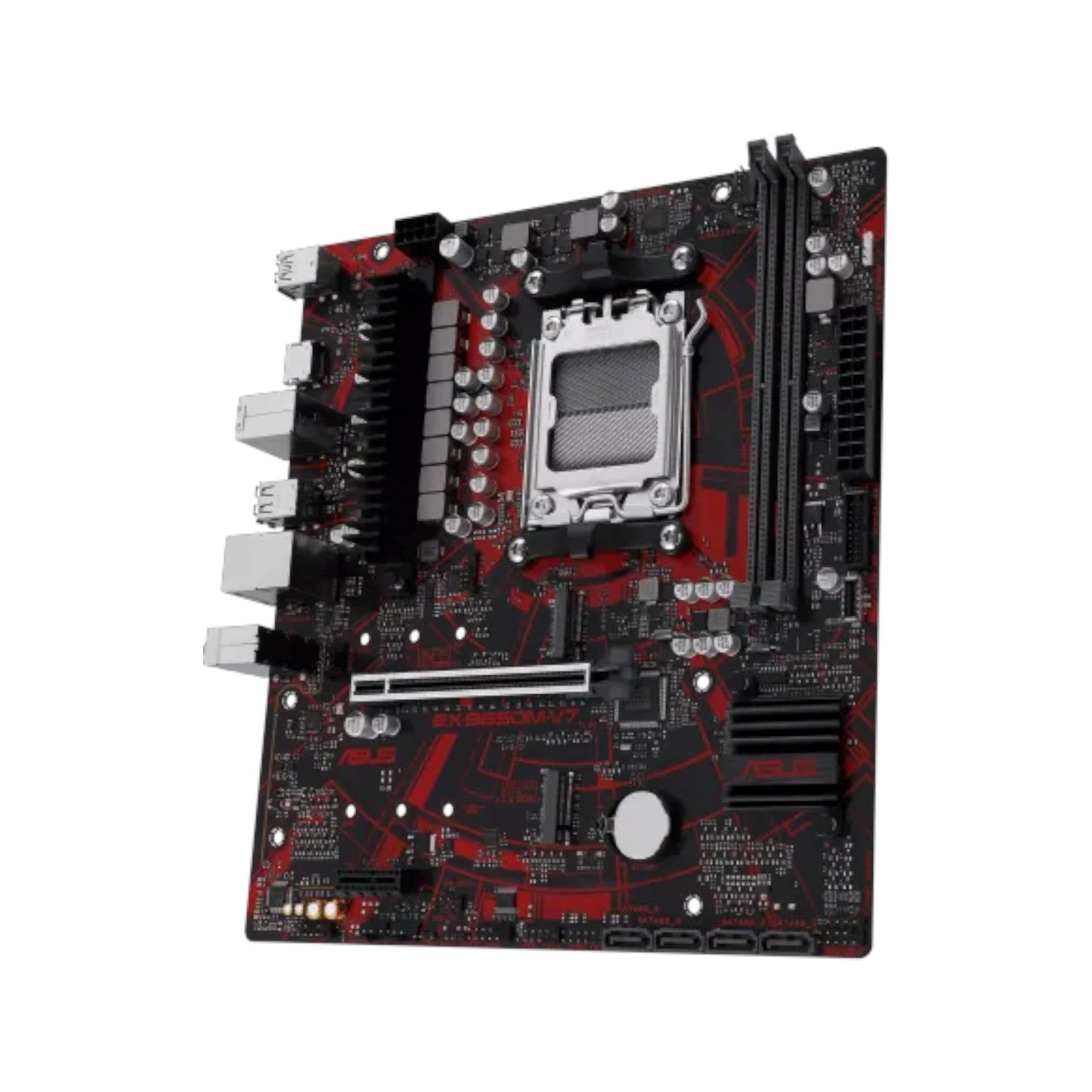

Asus EX-B650M-V7 AM5 Micro-ATX Motherboard

The Asus EX-B650M-V7 AM5 Micro-ATX Motherboard is engineered for nonstop performance, making it a perfect choice for gamers, iCafés, and performance-focused businesses that require stability, durability, and speed. Built on the AMD B650 chipset, it supports the latest AMD Ryzen™ 7000 and 8000 Series Desktop Processors, ensuring compatibility with next-generation gaming and productivity applications.

This motherboard supports DDR5 memory, enabling faster data transfer and improved system responsiveness for heavy multitasking and demanding workloads. With PCIe 5.0 for GPUs and PCIe 4.0 for storage, the Asus EX-B650M-V7 delivers lightning-fast data throughput and low-latency gaming experiences. A 128Gbps M.2 slot provides blazing-fast NVMe SSD performance, significantly reducing load times for games and applications.

Connectivity is another strong point, featuring Realtek 2.5Gb Ethernet for ultra-stable online gaming and data transfers, USB 3.2 Gen 2 ports for high-speed peripherals, and HDMI for crisp display output. The ASUS Beyond VR Ready certification ensures full compatibility with the latest virtual reality headsets, making it an excellent platform for immersive gaming setups.

Durability is a hallmark of the Asus EX-B650M-V7 Motherboard, with its bright anti-moisture coating, stainless-steel rear I/O, and SafeSlot Core+ PCIe reinforcement for long-term reliability. It also includes LANGuard, USBGuard, and ASUS 5X Protection III—a suite of hardware safeguards that protect against voltage spikes, electrostatic discharge, and physical wear over time. The Lightning Startup technology ensures quick boot times, allowing users to get into their system or games almost instantly.

Certified by ASUS iCafé LAB for reboot and diskless-system compatibility, this motherboard has been rigorously tested to guarantee 24/7 performance stability in intensive use environments such as gaming cafés and custom enterprise builds.

With its vibrant design, durable construction, and gaming-optimized features, the Asus EX-B650M-V7 AM5 Micro-ATX Motherboard delivers unbeatable value and reliability for gamers and professionals who demand performance and endurance in one powerful package.

Price in Bangladesh: 16,000৳
Buy the Asus EX-B650M-V7 AM5 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product comes with a 3-year warranty.
