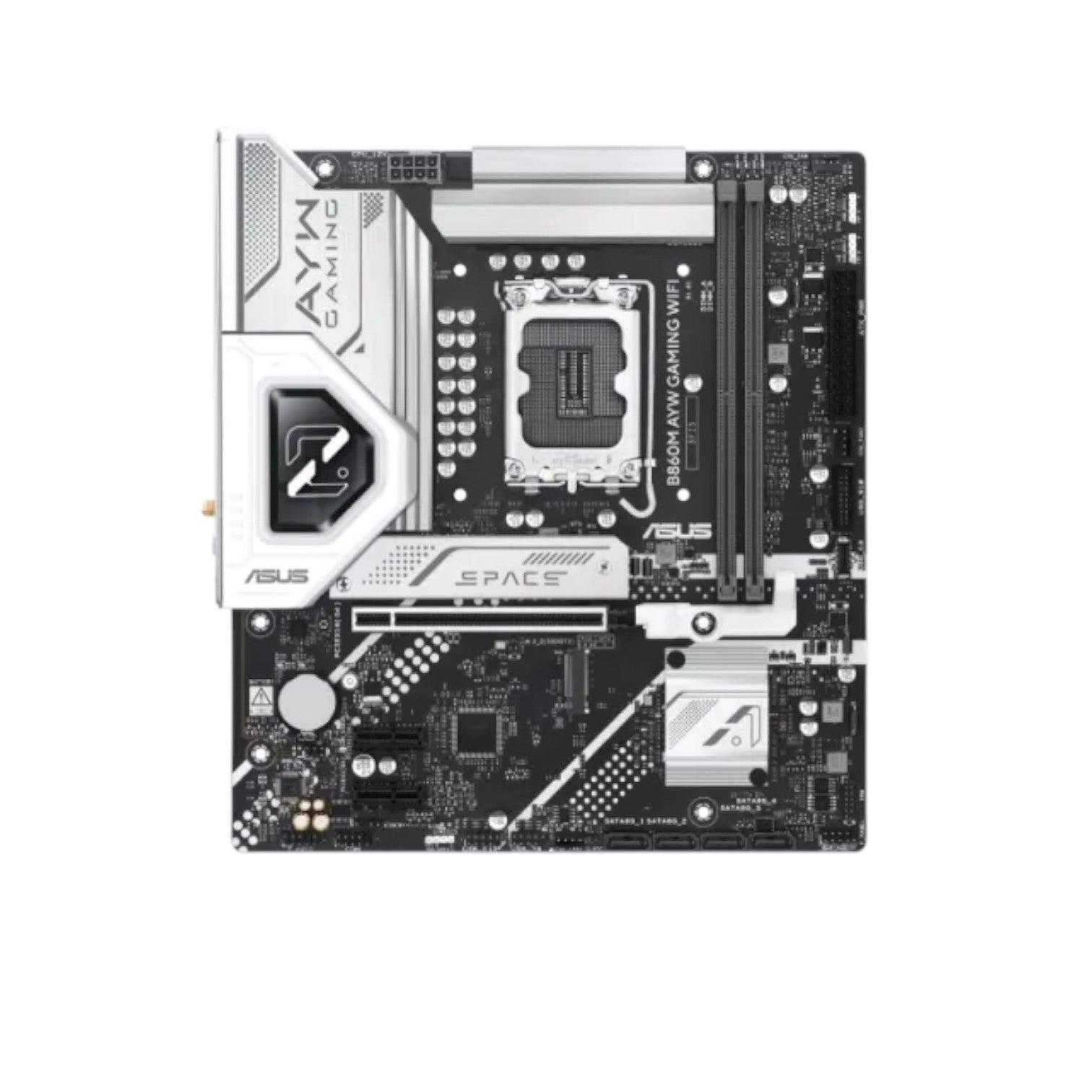

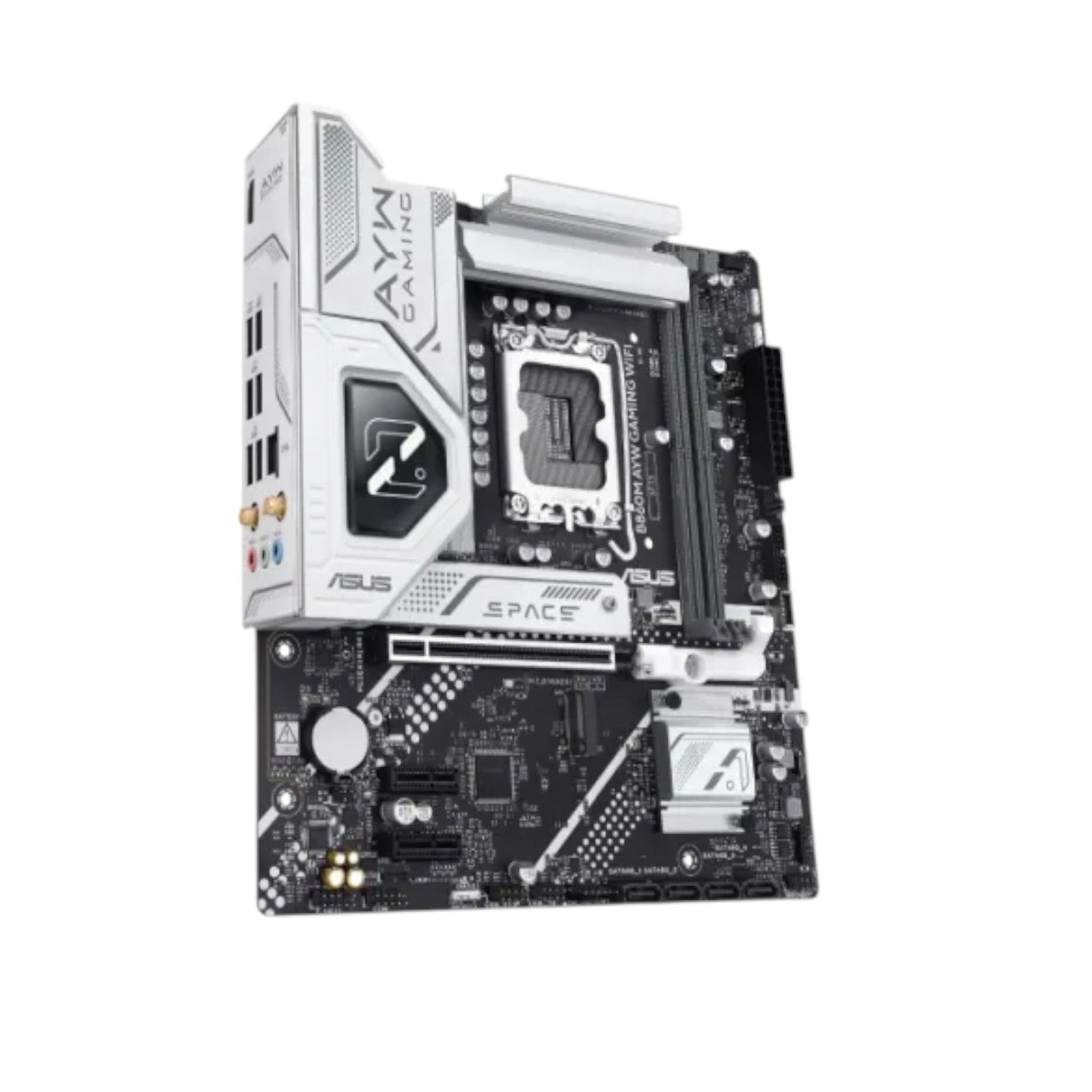

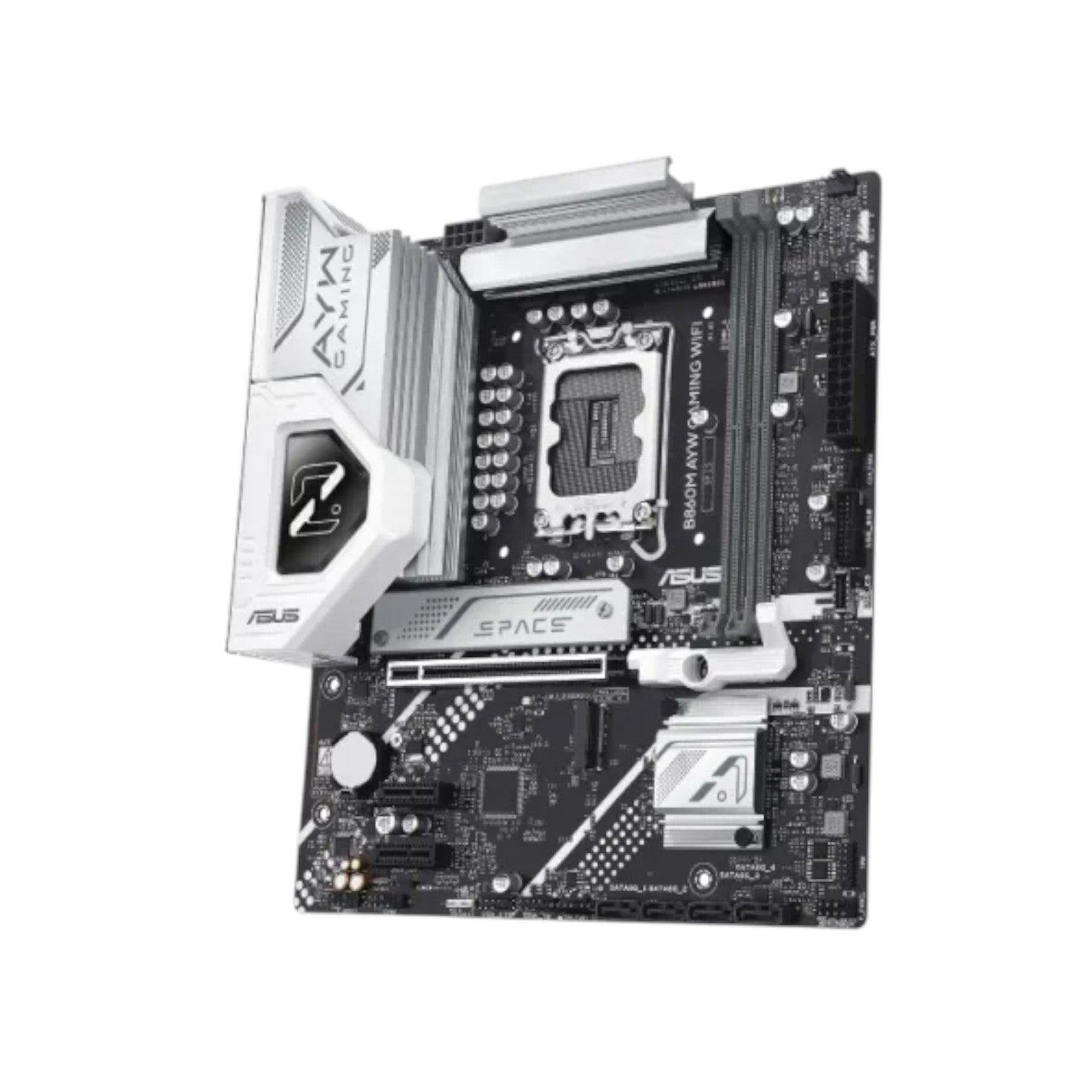

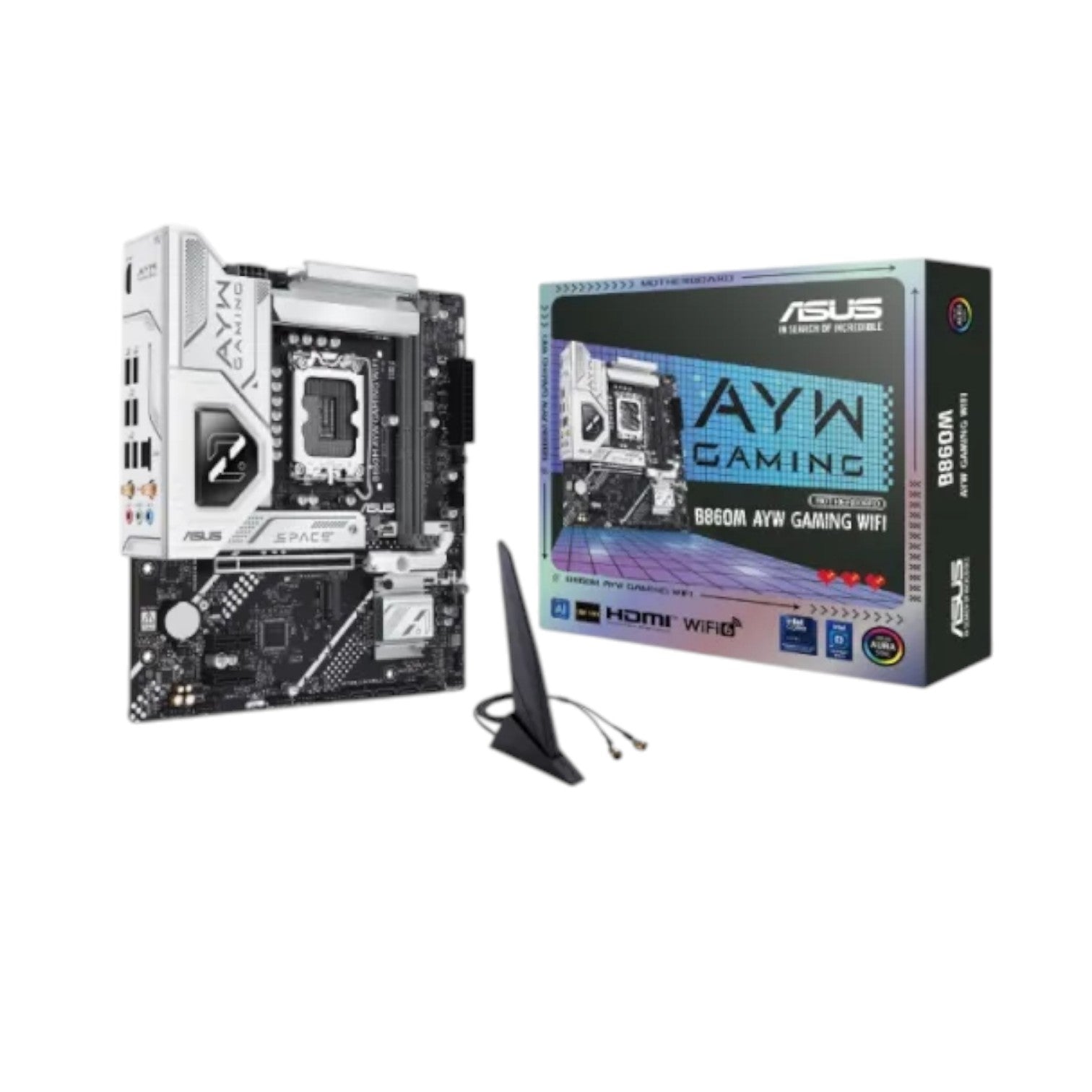

ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard
ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard
ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard
ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard

ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard

Brand: ASUS
SKU: B860M-AYW-GAMING-WIFI
Availability: In stock

Key Features

Model: B860M AYW GAMING WIFI

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Supported RAM: 2x DDR5, Max 128GB, Support up to 8800+MT/s (OC)

Graphics Output: 1 x HDMI, Supports 4K@60Hz as specified in HDMI 2.1

Features: 2x M.2 Slot, 1 x 2.5Gb LAN, Wi-Fi 6, Bluetooth 5.3

Ask an expert
Tk 25,000
Tk 27,450
Tk 25,000
Subtotal: Tk 25,000
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel B860 Chipset
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel B860 Chipset
2 x PCIe 4.0 x1 slots
M.2 Socket Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)



Memory

Type DDR5
Slots 2x DIMM slots
Supported Memory Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory 128GB



Graphics

Graphics 1 x HDMITM port
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.



Connector & Ports

HDMI 1 x HDMI
USB (s) Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)**
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Back Panel I/O Ports
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMITM port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header



Others

Special Features ASUS 5X PROTECTION III
- DIGI+VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsinks design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Warranty

Warranty 3 years

Description

ASUS B860M AYW GAMING WIFI LGA1851 Micro-ATX Motherboard

The ASUS B860M AYW GAMING WIFI LGA1851 Micro-ATX Motherboard is a next-generation gaming and performance powerhouse built to support Intel Core Ultra Processors (Series 2). Featuring the latest Intel B860 chipset and LGA1851 socket, it delivers cutting-edge speed, stability, and connectivity for gamers, creators, and power users.

With dual-channel DDR5 support, this motherboard accommodates up to 128GB of memory with speeds reaching 8800+MT/s (OC). It includes Intel XMP and ASUS Enhanced Memory Profile III (AEMP III) technologies, enabling effortless memory tuning and stable overclocking for peak system performance.

The board offers robust expansion with one PCIe 4.0 x16 slot for high-performance GPUs and two PCIe 4.0 x1 slots for additional components. Storage options include two M.2 slots and four SATA 6Gb/s ports, with the M.2_1 slot supporting PCIe 5.0 x4 and the M.2_2 supporting PCIe 4.0 x4. Intel Rapid Storage Technology provides RAID 0/1/5/10 configurations for enhanced data performance and redundancy.

Connectivity is top-tier, featuring Realtek 2.5Gb Ethernet with ASUS LANGuard, Wi-Fi 6 (1x1 dual-band), and Bluetooth 5.3 for reliable wired and wireless networking. The rear I/O includes one USB 10Gbps Type-A, two USB 5Gbps Type-A, and three USB 2.0 ports, while front connectivity supports USB 5Gbps Type-C, USB 5Gbps headers, and multiple USB 2.0 headers for flexibility.

Audio performance is driven by the Realtek 7.1 Surround Sound codec with 24-bit/192kHz playback, premium capacitors, and audio shielding, delivering crystal-clear and immersive sound. The board also includes Aura Sync RGB lighting with Addressable Gen 2 headers, allowing full customization and synchronization across compatible components.

ASUS’s signature reliability features—such as 5X Protection III, Q-Design for easier DIY assembly, and VRM and M.2 thermal solutions—ensure durability and efficiency under heavy loads. Additional software tools like Armoury Crate, Fan Xpert 2+, ASUS AI Advisor, and the user-friendly UEFI BIOS make customization and performance optimization effortless.

Compact yet powerful, the ASUS B860M AYW GAMING WIFI Motherboard delivers next-level gaming performance, superior connectivity, and robust stability—making it the perfect foundation for modern, high-performance PC builds.

Price in Bangladesh: 25,000৳
Buy the ASUS B860M AYW GAMING WIFI LGA1851 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
