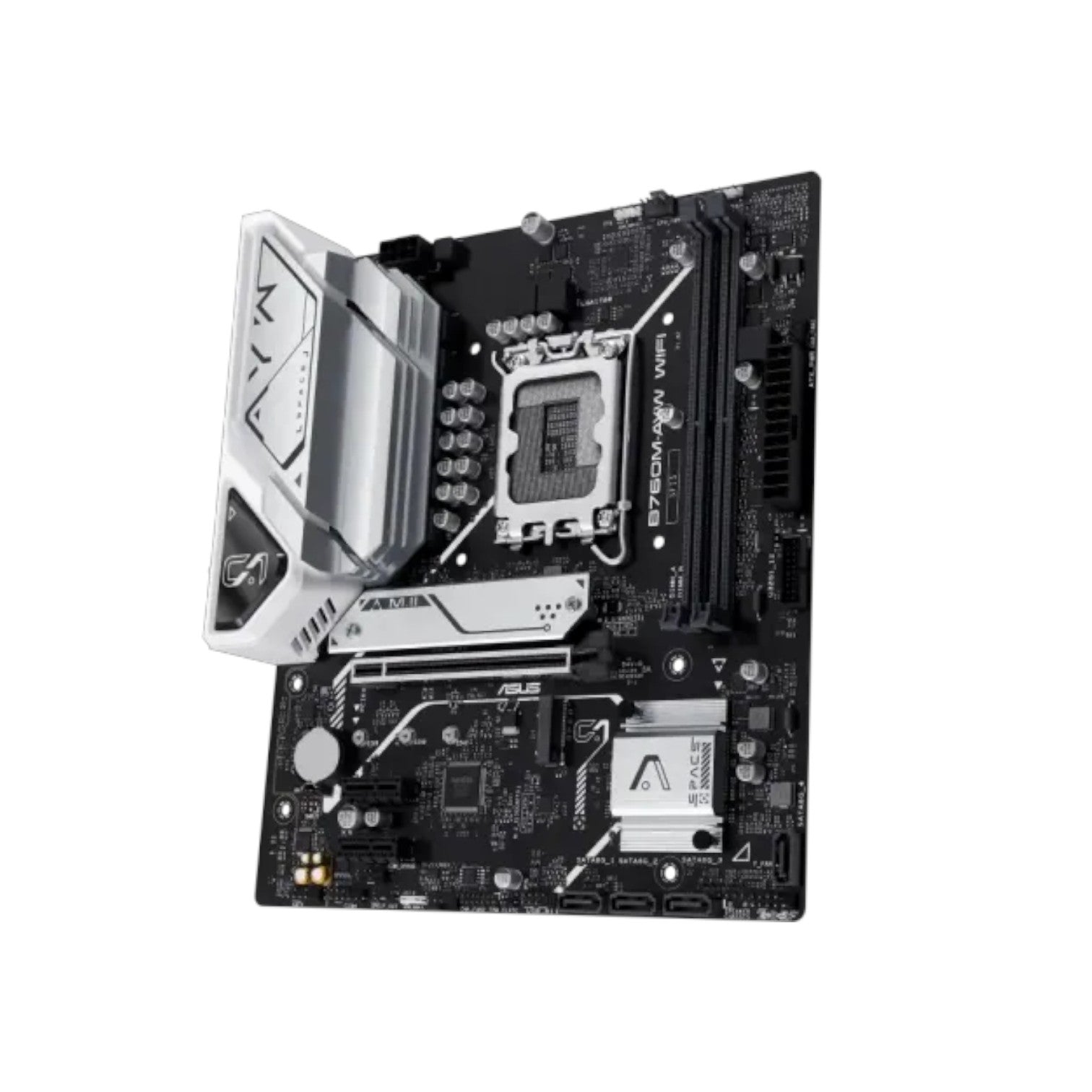

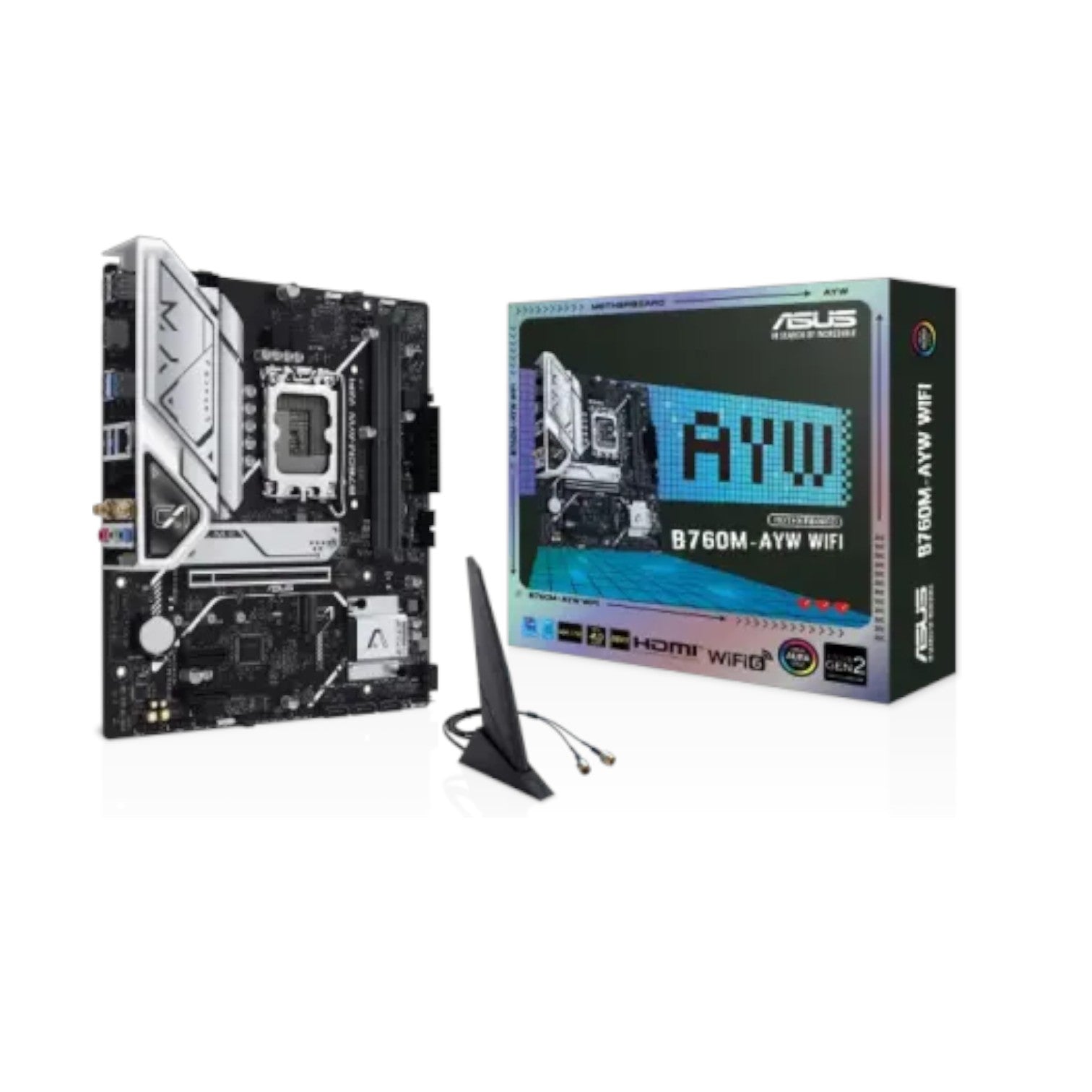

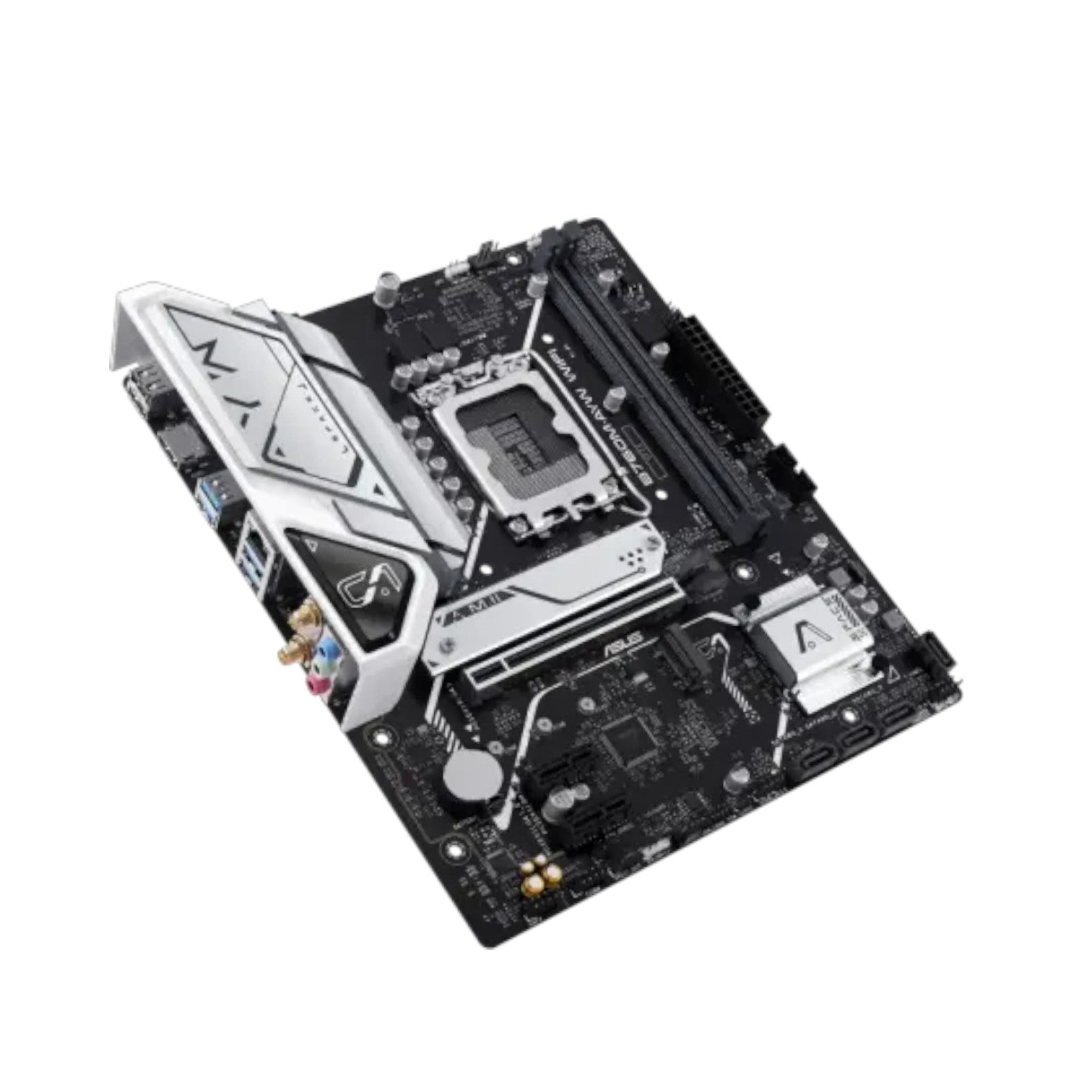

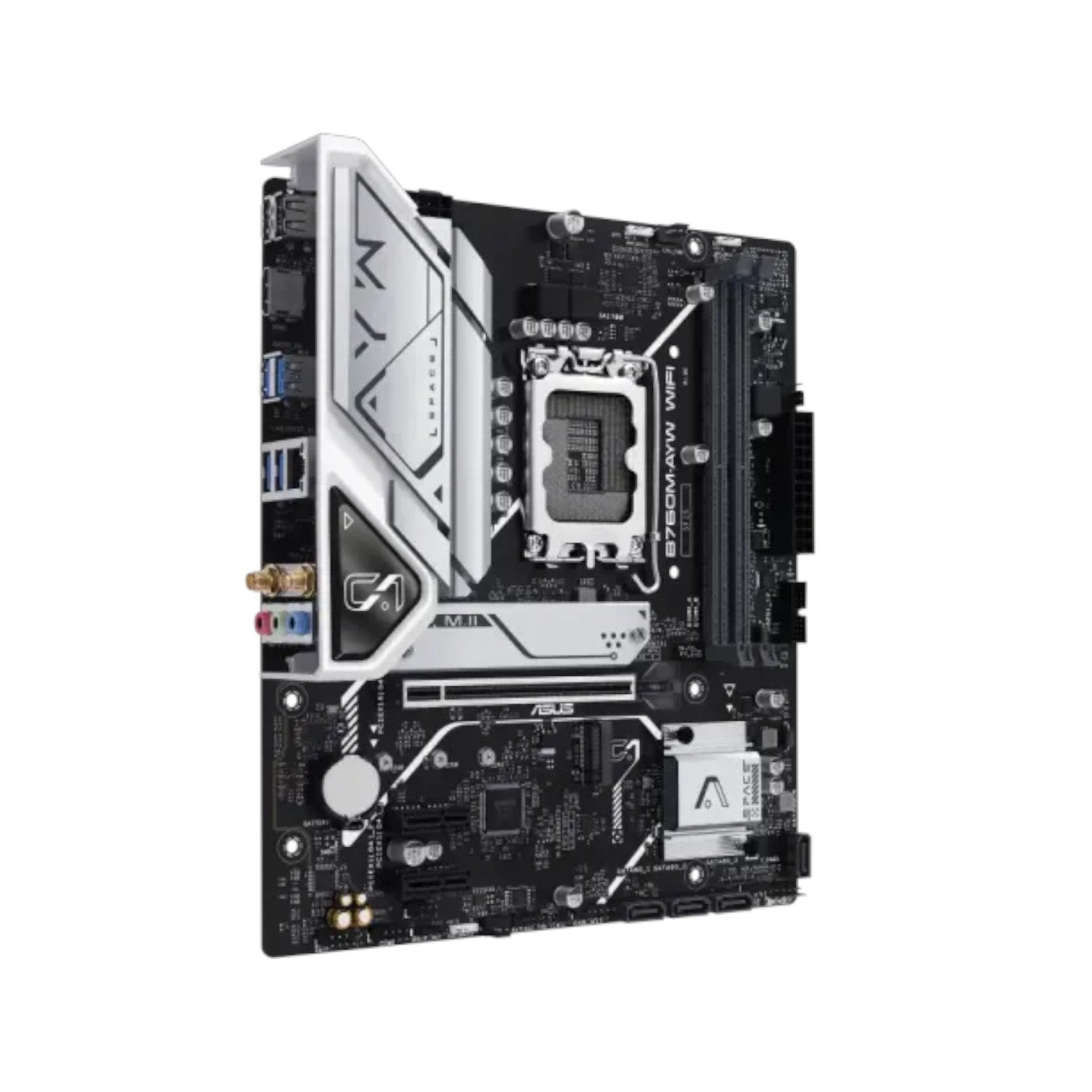

ASUS B760M-AYW WIFI mATX Motherboard
ASUS B760M-AYW WIFI mATX Motherboard
ASUS B760M-AYW WIFI mATX Motherboard
ASUS B760M-AYW WIFI mATX Motherboard

ASUS B760M-AYW WIFI mATX Motherboard

Brand: ASUS
SKU: B760M-AYW-WIFI
Availability: In stock

Key Features

Model: B760M-AYW WIFI

Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)

Supported RAM: 2 x DIMM, Max. 96GB, DDR5

Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports

Features: Realtek 2.5Gb Ethernet, Wi-Fi 6

Ask an expert
Tk 19,100
Tk 20,510
Tk 19,100
Subtotal: Tk 19,100
Description

Specification

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
2 x PCIe 4.0 x1 slots



Memory

Type DDR5
Slots 2 x DIMM
Supported Memory 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 96GB



Graphics

Graphics Supports 4K@60Hz as specified in HDMITM 2.1.



Connector & Ports

HDMI 1 x HDMI
USB (s) Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core +
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Warranty

Warranty 3 years

Description

ASUS B760M-AYW WIFI mATX Motherboard

The ASUS B760M-AYW WIFI mATX Motherboard is a high-performance, compact motherboard designed for gamers, content creators, and AI-focused users who demand power and reliability in every build. Based on the Intel B760 chipset and LGA1700 socket, it supports Intel’s 12th, 13th, and 14th Gen processors, delivering future-ready performance and excellent upgrade flexibility.

This motherboard features PCIe 4.0 technology and dual PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs, ensuring lightning-speed data transfers and reduced load times. Networking is enhanced with Realtek 2.5Gb Ethernet and built-in Wi-Fi 6, providing low-latency, stable, and high-speed connectivity for gaming, streaming, or professional workflows. Front USB 3.2 Gen 1 ports further enhance convenience for rapid data access and peripheral connections.

To maintain stable performance under heavy workloads, the ASUS B760M-AYW WIFI comes with a comprehensive cooling system that includes a VRM heatsink, M.2 heatsink, and PCH heatsink, along with hybrid fan headers and ASUS Fan Xpert 2+ software for intelligent thermal management. This ensures reliable operation even during AI training, rendering, or extended gaming sessions.

For aesthetic customization, Aura Sync RGB lighting with onboard Addressable Gen 2 headers allows users to personalize their builds with synchronized lighting effects across compatible components. The board is also equipped with advanced ASUS technologies like DIGI+ VRM for stable power delivery and AI Suite 3 for intuitive system tuning and performance optimization.

Combining high-speed connectivity, robust cooling, AI readiness, and style, the ASUS B760M-AYW WIFI mATX Motherboard delivers the perfect balance of performance and reliability—ideal for users building a next-generation PC that’s built to last.

Price in Bangladesh: 19,100৳
Buy the ASUS B760M-AYW WIFI mATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
