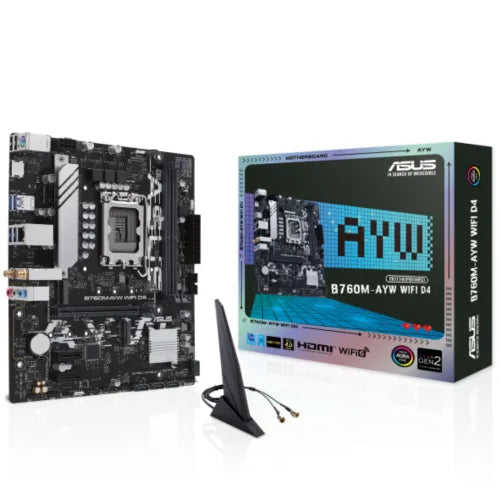

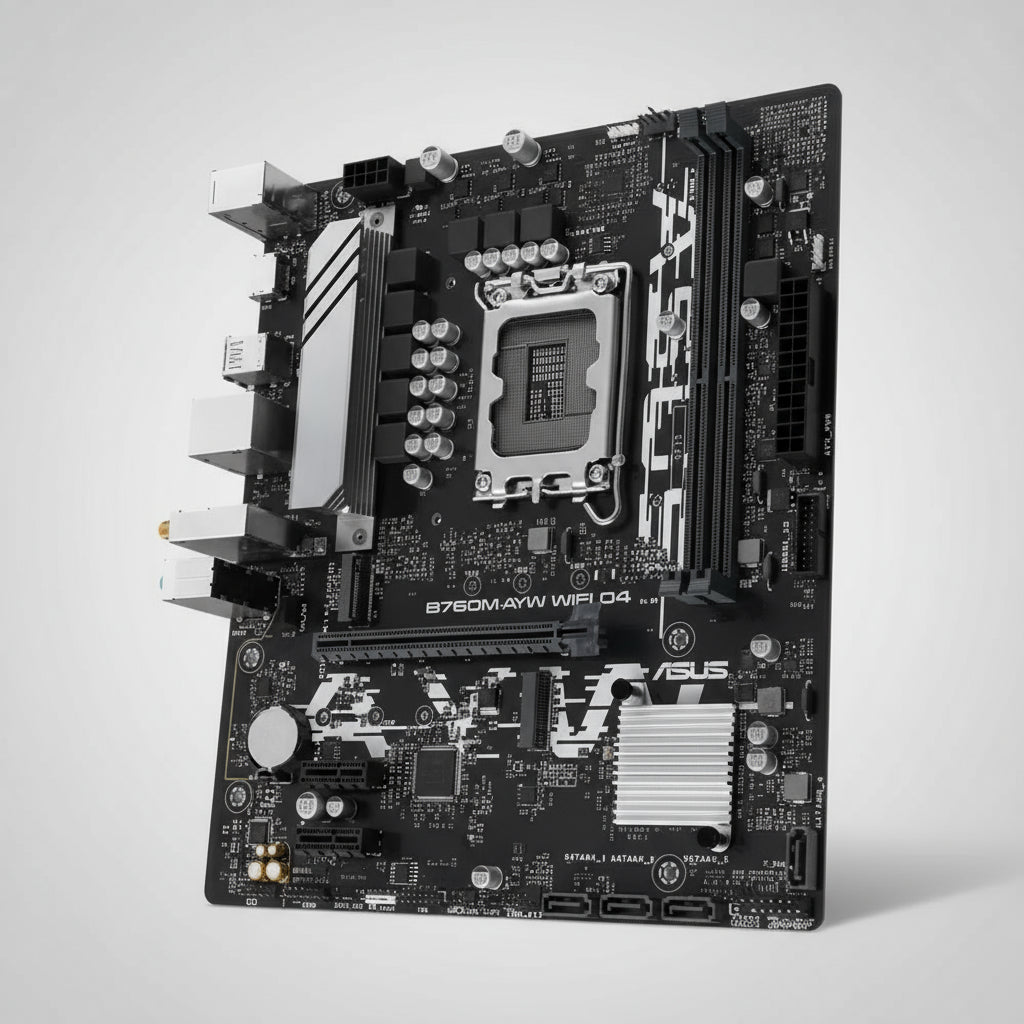

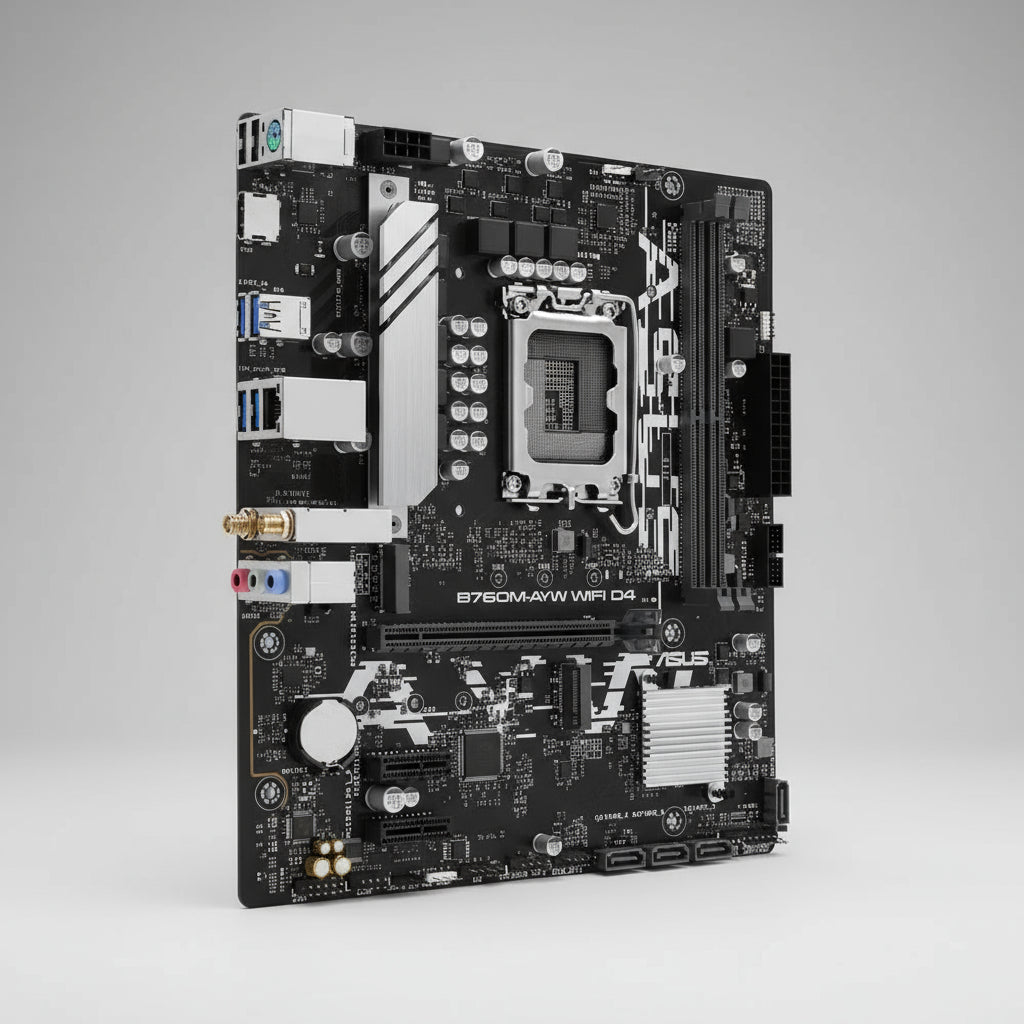

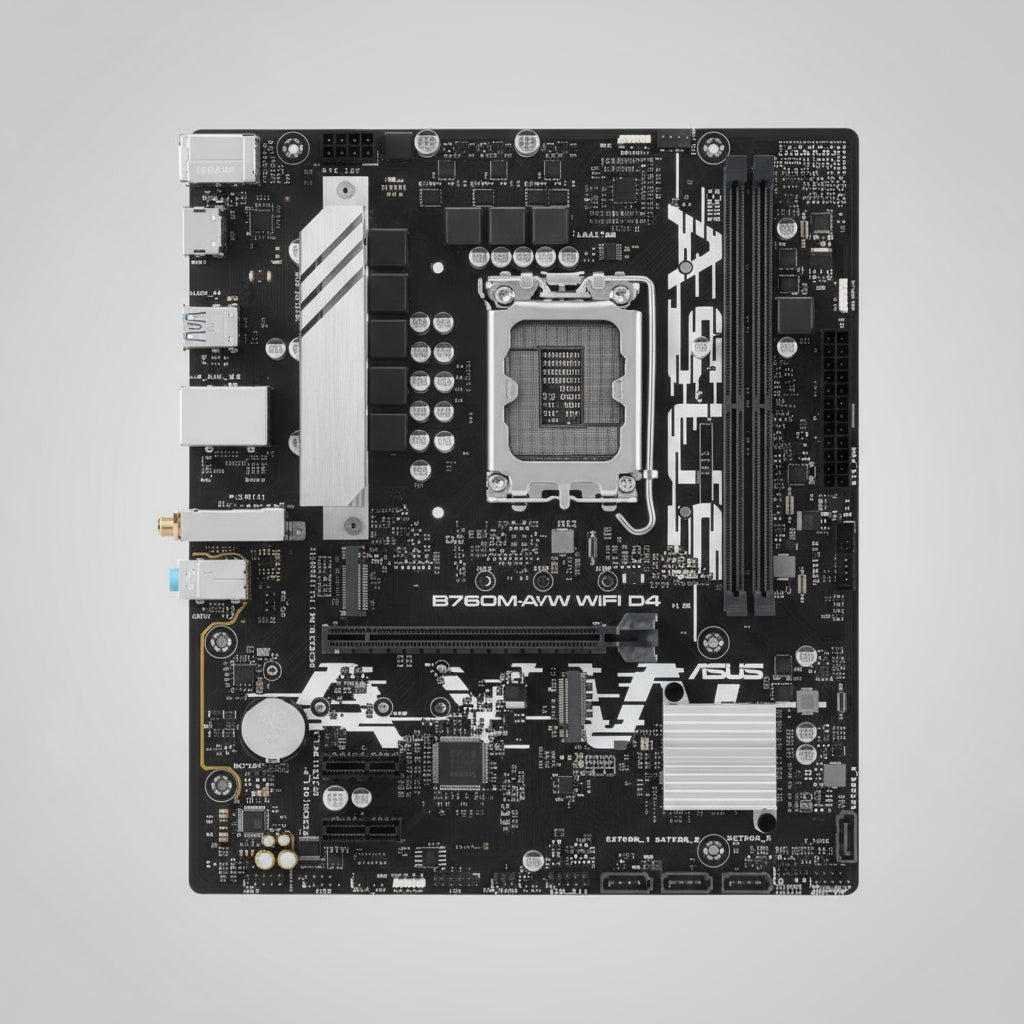

ASUS B760M-AYW WIFI D4 mATX Motherboard
ASUS B760M-AYW WIFI D4 mATX Motherboard
ASUS B760M-AYW WIFI D4 mATX Motherboard
ASUS B760M-AYW WIFI D4 mATX Motherboard

ASUS B760M-AYW WIFI D4 mATX Motherboard

Brand: ASUS
SKU: B760M-AYW-WIFI-D4
Availability: In stock

Key Features

Model: B760M-AYW WIFI D4

Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)

Supported RAM: 2 x DIMM, Max. 64GB, DDR4

Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports

Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot

Ask an expert
Tk 18,900
Tk 20,510
Tk 18,900
Subtotal: Tk 18,900
Description

Specification

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
2 x PCIe 4.0 x1 slots
M.2 Socket 2 x M.2 slots
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)



Memory

Type DDR4
Slots 2 x DIMM
Supported Memory 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory  64GB



Graphics

Graphics 1 x HDMI port
Graphics specifications may vary between CPU types
Supports 4K@60Hz as specified in HDMI 2.1



Connector & Ports

HDMI 1 x HDMI
USB (s) Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio 3 x audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Warranty

Warranty 3 years

Description

ASUS B760M-AYW WIFI D4 mATX Motherboard

The ASUS B760M-AYW WIFI D4 mATX Motherboard is a high-performance and versatile motherboard designed for Intel 12th, 13th, and 14th Gen processors with the LGA1700 socket. Powered by the Intel B760 chipset, it delivers exceptional stability, connectivity, and performance, making it an ideal choice for gamers, content creators, and professionals seeking reliability in a compact mATX form factor.

Equipped with two DIMM slots, the motherboard supports up to 64GB of DDR4 memory with speeds up to 5333MHz (OC), ensuring fast multitasking and responsive system performance. Expansion capabilities include one PCIe 4.0 x16 slot for modern GPUs and two PCIe 4.0 x1 slots for additional devices. For storage, it offers dual M.2 slots (PCIe 4.0 x4) and four SATA 6Gb/s ports, providing flexibility for both NVMe SSDs and traditional drives.

Networking is one of its strong suits, featuring Realtek 2.5Gb Ethernet and built-in Wi-Fi 6 for ultra-fast wired and wireless connections, along with Bluetooth 5.2 for seamless peripheral pairing. The back I/O panel offers four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, and HDMI for integrated graphics output.

For immersive audio, the ASUS B760M-AYW WIFI D4 incorporates a Realtek 7.1 Surround Sound HD Audio CODEC supporting 24-bit/192kHz playback, delivering clear and detailed sound quality. Cooling and stability are enhanced by DIGI+ VRM, multiple fan headers, and a dedicated VRM heatsink design.

Customization and aesthetics are handled through Aura Sync RGB with addressable Gen 2 headers, allowing users to synchronize lighting effects across compatible components. The motherboard also includes ASUS’s 5X Protection III technology, offering overvoltage protection, SafeSlot Core reinforcement, and corrosion-resistant back I/O shielding for long-lasting durability.

User-friendly tools like Armoury Crate, AI Suite 3, and UEFI BIOS make system tuning and monitoring simple and efficient. Overall, the ASUS B760M-AYW WIFI D4 mATX Motherboard combines performance, connectivity, and reliability—perfect for building a modern, feature-packed desktop PC.

Price in Bangladesh: 18,900৳
Buy the ASUS B760M-AYW WIFI D4 mATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This product includes a 3-year warranty.
