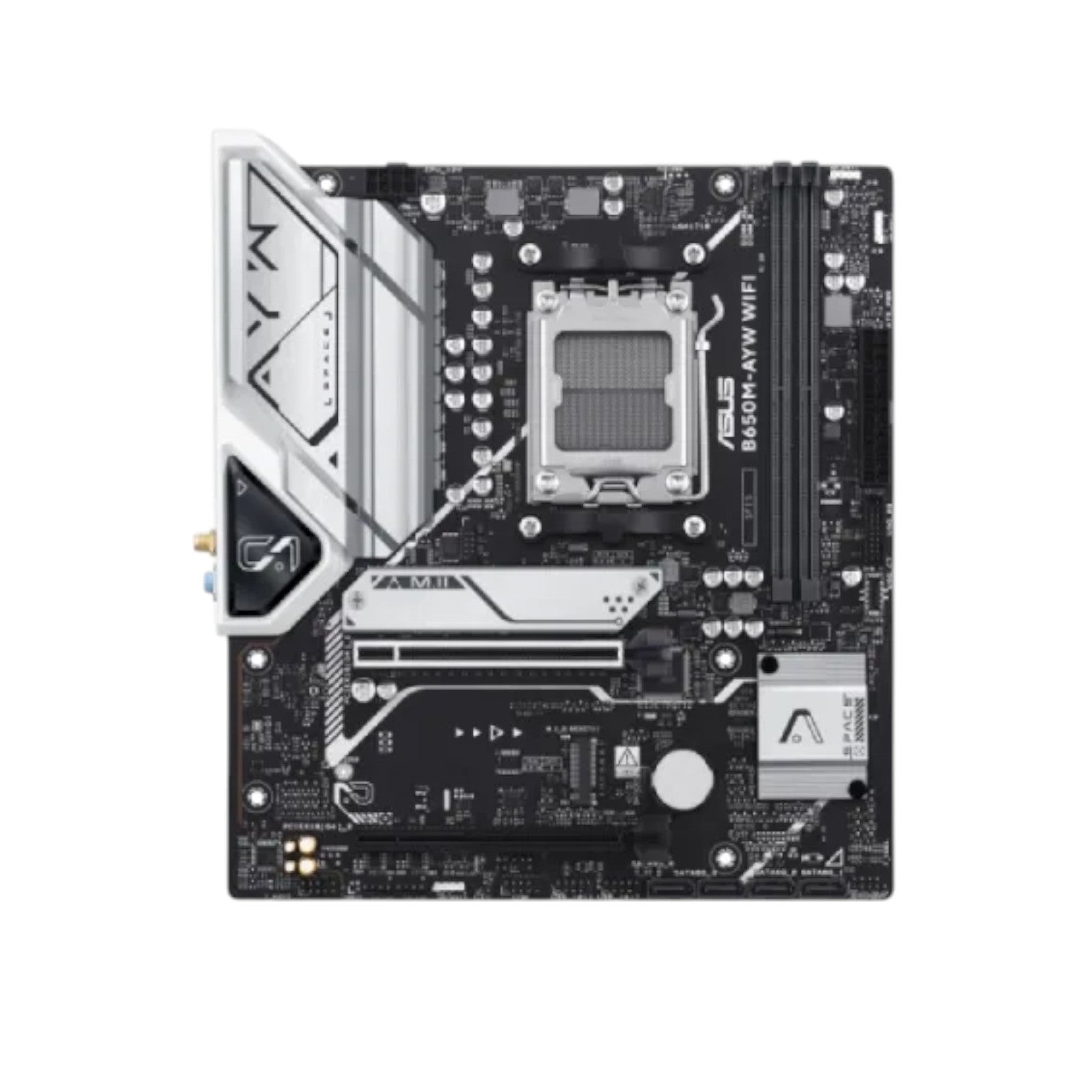

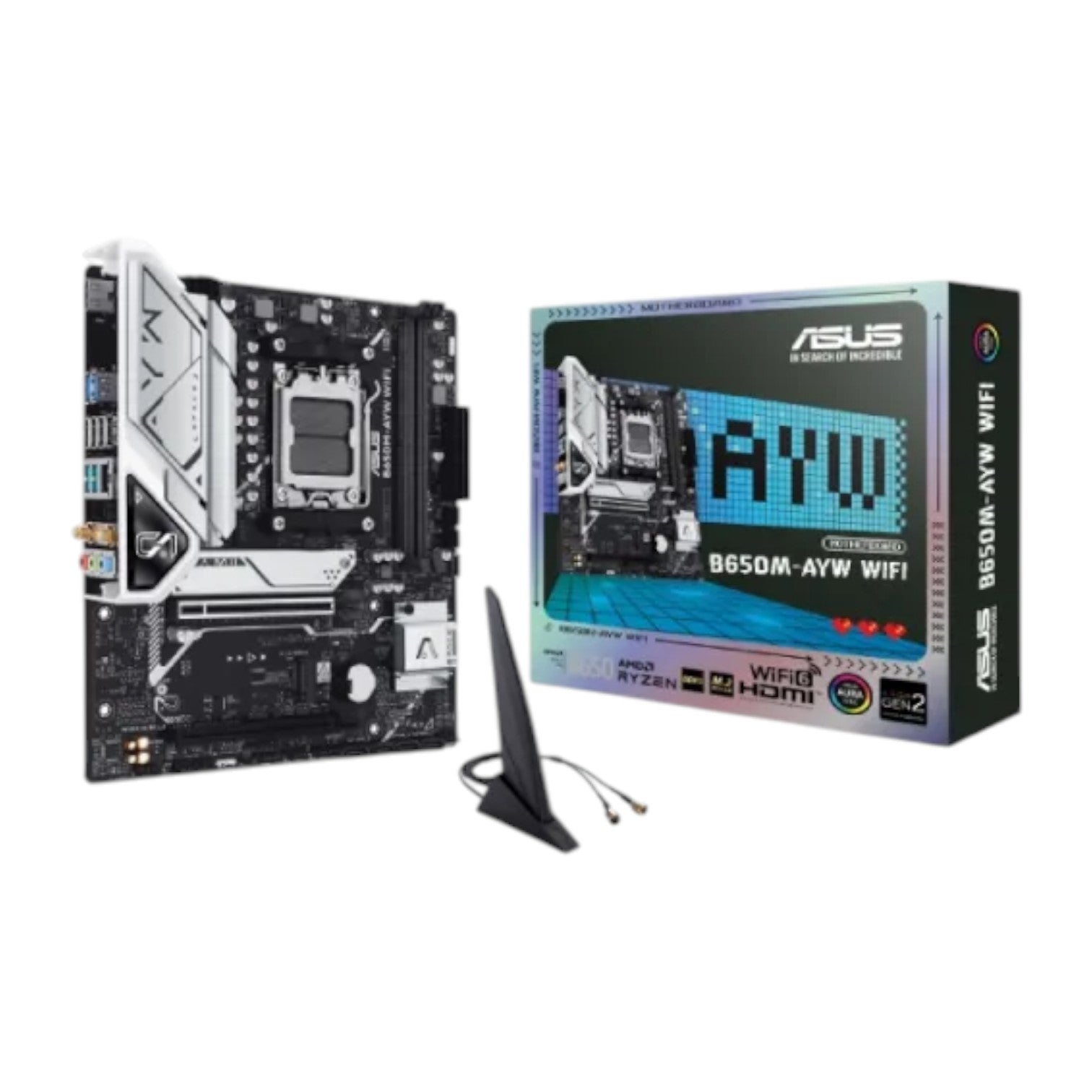

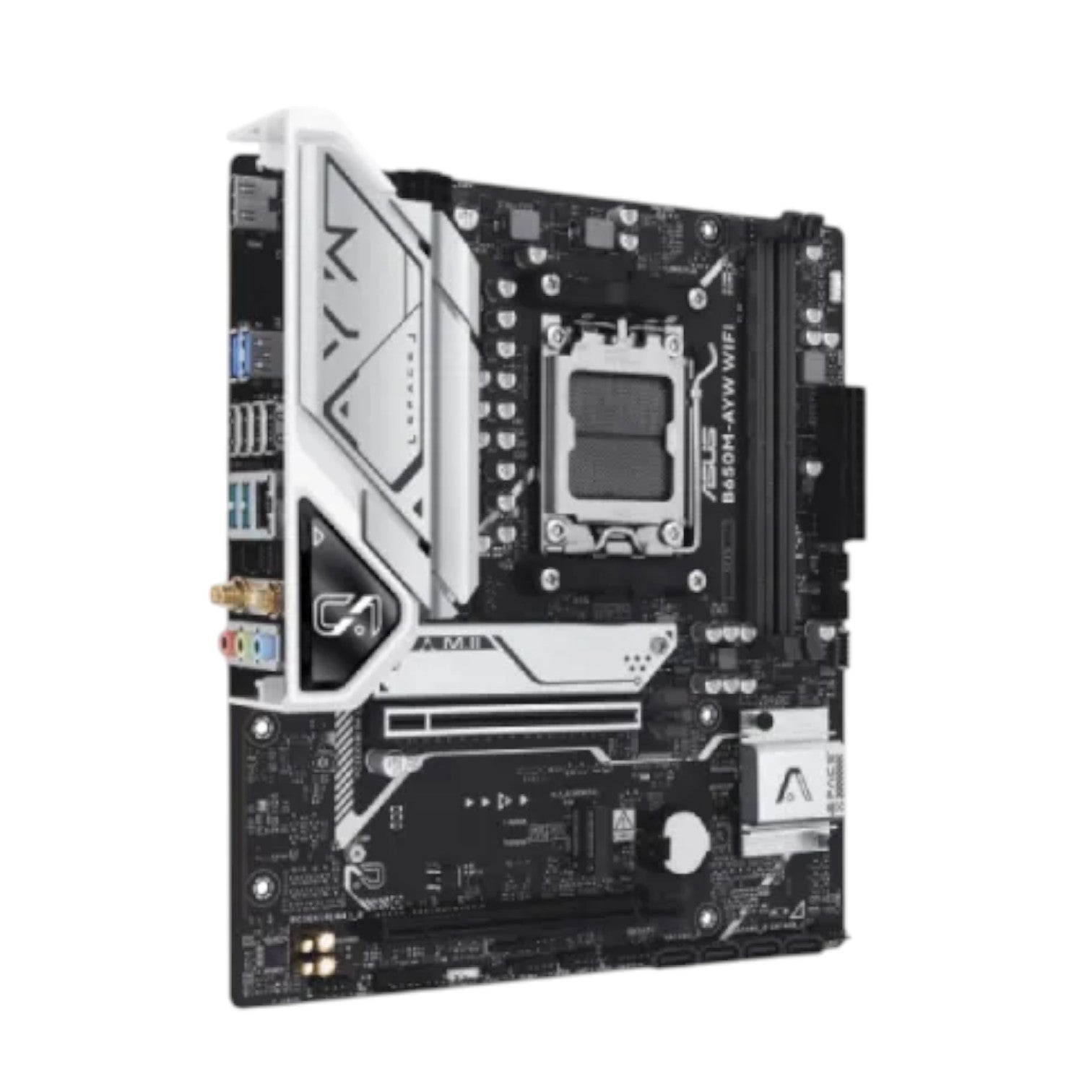

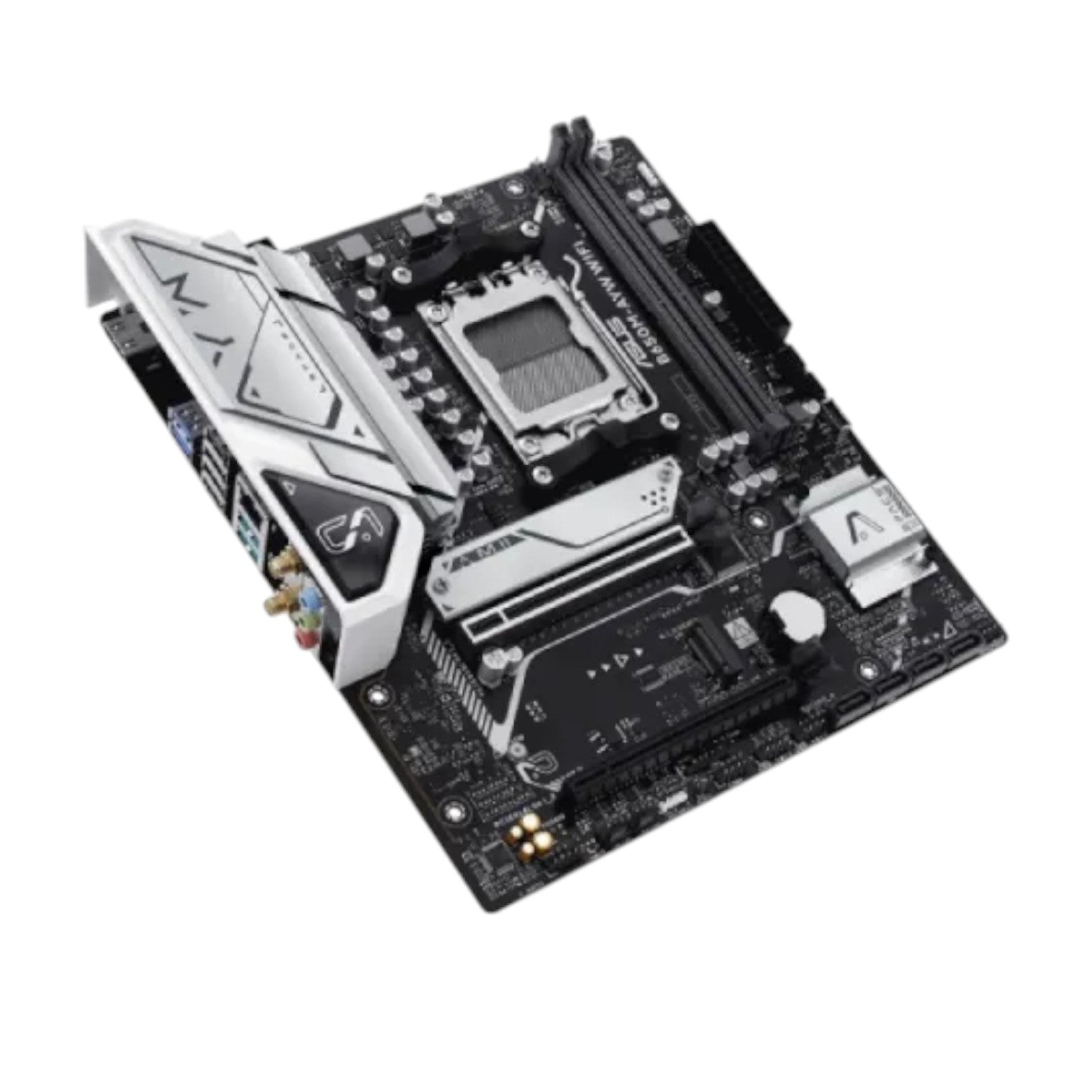

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

Brand: ASUS
SKU: B650M-AYW-WIFI
Availability: In stock

Key Features

  • Model: B650M-AYW WIFI
  • Supported CPU: Ryzen 9000 & 8000 & 7000 Series Processors for Socket AM5
  • Supported Memory: 2x DIMM slots, Max. 96GB DDR5, Up to 8000+MT/s (OC)
  • Graphics Output: 1 x HDMI port, Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Features: 1 x 2.5Gb LAN, WiFi 6, PCIe 5.0 s​​​​lots, Two-Way AI Noise Cancelation
Tk 19,400
Tk 20,940
Tk 19,400
Subtotal: Tk 19,400

Specification

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket Total supports 2 x M.2 slots
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 96GB



Graphics

Graphics 1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.



Connector & Ports

HDMI 1 x HDMI
USB (s) Rear USB (Total 8 ports)
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module WiFi 6
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin System Panel header



Others

Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
Aura Sync
- Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode



Warranty

Warranty 3 years

Description

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

The ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard is a powerful and reliable choice for gamers, creators, and professionals seeking cutting-edge performance in a compact form factor. Built on the AMD B650 chipset, it supports the AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, ensuring exceptional computing power and future-ready compatibility.

Equipped with two DDR5 DIMM slots, this motherboard supports up to 96GB of memory with overclocked speeds reaching 8000+ MT/s (OC). The dual-channel memory architecture, enhanced with AMD EXPO (Extended Profiles for Overclocking) and ASUS OptiMem II technology, delivers superior stability, bandwidth, and efficiency for heavy workloads and advanced gaming performance.

The ASUS B650M-AYW WIFI also ensures strong graphics and expansion support with one PCIe 4.0 x16 slot for modern GPUs and HDMI 2.1 offering 4K@60Hz video output for high-definition displays. For storage, it features two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports, supporting AMD RAIDXpert2 Technology for RAID 0/1/10 configurations, allowing users to balance speed and redundancy based on their needs.

Connectivity is another major strength of this board. With WiFi 6 and Realtek 2.5Gb Ethernet, it provides both high-speed wireless and wired networking solutions for lag-free gaming and smooth data transfers. Multiple USB ports — including USB 10Gbps, 5Gbps, and 2.0 — ensure broad compatibility with peripherals and external devices.

For audio, the motherboard includes the Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting 24-bit/192 kHz playback for crystal-clear, immersive sound. It features premium audio capacitors, dedicated PCB layers, and audio shielding for enhanced clarity and noise isolation.

Durability and reliability are core strengths of the ASUS B650M-AYW WIFI. Backed by ASUS 5X Protection III, Q-Design, and advanced thermal solutions, it ensures long-term stability, efficient cooling, and user-friendly installation. The two-way AI noise reduction further enhances communication clarity, ideal for gamers and professionals who need distraction-free voice input.

Compact yet powerful, the ASUS B650M-AYW WIFI AM5 DDR5 Micro-ATX Motherboard is perfect for high-performance builds where stability, speed, and connectivity matter most.

Price in Bangladesh: 19,400৳
Buy the ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard from Tech Buy. Order online or visit your nearest showroom to get yours at the best price. This motherboard comes with a 3-year warranty.
